Custom 4 Square Junction Box Manufacturer in China
We offer a robust selection of 4 square junction boxes, essential for providing ample wiring space and mounting options for various electrical devices and lighting fixtures. Our durable boxes ensure secure connections and comply with industry standards. Choose from multiple depths and knockout configurations to suit your residential, commercial, or industrial project needs. Benefit from reliable performance and easy installation with our 4 square junction box solutions.
Get Your Desired 4 Square Junction Box to Delight Your Clients
Linkwell Electronics - Your Trusted 4 Square Junction Box Manufacturer from China
Linkwell Electronics, a leading junction box manufacturer in China, is your trusted source for 4 square junction boxes. We specialize in producing durable and versatile enclosures suitable for a wide range of electrical applications. Benefit from our expertise in manufacturing reliable and cost-effective 4 square junction box solutions tailored to your project specifications. Partner with Linkwell for dependable wiring management components.
Various 4 Square Junction Box
4 square junction box
We offer full range of four square junction boxes, essential components for safe and organized electrical wiring. These versatile enclosures provide ample space for making connections and mounting devices in residential, commercial, and industrial settings. Available in various sizes and materials, our square junction boxes ensure durability and compliance with electrical standards. Choose from different knockout configurations to suit your specific wiring needs, guaranteeing a reliable and professional installation.

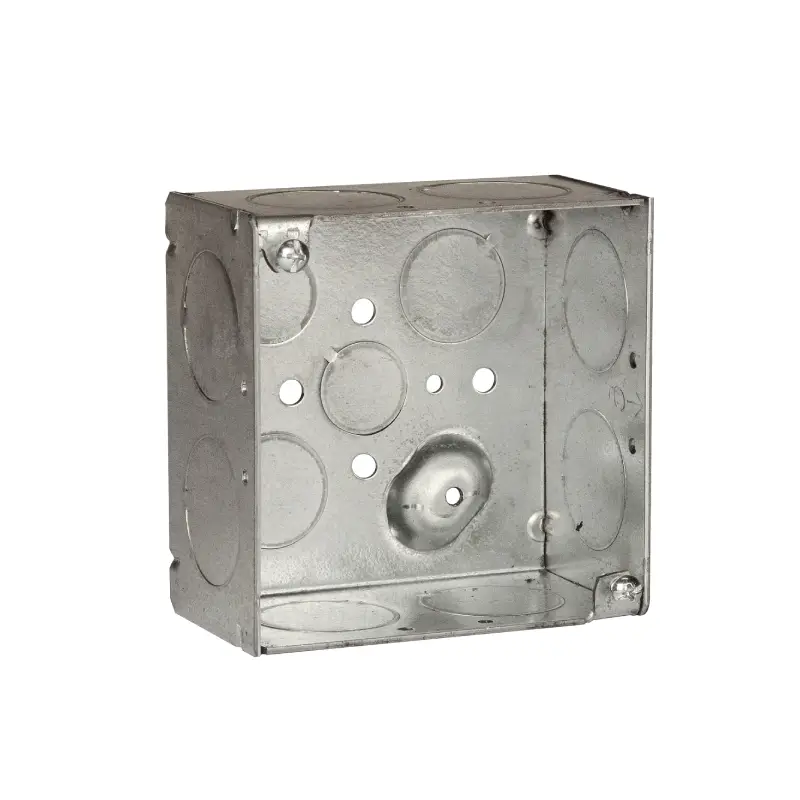

4 inch square junction box
We offer a comprehensive range of 4-inch square electronic junction boxes, providing a versatile and spacious solution for various electrical wiring needs. These durable enclosures accommodate multiple conductors and offer ample room for connections and device mounting. Choose from different depths and knockout configurations to perfectly suit your residential, commercial, or industrial applications. Ensure secure and organized wiring with our reliable 4-inch square junction box options.
PVC square junction box
We offer various square PVC junction boxes, providing a lightweight, durable, and corrosion-resistant solution for your electrical wiring needs. Ideal for residential and light commercial applications, our PVC boxes ensure safe and organized wire connections. Choose from various sizes and knockout configurations for easy installation and reliable performance. Explore our cost-effective PVC square junction box options.

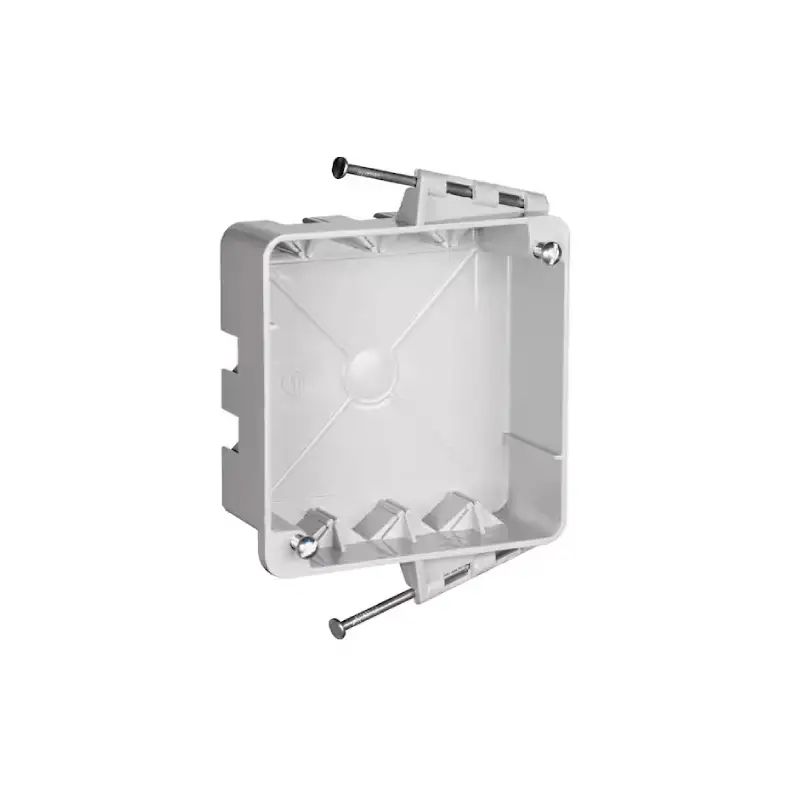

ring floodlight square junction box
We offer adaptable square junction boxes suitable for mounting Ring floodlights. These boxes provide a secure and weatherproof enclosure for wiring connections, ensuring safe and reliable operation of your Ring security device. Choose from various sizes and knockout configurations to accommodate your specific installation needs. Ensure a professional and durable setup for your Ring floodlight with our compatible square junction box solutions.

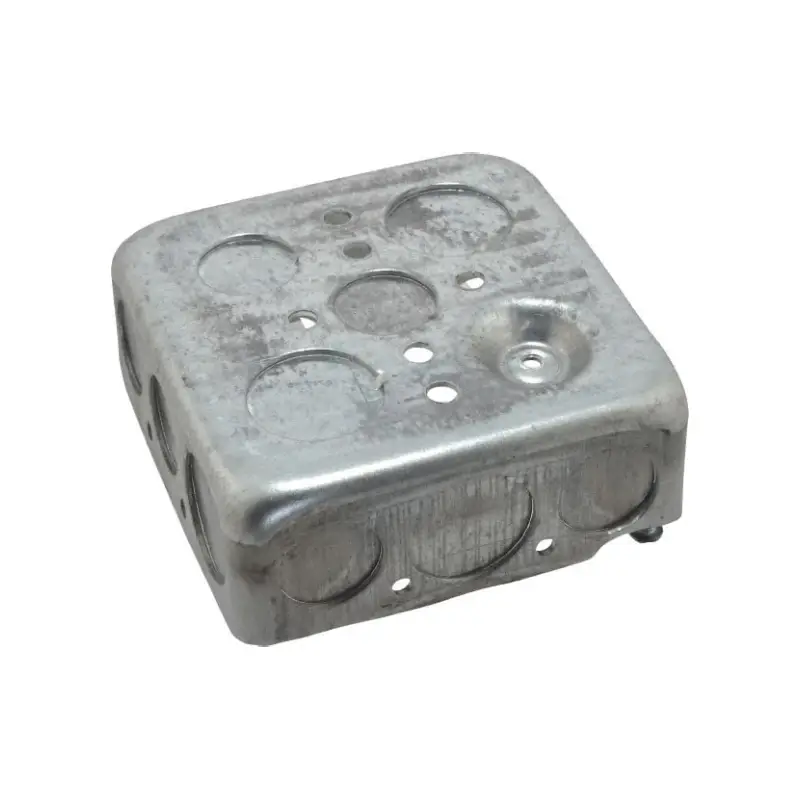

square metal junction box
As a leading junction box manufacturer, we produce square metal junction boxes designed for robust performance and durability. Our metal enclosures offer excellent protection for wiring in various electrical applications, ensuring safety and longevity. Choose from a range of sizes and knockout configurations to meet your specific project requirements. Benefit from our reliable manufacturing and cost-effective solutions for your square metal junction box needs.
Why Choose Our 4 Square Junction Box
Depth and Knockout Configurations
We understand that wiring capacity and conduit routing are critical considerations for any electrical project. Therefore, we offer our 4 square junction boxes in a variety of depths to accommodate different wire fill requirements and the size of connected devices. Furthermore, you can customize the number, size, and location of knockouts on each side of the box. This flexibility allows for precise conduit entry points, minimizing unnecessary bends and streamlining your wiring layout for efficient and organized installations, adhering to specific project designs and code requirements.
Material and Finish Options
While our standard 4 square junction boxes are constructed from durable galvanized steel, we also offer options in aluminum or other specialized metals to suit specific environmental conditions or project requirements. Additionally, you can choose from various finishes, including powder coating in a range of colors. This customization not only enhances the aesthetic appeal but also provides added protection against corrosion, abrasion, and other environmental factors, ensuring the longevity and reliability of the junction box in diverse applications, from standard indoor to more demanding outdoor settings.
Mounting Features and Accessories
We provide several customizable mounting options for our 4 square junction boxes to ensure seamless integration into your specific installation environment. These include various bracket types, mounting straps, and pre-drilled holes in specific locations to accommodate different mounting surfaces and orientations. We can also incorporate specialized accessories such as internal grounding studs, terminal blocks, or divider plates to further tailor the box to your unique needs, simplifying the wiring process and providing a more organized and functional enclosure for your electrical components.
Custom Cutouts and Modifications
For projects requiring specific integrations, we offer the ability to create custom cutouts on the sides or top of the 4 square junction box to accommodate switches, connectors, or other electrical components. Our manufacturing process allows for precise modifications to meet your exact specifications, eliminating the need for on-site alterations and ensuring a professional and secure fit for your devices. This level of customization streamlines the installation process and provides a tailored solution that meets the unique demands of your electrical design, saving time and ensuring a clean and integrated appearance.
what are square junction boxes?
Square junction boxes are electrical enclosures that, as their name suggests, have a square shape.
These junction boxes square are commonly used to house electrical connections for various purposes, including acting as wiring junctions, mounting outlets or switches (often requiring a mud ring or plaster ring to adapt the square shape to a round or rectangular device), and supporting light fixtures, especially ceiling-mounted ones.
They come in various standard sizes, such as 4×4 inches or larger, and different depths to accommodate varying numbers of wires and the size of the connections.
Square junction boxes can be made from metal (typically steel or aluminum) or non-metallic materials (such as PVC plastic). Metal boxes offer durability and can provide grounding continuity when properly installed, while plastic boxes are lightweight and corrosion-resistant.
They feature multiple knockouts on their sides and sometimes the back, allowing for the entry and exit of conduits or non-metallic cables to route wiring into and out of the box to connect different parts of an electrical circuit.
square junction box to round
To transition from a square junction box to accommodate a round electrical device or fixture, you’ll typically use an adapter ring, often called a “mud ring” or “plaster ring.” These rings are designed to mount directly onto the existing square box, providing a circular opening with standard mounting screw holes that fit round fixtures like ceiling lights or some types of wall sconces.
The adapter ring essentially acts as an interface, bridging the difference in shape and ensuring a secure and aesthetically pleasing installation of the round device.
These adapter rings come in various sizes and raise heights to accommodate different fixture designs and ensure proper clearance from the wall or ceiling surface. They are usually made of metal and attach to the screw holes on the square junction box.
Once the adapter ring is securely fastened, the round light fixture or device can be mounted to the ring’s pre-drilled holes, providing a stable and code-compliant installation over the existing square box. This method avoids the need to replace the entire junction box, simplifying the installation process.
where can you use square junction box?
Square junction boxes are versatile electrical enclosures suitable for a wide range of applications in both residential and commercial settings due to their ample wiring space.
Their square shape provides more cubic inches compared to standard single-gang rectangular boxes, making them ideal for situations with multiple wire connections running in different directions. This extra room simplifies wire management and reduces the risk of overcrowding, ensuring safer and more organized electrical installations.
These junction boxes square are commonly used as junction points to connect multiple circuits, allowing for the splitting and distribution of power to various locations.
They can also serve as mounting boxes for a variety of electrical devices. With the addition of appropriate covers or adapter rings, square boxes can accommodate:
- Light Switches and Outlets: Using single-gang or multi-gang covers designed for square boxes.
- Light Fixtures: Often requiring a round or octagonal mud ring adapter for proper mounting.
- Junctions for Multiple Conductors: Providing sufficient space for numerous wire splices and connectors.
- Ceiling Applications: Excluding ceiling fans unless a fan-rated box is used with appropriate bracing.
4 square junction box dimensions
Standard 4 square junction boxes typically have a consistent width and length of approximately 4 inches by 4 inches, hence the name. However, the depth can vary to accommodate different wiring needs and the size of devices being installed.
Common depths include shallow versions around 1-1/2 inches, standard depths around 2-1/8 inches, and deeper boxes reaching up to 3-1/2 inches or even more for high-capacity applications. This variation in depth directly impacts the cubic inch capacity of the box, determining how many wires and connections it can safely contain according to electrical codes.
Here are some common 4 square junction box dimensions:
- Width x Length: Typically 4 inches x 4 inches (101.6 mm x 101.6 mm).
- Depth: Ranges commonly from 1-1/2 inches (38.1 mm) to 2-1/8 inches (54 mm), and can go deeper to 3-1/2 inches (89 mm) or more for specific applications.
- Cubic Capacity: Varies significantly with depth, ranging from approximately 18 cubic inches for shallow boxes to over 30 cubic inches for standard depths and even more for deeper versions.
The specific dimensions are crucial for planning electrical installations, ensuring adequate space for wiring and selecting the correct box for the intended use, whether it’s a simple junction or mounting a device with associated wiring. Always refer to the manufacturer’s specifications for precise measurements.
square box vs junction box
While all square boxes are indeed a type of junction box, not all junction boxes are square.
Understanding these nuances, particularly concerning their shape, common applications, capacity, mounting, and device compatibility, is helpful for accurate terminology and proper selection for electrical installations.
Shape and Size
A square box, as its name implies, has a square shape, with common dimensions being 4×4 inches. This consistent shape offers a larger internal volume compared to standard single-gang rectangular junction boxes. This increased capacity makes them suitable for situations with multiple wire connections or when mounting larger devices.
A junction box is a broader term encompassing any electrical enclosure used to house wire connections. While many are rectangular, square boxes are a specific type of junction box. Junction boxes come in various shapes (round, octagonal, rectangular, square) and sizes, each designed for particular applications and wiring needs.
Square boxes are frequently employed where more wiring capacity is needed, such as for complex lighting circuits or as pull points for running wires. They are also commonly used in commercial and industrial settings due to their robust construction and versatility in accommodating multiple conduits.
Junction boxes, in general, serve a wider range of applications, from simple wire splices in residential wiring to housing control circuits in industrial machinery. Their specific shape and size are chosen based on the number of conductors, the required wiring space, and the mounting of any associated devices.
Internal Capacity
Due to their square shape and typically larger dimensions, square boxes offer a greater cubic inch capacity compared to standard rectangular junction boxes. This increased internal volume allows for more wires, larger wire connectors, and potentially small devices to be housed safely within the enclosure, adhering to fill requirements.
Junction boxes vary significantly in their internal capacity depending on their dimensions and shape. While a 4 square box offers substantial space, a small rectangular junction box for a single switch will have a much smaller capacity, tailored to its specific purpose and the number of conductors it needs to contain.
Square boxes often feature mounting holes on their sides or internal brackets that allow for secure attachment to wall studs, ceiling joists, or other structural elements. Their larger surface area can also provide more stability for heavier fixtures or devices when properly supported.
Junction boxes offer diverse mounting options depending on their design and intended use. Some have simple mounting ears for drywall, while others have brackets for attaching to studs or specialized hardware for specific applications like concrete mounting or suspension from ceilings.
Device Compatibility
While a square box itself doesn’t directly accommodate standard single-gang devices like switches or outlets, adapter rings (mud rings or plaster rings) are commonly used to provide a round or rectangular opening for these devices. This makes square boxes versatile for both wiring junctions and device mounting.
Junction boxes are often specifically shaped to directly accommodate certain devices. Rectangular boxes are standard for single and multi-gang switches and outlets, while round or octagonal boxes are typically used for ceiling-mounted light fixtures, providing the necessary mounting pattern and wiring space.
Send Your Inquiry Now
All-in-one 4 Square Junction Box Solutions for Your Project
We offer comprehensive all-in-one 4 square junction box solutions to streamline your electrical projects. Our robust enclosures provide ample wiring space and versatile mounting options for various devices and fixtures. Simplify your installations with our range of depths and knockout configurations, ensuring secure and organized connections tailored to your specific needs. Explore our selection for dependable performance and efficient wiring management.
