Custom 5 Way Junction Box Manufacturer in China

As Linkewell Electronics, we offer a robust 5-way junction box designed for secure and organized wiring connections. Our box provides ample space for terminating multiple cables, ensuring electrical safety and easy maintenance. Built with durable materials, it offers reliable protection for your electrical circuits in various applications.

Get Your Desired 5 Way Junction Box to Delight Your Clients

Linkwell Electronics - Your Trusted 5 Way Junction Box Manufacturer from China

Linkwell Electronics, a trusted 5-way junction box manufacturer based in China, delivers top-rated, reliable electrical solutions. Our extensive range of junction boxes caters to diverse project requirements, offering durable construction and secure connections. Benefit from our expertise in manufacturing dependable and cost-effective 5-way junction boxes for your electrical installations. Partner with Linkwell for your connectivity needs.

Various 5 Way Junction Box

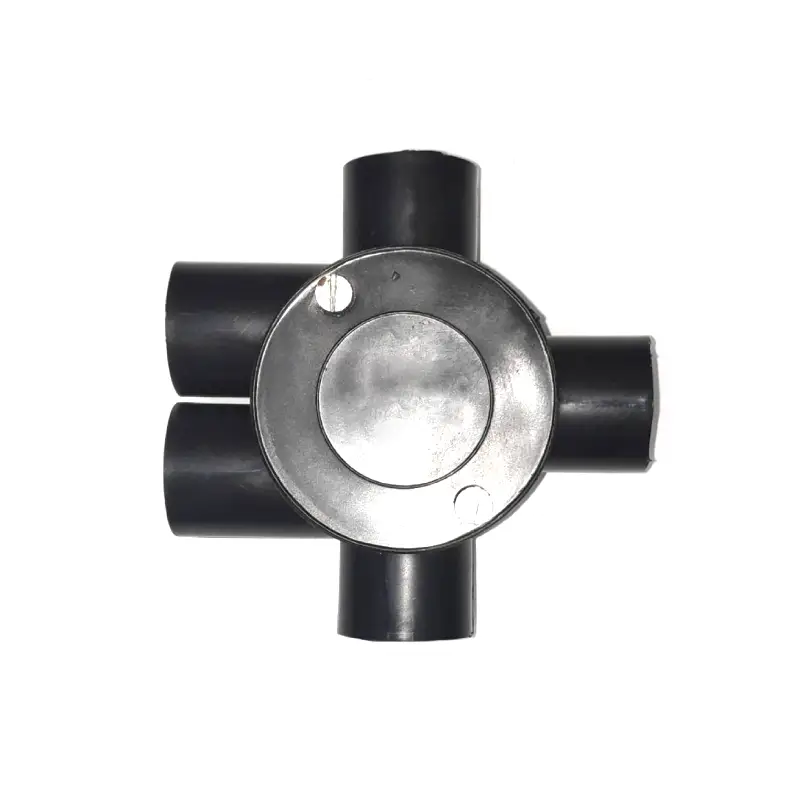

round 2 line 5-way junction box

Linkewell Electronics offers a robust Round 2 Line 5-way Junction Box, meticulously engineered for secure and efficient electrical connections. Our junction box provides ample space for wiring, ensuring easy installation and maintenance. Built with high-quality materials, it guarantees durability and reliable performance in various applications. Choose Linkewell for your dependable junction box solutions.

5 way waterproof junction box

As Linkewell Electronics, we offer a robust 5-way waterproof junction box, engineered for reliable outdoor connections. Featuring a durable build and IP68 rating, it safeguards against water, dust, and UV. Easy to install, our junction box ensures secure wiring for various applications, providing lasting protection and peace of mind.

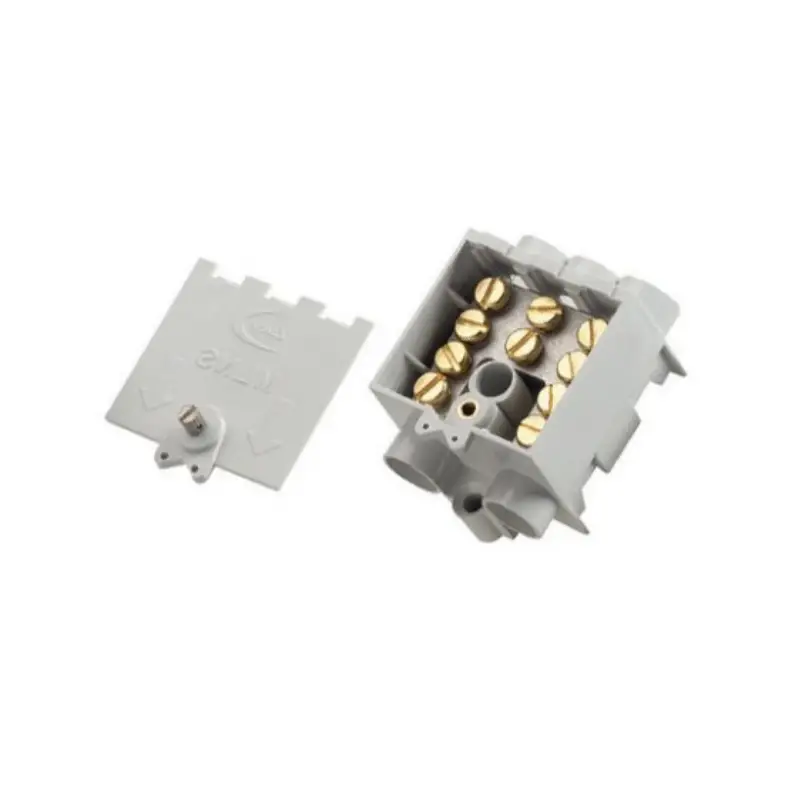

5-way all-insulated neutral link box

As Linkewell Electronics, we offer a high-quality 5-way all-insulated neutral link box, ensuring safe and reliable electrical connections. Our design provides complete insulation for enhanced safety and prevents accidental contact. This robust and versatile solution is ideal for various wiring applications, offering secure termination for up to five neutral conductors. Choose Linkewell for dependable electrical components.

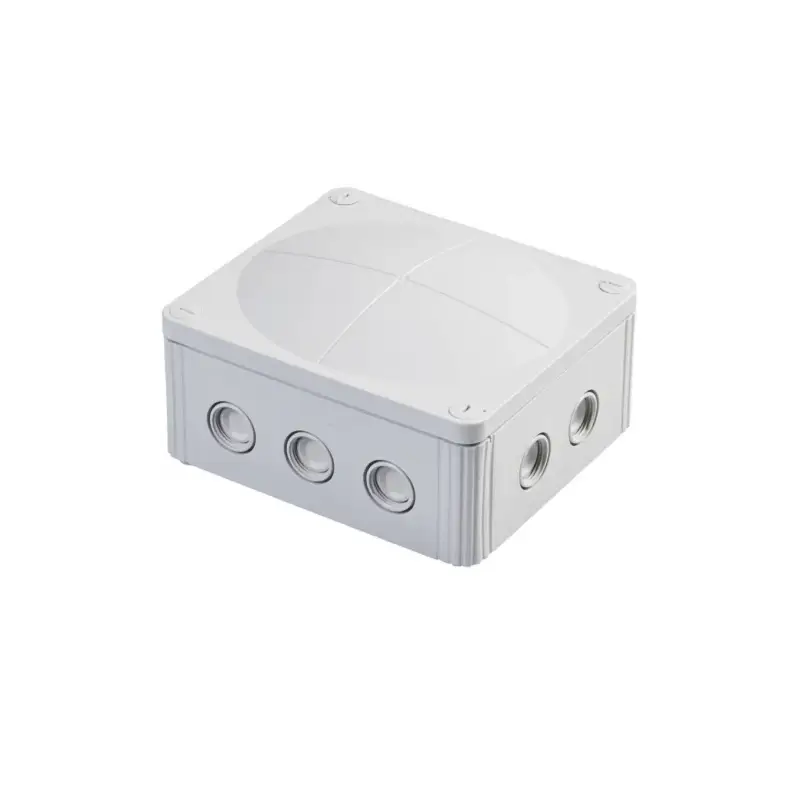

IP66 5 way 57amp Junction Box

Linkewell Electronics offers a robust IP66 5-way junction box designed for demanding environments. This high-quality enclosure provides secure and reliable electrical connections with a 57-amp capacity. Its 5-way configuration offers versatile wiring options, ensuring efficient power distribution. The IP66 rating guarantees excellent protection against dust and powerful water jets, making it ideal for outdoor or industrial applications. Trust Linkewell for dependable connectivity solutions.

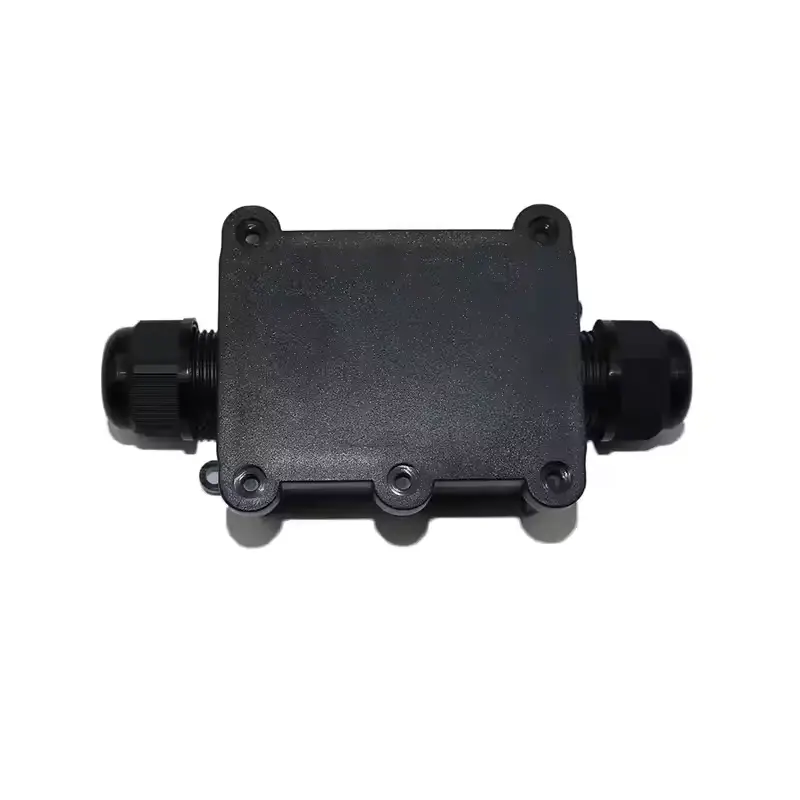

30 amp 5 way junction box

Linkewell Electronics offers a reliable 30 amp 5-way junction box, expertly engineered for secure and efficient electrical connections. Our robust design ensures durability and safety for various applications.

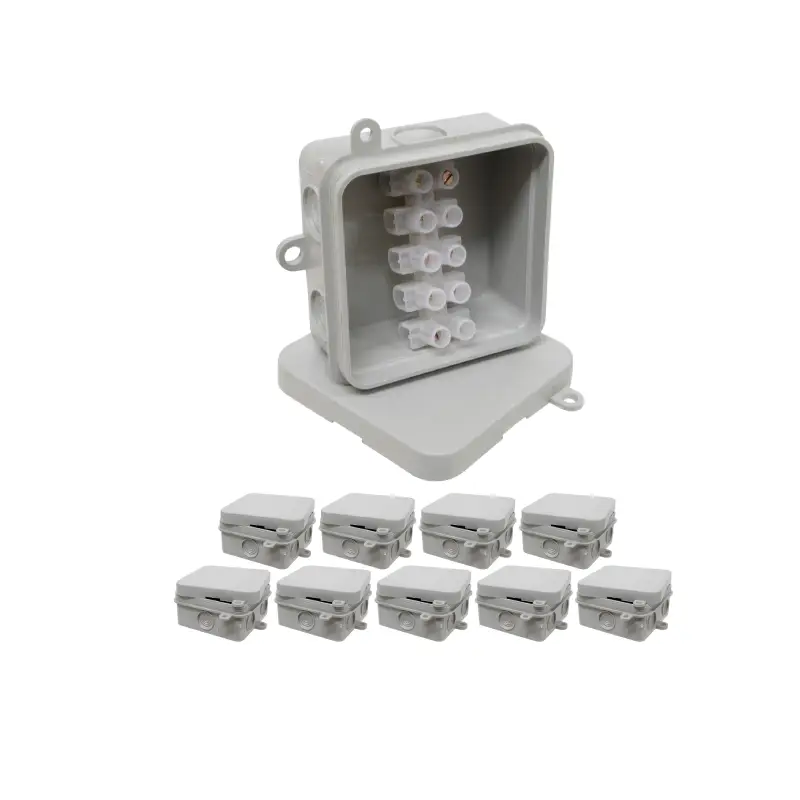

5 way lighting junction box

5-way strip connector for electrical wiring and lighting! Linkewell Electronics offers these handy components. They provide a simple and effective way to join up to five wires together securely. Ideal for various lighting installations and general electrical connections, these connectors ensure a safe and organized setup. You can count on Linkewell for reliable electrical solutions.

Why Choose Our 5 Way Junction Box

Material Composition

We offer a range of durable materials for our junction boxes, including various grades of plastic (like ABS, polycarbonate, and nylon) and metal (such as steel or aluminum). We can help you select the ideal material based on environmental factors like temperature, humidity, and potential exposure to chemicals or impact, ensuring longevity and reliable performance in your intended application.

Terminal Block Configuration

The internal terminal block is a crucial element, and we provide options for customization. We can adjust the type of terminals (screw clamp, push-fit, etc.), the wire gauge capacity each way can accommodate, and even the physical arrangement of the terminals within the box. This ensures the junction box perfectly suits the specific wiring needs and the types of conductors you’ll be using in your electrical or lighting systems.

Ingress Protection (IP) Rating

Depending on the environment where the junction box will be installed, the level of protection against dust and water ingress is vital. We can customize the IP rating of our 5-way boxes by incorporating different sealing mechanisms, gaskets, and cable entry points. This ensures the internal connections remain safe and functional, whether it’s for indoor, outdoor, or even more demanding industrial environments.

Mounting Options and Enclosure Features

We recognize that installation requirements vary greatly. Therefore, we offer customization in terms of mounting options, such as surface mounting flanges, DIN rail clips, or threaded holes. Additionally, we can modify the enclosure itself with features like knockouts for specific cable gland sizes, integrated strain relief mechanisms, or even custom colors and labeling to seamlessly integrate the junction box into your overall system design.

what are 5-way junction boxes?

A “5-way junction box” typically refers to an electrical enclosure designed with five connection points or ports to accommodate and protect the joining of up to five electrical cables.

These 5 way junction boxes serve as a central and safe location to connect multiple wires, ensuring proper insulation and preventing accidental contact. They are crucial for organizing complex wiring systems and facilitating the distribution of electrical power to various points.

These junction boxes can be made from various materials like metal (steel, aluminum) or non-metal (PVC, fiberglass), each offering different benefits in terms of durability, grounding capabilities, and suitability for specific environments (indoor, outdoor, wet locations).

The five connection points can be in the form of knockouts that can be removed to run cables through, or they might be specific types of connectors depending on the application, such as waterproof glands for outdoor use or quick-connect terminals for temporary setups.

what are benefits of 5 way junction box?

A 5-way junction box offers several advantages in electrical installations, primarily centered around safety, organization, and accessibility.

By providing a secure enclosure for wire connections, it significantly reduces the risk of electrical hazards such as short circuits and accidental contact with live wires.

This containment also helps to protect the wiring itself from physical damage, dust, and moisture, contributing to the long-term reliability of the electrical system.

A central junction box simplifies troubleshooting and future modifications by providing a clearly defined point of access to multiple circuits.

The use of a 5-way junction box promotes a more organized and manageable wiring system. Instead of having scattered and unprotected splices, all connections are neatly housed within a single enclosure. This makes it easier to identify and work on specific circuits when necessary. The availability of five connection points offers flexibility in routing wires to various outlets, lights, or appliances, making it suitable for more complex wiring configurations.

Here are some advantages of using 5 way junction boxes in the following:

Enhanced Safety: Encloses and protects electrical connections, reducing the risk of shocks and fires.
Protection of Wiring: Shields wires from physical damage, dust, and moisture, prolonging their lifespan.
Improved Organization: Provides a central point for multiple connections, making wiring neater and easier to trace.
Simplified Maintenance: Offers easy access for inspection, repairs, and modifications to the wiring.
Increased Flexibility: Allows for the connection and distribution of power to multiple directions from a single point.

what Is 5 way junction box used for?

A 5-way junction box serves as a central connection point in electrical wiring systems, primarily used to safely join and distribute power to multiple circuits or devices. Its five ports allow for up to five incoming or outgoing cables to be connected within a protected enclosure.

This is particularly useful when branching a power supply to several different locations, such as multiple light fixtures from a single ceiling outlet, or when wiring a series of outlets along a wall. By consolidating these connections, the junction box ensures electrical continuity while maintaining safety and organization.

Beyond basic power distribution, 5-way junction boxes are also employed in more complex scenarios. They can facilitate the connection of control wires for lighting systems, sensors, or other low-voltage applications.

In outdoor settings, specialized waterproof 5-way junction boxes are crucial for connecting landscape lighting, security cameras, or other external electrical equipment, protecting the connections from moisture and environmental damage.

Their versatility makes them a fundamental component in both residential and commercial electrical installations.

Here’s a list highlighting the typical uses of a 5-way junction box:

Distributing power to multiple light fixtures from a single source.
Wiring a series of electrical outlets or appliances.
Connecting control circuits for lighting, sensors, or automation systems.
Serving as a central connection point for outdoor electrical installations like landscape lighting or security systems.
Facilitating complex wiring configurations where multiple cables need to be joined and routed in different directions.

How to choose the best 5 way junction box?

Choosing the best 5-way junction box involves considering several factors to ensure safety, functionality, and suitability for your specific electrical needs. The environment where the box will be installed is a primary concern.

For outdoor or damp locations, you’ll need a weatherproof or waterproof box with an appropriate IP (Ingress Protection) or NEMA (National Electrical Manufacturers Association) rating to protect against moisture, dust, and corrosion. Materials also matter; plastic boxes are often suitable for general indoor use and are corrosion-resistant, while metal boxes offer greater durability and may be required for certain applications or when using metal conduits.

The size and type of the junction box should accommodate the number and size of the wires you need to connect, as well as any connectors or devices that will be housed within it. Ensure there are sufficient knockouts or entry points for your cables. Consider the mounting method required for your installation (surface mount, flush mount) and choose a box designed accordingly.

Additionally, check for relevant safety certifications (like UL or CSA listings) to ensure the box meets industry standards. Thinking about potential future modifications or additions to your wiring can also guide you to choose a box with a bit more capacity than your immediate needs.

Here’s a list of key factors to consider when selecting a 5-way junction box:

Environment: Indoor vs. outdoor, dry vs. wet/damp locations.
Weatherproofing/Waterproofing: IP or NEMA rating for protection against elements.
Material: Plastic (PVC, polycarbonate, ABS) for corrosion resistance and general use, or metal (steel, aluminum) for durability and specific requirements.
Size and Capacity: Internal volume to accommodate wires, connectors, and potential future needs.
Number and Size of Knockouts/Entry Points: Ensure enough ports for all incoming and outgoing cables.
Mounting Type: Surface mount, flush mount, or other specialized mounting.
Safety Certifications: Look for UL, CSA, or other relevant listings.
Durability and Impact Resistance: Especially important for areas where the box might be subject to physical stress.
Temperature Rating: Ensure the box can withstand the expected operating temperatures.
Grounding Provisions: Metal boxes should have provisions for grounding.
Ease of Installation: Consider features like removable knockouts and mounting options.
Cost: Balance features and quality with your budget.

Send Your Inquiry Now

All-in-one 5 Way Junction Box Solutions for Your Project

We provide versatile all-in-one 5-way junction box solutions designed to streamline your electrical projects. Our boxes offer secure connections, ample space, and durable construction for both indoor and outdoor applications. Simplify wiring, enhance safety, and ensure organized installations with our comprehensive range of 5-way junction box options tailored to your specific needs. Explore our selection for reliable and efficient electrical connections.
