The Importance of Anti-condensation Heaters in Electrical Panels

Moisture in electrical panels creates serious problems for you. When condensation forms, it speeds up insulation damage and corrosion, especially on conductor parts. Studies show that high humidity and temperature changes can quickly lead to surface cracks, roughness, and lower resistivity. These issues often cause equipment failure. Trusted brands like LINKWELL ELECTRIC offer anti-condensation heaters to help you keep your panels dry and safe.

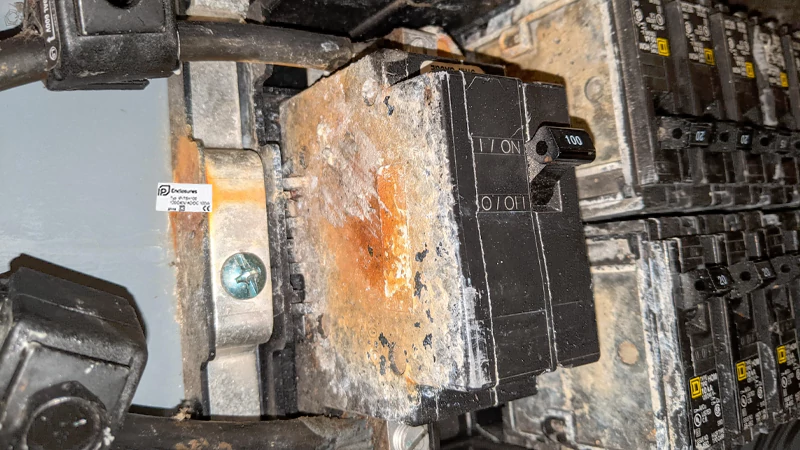

The Risk of Moisture to Electrical Panels

Causes of Condensation

You often see condensation inside electrical panels when the air inside holds more moisture than the air outside. This usually happens when the panel cools down quickly, causing water vapor to turn into liquid on cold surfaces. Sudden drops in temperature, especially at night or during rainy seasons, make this problem worse. If you install panels in areas with high humidity, you increase the risk of moisture buildup. Even sealed enclosures can trap moisture during manufacturing or allow it to leak in from the environment.

Note: Scientific research shows that when relative humidity inside a panel rises above 60%, the risk of corrosion and electrical failure goes up. Field studies on wind turbines confirm that high humidity and condensation inside enclosures lead to more electrical failures, especially during wet weather. Managing humidity inside the panel is more effective than just controlling temperature.

The Influence of Condensate Water on Electrical Panels

Condensation inside your electrical panel can cause serious damage. When water collects on circuit boards or metal parts, it increases ionic conduction. This can change electrical resistance, create short circuits, and speed up corrosion. Over time, you may notice cracks, rough surfaces, or even complete equipment failure. Long-term studies show that temperature changes inside enclosures affect relative humidity, making condensation more likely at lower temperatures.

You can use drying methods, such as heating or reducing humidity, to remove moisture from panels. High-temperature drying works well but may damage sensitive parts if used too often. The best way to prevent condensation is to keep the inside of your panel dry and stable. Experts recommend storing panels at 20–25°C and keeping relative humidity below 5% to protect your equipment.

What is Anti-condensation Heaters?

How They Work

You use anti-condensation heaters to keep your electrical panels dry and safe. These heaters raise the temperature inside the enclosure just enough to prevent condensation from forming. When the air inside the panel stays warmer than the dew point, water vapor cannot turn into liquid on cold surfaces. This simple action helps you avoid corrosion, short circuits, and equipment failure.

Most anti-condensation heaters use Positive Temperature Coefficient (PTC) resistors. These special resistors heat up when you turn on the power. As the temperature rises, the resistance increases, which limits the current and keeps the heater from overheating. This self-regulating feature makes PTC heaters very safe and energy efficient. You can also connect a hygrostat or thermostat to control when the heater turns on or off. This lets you manage both temperature and humidity inside your panel.

Lab tests and technical reports show that anti-condensation heaters work by keeping the internal temperature above the dew point. For example, studies on ship control cabinets found that heating units with fans kept the inside temperature between 33°C and 40°C. This stopped moisture from forming and protected the electronics from corrosion and damage. Other experiments confirm that controlling temperature and airflow is the best way to prevent condensation.

When you install an anti-condensation heater, you usually mount it on a DIN rail or panel wall. You connect the leads to the terminal strips marked for heaters. Safety instructions recommend keeping all internal wiring at least 15 mm away from the heater element. This helps you avoid heat damage to wires and keeps your panel safe.

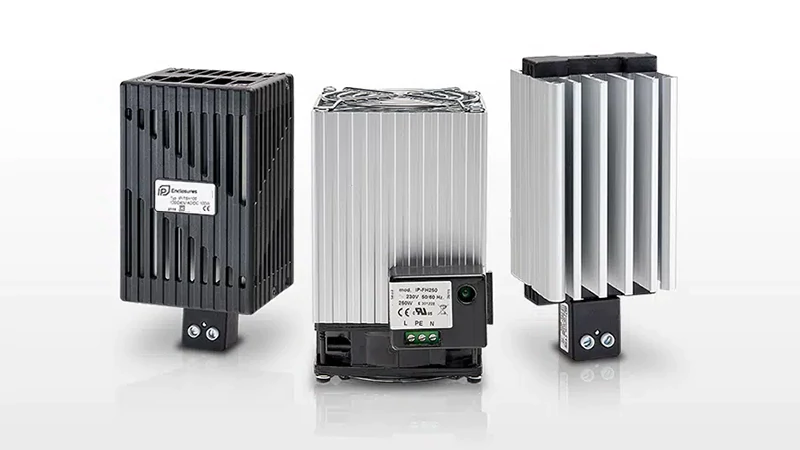

Types and Features

You can choose from several types of anti-condensation heaters, each designed for different needs and environments. Here are some common types and their features:

You find these heaters in many shapes, such as tubular, wire-wound, or flat plate designs. Most models have a compact size, so you can fit them into tight spaces. Many heaters come with built-in thermostats or allow you to add one. Some models offer overheat protection, double insulation, and easy mounting options.

Industry standards recommend that you keep the relative humidity inside your panel below 60% and maintain the internal temperature at least 5°C above the outside air. These benchmarks help you prevent condensation and protect your equipment from corrosion. Many anti-condensation heaters meet strict safety and compliance standards, such as CE, UL, and RoHS certifications. You can use them in many industries, including oil and gas, power generation, manufacturing, and renewable energy.

Research on PTC heating elements shows that they offer high energy efficiency and reliable performance. For example, PTC heaters can operate in a wide temperature range from -20°C to 120°C. They respond quickly to temperature changes and work quietly. These features make them ideal for keeping your electrical panels dry and safe.

LINKWELL ELECTRIC stands out as a trusted manufacturer of anti-condensation heaters. You benefit from their advanced designs, which focus on energy saving, high efficiency, and durability. LINKWELL’s heaters perform well in harsh environments, such as wind farms, solar power plants, energy storage systems, and electric vehicle charging stations. Their products meet international standards and offer features like waterproofing, corrosion resistance, and easy installation. You can rely on LINKWELL ELECTRIC for high-quality solutions that help you prevent condensation and extend the life of your electrical panels.

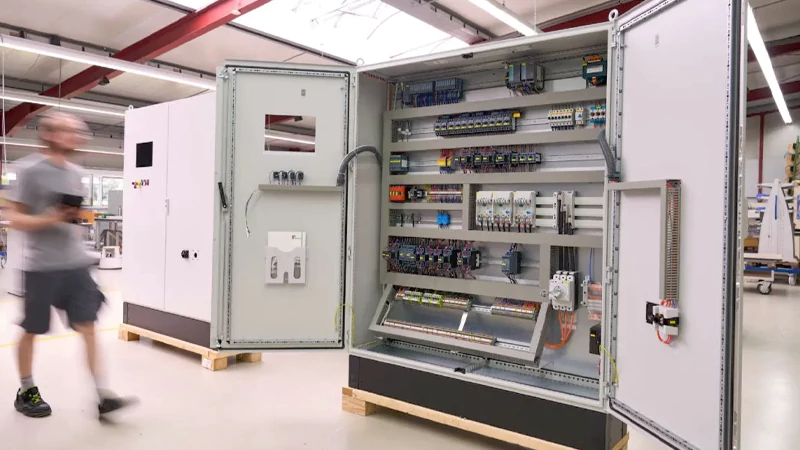

How to Select the Appropriate Anti-condensation Heaters for Electrical Cabinets

Sizing and Environment

You need to select the right heater for your electrical panel to keep it safe and dry. Start by looking at the size of your enclosure. Larger panels need more power to keep the inside warm. You can use a simple formula to estimate the power you need:

Watts = h × A × T

where h is the heat transfer coefficient (usually 5–10 W/m²K), A is the surface area of your panel, and T is the temperature difference you want to maintain (often 5–7°C above the outside air). This helps you keep the internal temperature above the dew point, which stops condensation.

Environmental factors also play a big role. If your panel sits in a cold or humid place, you may need a heater with higher wattage. Some heaters, like PTC types, adjust their resistance as they heat up. This means they use only the power needed and help prevent overheating. You can also use fans to spread heat evenly and thermostats to control when the heater turns on or off. These steps make sure your panel stays at the right temperature and avoids moisture problems.

When you choose anti-condensation heaters, think about the application. For example, panels in wind farms or solar plants face harsh weather and need heaters that work well in tough conditions. LINKWELL ELECTRIC offers a wide range of heaters that fit different panel sizes and environments. Their products focus on energy efficiency, safety, and easy installation.

Tip: Always check the heater’s technical data sheet. Look for power ratings, safety features, and certifications to match your needs.

Installation Tips

Proper installation helps your heater work its best. Mount the heater on a DIN rail or the panel wall, following the manufacturer’s instructions. Keep all wires at least 15 mm away from the heating element to avoid heat damage. Use a thermostat or hygrostat to control the heater. This keeps the temperature steady and saves energy.

• Make sure the heater is not blocked by other components.
• Use fans if you need to move heat around larger panels.
• Check all connections for tightness and safety.
• Test the heater after installation to confirm it works as expected.

You can rely on LINKWELL ELECTRIC for reliable, efficient, and customizable solutions. Their heaters come with clear instructions and support, making installation simple. By choosing the right heater and installing it correctly, you protect your equipment and extend its life.

You protect your electrical panels from moisture and damage when you use anti-condensation heaters. High-quality heaters keep the inside of your panel dry and safe by staying above the dew point. Many models include safety features like thermal cut-out fuses and durable fans that last for years.
