●Complete internal and external isolation, dust prevention, oil mist prevention, moisture prevention,etc
●Compact structure,compatible with mainstream models in the industry-15~+55C flexible setting
●Professional condensate treatment design, effectively solve the problem of condensate discharge
●Nano coating,strong corrosion resistance
●Optional smoke detector, access control and water immersion alarm
●Dust screen plug design, convenient and fast replacement
7X24X365 has been running continuously for more than 10 years
●LCD Chinese and English menu display,
●Support MODBUS communication, with call start function
Characteristic
●Complete internal and external isolation, dust prevention, oil mist prevention, moisture prevention,etc
●Compact structure,compatible with mainstream models in the industry-15~+55C flexible setting
●Professional condensate treatment design, effectively solve the problem of condensate discharge
●Nano coating,strong corrosion resistance
●Optional smoke detector, access control and water immersion alarm
●Dust screen plug design, convenient and fast replacement
7X24X365 has been running continuously for more than 10 years
●LCD Chinese and English menu display,
●Support MODBUS communication, with call start function

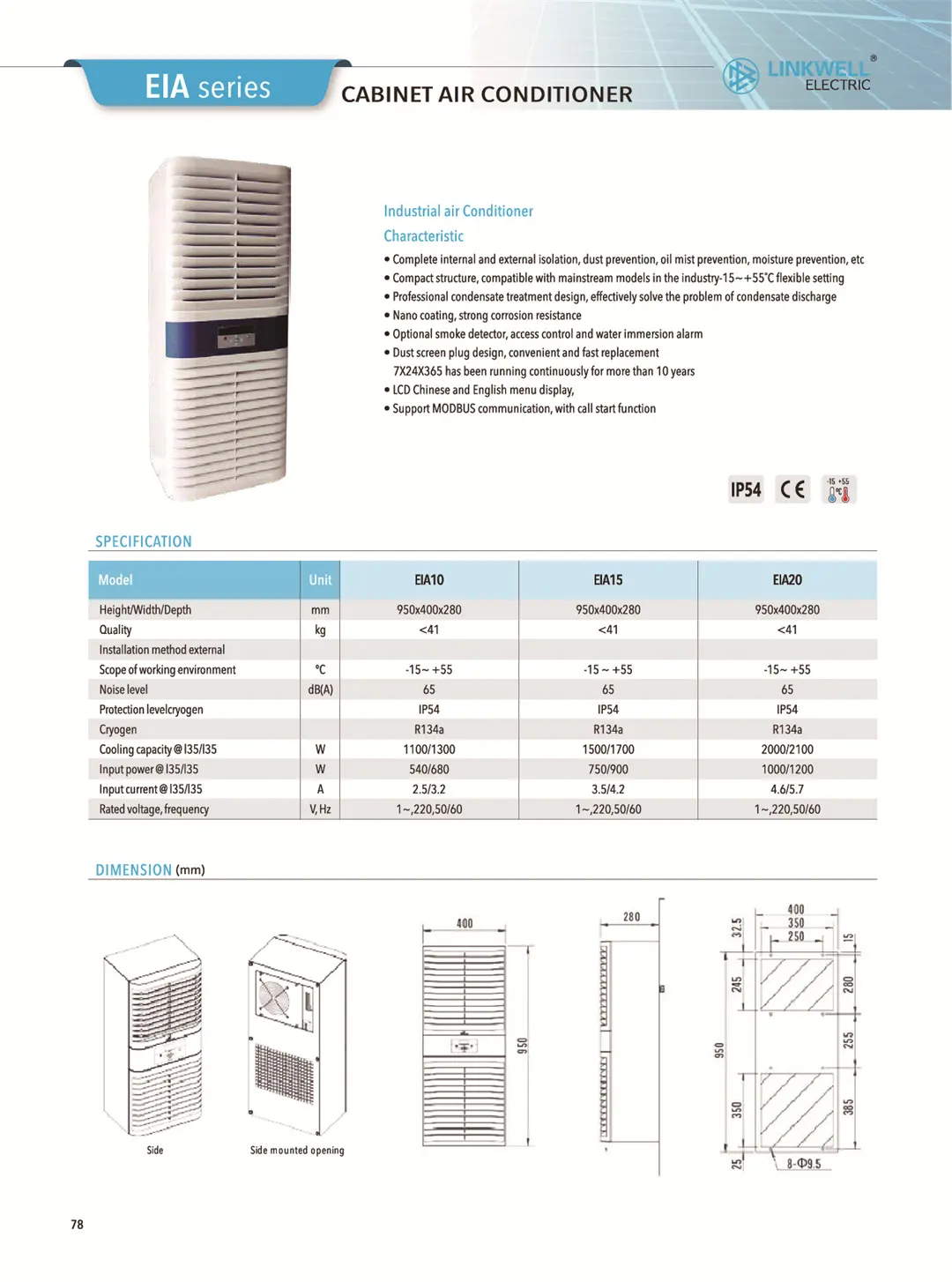

| Model | Unit | EIA1O | EIA15 | EIA2O |
| Height/Width/Depth | mm | 950x400x280 | 950x400x280 | 950x400x280 |
| Quality | kg | <41 | <41 | <41 |
| Installation method external | ||||
| Scope of working environment | ℃ | -15~+55 | -15~+55 | -15~+55 |
| Noise level | dB(A) | 65 | 65 | 65 |
| Protection levelcryogen | IP54 | IP54 | IP54 | |
| Cryogen | R134a | R134a | R134a | |
| Cooling capacity @135/l35 | W | 1100/1300 | 1500/1700 | 2000/2100 |
| Input power@135/135 | W | 540/680 | 750/900 | 1000/1200 |
| Input current@135/135 | A | 2.5/3.2 | 3.5/4.2 | 4.6/5.7 |
| Rated voltage, frequency | V,Hz | 1~,220,50/60 | 1~,220,50/60 | 1~,220,50/60 |
