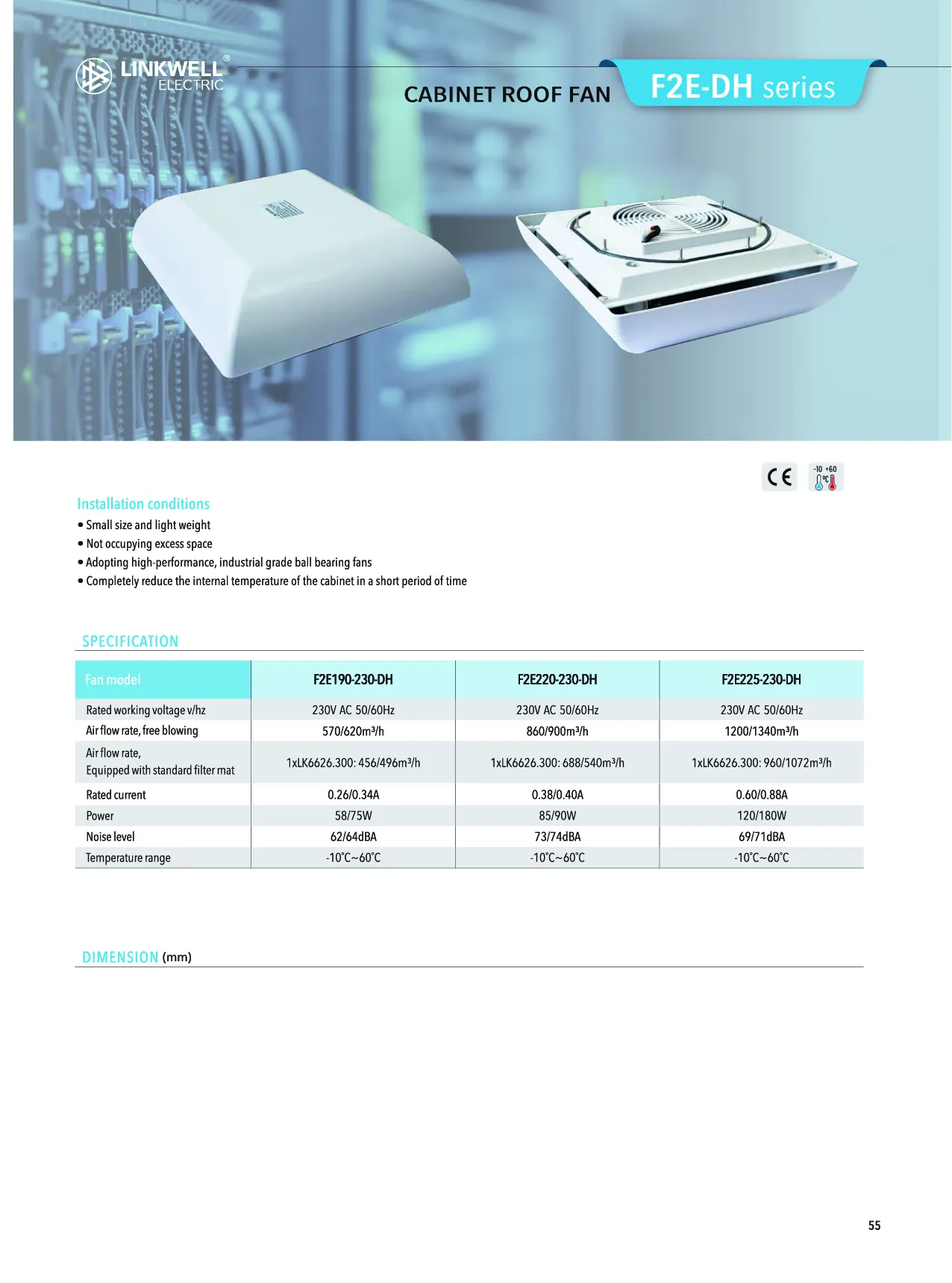

●Small size and light weight
●Not occupying excess space
●Adopting high-performance, industrial grade ball bearing fans
●Completely reduce the internal temperature of the cabinet in a short period of time
Installation conditions
●Small size and light weight
●Not occupying excess space
●Adopting high-performance, industrial grade ball bearing fans
●Completely reduce the internal temperature of the cabinet in a short period of time
| Fan model | F2E190-230-DH | F2E220-230-DH | F2E225-230-DH |
| Rated working voltage v/hz | 230V AC 50/60Hz | 230V AC 50/60Hz | 230V AC 50/60Hz |
| Air flow rate, free blowing | 570/620m3/h | 860/900m3/h | 1200/1340m3/h |
| Air flow rate,Equipped with standard filter mat | 1xLK6626.300:456/496m3/h | 1xLK6626.300:688/540m3/h | 1xLK6626.300:960/1072m3/h |
| Rated current | 0.26/0.34A | 0.38/0.40A | 0.60/0.88A |
| Power | 58/75W | 85/90W | 120/180W |
| Noise level | 62/64dBA | 73/74dBA | 69/71dBA |
