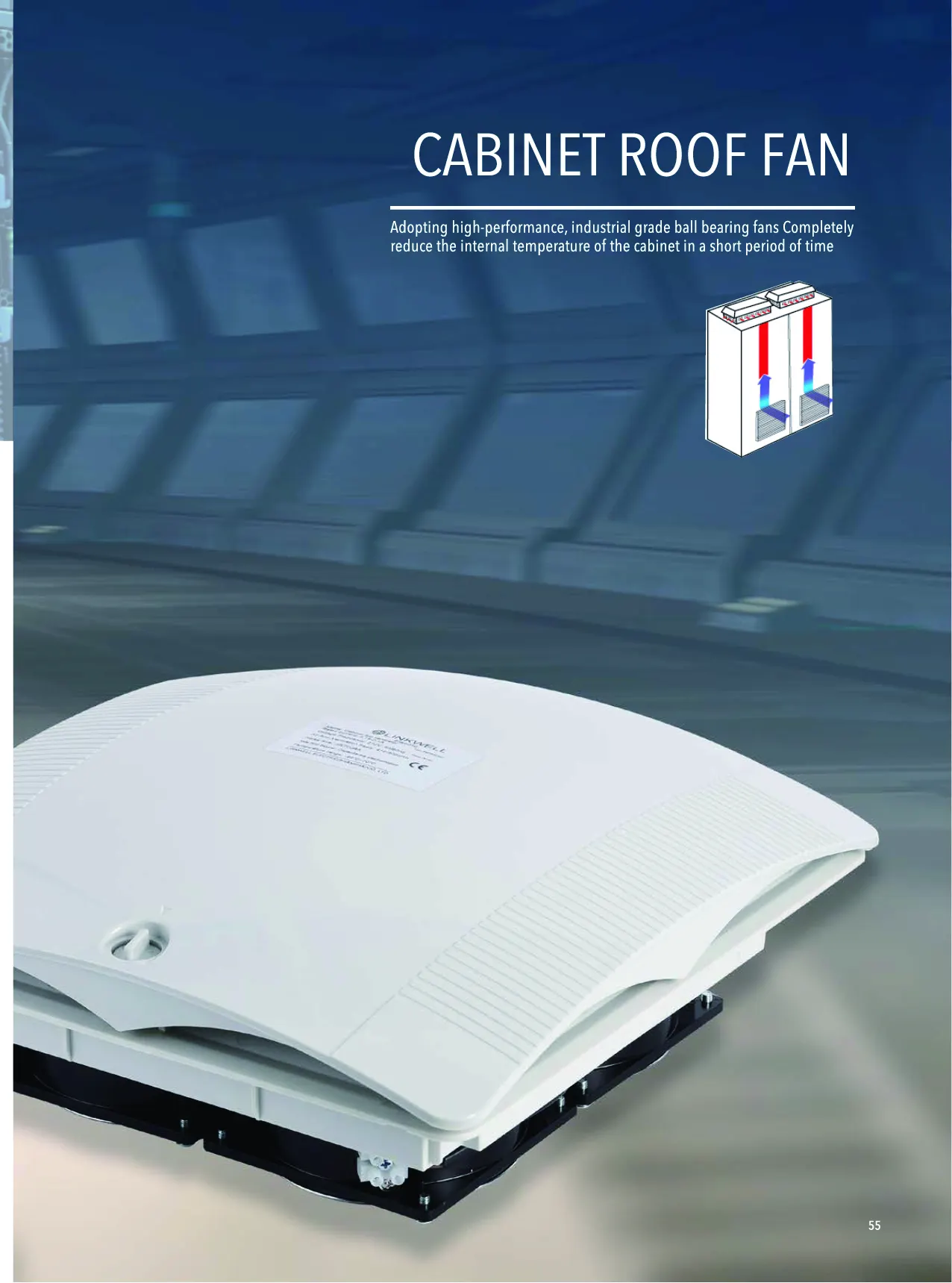

●Small size and light weight
●Not occupying excess space
●Adopting high-performance, industrial grade ball bearing fans
●Completely reduce the internal temperature of the cabinet in a short period of time
Installation conditions
●Small size and light weight
●Not occupying excess space
●Adopting high-performance, industrial grade ball bearing fans
●Completely reduce the internal temperature of the cabinet in a short period of time

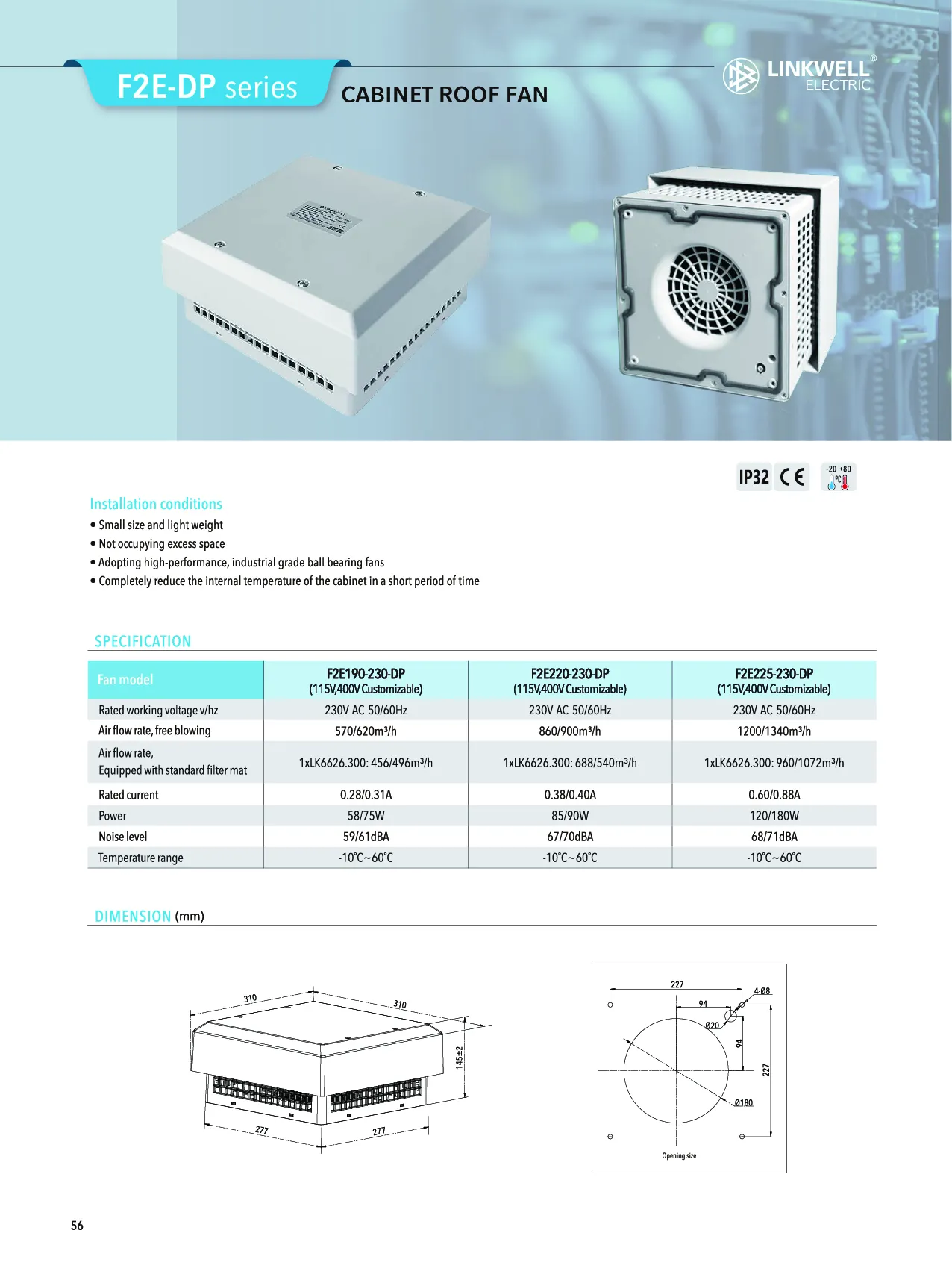

| Fan model | F2E190-230-DP (115V,400VCustomizable) |
F2E220-230-DP (115V,400VCustomizable) |
F2E225-230-DP (115V,400VCustomizable) |
| Rated working voltage v/hz | 230V AC 50/60Hz | 230V AC 50/60Hz | 230V AC 50/60Hz |
| Air flow rate, free blowing | 570/620m3/h | 860/900m3/h | 1200/1340m3/h |
| Air flow rate, Equipped with standard filter mat |
1xLK6626.300:456/496m3/h | 1xLK6626.300:688/540m3/h | 1xLK6626.300:960/1072m3/h |
| Rated current | 0.28/0.31A | 0.38/0.40A | 0.60/0.88A |
| Power | 58/75W | 85/90W | 120/180W |
| Noise level | 59/61dBA | 67/70dBA | 68/71dBA |
| Temperature range | -10″C~60″C | -10°℃~60″C | -10℃~60℃ |
