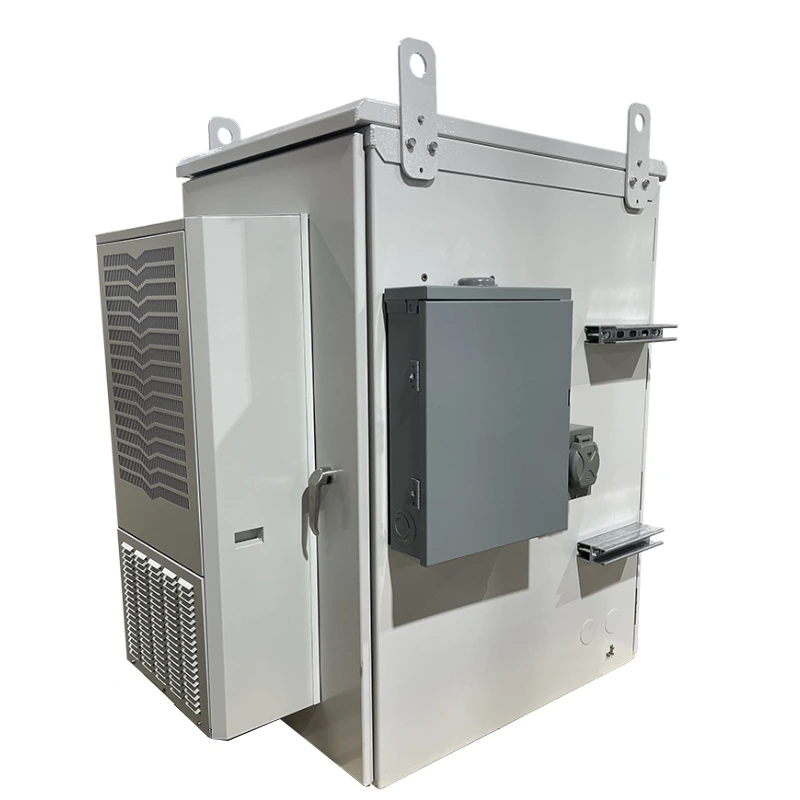

Fiber Cabinet
A Fiber Cabinet is an outdoor or indoor enclosure designed to protect, organize, and manage fiber optic cables, splitters, and distribution components within a communication network.
Global Partnership
Enclosure and Protection System
| Component | Function Description |
|---|---|
| Enclosure Shell | Provides physical protection against environmental factors (e.g., rain, dust, UV exposure). |
| Seals and Locks | Ensures the cabinet’s IP or NEMA protection rating, preventing ingress of moisture and dust, and restricting unauthorized access. |
| Grounding System | Offers safety protection by grounding metallic strength members in the fiber cables and the cabinet frame itself. |
| Temperature Control | Used primarily in outdoor units; includes cooling fans, heaters, or small AC units to maintain a stable internal operating temperature. |
Fiber Distribution and Interconnect Components
| Component | Function Description |
|---|---|
| Optical Distribution Frame (ODF) | The cabinet’s core structure; used for mounting and organizing fiber optic adapters and splice trays. |
| Fiber Optic Adapter | Provides docking ports (e.g., SC, LC, FC) for connecting fiber patch cords and pigtails. |
| Fiber Pigtails | Short fiber segments with one connector, used for splicing to incoming trunk cables and patching into the ODF adapter. |
| Fiber Patch Cords | Double-ended fiber cables used for connections between components inside the cabinet or to external network equipment. |

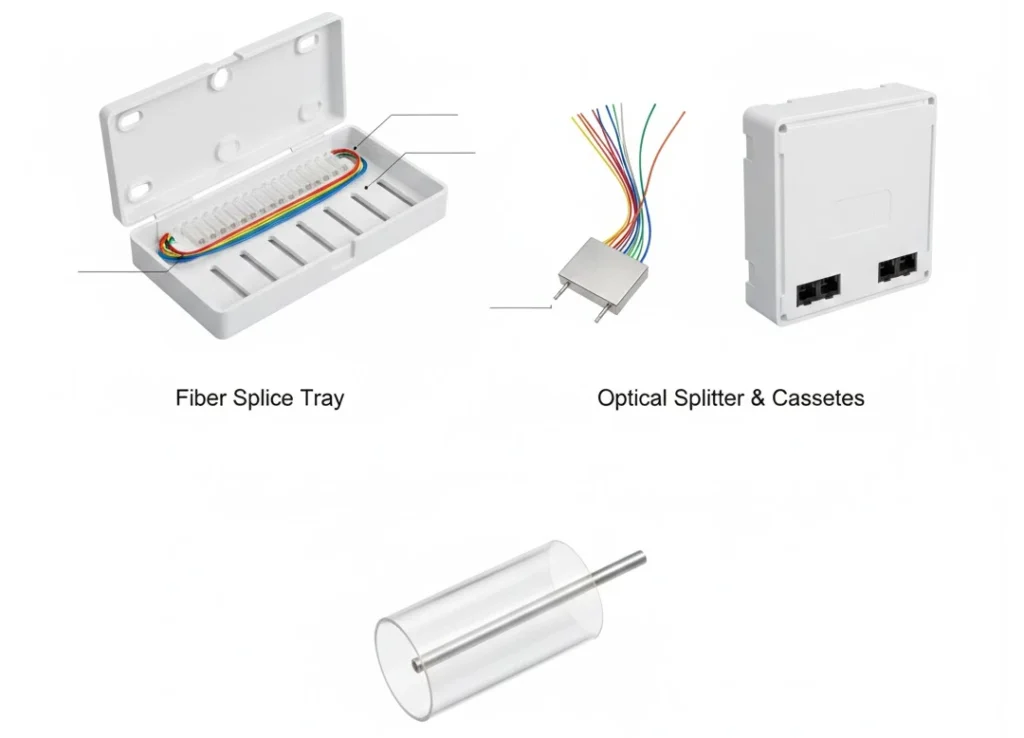

Splicing and Splitting Components
| Component | Function Description |
|---|---|
| Fiber Splice Tray | Provides orderly storage and protection for fiber optic fusion splice points and excess fiber slack. |
| Splice Sleeves | Heat-shrink protective sleeves used to shield and reinforce the delicate fiber splice joint. |
| Optical Splitter / PLC Splitter | Essential in PON networks, these devices divide a single input signal into multiple output signals (e.g., 1:8, 1:32). |
| Splitter Cassettes/Modules | Enclosures designed to house and protect the optical splitter device. |
Cable Management and Accessories
| Component | Function Description |
|---|---|
| Cable Entry and Strain Relief | Devices used to secure incoming and outgoing cables and relieve mechanical stress on the cable jacket and strength members. |
| Fiber Routing Ducts / Spools | Used to guide fiber pathways, ensuring the minimum bend radius is maintained to prevent signal loss. |
| Labels and Identification Tags | Essential for clear numbering and marking of fibers, adapters, and splices for simplified maintenance and troubleshooting. |
Certifications & Clients
Our Fiber Cabinet CE, RoHS, and ISO9001 standards and pass global industrial testing for safety, performance, and durability.
Why Choose Linkwell?
We support custom voltages, signals, and speed settings to match any cabinet system.
Our size options fit new equipment and replacement projects, making buyer stocking easier.
We provide custom IP ratings and motor protection features to handle harsh climate conditions.
FAQs
What is the main purpose of a Fiber Cabinet?
A Fiber Cabinet securely houses fiber connections, splices, and splitters while protecting them from environmental damage and unauthorized access.
Are Fiber Cabinets used in FTTH networks?
Yes. Fiber Cabinets are essential in FTTH (Fiber to the Home) deployments for distributing optical signals to multiple subscribers.
What materials are Fiber Cabinets typically made of?
They are commonly made of stainless steel, aluminum alloy, or high-strength plastics designed for outdoor durability.
How do Fiber Cabinets protect fiber cables?
They use seals, locks, grounding systems, and controlled internal environments to prevent dust, moisture, and temperature-related damage.
Can a Fiber Cabinet include optical splitters?
Many cabinets house PLC splitters to divide one fiber signal into multiple outputs for large-scale network distribution.
