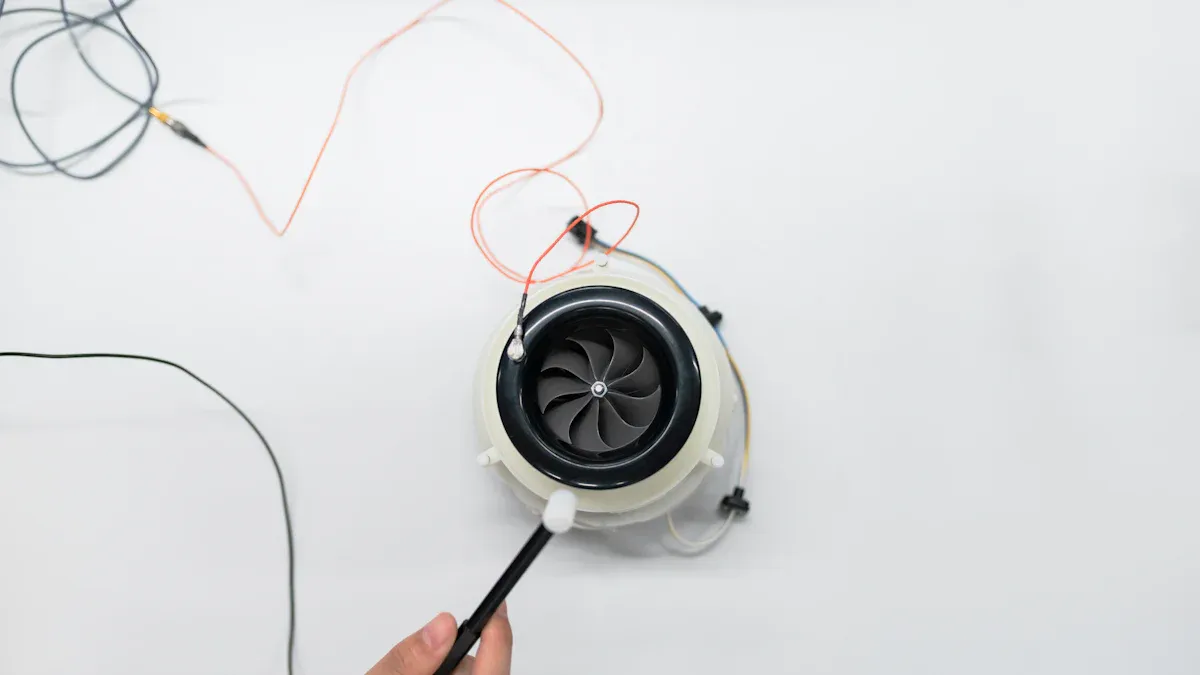

How to Replace Air Conditioner Fan Motor​

To learn how to replace air conditioner fan motor​, start by turning off the power and discharging the capacitor to ensure your safety. Gather your basic hand tools, a multimeter, and safety gear such as gloves and safety glasses before beginning the process. Carefully remove the old fan motor and install the new one, following the manufacturer’s instructions. For reliable replacement fans and components, Linkwell provides high-quality solutions to support any air conditioner repair.

• Basic hand tools (screwdrivers, wrenches, pliers)
• Multimeter
• Safety gear (safety glasses, gloves, dust mask)

Key Takeaways

• Always turn off the power and discharge the capacitor before starting any work on your air conditioner. This ensures your safety during the replacement process.
• Diagnose the fan motor properly before replacement. Look for signs like strange noises, slow spinning, or burning smells to confirm the motor’s failure.
• Use quality replacement parts, like those from Linkwell, to ensure long-lasting performance and efficiency in your air conditioning system.

Diagnose and Prepare

Confirm Fan Motor Failure

Before you start learning how to replace air conditioner fan motor, you need to make sure the fan motor is actually the problem. Here’s a quick checklist to help you diagnose a faulty fan motor:

1. The fan won’t come on at all.
2. The fan blades spin slowly or stop moving.
3. You hear rattling, buzzing, or squealing noises from the unit.
4. The fan runs only sometimes or shuts down unexpectedly.
5. You notice a burning smell near the AC.
6. The breaker trips often when the AC runs.

You can also check the thermostat, look for a tripped breaker, replace a dirty air filter, and inspect the fan blades for obstructions. If you have a multimeter, test the motor windings for shorts or opens.

Select the Right Replacement (Linkwell Axial Fan, Fan Filter Unit, or Cabinet Fan)

Choosing the right replacement fan motor is important for long-lasting performance. Linkwell offers Axial Fans, Fan Filter Units, and Cabinet Fans that are efficient, durable, and easy to install. Here’s what to consider:

Linkwell fans have higher efficiency, longer lifespan, and lower noise compared to many other brands.

Gather Tools and Safety Gear

Get your tools ready before you begin. You’ll need screwdrivers, wrenches, pliers, a multimeter, and safety gear like gloves and safety glasses.

Power Off and Discharge Capacitor

Safety comes first! Always turn off the circuit breaker and double-check with a tester. Find the capacitor near the motor. Use an insulated screwdriver to discharge it by touching both terminals at once. Wait for any spark to disappear before you handle the capacitor.

How to Replace Air Conditioner Fan Motor

Remove Access Panels

Start by removing the access panels on your air conditioner. You want to get a clear view of the fan motor and its wiring. Use the right tools to avoid damaging the unit. Here’s what works best:

• Phillips or flathead screwdrivers for panel screws
• Nut drivers or socket wrenches for bolts
• Pliers for stubborn fasteners

Carefully disconnect any fan wires you see and cut a few wire ties if needed. Remove the screws holding the fan grille or the entire top. Lay the top down gently so you don’t pull or damage any wires. Take a moment to look inside the condenser. If you spot dirt or debris, clean it out for better airflow. Also, check for any wires that look worn or rubbed and inspect the compressor terminals.

Tip: Take a photo of the wiring before you disconnect anything. This will help you reconnect everything correctly later.

Disconnect Wiring and Remove Old Motor

Now you’re ready to disconnect the wiring from the old fan motor. Safety is your top priority. Here’s a step-by-step guide:

1. Turn off the power at the main circuit breaker and the outdoor disconnect box. Double-check with a voltage tester.
2. Wear rubber-soled shoes and use insulated gloves and tools.
3. Inspect all wires for damage before you touch them.
4. Carefully disconnect the wires from the motor. Most air conditioner fan motors use either a 3-wire or 4-wire setup, so pay attention to where each wire goes.
5. Make sure you don’t reverse the polarity when you reconnect the new motor.
6. Always connect the ground wire for safety.
7. If your unit has a capacitor, make sure it matches the new motor’s specs.
8. Once the wires are free, loosen the mounting bolts or set screws holding the motor in place. Some set screws need to be torqued to about 45 inch-pounds, but you can also tighten until you feel resistance and then back off a little.
9. Gently lift out the old motor.

Note: If you see any broken or cracked fan blades, replace them now to avoid future problems.

Install New Linkwell Fan Motor

You’re halfway through learning how to replace air conditioner fan motor. Now it’s time to install your new Linkwell Axial Fan, Fan Filter Unit, or Cabinet Fan. These fans are designed for easy installation and long-lasting performance.

• Position the new motor where the old one sat.
• Align the mounting holes and secure the motor using the original bolts or screws. Tighten them to a snug fit—most users recommend between 45 inch-pounds and 10 foot-pounds of torque.
• Attach the fan blade to the new motor shaft. Make sure it sits evenly and spins freely.
• If your fan uses a set screw, tighten it until it holds the blade firmly, then back off just a little to avoid damaging the shaft.

Tip: Double-check that the fan blade is not rubbing against any part of the housing.

Reconnect Wiring and Reassemble

Now you need to reconnect the wiring. Here’s how to do it right:

1. Use the photos you took earlier and the wiring diagram that comes with your new Linkwell fan motor.
2. Connect each wire to its correct terminal. Make sure all connections are tight and insulated.
3. Don’t forget to connect the ground wire.
4. Replace any wire ties you cut earlier.
5. Once the wiring is secure, reattach the access panels and tighten all screws and bolts.

Common mistakes: Don’t break or loosen any components during reassembly. Always use factory-approved parts for the best results. Watch out for sharp edges and avoid touching any refrigerant lines.

Test the Air Conditioner

You’ve reached the final step in how to replace air conditioner fan motor. It’s time to test your work:

1. Restore power at the circuit breaker and the outdoor disconnect box.
2. Set your thermostat to cooling mode and lower the temperature.
3. Listen for the fan motor to start. Watch the fan blade to make sure it spins smoothly.
4. If the fan doesn’t start, check the power supply and use a multimeter to test for voltage at the motor.
5. Measure the resistance of the motor windings to check for shorts or opens.
6. Test the capacitor with a multimeter. The reading should be within 10% of the rated value.

If everything works, you’ve successfully learned how to replace air conditioner fan motor! If the fan doesn’t run, try these troubleshooting tips:

• Check the thermostat settings and make sure the system is set to cool.
• Inspect the circuit breaker for a trip.
• Look for a frozen evaporator coil.
• Test the run capacitor.
• Inspect the fan blades for damage.
• Make sure both the indoor and outdoor fan motors are working.

Other common issues include a malfunctioning capacitor, loose wires, a cracked fan belt, or a burnt-out compressor contactor. Fix these as needed to keep your AC running smoothly.

Pro Tip: Always double-check all connections before you power up the system. If you run into unexpected problems, don’t hesitate to call a professional.

You now know how to replace air conditioner fan motor safely and effectively. Always:

• Turn off power before you start.
• Use quality parts like Linkwell for reliable results.
• Test your AC after replacement and check for issues like strange noises or incorrect temperatures.

If you feel unsure or spot problems, call a professional for help.

FAQ

How do I know if my fan motor needs replacing?

You might hear strange noises, smell burning, or see the fan stop spinning. If you notice these signs, you should check the motor.

Can I use any fan motor for my air conditioner?

No, you need a motor that matches your AC’s voltage, size, and airflow. Linkwell offers options for most systems.

What safety steps should I follow during replacement?

• Turn off the power.
• Discharge the capacitor.
• Wear gloves and safety glasses.
• Double-check all wiring before you restore power.
