Custom Illuminated Push Button Manufacturer in China

Our illuminated push buttons combine sleek design with reliable functionality. They provide clear visual feedback, making them ideal for a wide range of applications. Choose from various colors and sizes to perfectly suit your needs, enhancing user experience and operational efficiency. Durable and easy to install, these buttons deliver consistent performance.

Linkwell Electrics - Your Trusted Illuminated Push Button Manufacturer from China

Linkwell Electrics is your trusted illuminated push button manufacturer from China. We offer a wide range of high-quality, reliable solutions for diverse industrial and commercial applications. With a focus on innovative design and stringent quality control, Linkwell Electrics provides durable and visually appealing illuminated push buttons that meet international standards.

Various Illuminated Push Button

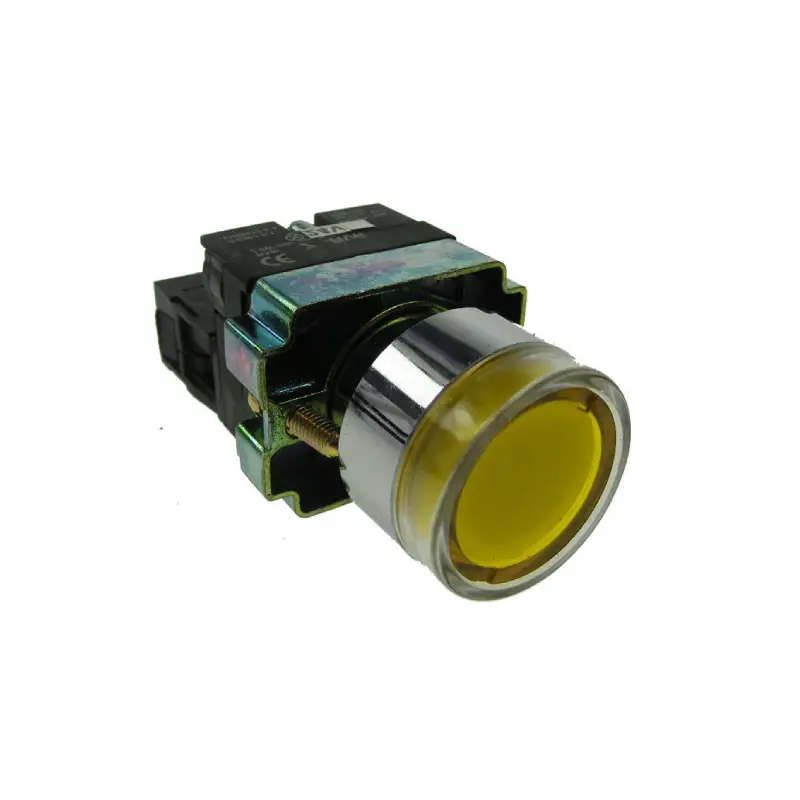

illuminated push button switch

We offer a comprehensive range of push button illuminated switch designed for various applications. These switches provide clear visual status indication with vibrant LED illumination, enhancing both functionality and aesthetics. Our durable and reliable switches come in diverse styles and colors, ensuring seamless integration into your control panels and equipment.

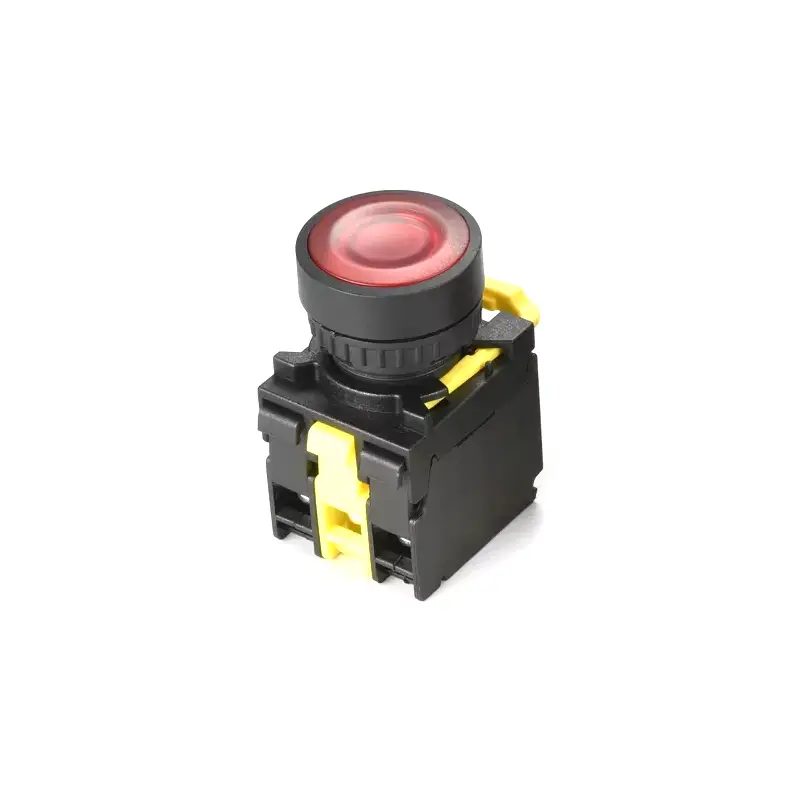

12 volt illuminated push button

We specialize in 12 volt illuminated push buttons, perfect for automotive, marine, and various low-voltage applications. These switches feature bright, energy-efficient LED illumination for clear status indication and enhanced visibility. Available in diverse styles, colors, and momentary or latching actions, they offer reliable and durable performance for your specific 12V needs.

illuminated momentary push button switch

We offer a diverse selection of illuminated momentary push button switches, perfect for applications requiring temporary contact and clear visual feedback. These switches light up when activated, providing immediate status indication. Our range includes various styles, colors, and sizes, ensuring reliable performance and seamless integration into your designs.

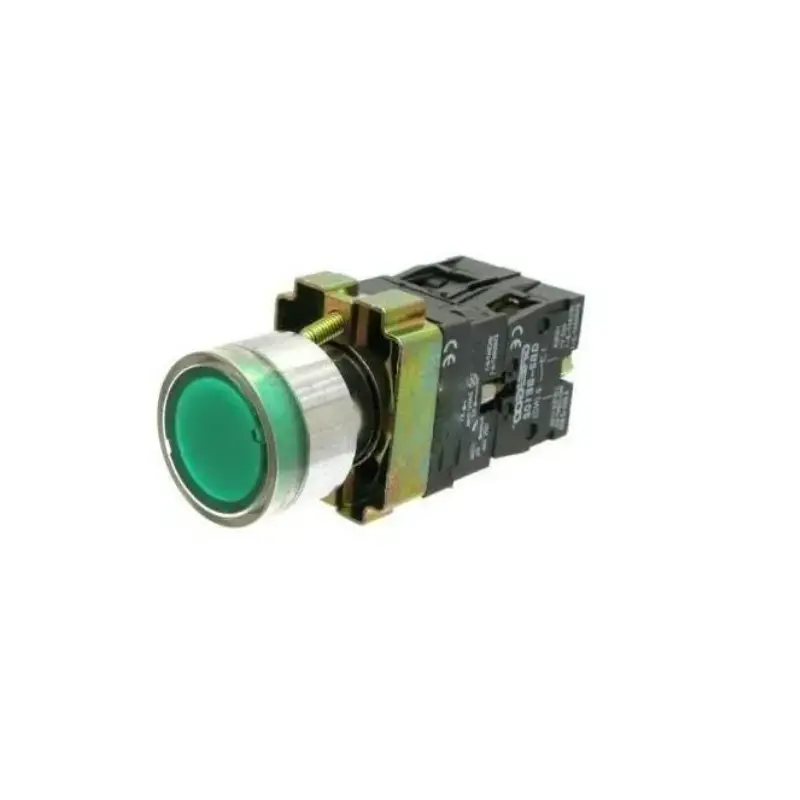

green illuminated push buttion

We offer a selection of green illuminated push buttons designed to provide clear, vibrant visual feedback. These durable switches are perfect for applications requiring quick status identification or an intuitive user interface. Choose from various styles and sizes to seamlessly integrate these eye-catching green buttons into your machinery or control panels, ensuring reliability and aesthetic appeal.

red illuminated push buttion

We offer a vibrant selection of red illuminated push buttons, perfect for emergency stops, warnings, or clear status indicators. These visually striking buttons feature bright red LED illumination, ensuring high visibility in any environment. Available in various sizes and mounting options, they combine robust construction with reliable performance for critical applications.

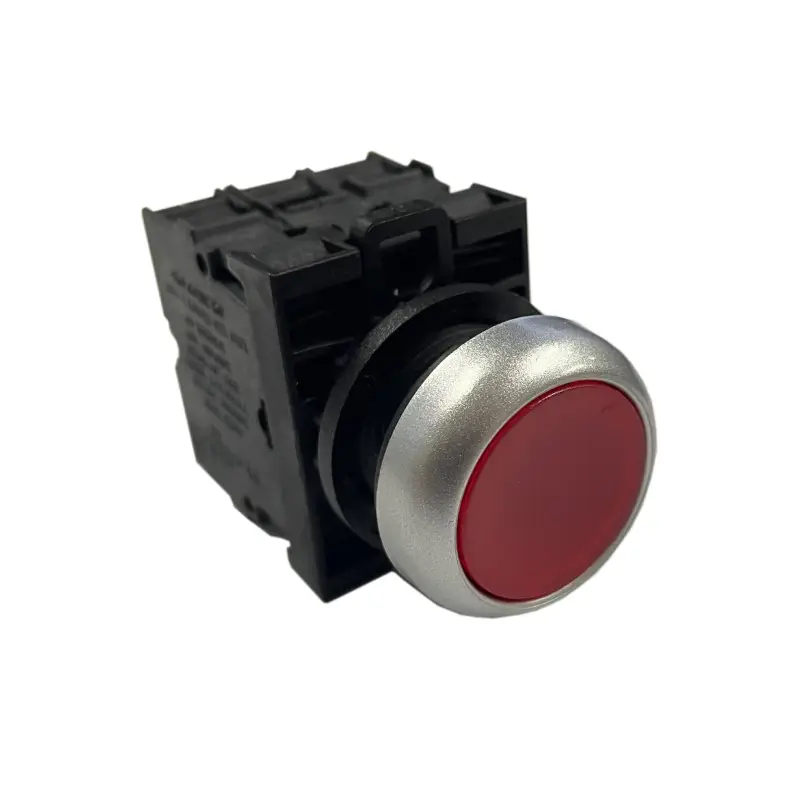

illuminated latching push button switch

We provide a diverse selection of latching illuminated push button switches. These switches offer reliable “on/off” functionality, maintaining their state until pressed again, while integrated illumination clearly indicates status. Available in various sizes, colors, and designs, our switches are perfect for applications requiring persistent control and clear visual feedback.

illuminated led push button switch

We offer a diverse selection of illuminated LED push button switches, engineered for superior performance and clear visual feedback. These switches integrate bright, long-lasting LEDs, making them perfect for applications requiring immediate status indication. Available in various colors and designs, our switches ensure durability, easy installation, and reliable operation for your control systems.

illuminated mushroom head push button

We offer illuminated mushroom head push buttons, perfect for applications requiring prominent and easily actuated controls. Their large, ergonomic design ensures comfortable operation, while integrated illumination provides clear visual feedback, enhancing safety and usability. These durable buttons are available in various colors and offer reliable performance in demanding environments.

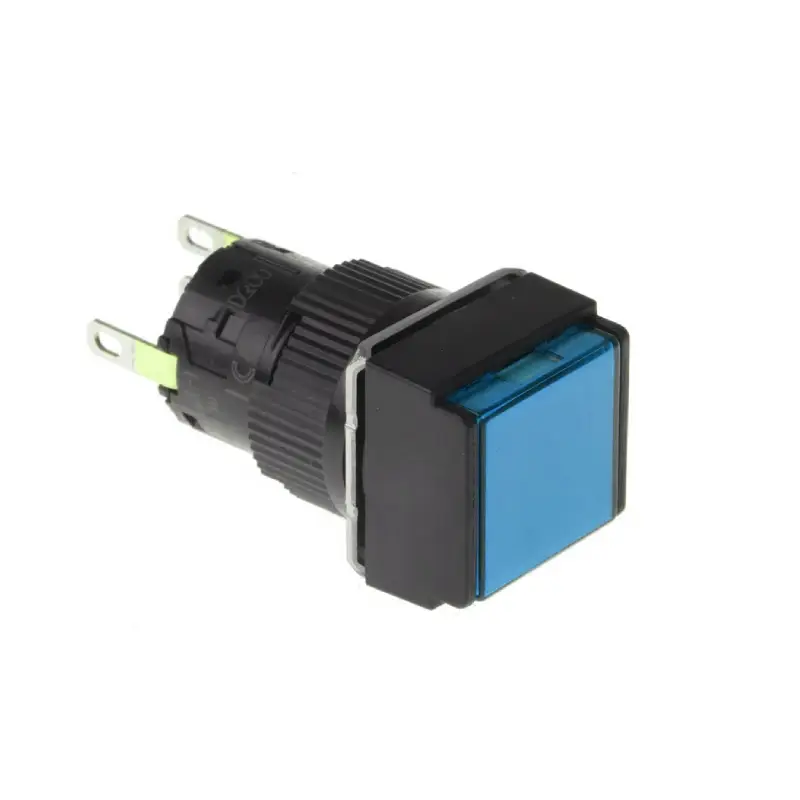

illuminated square push button

We offer a versatile selection of square illuminated push button switch, perfect for applications requiring clear visual feedback and modern aesthetics. These durable switches feature bright, integrated LED illumination in various colors, ensuring excellent visibility. Available in different sizes and functions (momentary or latching), they’re designed for easy installation and reliable performance in diverse control panels.

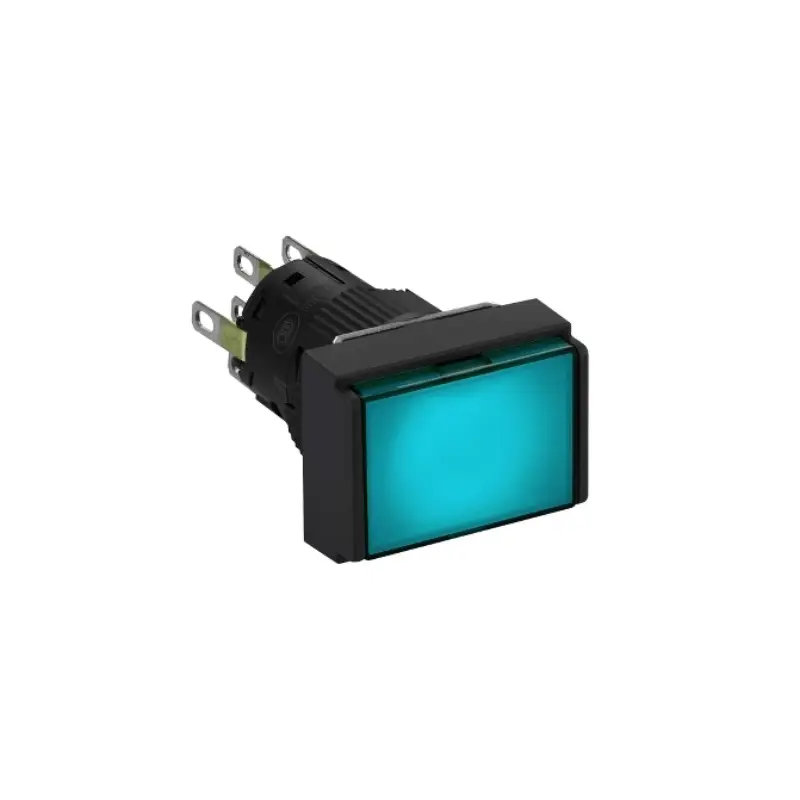

rectangular illuminated push button switch

We offer rectangular illuminated push button switches designed for intuitive and reliable operation. These switches feature bright, uniform illumination, providing clear visual feedback in any environment. Available in various colors and sizes, our durable and aesthetically pleasing switches are perfect for industrial controls, consumer electronics, and custom panel designs.

illuminated arcade push buttons

We offer an exciting selection of illuminated arcade push buttons perfect for custom arcade cabinets, fight sticks, and gaming projects. These buttons feature vibrant LED illumination, providing a classic arcade feel and enhancing your gaming experience. Durable, responsive, and available in various colors, they’re designed for countless hours of satisfying gameplay.

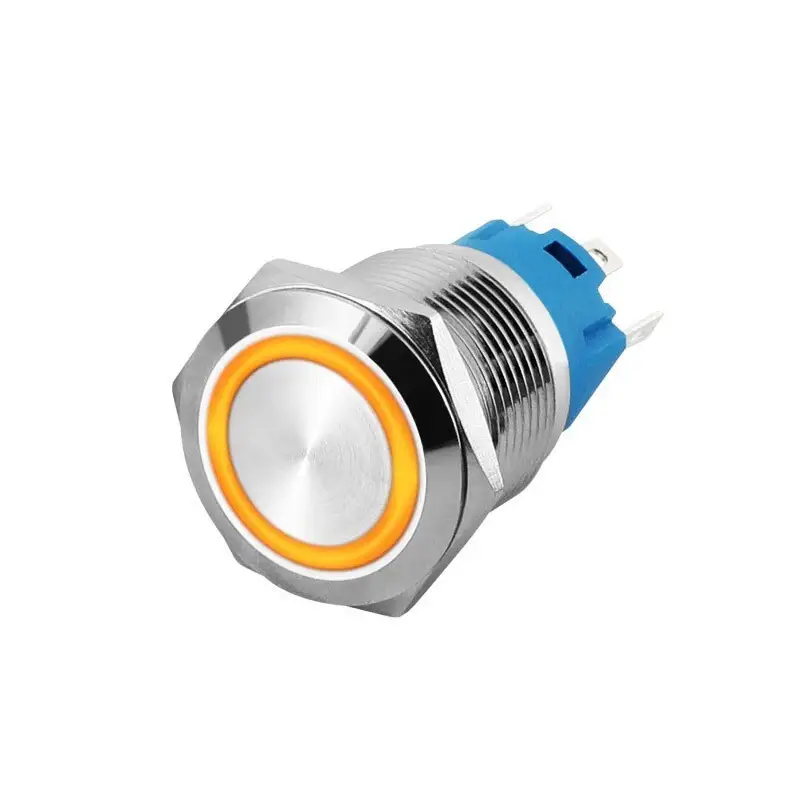

illuminated metal push button switch

We offer a robust selection of illuminated metal push button switches. These switches combine the durability of metal construction with clear LED illumination, providing both tactile feedback and visual status indication. Ideal for demanding environments, our switches are available in various sizes, finishes, and illumination colors to meet your specific application requirements.

illuminated round push button switches

Customize Your Illuminated Push Button

Illumination Type & Color:

This is perhaps the most defining customization. You can select from various LED colors (red, green, blue, amber, white, etc.), or even multi-color RGB options for dynamic signaling. The illumination style can also vary, from full-face lighting to a simple ring or dot around the button, providing distinct visual cues.

Button Cap and Legend:

The button’s cap material, shape (round, square, rectangular, domed, flat), and finish (matte, glossy, metal) can be customized. Crucially, you can add custom legends, symbols, or text through laser etching or screen printing. This allows for clear identification of the button’s function, improving user interface and operational clarity.

Mounting and Environmental Rating:

The mounting style (panel mount, PCB mount, through-hole, surface mount) can be chosen to integrate seamlessly with your enclosure. Furthermore, illuminated push buttons can be customized with various IP ratings for protection against dust and water ingress, making them suitable for harsh industrial, outdoor, or public environments.

Electrical Specifications & Connectivity:

Customization also extends to the electrical characteristics. This includes choosing the appropriate voltage rating (e.g., 5V, 12V, 24V, 110V, 220V AC/DC) for the LED illumination and the switch contacts. Connectivity options vary, from solder terminals and quick-connect tabs to pre-wired cables or PCB pins, ensuring compatibility with your existing electrical systems and simplifying installation.

What Is An Illuminated Push Button?

An illuminated push button is a type of switch that incorporates a light source, typically an LED, within or around the button cap. This illumination serves a dual purpose: it indicates the button’s status (e.g., on/off, active/inactive) and enhances visibility, especially in low-light conditions. These buttons are commonly used in control panels, machinery, and various electronic devices to provide clear visual feedback to the user.

The light source can be integrated in various ways, such as illuminating the entire button surface, a ring around the button, or a symbol etched onto the cap. This visual cue significantly improves user experience by quickly conveying operational status, reducing errors, and improving efficiency in complex systems where numerous controls are present.

How Does An Illuminated Push Button Work?

An illuminated push button functions by combining a mechanical switch mechanism with an integrated light-emitting diode (LED) or other light source. When the button is pressed, it completes an electrical circuit for the primary function, just like a standard push button. Simultaneously, or depending on the wiring configuration, the same action or a separate signal activates the internal light source.

The illumination is typically powered by a small electrical current, often from the same circuit that the button controls or a separate low-voltage supply. The LED’s activation can be momentary, only lighting up while the button is pressed, or maintained, staying lit until the button is pressed again. This visual feedback confirms the button’s activation and the state of the controlled device.

What Is The Difference Between Illuminated And Non-Illuminated Push Buttons?

The fundamental difference between illuminated and non-illuminated push buttons lies in the presence of an integrated light source. A non-illuminated push button simply provides a mechanical means to open or close an electrical circuit, relying solely on its physical state or external indicators for user feedback. These are cost-effective and suitable for applications where visual status indication is not critical.

In contrast, an illuminated push button includes an internal light source, usually an LED, that provides visual feedback on its operational status or the state of the circuit it controls. This added feature enhances usability, particularly in environments requiring quick visual confirmation or in low-light conditions. The illumination can indicate power, activation, warnings, or various other states, making the user interface more intuitive and efficient.

What Are The Two Types Of Push Button Switches?

Generally, push button switches are categorized into two primary types based on their actuation behavior: momentary and maintained (or latching).

Momentary Push Button Switches: These switches establish an electrical connection only while the button is physically being pressed. As soon as the pressure is released, the button returns to its original position, and the circuit is opened (or closed, depending on whether it’s normally open or normally closed). They are commonly used for functions that require a temporary action, such as doorbells, computer mouse clicks, or the “start” button on a machine that requires continuous holding for operation.
Maintained (Latching) Push Button Switches: These switches change their state with each press and remain in that new state until pressed again. For example, the first press might close a circuit, and the second press would open it. They are ideal for applications where a continuous on/off control is needed, such as light switches, power buttons on electronic devices, or to toggle between different operating modes. The internal mechanism “latches” the switch in position until the next actuation.

how to choose best Illuminated Push Button s?

Choosing the best illuminated push buttons for your application requires careful consideration of various factors to ensure optimal performance, durability, and user experience.

It’s crucial to align the button’s features with the specific demands of its operating environment and the visual and functional requirements of your system. A well-chosen illuminated button not only performs its switching task but also enhances the overall interface and safety.

To make an informed decision, prioritize factors beyond just aesthetics. Consider the intended use, the frequency of actuation, and the environmental conditions the button will face.

A robust selection process will save time and cost in the long run by preventing premature failures and ensuring satisfactory operation for the lifespan of your equipment.

Here are key aspects to consider when choosing illuminated push buttons:

Environmental Suitability and Durability:
- IP Rating: Evaluate the Ingress Protection (IP) rating. This indicates the button’s resistance to dust and water. For harsh industrial environments or outdoor use, a higher IP rating (e.g., IP67 for temporary submersion) is essential to prevent damage and ensure reliable operation.
- Material and Construction: Opt for high-quality materials like stainless steel or reinforced polymers for durability. Consider impact resistance, chemical resistance, and operating temperature ranges to ensure the button withstands its specific environment over time.
Electrical Specifications and Connectivity:
- Voltage and Current Ratings: Ensure the button’s voltage and current ratings are compatible with your electrical system. This includes both the switch contacts and the illumination circuit to prevent overheating, electrical failures, or damage to connected components.
- Termination Style: Consider the termination method, such as solder terminals, quick-connect tabs, or PCB pins. The chosen style should facilitate easy and secure installation while being appropriate for the intended wiring and assembly processes.
Illumination and Visual Feedback:
- LED Brightness and Color: Select LED brightness that is clearly visible in all expected lighting conditions without causing glare or distraction. Choose colors that align with industry standards (e.g., red for emergency, green for active) or your system’s specific visual coding scheme for clear communication.
- Illumination Type: Decide between full-face illumination, ring illumination, or a discrete indicator. The type of illumination should effectively convey the desired status or alert, enhancing user understanding and reducing potential operational errors.
Ergonomics and Actuation:
- Button Size and Shape: Choose a size and shape that is ergonomically comfortable for users and fits the available panel space. Consider whether a flush, extended, or mushroom head is most appropriate for the application’s required actuation and safety.
- Actuation Type and Feel: Determine if a momentary or maintained (latching) action is needed. Also, consider the actuation force and tactile feedback (e.g., a crisp “click”) to ensure comfortable and reliable operation, especially in applications requiring frequent interaction.

Send Your Inquiry Now

All-in-one Illuminated Push Button Solutions for Your Project

Streamline your design and simplify procurement with our all-in-one illuminated push button solutions. These integrated units combine the switch mechanism, LED illumination, and often custom legends or specialized housings into a single, ready-to-install component. This approach reduces assembly time, minimizes inventory complexity, and ensures perfect compatibility between all elements, making your project development more efficient.
