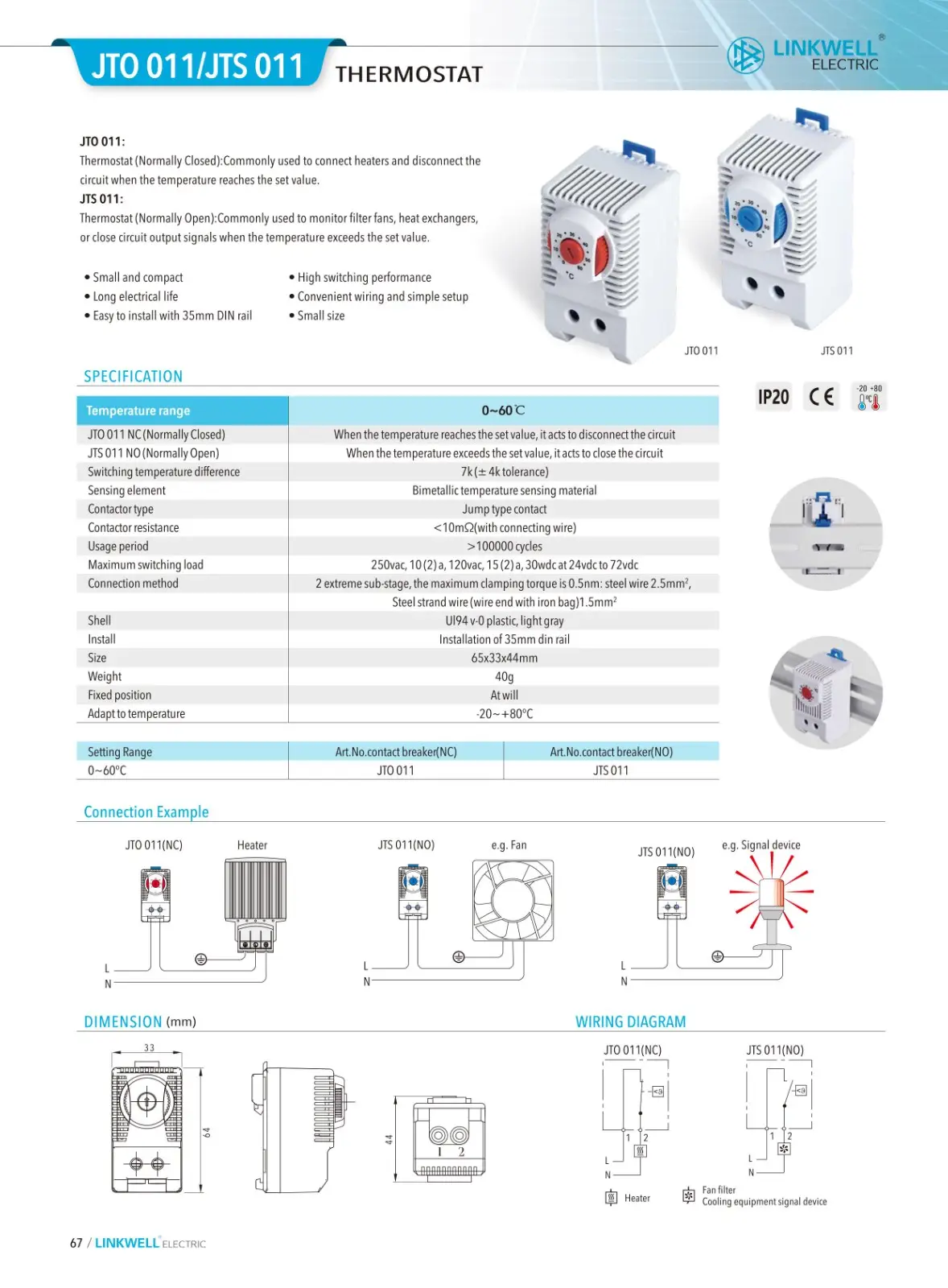

JTO 011:
Thermostat (Normally Closed):Commonly used to connect heaters and disconnect the
circuit when the temperature reaches the set value.
JTS 011:
Thermostat (Normally Open):Commonly used to monitor filter fans, heat exchangers,
or close circuit output signals when the temperature exceeds the set value.
●Small and compact
●High switching performance
●Long electrical life
●Convenient wiring and simple setup
●Easy to install with 35mm DIN rail
JTO 011:
Thermostat (Normally Closed):Commonly used to connect heaters and disconnect the
circuit when the temperature reaches the set value.
JTS 011:
Thermostat (Normally Open):Commonly used to monitor filter fans, heat exchangers,
or close circuit output signals when the temperature exceeds the set value.
●Small and compact
●High switching performance
●Long electrical life
●Convenient wiring and simple setup
●Easy to install with 35mm DIN rail
| Temperature range | 0~60℃ |
| JTO 011 NC(Normally Closed) | When the temperature reaches the set value, it acts to disconnect the circuit |
| JTS011NO (Normally Open) | When the temperature exceeds the set value, it acts to close the circuit |
| Switching temperature difference | 7k(±4k tolerance) |
| Sensing element | Bimetallic temperature sensing material |
| Contactor type | Jump type contact |
| Contactor resistance | <10ms2(with connecting wire) |
| Usage period | >100000 cycles |
| Maximum switching load | 250vac,10(2)a,120vac,15(2) a,30wdcat24vdcto 72vdc |
| Connection method | 2 extreme sub-stage,the maximum clamping torque is 0.5nm:steel wire2.5mm2, |
| Steel strand wire (wire end with iron bag)1.5mm2 | |
| Shell | U194 v-0 plastic, light gray |
| Install | Installation of 35mm din rail |
| Size | 65x33x44mm |
| Weight | 40g |
| Fixed position | At will |
| Adapt to temperature | -20~+80°C |
