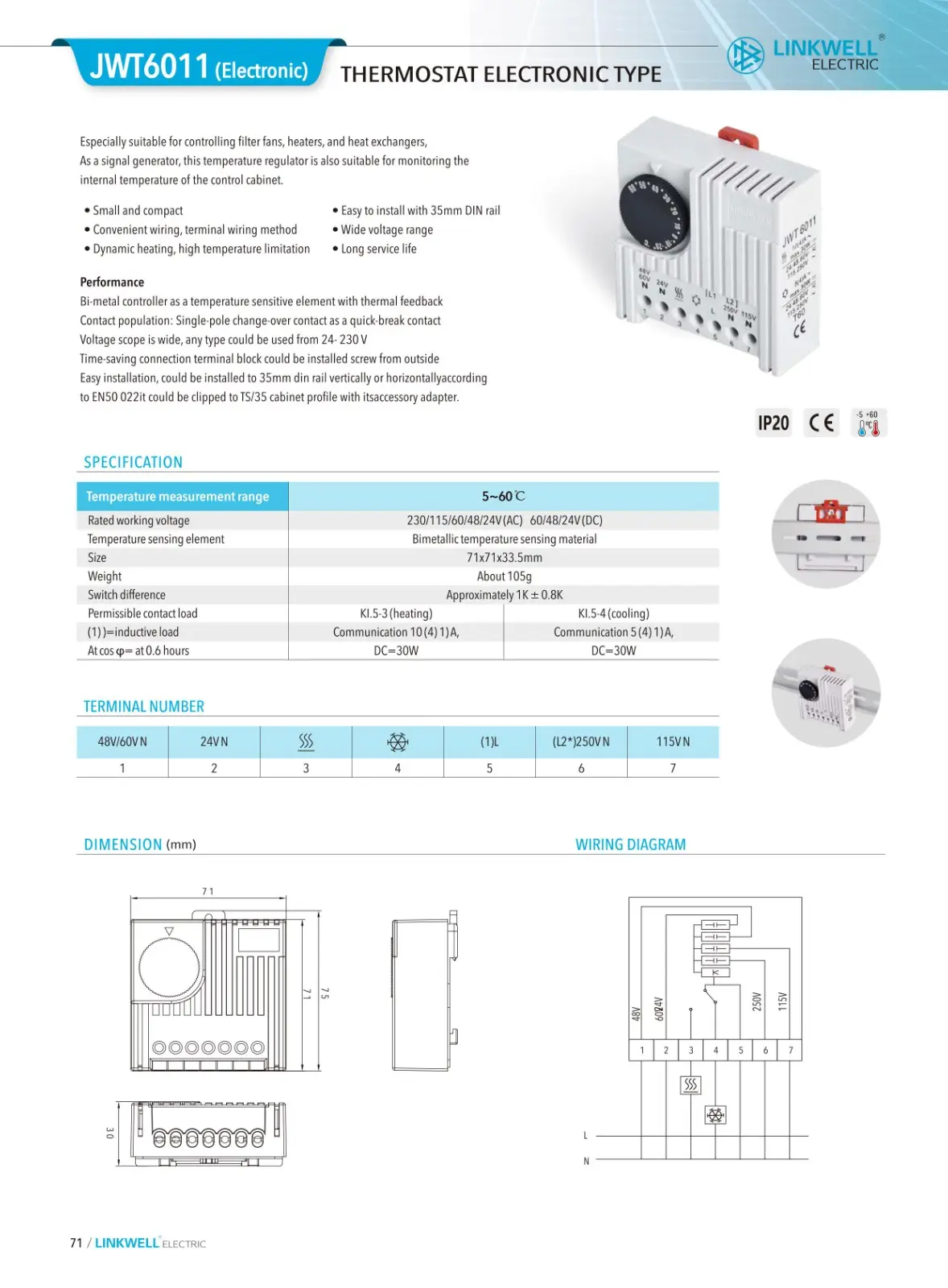

Especially suitable for controlling filter fans, heaters, and heat exchangers,
As a signal generator, this temperature regulator is also suitable for monitoring the
internal temperature of the control cabinet.
Especially suitable for controlling filter fans, heaters, and heat exchangers,
As a signal generator, this temperature regulator is also suitable for monitoring the
internal temperature of the control cabinet.
●Small and compact
●Easy to install with 35mm DIN rail
●Convenient wiring,terminal wiring method
●Wide voltage range
●Dynamic heating, high temperature limitation
●Long service life
Performance
Bi-metal controller as a temperature sensitive element with thermal feedback
Contact population: Single-pole change-over contact as a quick-break contact
Voltage scope is wide, any type could be used from 24-230V
Time-saving connection terminal block could be installed screw from outside
Easy installation, could be installed to 35mm din rail vertically or horizontallyaccording
to EN50 022it could be clipped to TS/35 cabinet profile with itsaccessory adapter.
| Temperature measurement range | 5~60℃ | |
| Rated working voltage | 230/115/60/48/24V(AC) 60/48/24V(DC) | |
| Temperature sensing element | Bimetallic temperature sensing material | |
| Size | 71x71x33.5mm | |
| Weight | About 105g | |
| Switch difference | Approximately1K±0.8K | |
| Permissible contact load | Kl.5-3(heating) | K1.5-4(cooling) |
| (1))=inductive load | Communication 10(4)1)A, | Communication 5(4)1)A, |
| Atcosφ= at 0.6 hours | DC=30W | |
