JTO 011:
Thermostat (Normally Closed):Commonly used to connect heaters and disconnect the
circuit when the temperature reaches the set value.
JTS 011:
Thermostat (Normally Open):Commonly used to Outline Drawing
Alarm output contact, passive contact,AC 250V5A
NC normally open, closed when dehumidification function fails
IP20 CE
-45.80
Definition of dehumidification function failure: Temperature or humidity sensor failure;
The dehumidifier operates continuously for 24 hours,
The relative humidity is still not less than 80%
Control heater-
When the temperature inside the cabinet is lower than the minimum set value, close
LINKWELL”
the circuit to increase temperature; When the temperature exceeds the set
value,Disconnect the line.
Control fan filter-
When the temperature inside the cabinet exceeds the maximum set value, close the
circuit to cool down; When the temperature is below the set value,Disconnect the line.
●Small and compact
● Jump type metal temperature sensing contact
●SLong electrical life
●Convenient wiring and simple setup,
●Easy to install with 35mm DIN rail
●Wide setting range
Outline Drawing
Alarm output contact, passive contact,AC 250V5A
NC normally open, closed when dehumidification function fails
IP20 CE
-45.80
Definition of dehumidification function failure: Temperature or humidity sensor failure;
The dehumidifier operates continuously for 24 hours,
The relative humidity is still not less than 80%

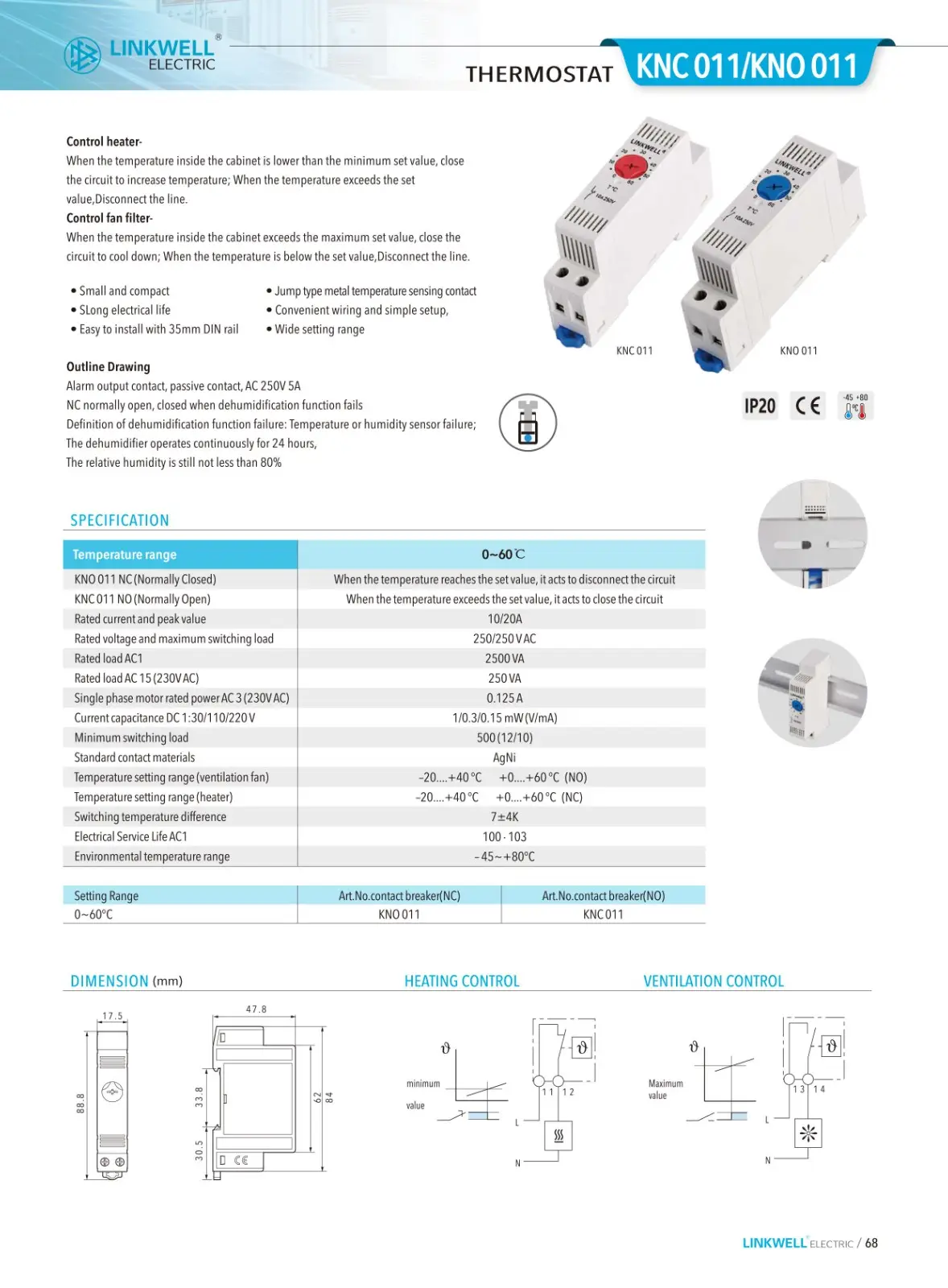

| Temperature range | 0~60℃ | ||
| KNO011 NC(Normally Closed) | When the temperature reaches the set value, it acts to disconnect the circuit | ||
| KNC011 NO (Normally Open) | When the temperature exceeds the set value, it acts to close the circuit | ||
| Rated current and peak value | 10/20A | ||
| Rated voltage and maximum switching load | 250/250VAC | ||
| Rated load AC1 | 2500 VA | ||
| Rated load AC 15(230VAC) | 250VA | ||
| Single phase motor rated powerAC3(230VAC) | 0.125A | ||
| Current cap ac itance DC | 1:30/110/220V | 1/0.3/0.15 mW(V/mA) | |
| Minimum switching load | 500(12/10) | ||
| Standard contact materials | AgNi | ||
| Temperature setting range (ventilation fan) | -20…..+40°℃ +0…..+60℃(NO) | ||
| Temperature setting range (heater) | -20….+40°C +0….+60°C(NC) |
||
| Switching temperature difference | 7±4K | ||
| Electrical Service Life AC1 | 100.103 | ||
| Environmental temperature range | -45-+80℃ | ||
