The product adopts MCU control system, respectively real-time temperature and humidity detection,
and achieve real-time control, in order to ensureVerify that the temperature and humidity in the environ-
ment are in an appropriate range.

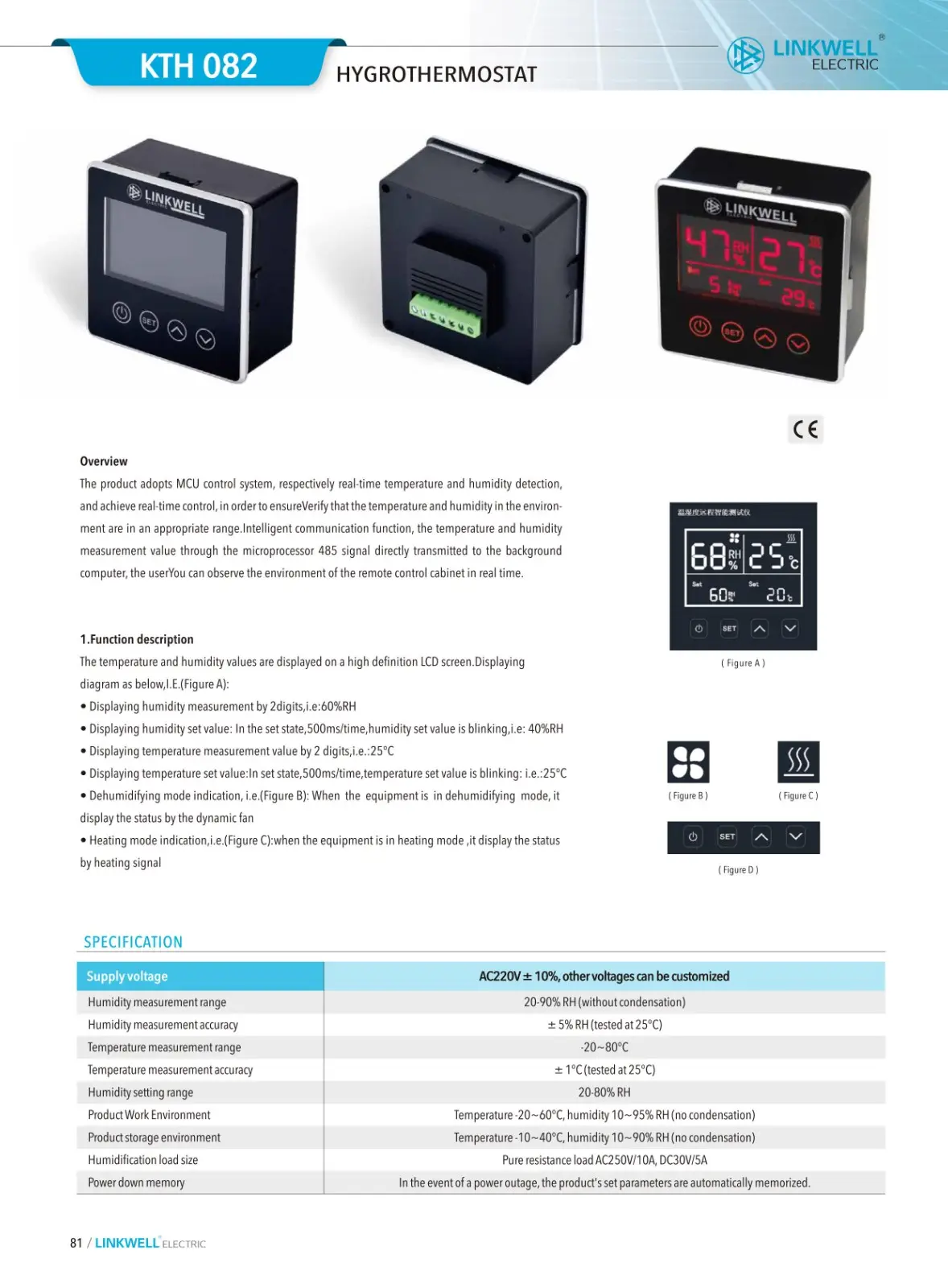

Overview

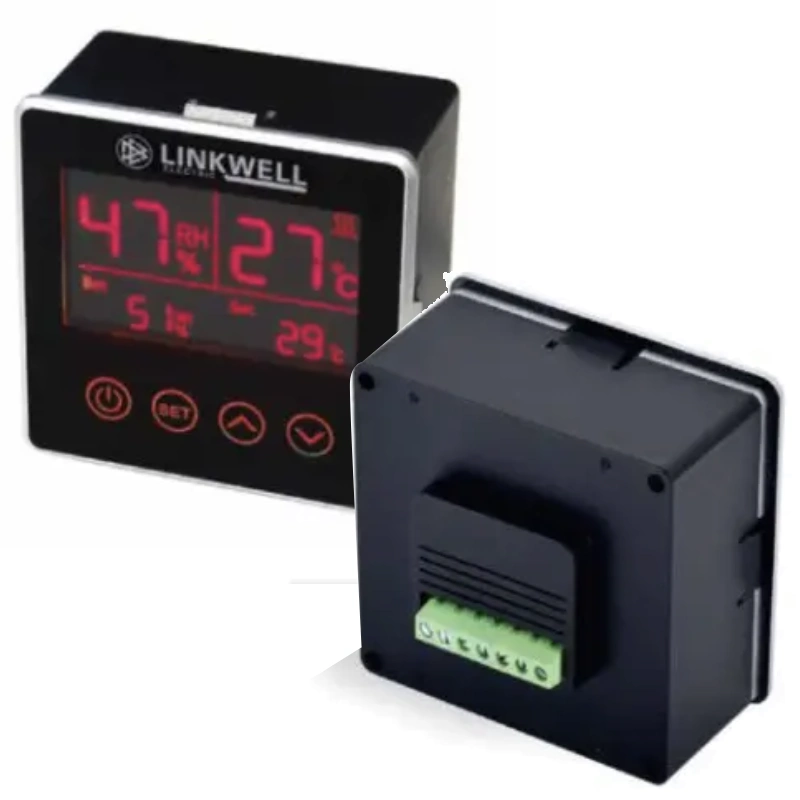

The product adopts MCU control system, respectively real-time temperature and humidity detection,
and achieve real-time control, in order to ensureVerify that the temperature and humidity in the environ-
ment are in an appropriate range.Intelligent communication function, the temperature and humidity measurement value through the microprocessor 485 signal directly transmitted to the background
computer, the userYou can observe the environment of the remote control cabinet in real time.
1.Function description
The temperature and humidity values are displayed on a high definition LCD screen.Displaying
diagram as below,l.E.(Figure A):
●Displaying humidity measurement by 2digits,i.e:60%RH
●Displaying humidity set value: In the set state,500ms/time,humidity set value is blinking,i.e:40%RH
●Displaying temperature measurement value by2 digits,i.e.:25C
●Displaying temperature set value:In set state,500ms/time,temperature set value is blinking: i.e.:25°C
●Dehumidifying mode indication,i.e.(Figure B): When the equipment is in dehumidifying mode, it
display the status by the dynamic fan
●Heating mode indication,i.e.(Figure C):when the equipment is in heating mode,it display the status by heating signal
| Supply voltage | AC220V±10%,other voltages can be customized |
| Humidity measurementrange | 20-90% RH (without condensation) |
| Humidity measurement accuracy | ±5%RH(tested at 25℃) |
| Temperature measurement range | -20~80C |
| Temperature measurement accuracy | ±1C(tested at 25°C) |
| Humidity setting range | 20-80% RH |
| Product Work Environment | Temperature-20~60°C, humidity 10~95% RH(no condensation) |
| Product storage environment | Temperature-10~40C,humidity10~90%RH(no condensation) |
| Humidification load size | Pure resistance load AC250V/10A,DC30V/5A |
| Power down memory | In the event of a power outage, the product’s set parameters are automatically memorized. |
