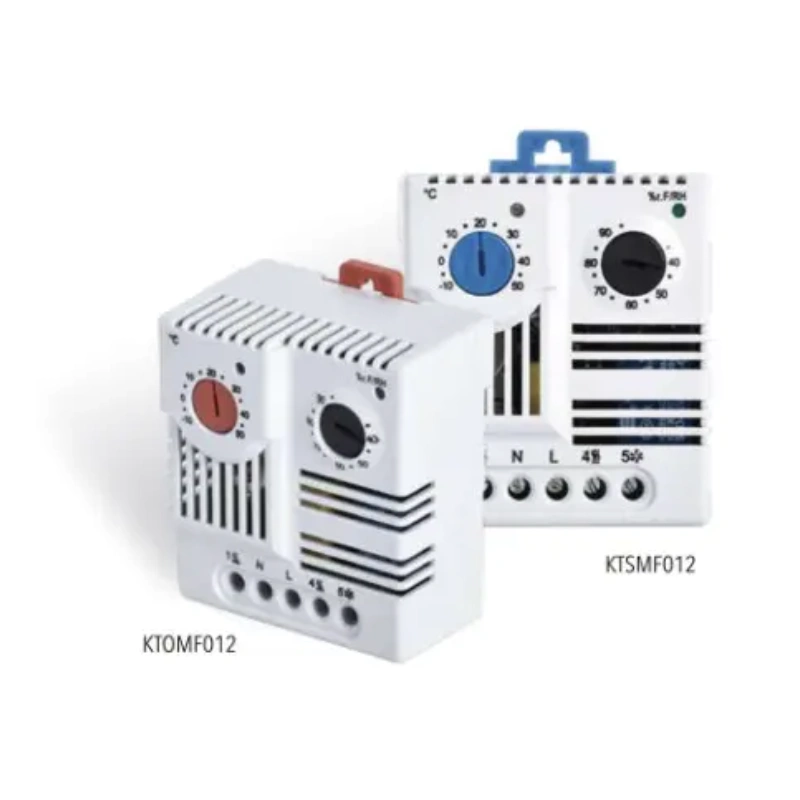

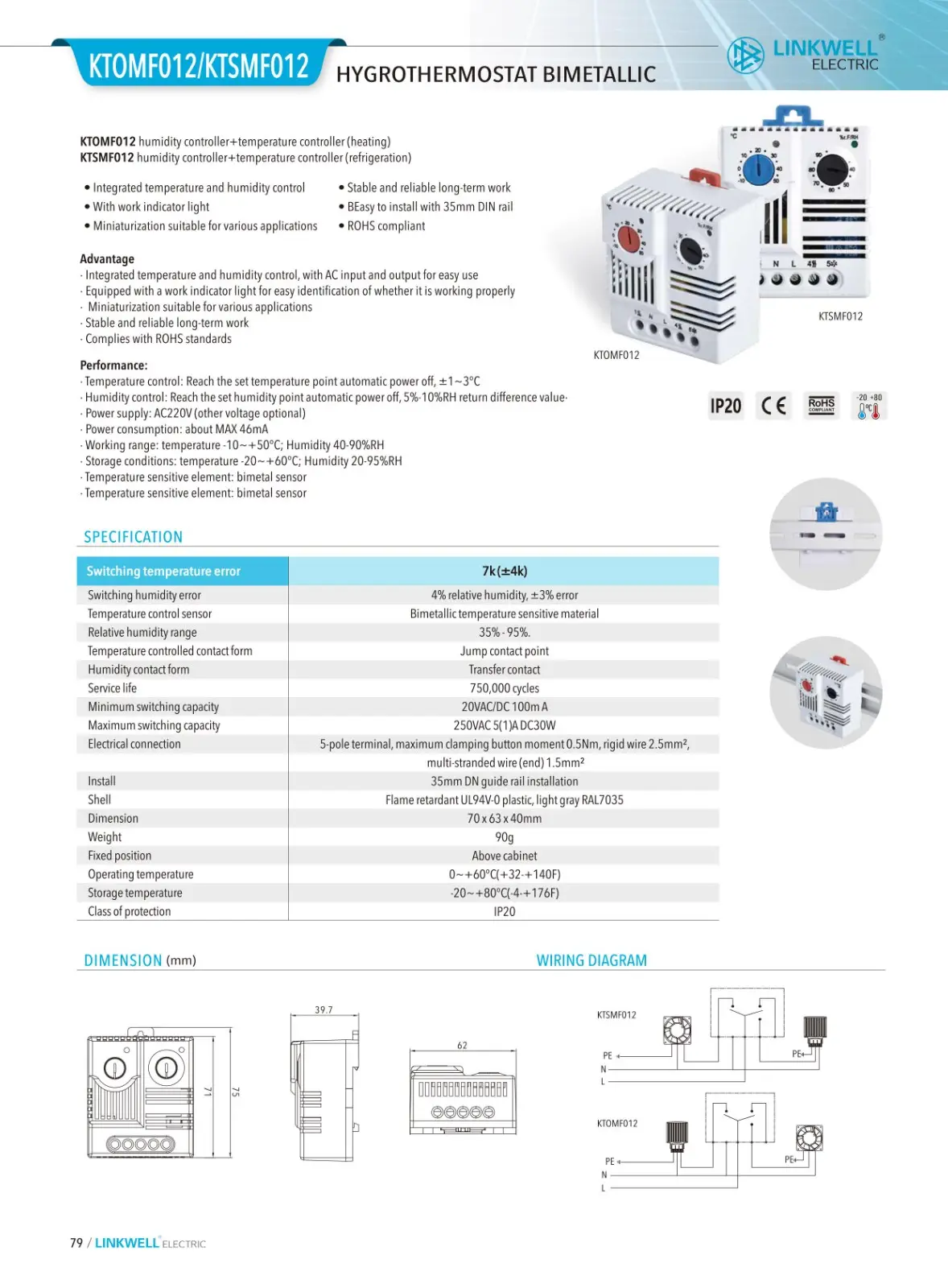

KTOMF012 humidity controller+temperature controller (heating)
KTSMF012 humidity controller+temperature controller (refrigeration)
KTOMF012 humidity controller+temperature controller (heating)
KTSMF012 humidity controller+temperature controller (refrigeration)
●Integrated temperature and humidity control
●Stable and reliable long-term work
●With work indicator light
●BEasy to install with 35mm DIN rail
●Miniaturization suitable for various applications
●ROHS compliant
Performance:
·Temperature control: Reach the set temperature point automatic power off,±1~3°C
Humidity control:
Reach the set humidity point automatic power off, 5%-10%RH return difference value
. Power supply: AC22OV (other voltage optional)
·Power consumption: about MAX 46mA
·Working range:temperature-10~+50°C; Humidity 40-90%RH
·Storage conditions:temperature-20~+60°C; Humidity 20-95%RH
-Temperature sensitive element:bimetal sensor
| Switching temperature error | 7k(±4k) |
| Switching humidity error | 4% relative humidity,±3% error |
| Temperature control sensor | Bimetallic temperature sensitive material |
| Relative humidity range | 35%-95%. |
| Temperature controlled contact form | Jump contact point |
| Humidity contact form | Transfer contact |
| Service life | 750,000 cycles |
| Minimum switching capacity | 20VAC/DC100mA |
| Maximum switching capacity | 250VAC 5(1)ADC30W |
| Electrical connection | 5-pole terminal,maximum clamping button moment0.5Nm,rigid wire 2.5mm2, |
| multi-stranded wire (end)1.5mm2 | |
| Install | 35mm DN guide rail installation |
| Shell | Flame retardant UL94V-0 plastic, light gray RAL7035 |
| Dimension | 70x63x40mm |
| Weight | 90g |
| Fixed position | Above cabinet |
| Operating temperature | 0~+60℃(+32+140F) |
| Storage temperature | 20~+80°C(-4+176F) |
| Class of protection | IP20 |
