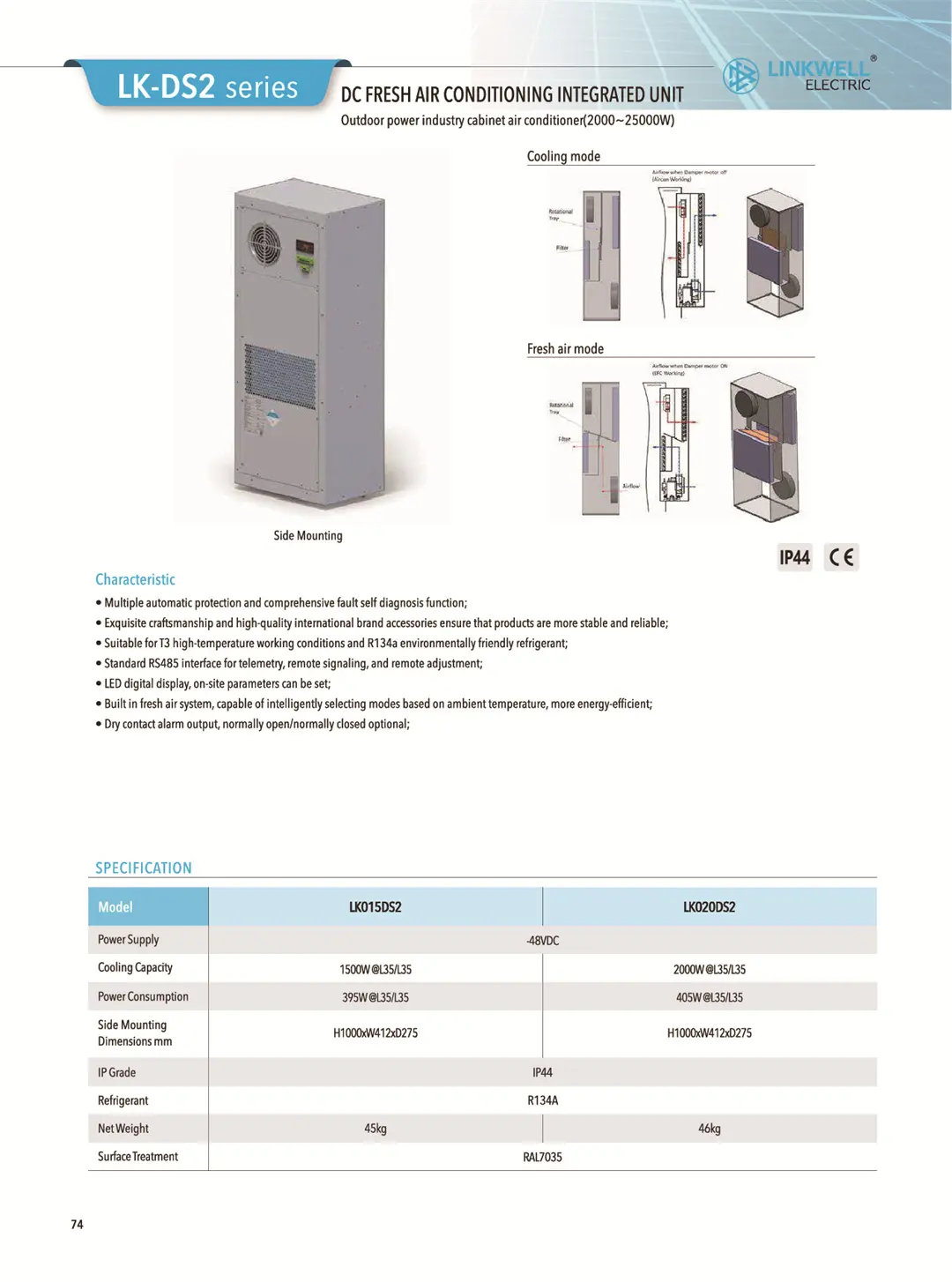

LK-DS2 DC Fresh Air Conditioning Integrated Unit

●Multiple automatic protection and comprehensive fault self diagnosis function;
●Exquisite craftsmanship and high-quality international brand accessories ensure that products are more stable and reliable;
●Suitable forT3 high-temperature working conditions and R134a environmentally friendly refrigerant;
●Standard RS485 interface for telemetry, remote signaling, and remote adjustment;
●LED digital display, on-site parameters can be set;
●Built in fresh air system, capable of intelligently selecting modes based on ambient temperature, more energy-efficient;
●Dry contact alarm output, normally open/normally closed optional;

Characteristic
●Multiple automatic protection and comprehensive fault self diagnosis function;
●Exquisite craftsmanship and high-quality international brand accessories ensure that products are more stable and reliable;
●Suitable forT3 high-temperature working conditions and R134a environmentally friendly refrigerant;
●Standard RS485 interface for telemetry, remote signaling, and remote adjustment;
●LED digital display, on-site parameters can be set;
●Built in fresh air system, capable of intelligently selecting modes based on ambient temperature, more energy-efficient;
●Dry contact alarm output, normally open/normally closed optional;

Cabinet air conditioner 01

Model LK015DS2 LKO2ODS2
Power Supply -48VDC
Cooling Capacity 1500W@L35/L35 2000W@L35/L35
Power Consumption 395W@L35/L35 405W@L35/L35

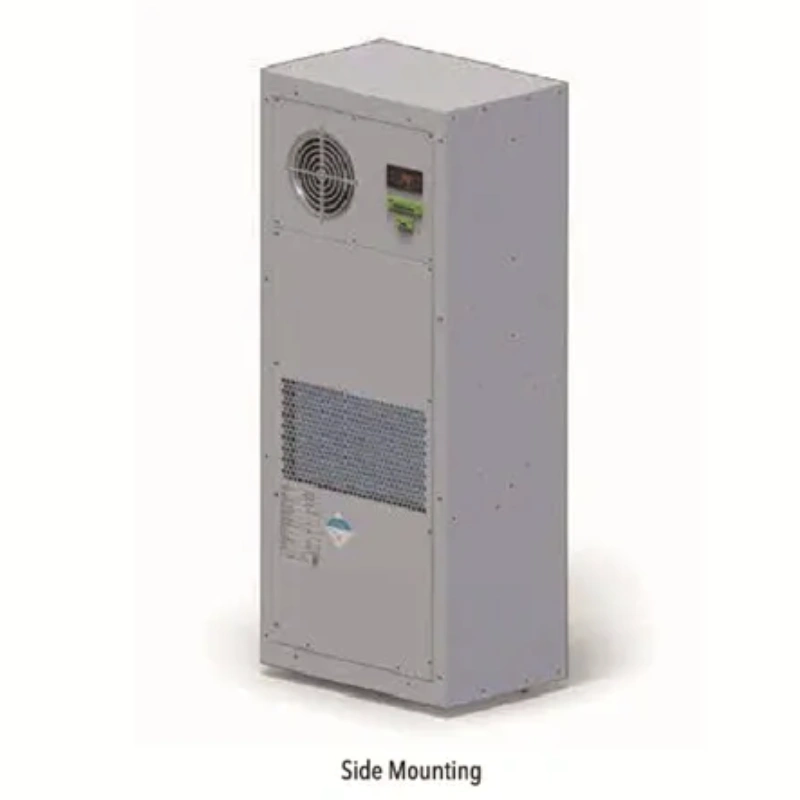

Side Mounting
Dimensions mm
H1000xW412xD275 H1000xW412xD275
IP Grade IP44
Refrigerant R134A
Net Weight 45kg 46kg
Surface Treatment RAL7035



Cabinet air conditioner 09



Ask for Samples Now
