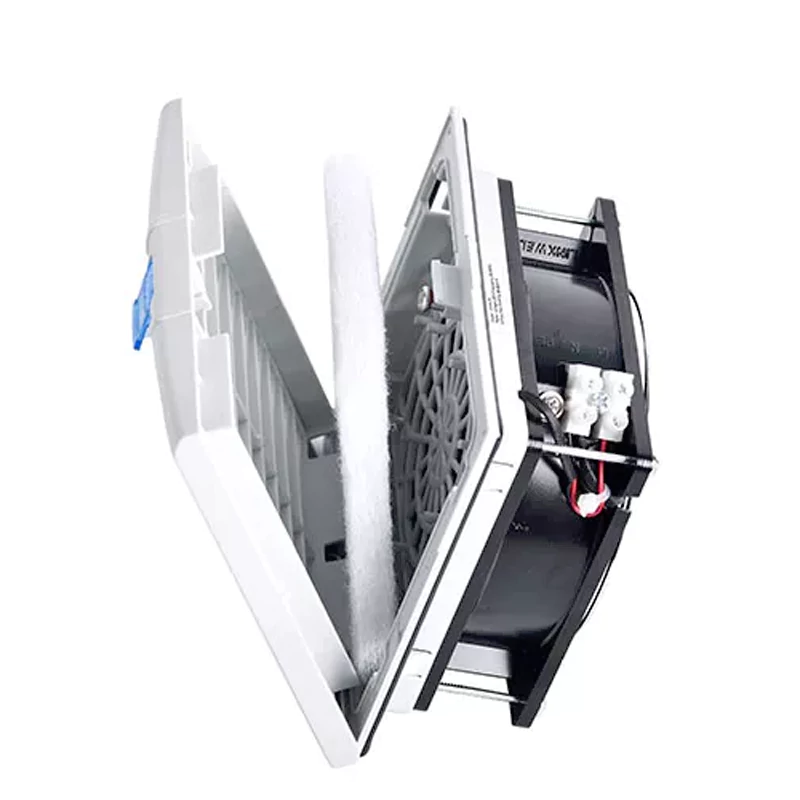

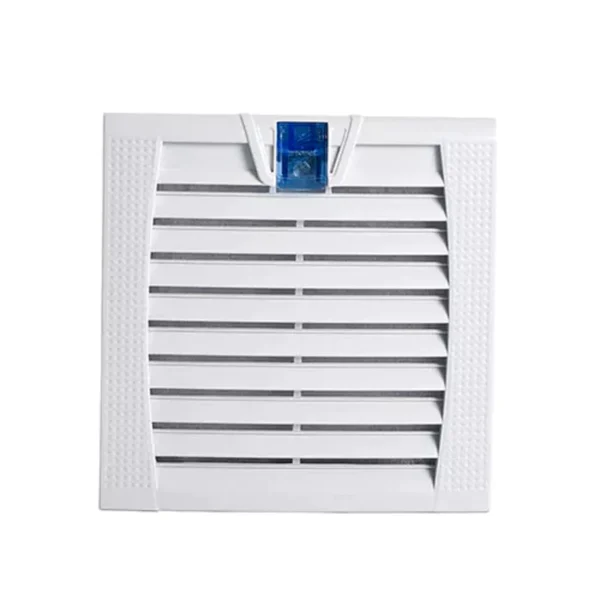

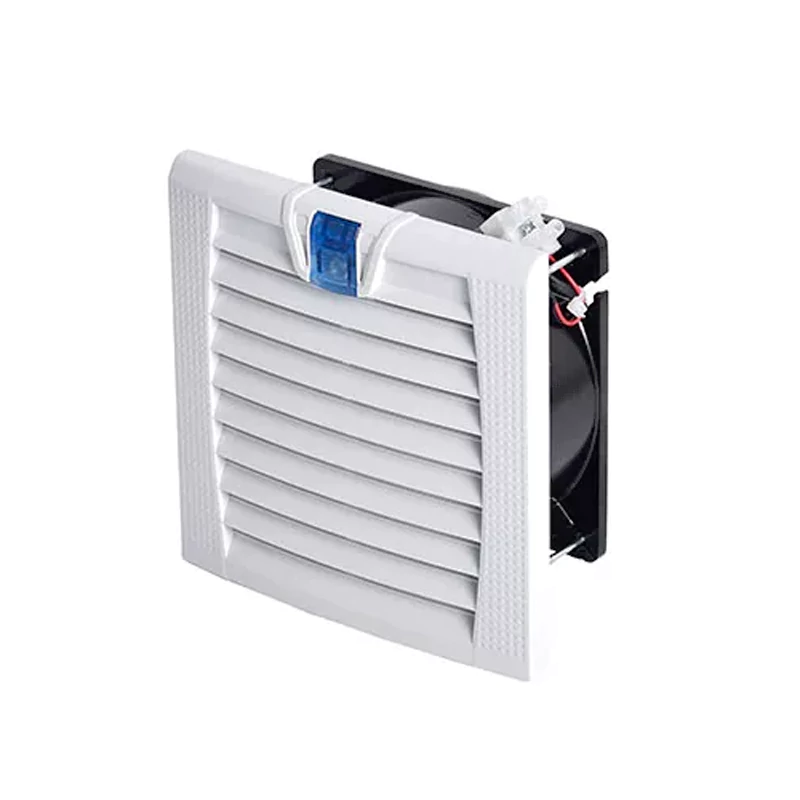

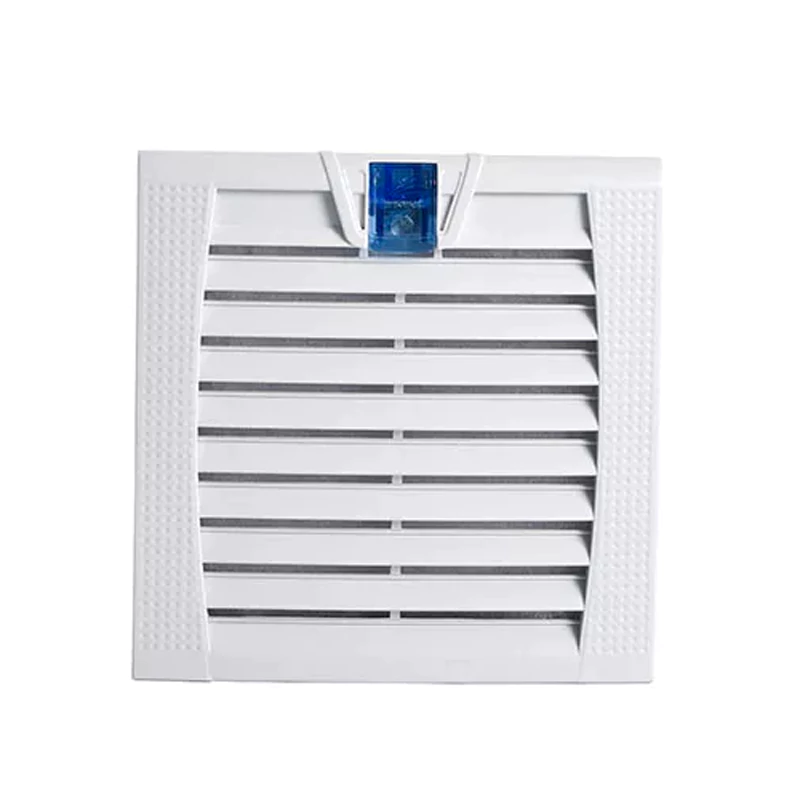

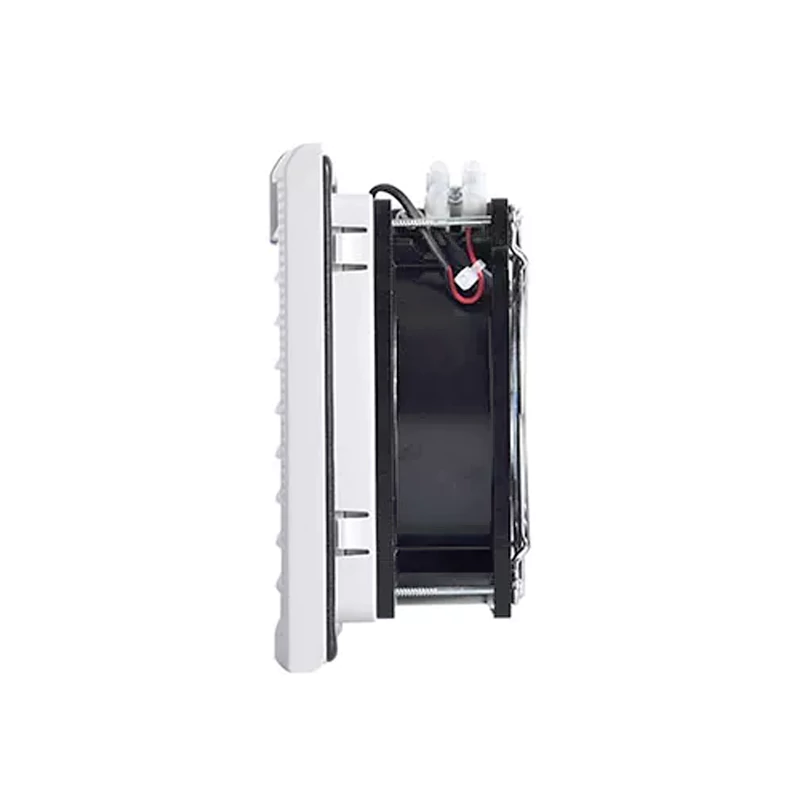

LK3238
LINKWELL
230V, 115V, DC 24V
0.12/0.10A, 0.24/0.20A, 0.35A

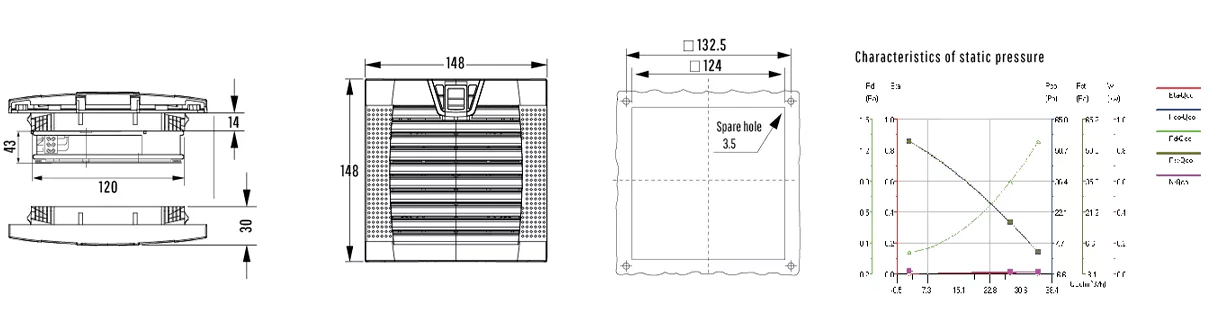

148x148x30mm
RAL 7035, color can be customized
IP56, IP54
CE, ROHS, ISO9001
| Model No.fan-and-filter unit LK | 3238.230-LK | 3238.115-LK | 3238.024-LK |
| Model No.fan-and-filter unit EMC | 3238.230-EMC | 3238.115-EMC | 3238.024-EMC |
| Rated operating voltage, frequency V,Hz | 230V, 50/60Hz | 115V, 50/60Hz | 24V (DC) |
| Air throughput, unimpeded air flow | 65-85 m³/h | 85 m³/h | |
| Air throughput with Exit filter including standard filter mat | 1 x LK 3238.300: 55-70 m³/h | ||
| Axial fan | Self-starting shaded pole motor | DC motor | |
| Rated current max. | 0.12-0.10 A | 0.24-0.20 A | 0.35 A |
| Rated Power | 19.0-14.0 W | 7.7 W | |
| Noise level | 36-40 dB(A) | 40 dB(A) | |
| Operating temperature range | -30 – +70°C | ||
| Model No. Exit filter LK / EMC | 3238.300 / 3238.300-EMC | ||
| Design | Made of injection-moulded thermoplastic, customizable flame retardant materials, consistent with UL94-VO self-extinguishing. | ||
