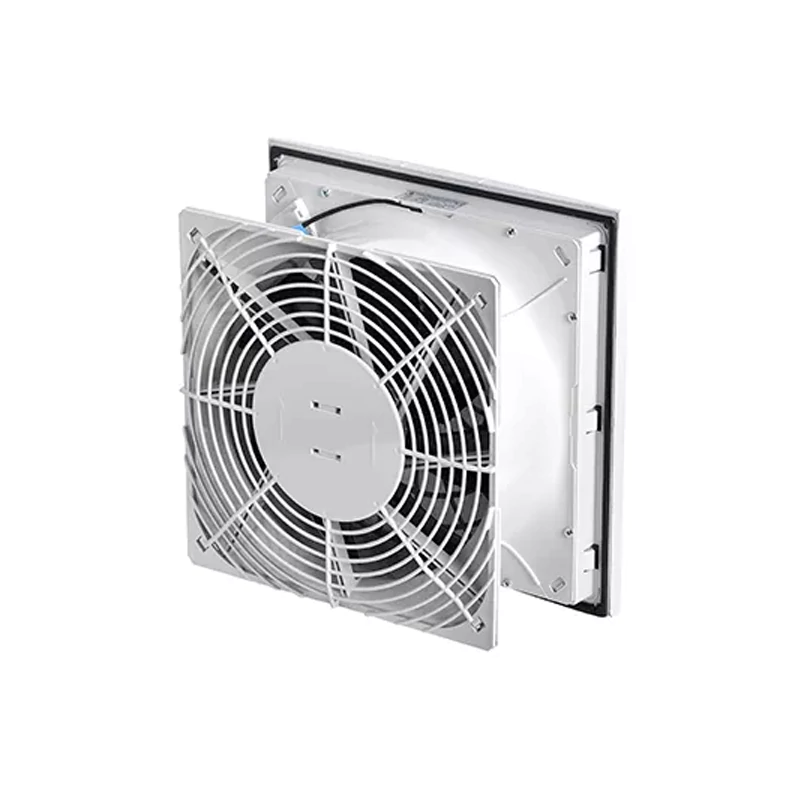

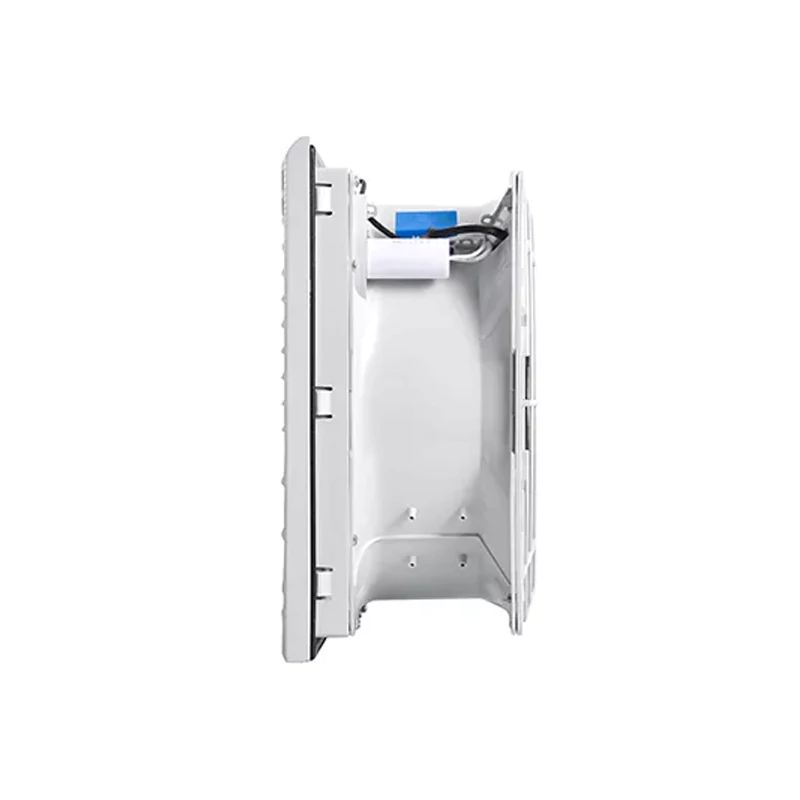

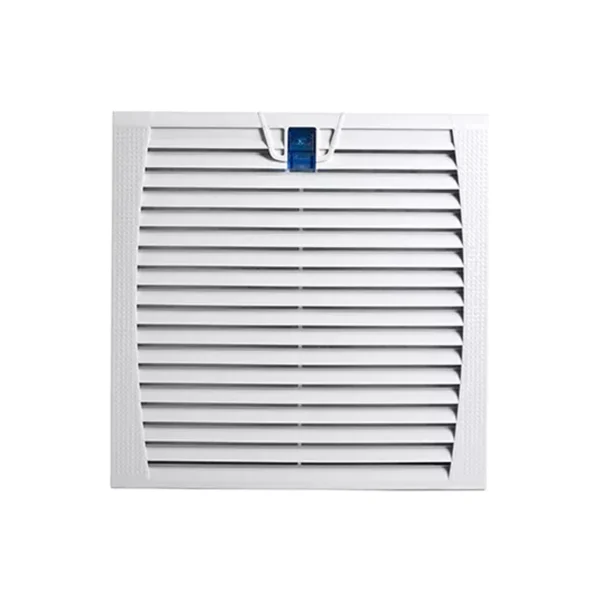

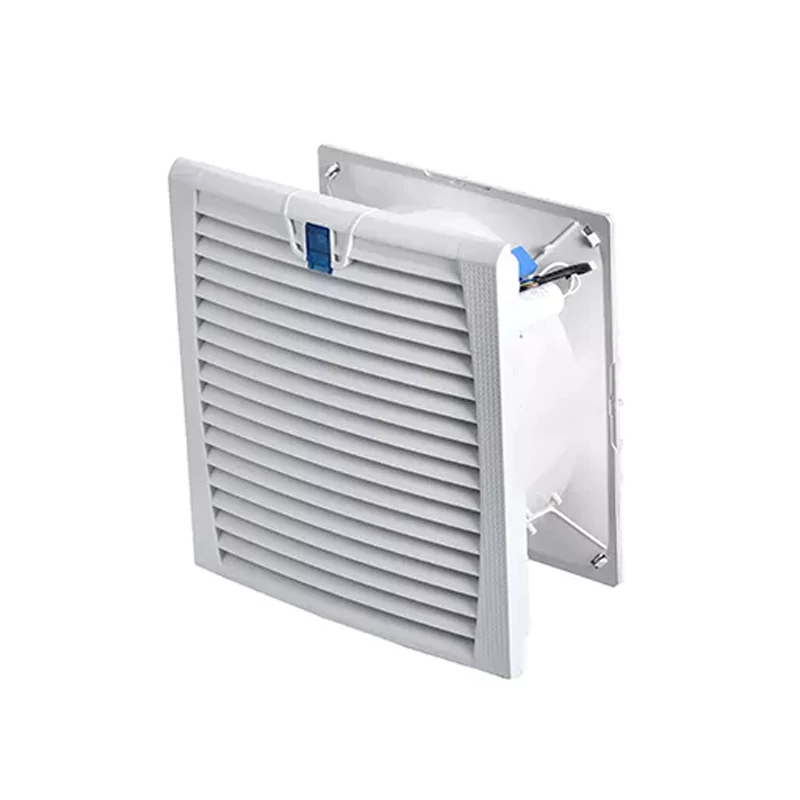

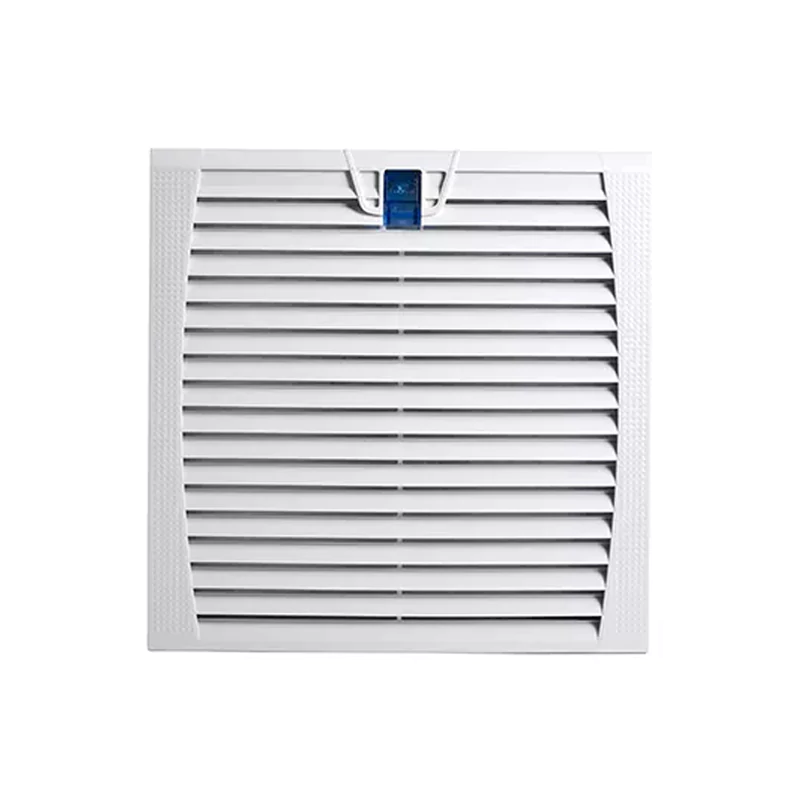

LK3243
LINKWELL
220/240V,110/120V
0.52/0.65A,0.9/0.95A

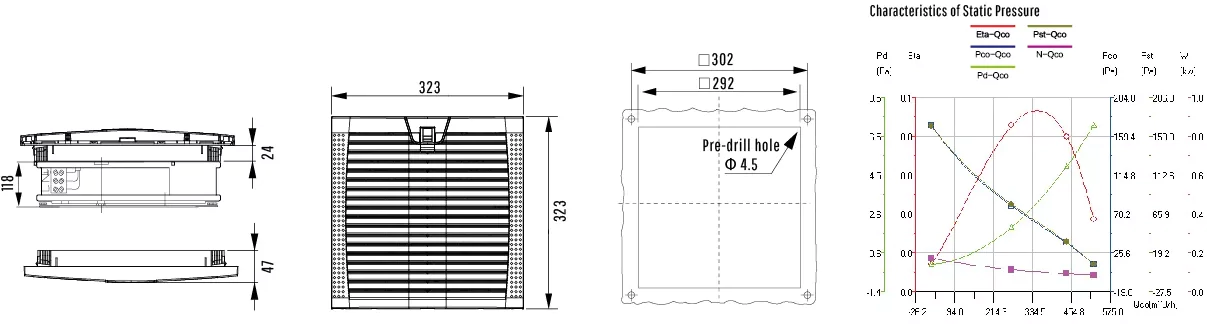

323x323x165mm
RAL 7035, color can be customized
IP54
CE, ROHS, UL
| Model No. fan-and-filter unit LK | LK3243.230 | LK3243.115 |
|---|---|---|
| Rated operating voltage V | 220V-240V | 110V-120V |
| Frequency Hz | 50/60 | 50/60 |
| Air throughput, unimpeded air flow | 1150/1350m³/h | 1150/1350m³/h |
| Air throughput with the Exit filter, including the standard filter mat | 1×LK3243.300:750/930m³/h | |
| Axial fan | Capacitor operated | |
| Rated current max. | 0.52A/0.65A | 0.9A/0.95A |
| Rated Power | 120/160W | 120/160W |
| Noise level | 70/72dB(A) | 70/72dB(A) |
| Operating temperature range | -30 °C – +70 °C | -30 °C – +70 °C |
| Model No. Exit filter | LK3243.300 | LK3243.300 |
| Material | Made of injection-moulded thermoplastic, customizable flame retardant material (UL94-V0) | |
| Air flow direction | air-in as default; air-out optional | |
| Protection Level | IP54 | |
