Model number: LK3244
Brand name: LINKWELL
Rated voltage: 220V-240V 110V-120V
Rated current: 0.29A/0.37A 0.9A/0.95A

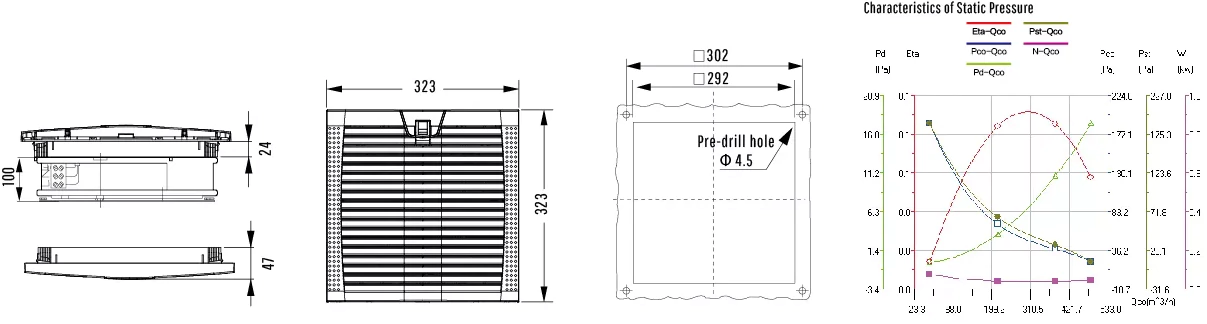

Size: 323x323x47mm
Color: RAL 7035，color can be customized
Protection code: IP54
Certification: CE,ROHS,UL
| Model No. fan-and-filter unit LK | LK3244.230 | LK3244.115 |
|---|---|---|
| Rated operating voltage V | 220V-240V | 110V-120V |
| Frequency Hz | 50/60 | 50/60 |
| Air throughput, unimpeded air flow | 550/600m³/h | 550/600m³/h |
| Air throughput with the Exit filter, including the standard filter mat | 1×LK3243.300:380/410m³/h | |
| Axial fan | Capacitor operated | |
| Rated current max. | 0.29A/0.37A | 0.52A/0.55A |
| Rated Power | 65/80W | 65/80W |
| Noise level | 62/65dB(A) | 62/65dB(A) |
| Operating temperature range | -30 °C – +70 °C | -30 °C – +70 °C |
| Model No. Exit filter | LK3243.300 | LK3243.300 |
| Material | Made of injection-moulded thermoplastic, customizable flame retardant material (UL94-V0) | |
| Air flow direction | air-in as default; air-out optional | |
| Protection Level | IP54 | |
