Custom Metal Junction Box Manufacturer in China
As a leading junction box manufacturer, we offer various metal junction boxes designed for robust performance and lasting durability in various electrical applications. Our selection includes various sizes and configurations to meet diverse project needs, ensuring secure wiring connections and reliable protection. Benefit from the strength and grounding capabilities of our metal enclosures for your commercial, industrial, or residential electrical systems. Explore our cost-effective and code-compliant metal junction box solutions.
Get Your Desired Metal Junction Box to Delight Your Clients
Linkwell Electronics - Your Trusted Metal Junction Box Manufacturer from China
Linkwell Electronics, with its headquarters and shipping originating from Riverside, California, is your reliable source for metal junction boxes. We specialize in providing durable and dependable metal enclosures suitable for a wide array of electrical installations. Partner with us to access a comprehensive selection of robust metal junction box solutions, engineered for safety and longevity in your projects. Choose Linkwell for trusted performance.
Various Metal Junction Box

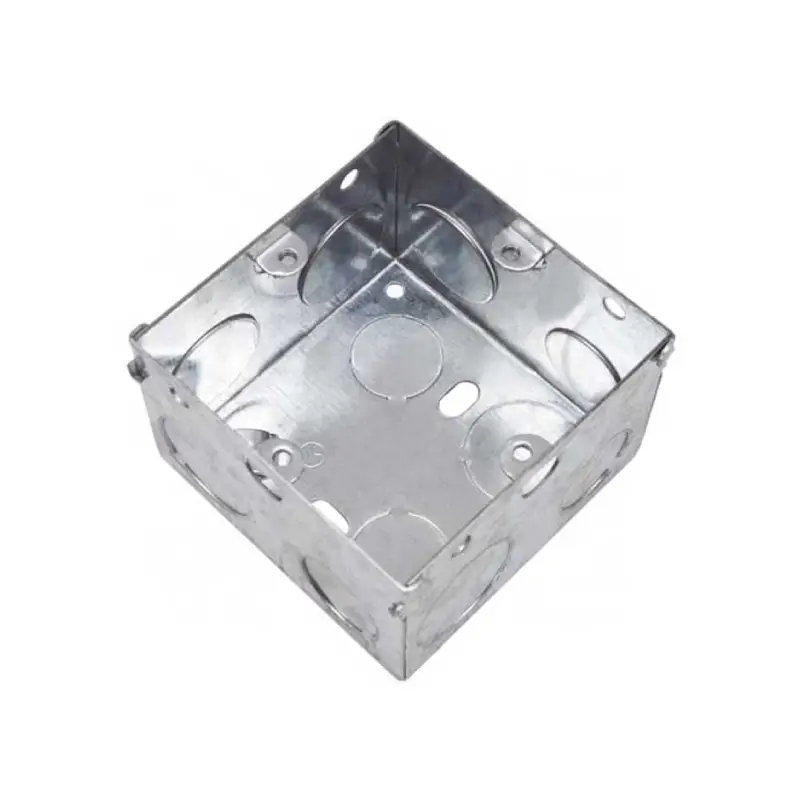

metal electrical junction box
As a leading junction box supplier, we offer all metal electrical junction boxes designed for durability and safety in various wiring applications. Our inventory includes a multitude of sizes and configurations, from standard square and rectangular boxes to specialized deep and weatherproof enclosures. Benefit from the robust construction and reliable grounding capabilities of our metal boxes, ensuring secure connections and code compliance for your residential, commercial, or industrial projects. Explore our cost-effective solutions for your electrical needs.

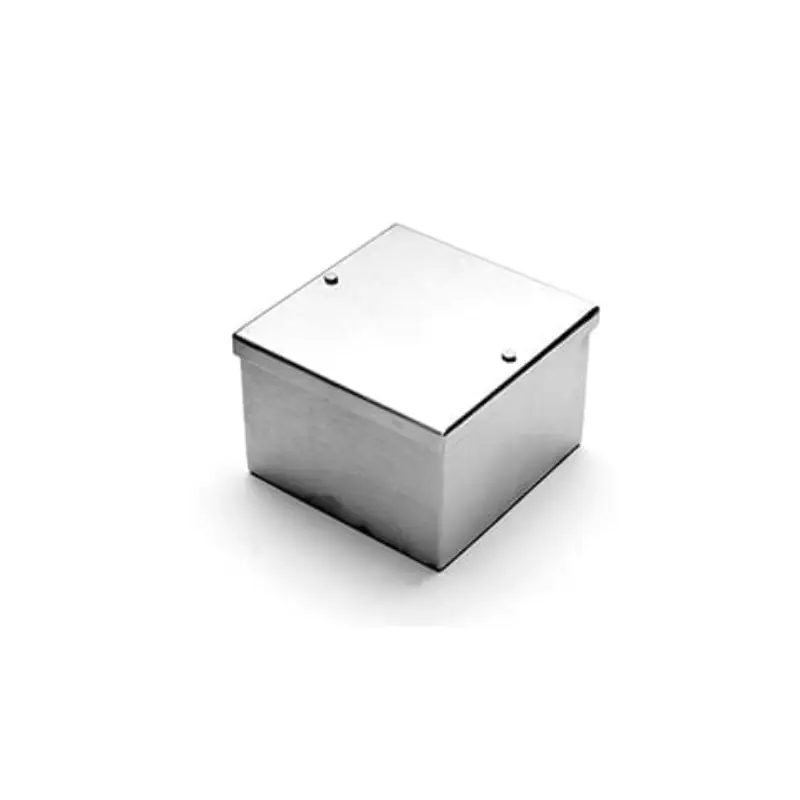

metal junction box with cover
We offer a full range of metal junction boxes, each equipped with a secure and durable cover. Our metal enclosures provide robust protection for your electrical connections in diverse environments, ensuring safety and longevity. Choose from various sizes and knockout configurations to perfectly suit your project requirements. Benefit from our reliable quality and ensure your wiring is safely contained with our metal junction boxes and covers.
round metal junction box
As a trusted junction box manufacturer, we offer a diverse selection of metal round junction box, providing durable and reliable enclosures for your electrical connections. Our round boxes are ideal for mounting light fixtures, smoke detectors, and other ceiling or wall-mounted devices, offering robust protection and secure wiring termination points. Available in various sizes and depths to accommodate different wiring capacities and fixture requirements, our round metal junction boxes ensure code compliance and long-lasting performance for your projects.

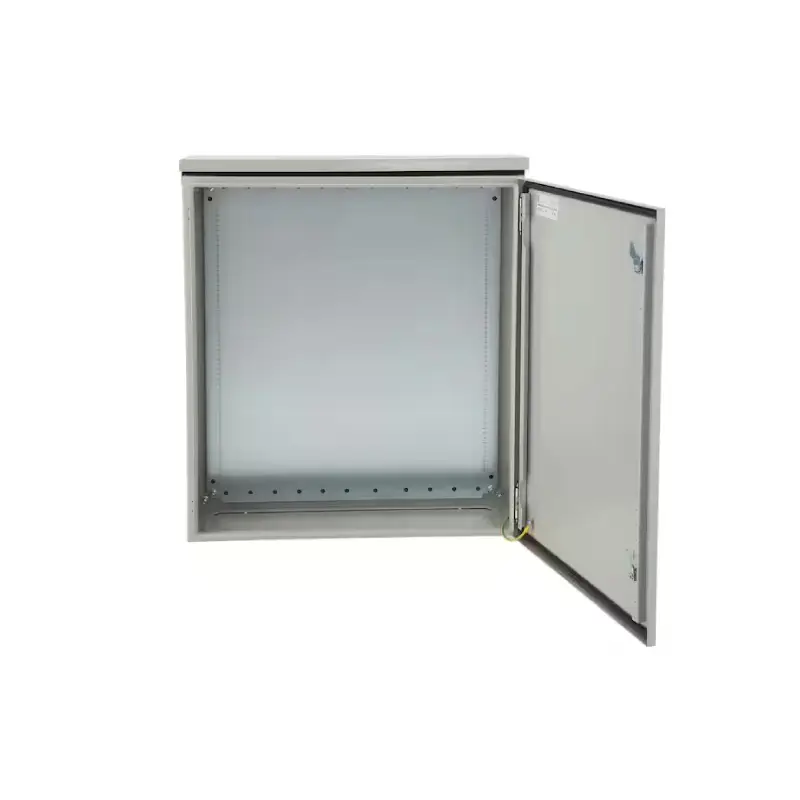

metal outdoor junction box
We provide a range of durable outdoor metal junction boxes engineered to withstand harsh environmental conditions. Our weatherproof enclosures provide robust protection for your electrical connections against rain, snow, dust, and corrosion, ensuring long-lasting performance and safety. Choose from various sizes and NEMA ratings to meet the specific requirements of your outdoor electrical installations. Rely on our quality metal boxes for dependable protection in any weather.
4 way metal junction box
As a leading junction box supplier, we offer a variety of robust 4-way metal junction boxes designed for secure and organized wiring connections. Our durable enclosures provide multiple entry points for conduits or cables, ensuring flexibility in your electrical installations. Choose from various sizes and knockout configurations to accommodate your specific project needs, whether for residential, commercial, or industrial applications. Rely on Linkwell for quality and dependable 4-way metal junction box solutions.

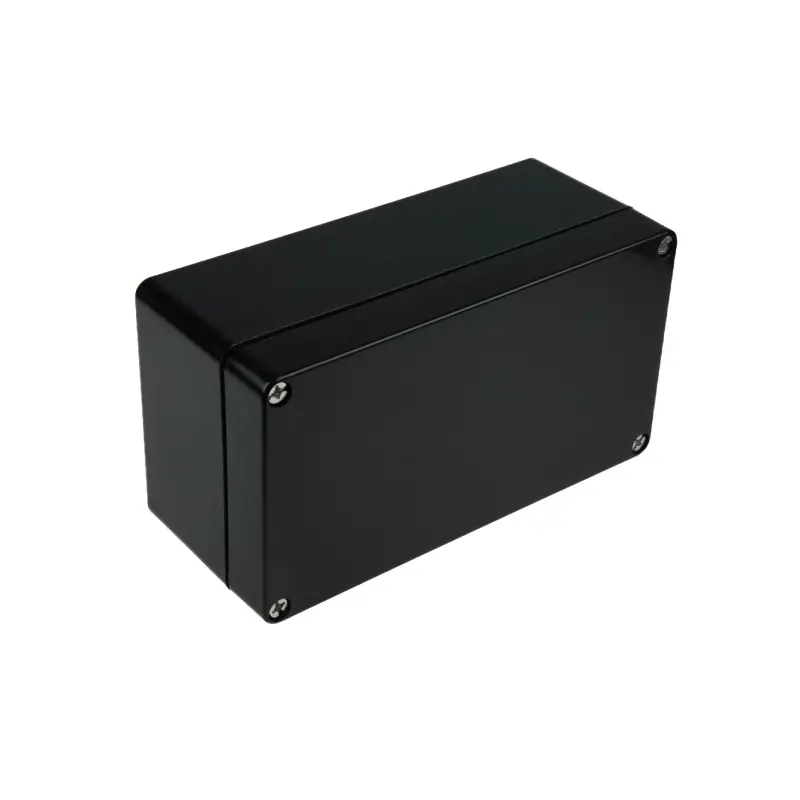

black metal junction box
While our standard metal junction boxes come in a natural metallic finish, we understand that specific aesthetic or functional requirements may call for a black finish. We offer options for powder-coated black metal junction boxes, providing the same robust durability and grounding capabilities as our standard metal enclosures, with an added layer of sleek, professional appearance and enhanced corrosion resistance. Choose from various sizes and knockout configurations to perfectly match your project’s design and performance needs.

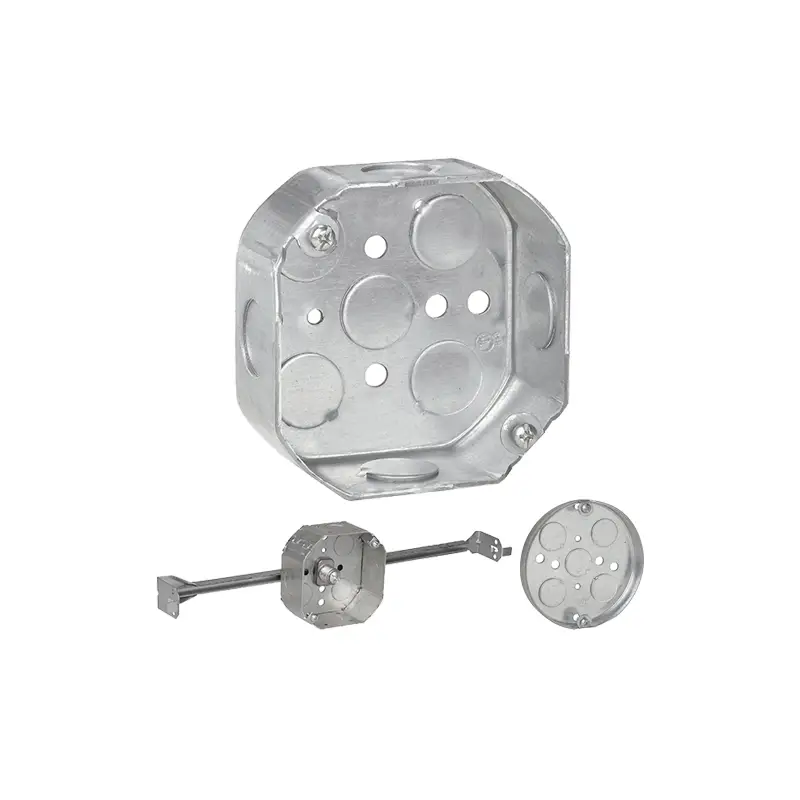

metal ceiling junction box
As a leading junction box manufacturer, we offer a comprehensive selection of metal ceiling junction boxes designed for secure and reliable mounting of light fixtures and ceiling fans. Our robust steel enclosures come in various sizes and configurations, including round and square options with different depths and knockout arrangements to accommodate diverse wiring needs and installation requirements. Ensure safe and code-compliant ceiling installations with our durable metal junction boxes, providing a stable and grounded platform for your lighting and fan systems.

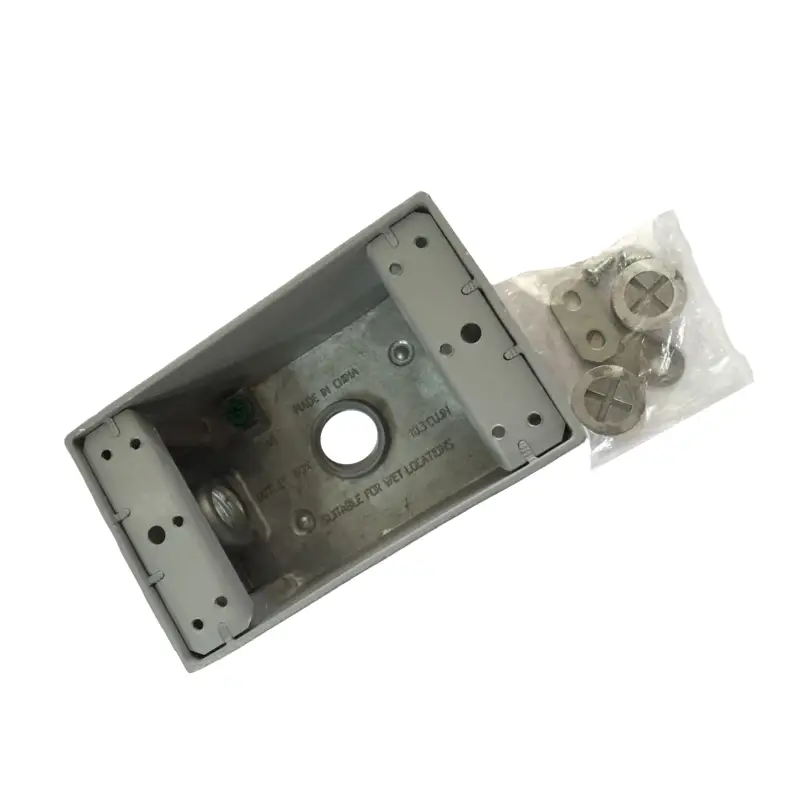

metal waterproof junction box
As a reputable junction box manufacturer, we offer metal waterproof junction boxes designed to provide reliable protection for electrical connections in demanding environments. Our enclosures are built to withstand moisture, dust, and corrosion, ensuring the safety and longevity of your wiring in outdoor or industrial applications. Choose from various sizes and configurations, featuring secure seals and durable construction, to meet your specific project requirements for weatherproof electrical protection.

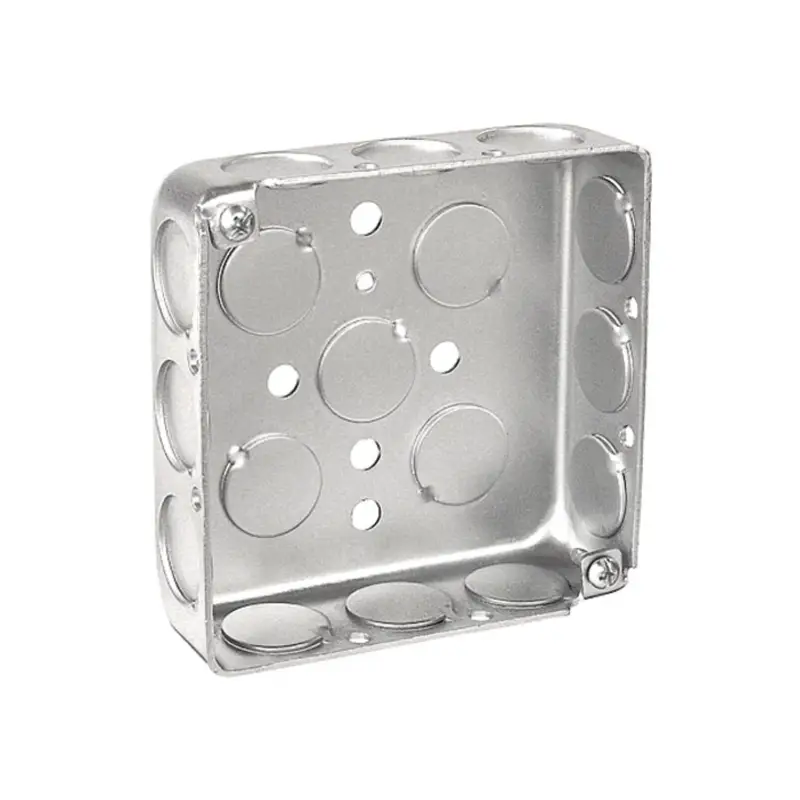

square metal junction box
We offer square metal junction boxes, essential for providing ample wiring space and robust protection in various electrical applications. Our square metal enclosures are ideal for accommodating multiple wire connections, mounting devices with adapter rings, and supporting light fixtures. Available in various depths and knockout configurations, our boxes ensure secure and code-compliant installations for your residential, commercial, or industrial projects. Benefit from our reliable quality and versatile solutions.
square metal junction box
We offer square metal junction boxes, essential for providing ample wiring space and robust protection in various electrical applications. Our square metal enclosures are ideal for accommodating multiple wire connections, mounting devices with adapter rings, and supporting light fixtures. Available in various depths and knockout configurations, our boxes ensure secure and code-compliant installations for your residential, commercial, or industrial projects. Benefit from our reliable quality and versatile solutions.

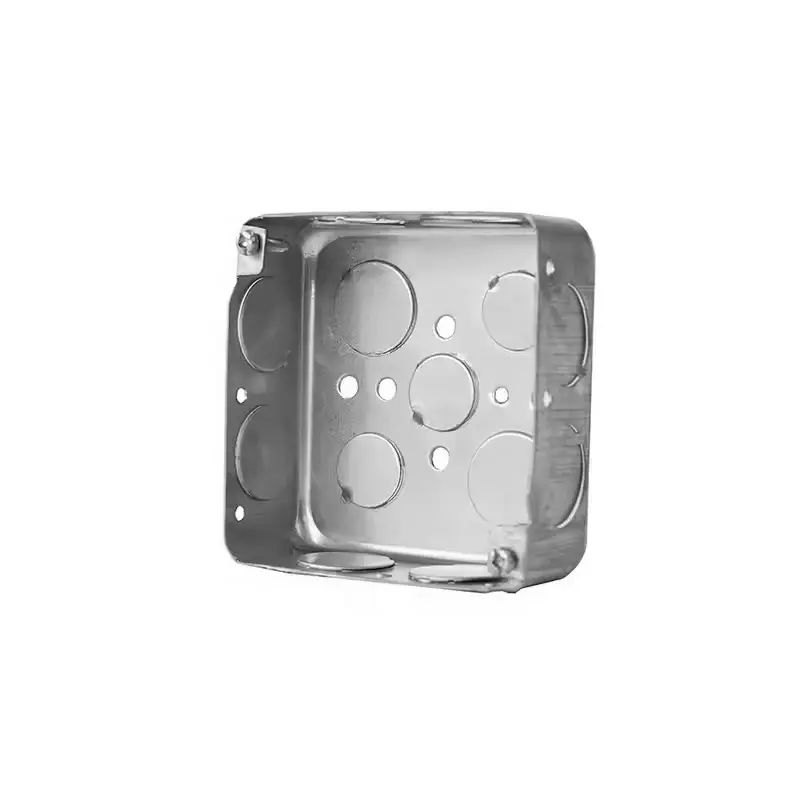

4x4 metal junction box
As a leading junction box manufacturer, we offer a comprehensive range of durable and robust 4×4 metal junction boxes designed to meet diverse electrical wiring needs. Our square metal enclosures provide ample space for connections and device mounting, ensuring safety and compliance. Available in various depths and knockout configurations, our 4×4 metal junction boxes offer a reliable solution for commercial, industrial, and residential electrical installations requiring a sturdy and grounded enclosure.

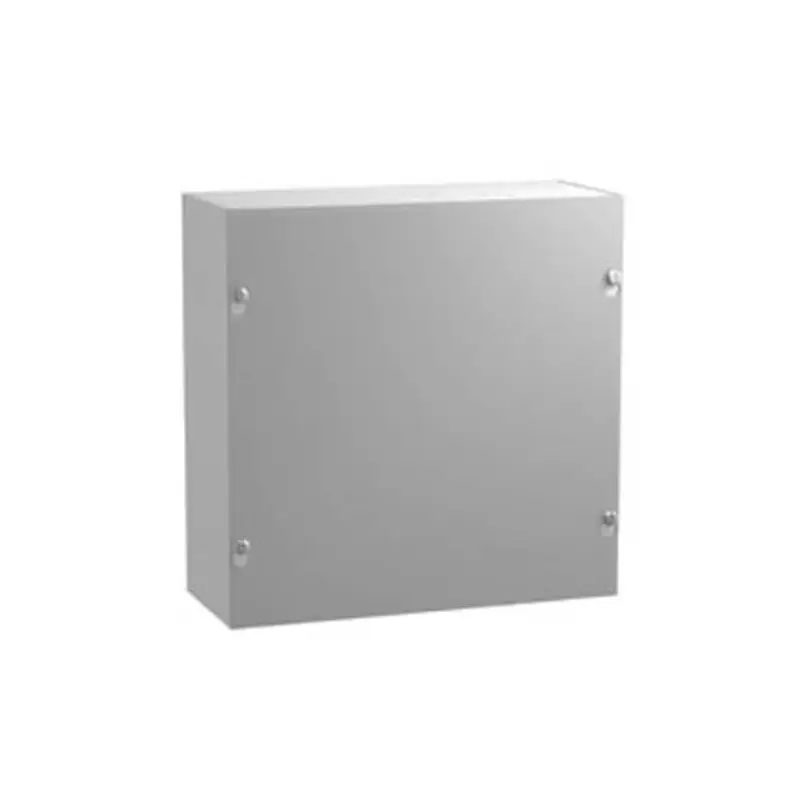

6x6 metal junction box
We offer a robust selection of 6×6 inch metal junction boxes, providing ample space for complex wiring scenarios and multiple connections. Constructed from durable steel, these enclosures ensure excellent protection and grounding capabilities for commercial and industrial applications. Available in various depths and knockout configurations, our 6×6 metal junction boxes deliver reliable performance and meet stringent industry standards, offering a secure and organized solution for your electrical wiring needs.

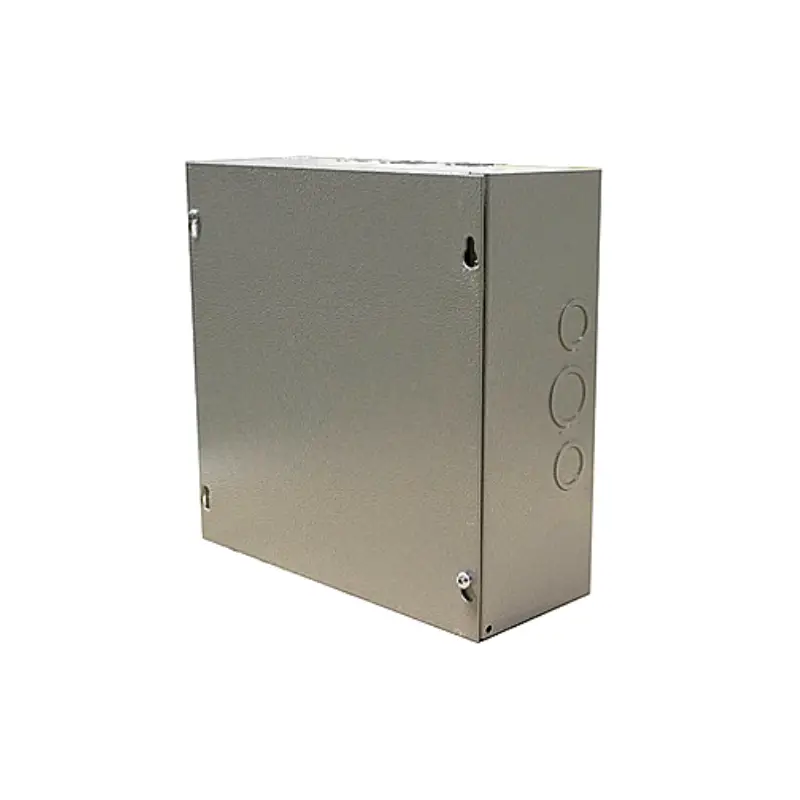

8x8x6 metal junction box
As a leading junction box supplier, we offer durable and versatile 8x8x6 inch metal junction boxes, ideal for providing ample wiring space and robust protection for electrical connections in commercial and industrial applications. Our sturdy steel enclosures come in various configurations, including options with or without knockouts, ensuring flexibility for diverse wiring needs. Benefit from our reliable and code-compliant solutions for secure and organized electrical installations.

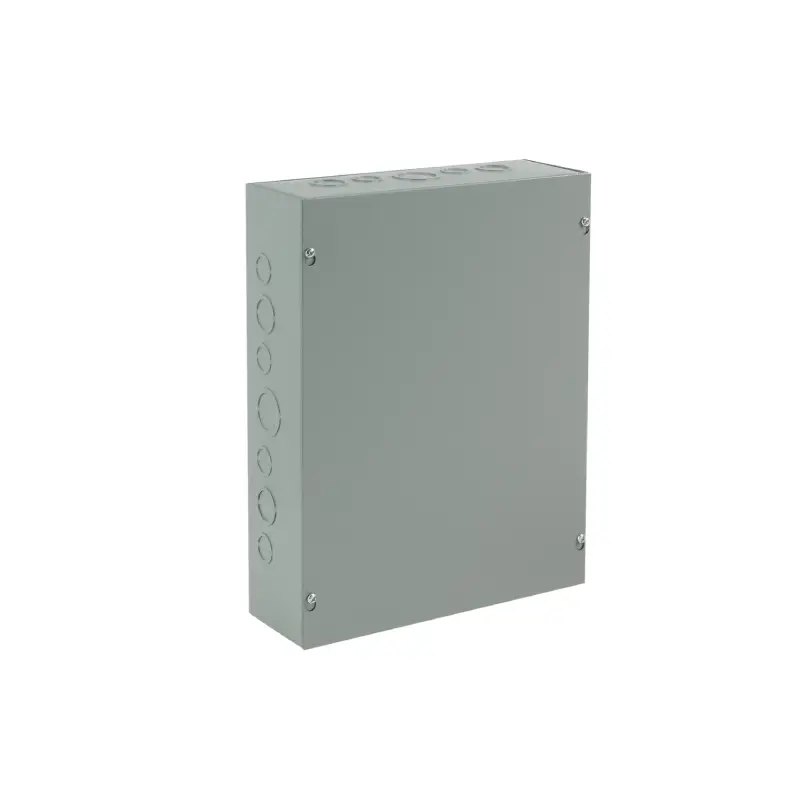

12x12 junction box metal
As a leading junction box manufacturer, we offer a robust selection of 12×12 inch metal junction boxes designed for spacious wiring and secure connections in commercial and industrial applications. Our durable steel enclosures provide ample internal volume for complex wiring configurations and offer excellent protection for conductors. Choose from various depths and knockout options to meet your specific project requirements, ensuring a reliable and code-compliant electrical installation. Benefit from our quality manufacturing for your 12×12 metal junction box needs.
12x12x4 metal junction box
We offer robust 12x12x4 inch metal junction boxes, providing ample space for complex wiring and connections in commercial and industrial applications. Constructed from durable steel, these enclosures ensure reliable protection and facilitate easy access for wiring and maintenance. Featuring multiple knockout options for versatile conduit entry, our 12x12x4 metal junction boxes are a dependable solution for organizing and safeguarding your electrical systems.

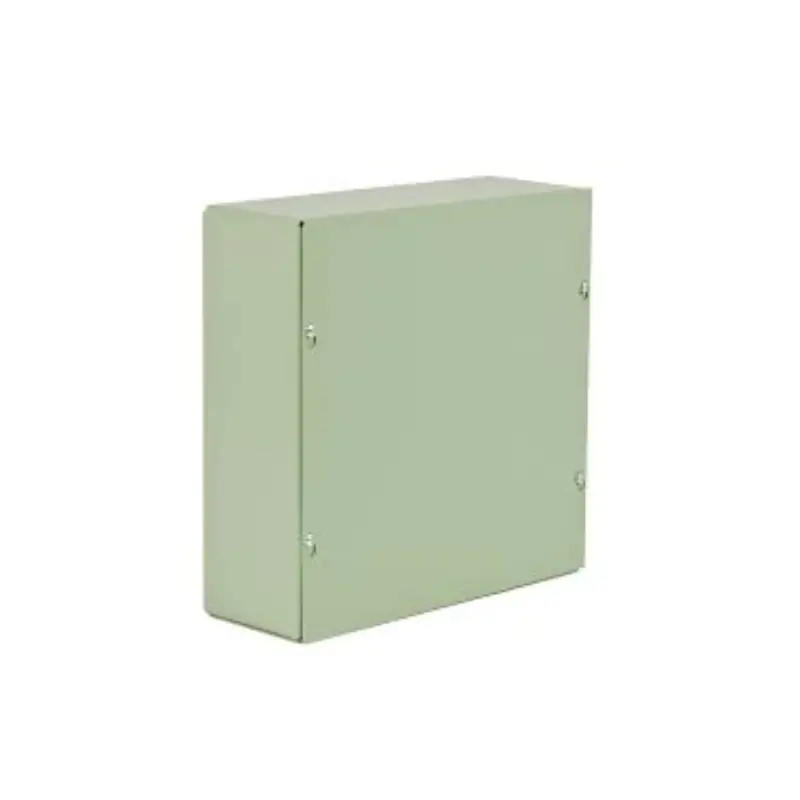

12x12x6 metal junction box
We offer robust 12x12x6 inch metal junction boxes, providing ample space for complex wiring and connections in commercial and industrial applications. Constructed from durable steel, these enclosures ensure excellent protection for your electrical components against environmental factors and physical damage. Featuring multiple knockout options for versatile conduit entry, our 12 x 12 x 6 metal junction boxes deliver reliable performance and easy installation for your demanding electrical systems.
Why Choose Our Metal Junction Box
Custom Knockout Configurations
We understand that every electrical project has unique wiring requirements. Therefore, we offer the flexibility to customize the number, size, and precise location of knockouts on your metal junction boxes. This ensures that conduit and cable entries align perfectly with your design, minimizing the need for on-site modifications and streamlining the installation process, ultimately saving time and labor costs while maintaining a clean and organized wiring system.
Specific Material and Gauge
While our standard metal junction boxes are built with robust steel, we can also manufacture them using alternative metals like aluminum or stainless steel to meet specific environmental or application needs. Furthermore, you can specify the gauge or thickness of the metal used. This customization ensures optimal durability and corrosion resistance for your project’s unique conditions, whether it requires enhanced strength or protection against harsh elements, guaranteeing long-term reliability.
Custom Dimensions and Shapes
Beyond standard sizes, we can produce metal junction boxes with custom height, width, and depth dimensions to perfectly fit your spatial constraints and wiring volume demands. We also offer the possibility of creating non-standard shapes to accommodate unique installation environments or specific equipment integration requirements. This tailored approach ensures a seamless fit and optimized functionality, eliminating wasted space and simplifying complex installations.
Specialized Finishes and Coatings
To provide enhanced protection and aesthetic appeal, we offer a variety of specialized finishes and coatings for our metal junction boxes. These include powder coating in custom colors to match your equipment or architectural design, as well as protective coatings like epoxy or galvanization for increased resistance to corrosion, chemicals, and extreme temperatures. This customization not only improves the visual integration of the enclosures but also significantly extends their lifespan in demanding environments, ensuring long-term performance and durability.
what are metal junction boxes?
Metal junction boxes are electrical enclosures constructed from conductive metals such as steel or aluminum.
Their primary purpose is to provide a safe and durable housing for electrical wire connections, protecting them from physical damage, environmental factors, and accidental contact, thereby preventing electrical hazards.
These junction boxes are a fundamental component in ensuring the integrity and safety of electrical wiring systems in residential, commercial, and industrial settings.
Beyond protection, metal junction boxes offer additional benefits. Their robust construction provides enhanced durability and resistance to impact and extreme temperatures compared to non-metallic options.
Importantly, metal’s conductive property allows the junction box to be part of the grounding system, providing a path for fault currents when properly installed and bonded. This grounding capability is a significant safety feature, especially when used with metal conduits or armored cables, contributing to a safer electrical installation overall.
how to ground a metal junction box?
Grounding a metal junction box is a vital safety procedure that ensures any fault current has a safe path to the ground, minimizing the risk of electric shock. This process involves creating a reliable electrical connection between the metal enclosure and the grounding system of your electrical circuit.
Following these steps carefully will help you establish a secure and code-compliant grounding connection for your metal junction box.
Step 1: Identify the Grounding Components
Locate the grounding screw inside the metal junction box. It’s typically green and has a hexagonal head, often found pre-installed in a threaded hole in the back or side of the box. Identify the equipment grounding conductor (EGC) within the electrical cable entering the box; this will be a bare copper or green insulated wire. You may also need a short length of green insulated wire (a pigtail) and a green wire nut to connect multiple ground wires together. These components are essential for creating a proper grounding connection.
Step 2: Attach the Grounding Wire to the Box
Take the bare end of the equipment grounding conductor from the incoming cable. If multiple cables enter the box, twist all the bare or green ground wires together. Using the green grounding screw, firmly attach these connected ground wires to the grounding terminal inside the metal junction box. Wrap the wire clockwise around the screw before tightening it securely. This ensures good electrical contact between the ground wire(s) and the metal box, providing a path for fault currents directly from the enclosure to the grounding system.
Step 3: Ensure Grounding Continuity (If Necessary)
If you have multiple metal junction boxes in the same circuit, or if you are using metal conduit, it’s crucial to maintain grounding continuity throughout the system. For metal conduit, the conduit itself often serves as the grounding path if properly connected. When using non-metallic cables between metal boxes, you’ll need to run a continuous grounding conductor through each box, connecting it to the grounding terminal in each enclosure. Using a pigtail to connect all grounding wires together and then to the box ensures continuity even if a device is removed.
Step 4: Connect Ground to Devices Within the Box
If you are installing devices like receptacles or switches within the metal junction box, these devices also need to be grounded. Connect a grounding pigtail (if you used one to ground the box) or one of the continuous ground wires to the green grounding screw on the device.
This ensures that any fault current on the device will also have a direct path to ground through the grounded metal box. A secure connection here is vital for the safety of any equipment plugged into or controlled by these devices.
Step 5: Verify the Grounding Connection
After completing the grounding connections, gently tug on the wires to ensure they are securely fastened. Visually inspect the connections to confirm good contact between the wires and the grounding screw or terminals.
For added assurance, you can use a multimeter to test for continuity between the metal box and a known good ground point in the electrical system. A low resistance reading indicates a proper grounding connection, ensuring the safety and proper functioning of your electrical installation.
can you use a metal junction box outside?
Yes, metal junction boxes can be used outdoors, but it’s crucial to select a box specifically rated for outdoor use. These junction boxes are designed to withstand exposure to the elements, including rain, snow, and sunlight.
Look for enclosures with a NEMA (National Electrical Manufacturers Association) or IP (Ingress Protection) rating that indicates its suitability for outdoor conditions, such as NEMA 3R or higher, or IP65 or higher.
Outdoor-rated metal junction boxes often feature weatherproof gaskets and tight-fitting covers to prevent water and moisture from entering and damaging the electrical connections inside.
The metal construction itself offers durability and protection against physical impact, which can be important in outdoor environments.
However, it’s also essential to ensure the metal box is properly grounded to maintain safety, as discussed previously.
Additionally, in corrosive outdoor environments, consider using metal boxes made from materials like aluminum or stainless steel, or those with a protective coating, to prevent rust and degradation over time.
metal junction box vs plastic
Choosing between metal and plastic junction boxes is a common decision in electrical work, each offering distinct advantages and disadvantages. Metal boxes are known for their robustness and grounding capabilities, while plastic boxes are favored for their ease of use and resistance to corrosion. The best choice depends on the specific application, environmental conditions, and local electrical codes.
Durability and Protection
Metal junction boxes, typically made of steel or aluminum, offer superior physical protection to wiring, resisting impacts and crushing forces more effectively than plastic. This makes them ideal for environments where the box might be exposed to mechanical stress. Plastic boxes, while durable enough for many applications, are more susceptible to cracking or breaking under significant pressure.
Grounding Capabilities
A significant advantage of metal junction boxes is their ability to be integrated into the grounding system. When properly bonded, they provide a continuous path for fault currents, enhancing safety, especially when used with metallic conduits or armored cables. Plastic boxes, being non-conductive, do not inherently offer this grounding capability, requiring separate grounding conductors for devices within the box.
Resistance to Corrosion
Plastic junction boxes excel in environments where moisture or corrosive substances are present. Their non-metallic composition prevents rust and degradation, making them a preferred choice for bathrooms, kitchens, and some outdoor applications (when using appropriately rated boxes). Metal boxes, unless made of corrosion-resistant materials like aluminum or stainless steel, can rust over time in damp conditions.
Ease of Installation
Plastic junction boxes are generally lighter and easier to work with than metal boxes. They are simpler to cut or drill for cable entries and often feature built-in clamps for non-metallic cables, streamlining the installation process. Metal boxes can have sharp edges and may require additional clamps and more effort for modification.
Cost Considerations
Plastic junction boxes are typically less expensive to purchase than their metal counterparts. This can be a significant factor for large projects with numerous boxes. While metal boxes offer long-term durability, the initial cost savings of plastic can be attractive for many residential and smaller commercial installations.
how to install a metal junction box?
Installing a metal junction box correctly is crucial for a safe and code-compliant electrical system. These boxes provide a secure enclosure for wire connections and often serve as mounting points for fixtures or devices. Following these steps will guide you through the proper installation process, ensuring a stable and grounded enclosure for your electrical wiring.
Step 1: Select the Appropriate Box and Location
Choose a metal junction box of the correct size and type for your intended use and the number of wires it will contain, adhering to fill capacity requirements. Select a mounting location that provides adequate support, such as a wall stud or ceiling joist. Ensure the location is accessible for wiring and any future maintenance. Consider the type of wiring method you’ll be using (e.g., NM cable, conduit) when selecting the box and its knockout configuration.
Step 2: Securely Mount the Junction Box
Position the metal junction box at the chosen location and use appropriate fasteners (screws, nails, or specialized mounting brackets) to attach it firmly to the structural support. Ensure the box is level and securely fastened so it won’t move or vibrate. The mounting method will depend on the box type (e.g., boxes with mounting ears for surface mounting, boxes with internal brackets for stud mounting). A stable mounting is essential for the safety and longevity of the electrical connections and any attached fixtures.
Step 3: Prepare the Wiring Entry Points (Knockouts)
Determine which knockouts on the metal junction box you will use to run your electrical wires or conduits into the box. Using a screwdriver and hammer or knockout pliers, carefully remove the appropriate size knockouts. Ensure the resulting openings are clean and free of sharp edges to prevent damage to the wire insulation. Install appropriate cable clamps or conduit connectors into the knockouts to securely hold the wires or conduits entering the box and provide strain relief.
Step 4: Run and Secure the Wiring
Carefully pull the electrical wires or conduits into the metal junction box through the installed connectors or clamps. Leave sufficient wire length inside the box (typically 6-8 inches) for making connections and future maintenance. Secure the cables or conduits tightly using the screws or mechanisms on the connectors or clamps to prevent them from being pulled out or causing strain on the connections within the box. Proper securing of the wiring ensures the integrity and safety of the electrical system.
Step 5: Ground the Metal Junction Box
As discussed in the previous response, properly grounding the metal junction box is crucial. Connect the equipment grounding conductor (bare copper or green wire) from the incoming cables to the grounding terminal (usually a green screw) inside the box. If multiple ground wires are present, connect them all together and then to the grounding terminal, potentially using a pigtail. Ensure a secure and tight connection. Grounding provides a safe path for fault currents.
Step 6: Make Wire Connections and Install Devices (If Applicable)
Connect the circuit wires within the junction box according to your wiring plan, using appropriate wire connectors (wire nuts, terminal blocks). Ensure all connections are secure and properly insulated. If you are mounting a device like a switch or receptacle to the metal junction box, carefully position the device and secure it with screws to the box or a mounting ring attached to the box. Ensure all wires are neatly tucked inside the box without being pinched or stressed.
Step 7: Install the Junction Box Cover
Once all wiring and device installations are complete, securely attach the appropriate cover to the metal junction box using screws. The cover protects the internal wiring from physical damage and prevents accidental contact with live wires. Ensure the cover fits snugly and is properly fastened to maintain the integrity of the enclosure.
Step 8: Test the Circuit (After Power is Restored)
After the installation is complete and the cover is secured, restore power to the circuit at the breaker panel. Test any connected devices or fixtures to ensure they are functioning correctly. If you encounter any issues, turn off the power and double-check your wiring connections. If you are unsure about any part of the installation, consult a qualified electrician.
Send Your Inquiry Now
All-in-one Metal Junction Box Solutions for Your Project
Our all-in-one metal junction box solutions are engineered to provide a robust and reliable foundation for your electrical projects. Crafted from high-quality metals, these enclosures offer exceptional durability and inherent grounding capabilities, ensuring safety and longevity. With a variety of sizes and knockout configurations available, our metal junction boxes streamline installations and offer superior protection for your critical wiring connections in diverse applications.
