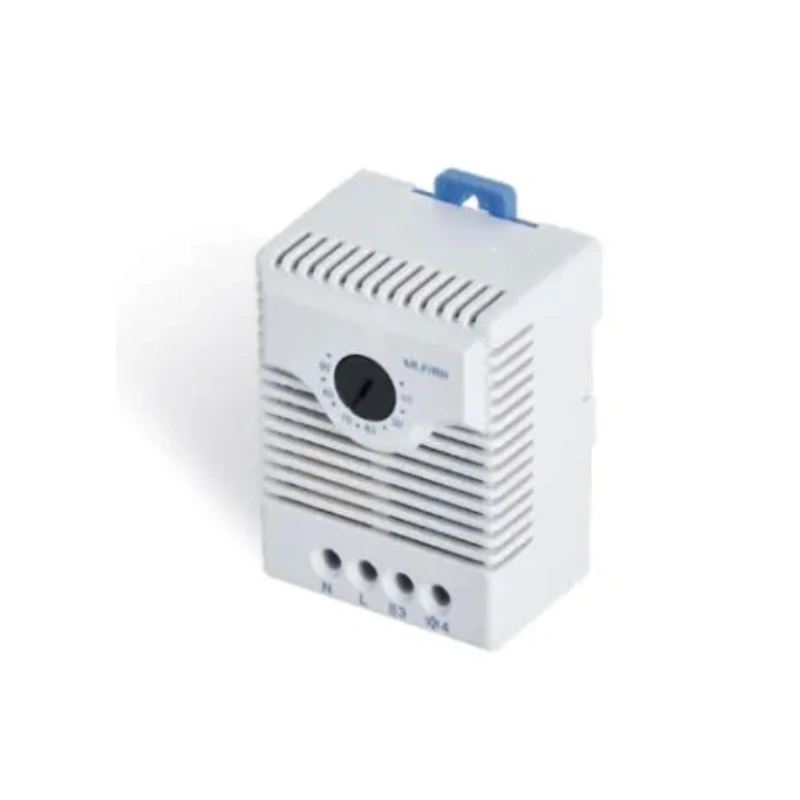

Working principle: By adjusting the range knob, the working range of the humidifier is
determined, and the humidity sensor detects itWhen the actual humidity value in the
air is less than the set value, the output power is supplied. When the actual value is
greater than the set valueWhen setting the value; Output power outage. To prevent the
load from frequently turning on at the set point, this product increases by 5% to 10%
Afterwards, work again.
Controlling
Working principle: By adjusting the range knob, the working range of the humidifier is
determined, and the humidity sensor detects itWhen the actual humidity value in the
air is less than the set value, the output power is supplied. When the actual value is
greater than the set valueWhen setting the value; Output power outage. To prevent the
load from frequently turning on at the set point, this product increases by 5% to 10%
Afterwards, work again.
Load selection: The product can choose different sizes and types of loads according to
customer requirements.
●35% to 95% adjustable relative humidity
●Easy to install with 35mm DIN rail
●High switching performance
●Three contact
| Switching error | 4% relative humidity(±3% tolerance) 35%~95% |
| Relative humidity range | |
| Allowable wind speed | 15m/sec |
| Contactor type | Conversion contact |
| Contactor resistance | <10mΩ |
| Service life | >50000 cycles |
| Minimum switching capacity | 20VAC/DC 100mA |
| Maximum switching load | 250VAC,5(1)A,DC20W |
| Connection method | 3.pole wiring terminal,maximum clamping torque 0.5Nm:2.5mm2 for steel wire, |
| 1.5mm2for multi-stranded glued wire (end) | |
| Shell | UL94V-0 plastic,light gray, |
| Install | Installation of 35mm DIN rail |
| Size | 67x50x38mm |
| Weight | 60g |
| Fixed position | At will |
| Operating/storage temperature | 0~+60℃(+32~+140°F)/-20~+80°C(-4~+176°F) |
| Protection level | IP2O |
