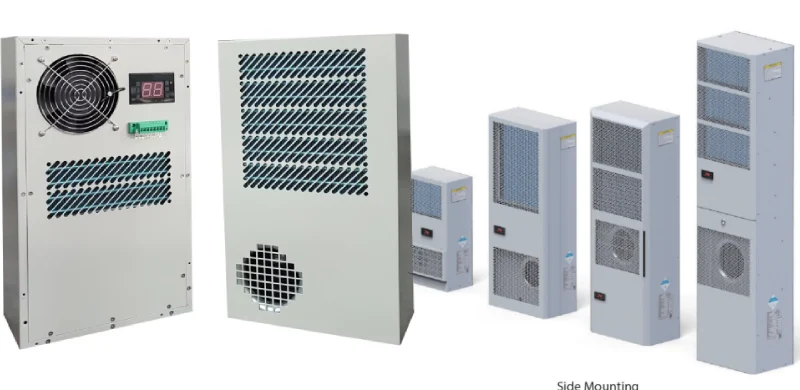

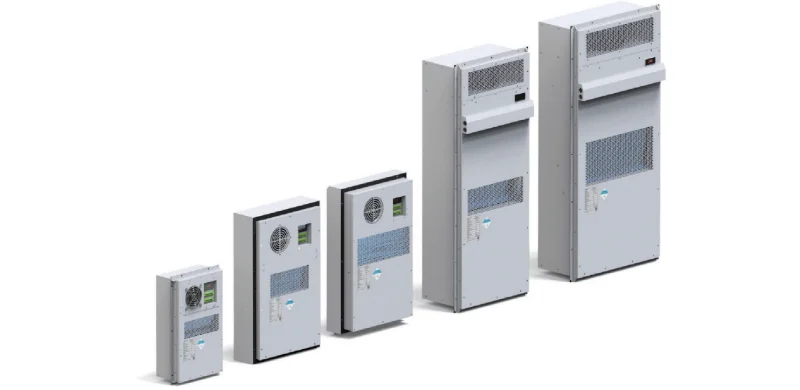

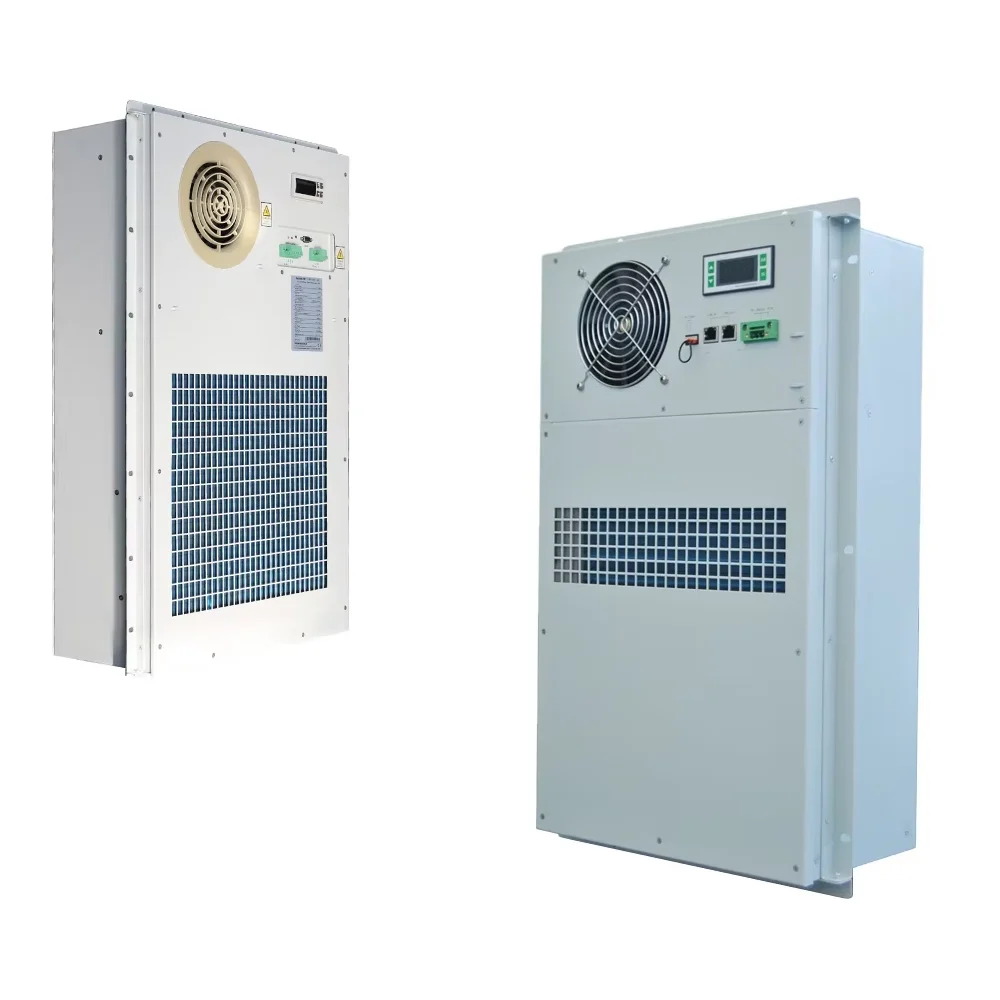

Heavy-Duty Micro Air Conditioners for Small Enclosures manufacturer
Standard air conditioners are too big. Fans are too weak. Our Micro Units bridge the gap with active refrigeration & thermoelectric innovation.
- -20°C ~ +55°C op.
- IP65 / NEMA 4X
- 12V/24V/48V DC
Ultra-compact footprint, Maximum thermal control
Our micro units vs. traditional industrial AC vs. a soda can – true miniaturization
Standard AC
Too bulky (15"+)
Linkwell Micro
From 180x140x90 mm
330ml Can
Reference size
Fits into tight enclosures where others can’t — eliminates the “no space for cooling” headache.
Technical Specifications
| Model | LK004AS | LK006AS | LK010AS | LK015AS | LK020AS | LK030AS | LK050AS |
|---|---|---|---|---|---|---|---|
| Power | 230VAC±15% 50/60Hz | ||||||
| Cooling | 400 | 600 | 1000 | 1500 | 2000 | 3000 | 5000 |
| Consumption | 190 | 260 | 440 | 650 | 750 | 1430 | 2000 |
| Weight | 14 | 15 | 31 | 31 | 34 | 50 | 100 |
| IP | IP55 | ||||||
| Model | LK006AD | LK010AD | LK015AD | LK020AD | LK030AD | LK050AD |
|---|---|---|---|---|---|---|
| Power | 230VAC±15% 50/60Hz | |||||
| Cooling | 600 | 1000 | 1500 | 2000 | 3000 | 5000 |
| Consumption | 300 | 440 | 650 | 870 | 1430 | 2000 |
| Weight | 15 | 30 | 39 | 41 | 50 | 100 |
| IP | IP55 | |||||
| Model | LK003AF | LK005AF | LK008AF | LK010AF | LK015AF | LK015AFH | LK020AF | LK030AF | LK040AF |
|---|---|---|---|---|---|---|---|---|---|
| Power | 230VAC±15% 50/60Hz | ||||||||
| Cooling | 300 | 500 | 800 | 1000 | 1500 | 1500 | 2000 | 3000 | 4000 |
| Consumption | 180 | 210 | 345 | 600 | 650 | 650 | 870 | 1430 | 1800 |
| Weight | 14 | 15 | 20 | 34 | 36 | 38 | 40 | 65 | 68 |
| IP | IP54 | ||||||||

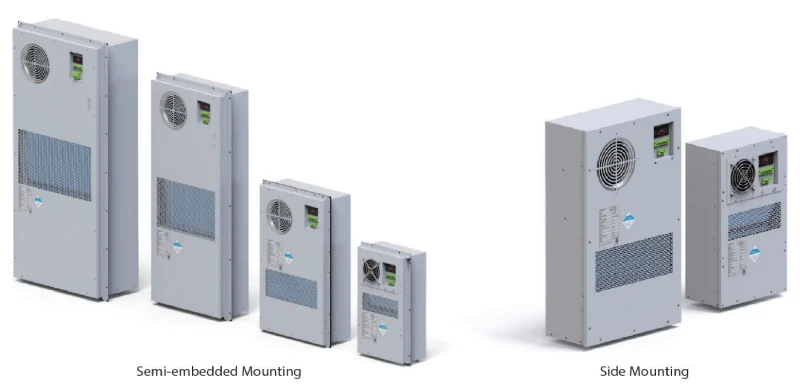

Our Industrial Electrical Cabinet Air Conditioner Series
Which Micro Cooling Technology Fits Your Application?
Linkwell offers both DC compressor and thermoelectric (Peltier) — engineered for reliability in tight spaces.
DC Compressor Cooling
High energy efficiency ratio (EER). Best for high heat density enclosures, outdoor telecom, and battery storage. Up to 300W cooling. Vibration-tolerant design.
Thermoelectric (Peltier) Cooling
Zero maintenance, no vibrations, and all-angle installation. Silent operation ( < 25 dBA). Ideal for precision electronics, medical devices, and lab cabinets.
Ruggedized for harsh & remote enclosures
Corrosion-resistant aluminum, vibration-proof construction, wide -20°C to +55°C operational range. Designed to withstand dust, water jets, and humidity cycles.
- Salt spray tested (ISO 9227)
- Vibration 5g RMS (MIL-STD-810G)
- Integrated condensation management
Thermal imaging proof: internal hotspot reduction from 65°C to 35°C with LWC-200C.
🔥 → ❄️ Δ30°C active cooling
Field-Proven Micro Cooling Solutions
Tested and proven in over 800+ small-scale industrial applications worldwide.
Telecom 5G / RRU
Outdoor small cell cabinets, eliminating overheating alarms with 120W DC compressor unit.
Renewable BESS
Compact battery energy storage enclosures: maintains 25°C with 200W Peltier array, solar direct compatible.
Automated Manufacturing
Robot arm control box: IP65 micro unit endures vibration and oils, RS485 remote monitoring.
Thermal imaging proof: internal hotspot reduction from 65°C to 35°C with LWC-200C.
🔥 → ❄️ Δ30°C active cooling
Built for remote management & longevity
Smart controller: RS485 Modbus RTU, real-time temperature monitoring, alarm output.
High-grade components: Sealed compressor / industrial-grade Peltier modules, all-copper coils for corrosion resistance.
Easy installation: Quick-connect wiring harness and standardized cutout templates, gasket included for IP seal.
Certificate
Our Industrial Electrical Cabinet Air Conditioner complies with CE, RoHS, ISO9001, and UL standards.
