Custom Outdoor Junction Box Manufacturer in China
We offer a comprehensive selection of outdoor junction boxes designed for ultimate protection and durability. Safeguard your electrical connections from rain, dust, and impacts with our weatherproof and UV-resistant designs. Available in various sizes and materials like heavy-duty plastic or metal, our boxes ensure safe, reliable wiring for any outdoor lighting, power, or security installation project.
Get Your Desired Outdoor Junction Box to Delight Your Clients
Linkwell Electrics - Your Trusted Outdoor Junction Box Manufacturer from China
Linkwell Electrics is your trusted outdoor junction box manufacturer based in China. We specialize in high-quality, durable, and weatherproof electrical enclosures designed to protect connections reliably in any environment. Count on our expertise for a wide range of sizes and materials, ensuring safety and performance. Choose Linkwell for dependable manufacturing and competitively sourced outdoor electrical protection solutions.
Various Outdoor Junction Box

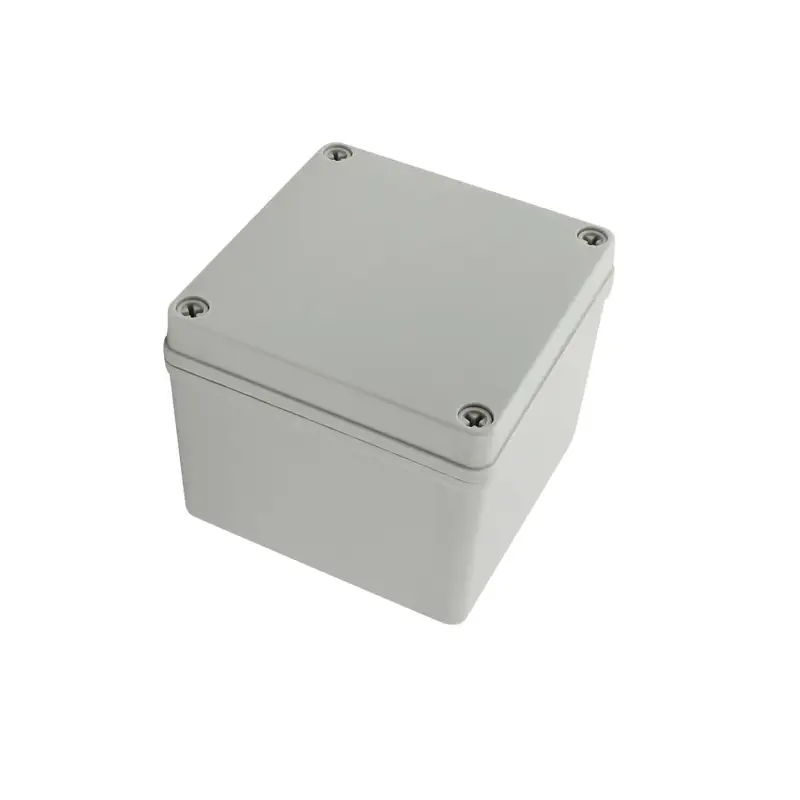

outdoor electrical junction box
Our durable outdoor electrical junction boxes provide a secure and weatherproof enclosure for your connections. Built to withstand the elements, they ensure safety and prevent damage from moisture, dust, and corrosion. Available in various sizes and materials, our junction boxes offer reliable protection for all your outdoor wiring needs.
waterproof outdoor junction box
We offer a diverse selection of outdoor waterproof junction boxes, engineered to safeguard your electrical connections from the elements. Our durable enclosures provide reliable protection against rain, dust, and corrosion, ensuring long-lasting performance and safety for your outdoor wiring needs. Explore our range of sizes and materials to find the perfect fit for your project.

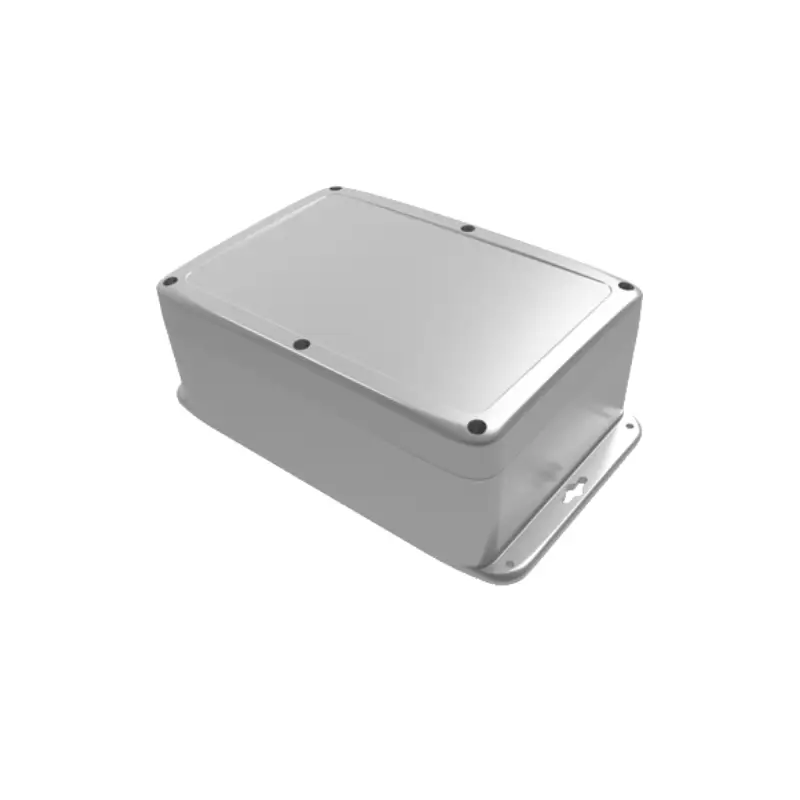

weatherproof outdoor junction box
We offer a wide selection of weatherproof junction boxes designed for secure outdoor electrical connections. Our boxes provide reliable protection against rain, snow, dust, and corrosion. Constructed from durable materials like UV-resistant plastic or sturdy metal, they ensure long-lasting performance in various environmental conditions. Available in different sizes and configurations, our weatherproof junction boxes accommodate diverse wiring needs for your outdoor projects.

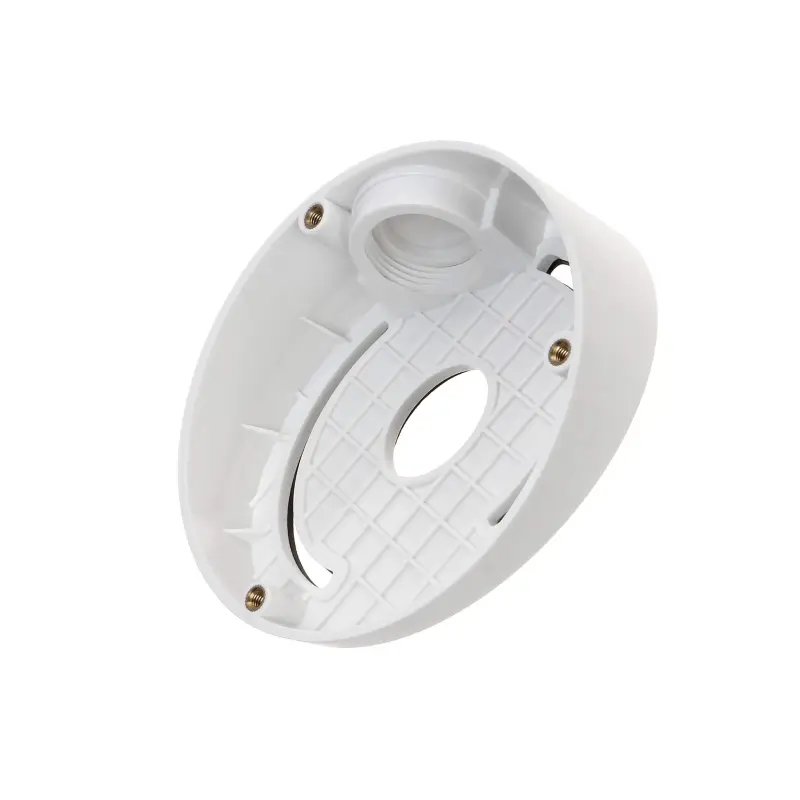

angled outdoor junction box
Our angled outdoor junction boxes provide a secure and weatherproof solution for your exterior electrical connections. Designed for durability and ease of installation, these boxes offer a convenient way to manage wiring while protecting it from the elements. Their angled design can be particularly useful in tight spaces or for specific mounting needs. Explore our range to find the perfect fit for your project.

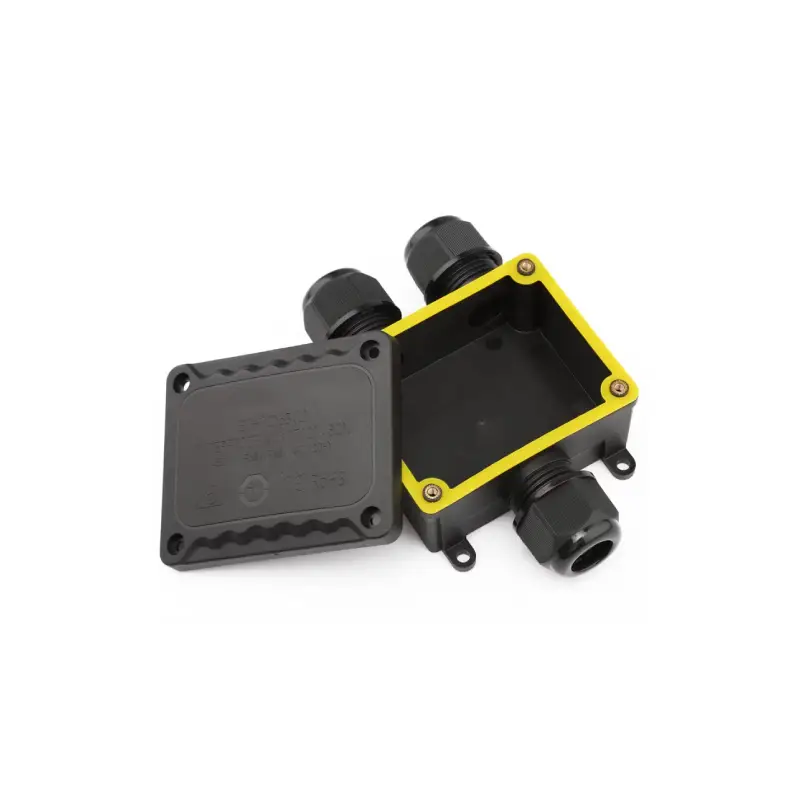

outdoor ground junction box
Protect your outdoor electrical connections with our durable ground junction boxes. Designed for in-ground use, they offer reliable protection against weather, moisture, and impact. Our boxes ensure safe and long-lasting power access for your landscape lighting, water features, and other outdoor electrical needs. Available in various sizes and materials.

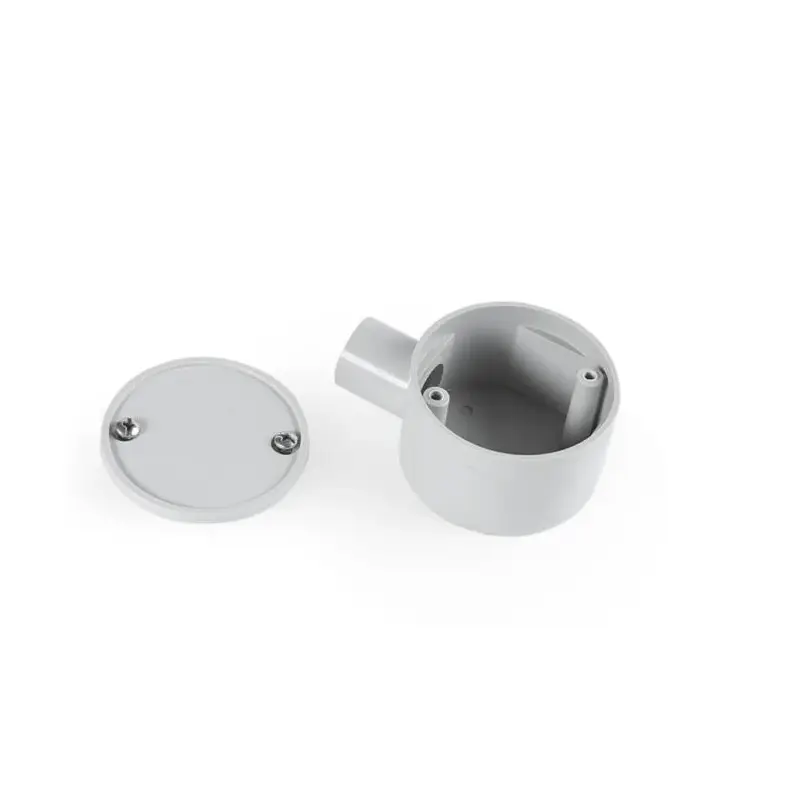

outdoor PVC electrical junction box
Our selection of outdoor PVC electrical junction boxes provides durable and weatherproof solutions for your wiring needs. These non-metallic boxes offer excellent resistance to corrosion, moisture, and UV rays, ensuring long-lasting protection for electrical connections in various outdoor environments. Available in multiple sizes and configurations, our PVC junction boxes are easy to install and offer reliable performance.

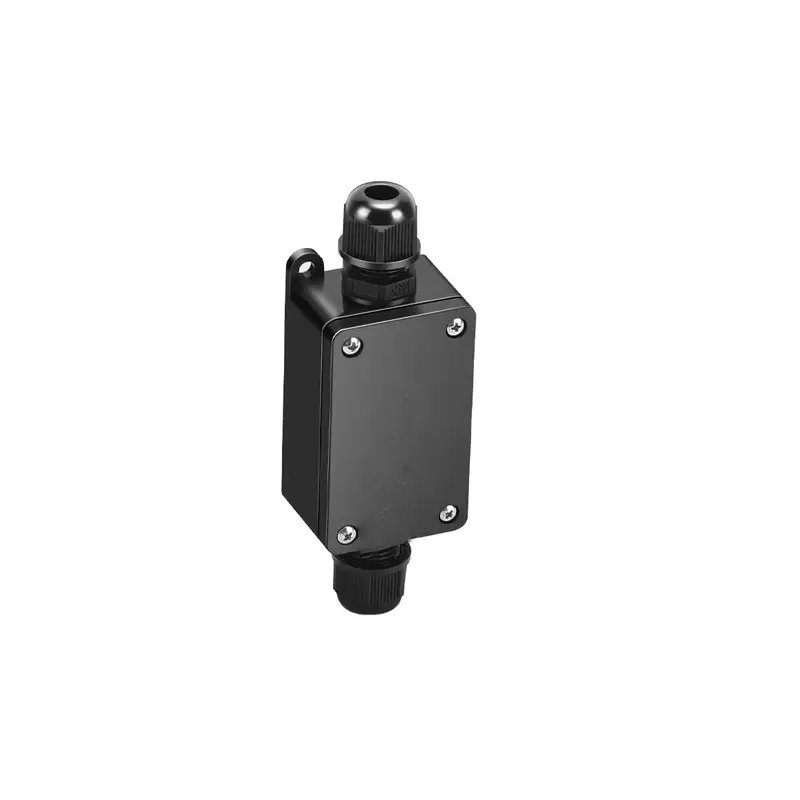

outdoor underground junction box
We offer durable, weatherproof outdoor underground electrical junction boxes, ensuring safe and reliable connections for your exterior wiring needs. Our boxes are built to withstand harsh environments, providing long-lasting protection against moisture, corrosion, and soil elements. Choose from various sizes to accommodate your specific project requirements.

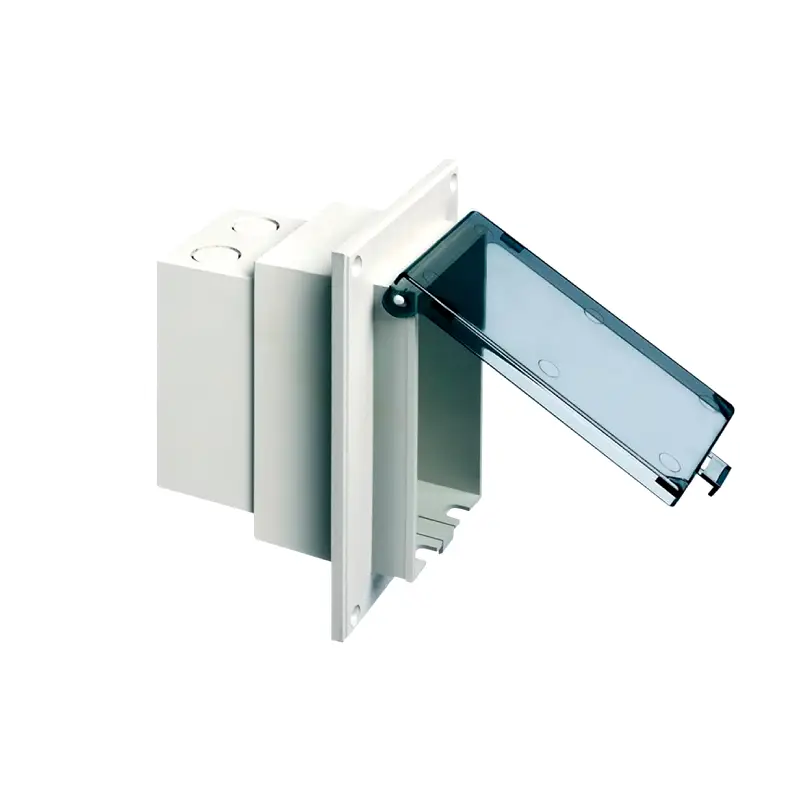

low profile outdoor junction box
Our low-profile outdoor junction boxes offer a sleek, unobtrusive solution for your exterior electrical connections. Designed for durability and weather resistance, these compact boxes ensure safety without compromising aesthetics. Their slim design makes them ideal for tight spaces and areas where a less noticeable installation is desired. Explore our range of sizes and configurations to find the perfect fit for your project.

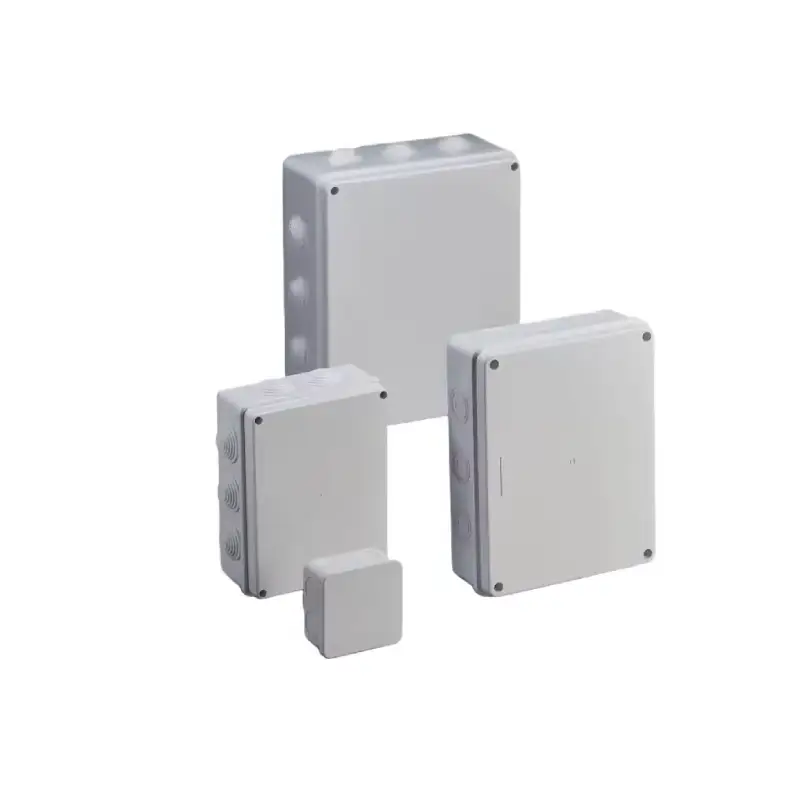

low voltage outdoor junction box
Our low voltage outdoor junction boxes provides a safe and durable solution for your landscape lighting and other low-voltage connections. Weatherproof and easy to install, our boxes ensure reliable protection against the elements, keeping your wiring secure and extending the lifespan of your outdoor electrical systems.
metal junction box outdoor
We offer durable metal junction boxes outdoor. Our weatherproof enclosures provide reliable protection for your electrical connections against the elements. Available in various sizes and configurations to meet your project needs. Contact us today for a quote!
round outdoor junction box
Our selection of round outdoor junction boxes provides secure and weatherproof electrical connections for your exterior wiring needs. Constructed from durable materials, these boxes ensure long-lasting protection against the elements. Available in various sizes and with multiple knockout options, we offer the ideal solution for your outdoor electrical projects.
outdoor 3 way junction box
Our company provides durable and weatherproof outdoor 3-way junction boxes, ensuring safe and reliable electrical connections for your exterior projects. These boxes are designed to withstand various environmental conditions, offering excellent protection for your wiring. Contact us today to learn more about our offerings!

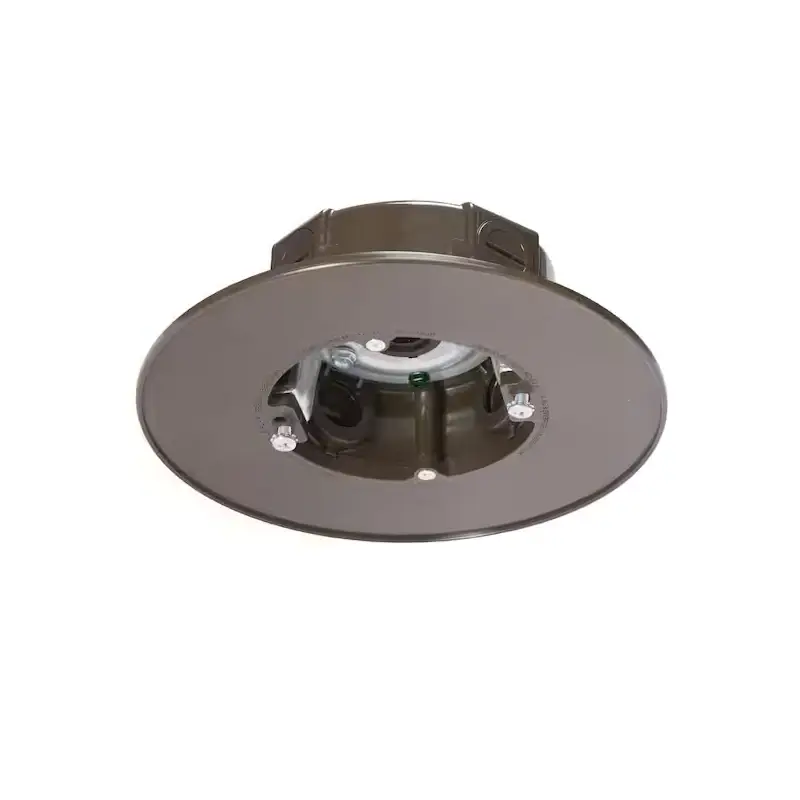

outdoor ceiling fan junction box
We offer durable, weatherproof junction boxes for outdoor ceiling fans. These junction box ceiling ensure a safe and secure electrical connection and robust support for your fan in any outdoor environment. Our boxes are built to withstand the elements, providing long-lasting reliability for your outdoor living spaces.

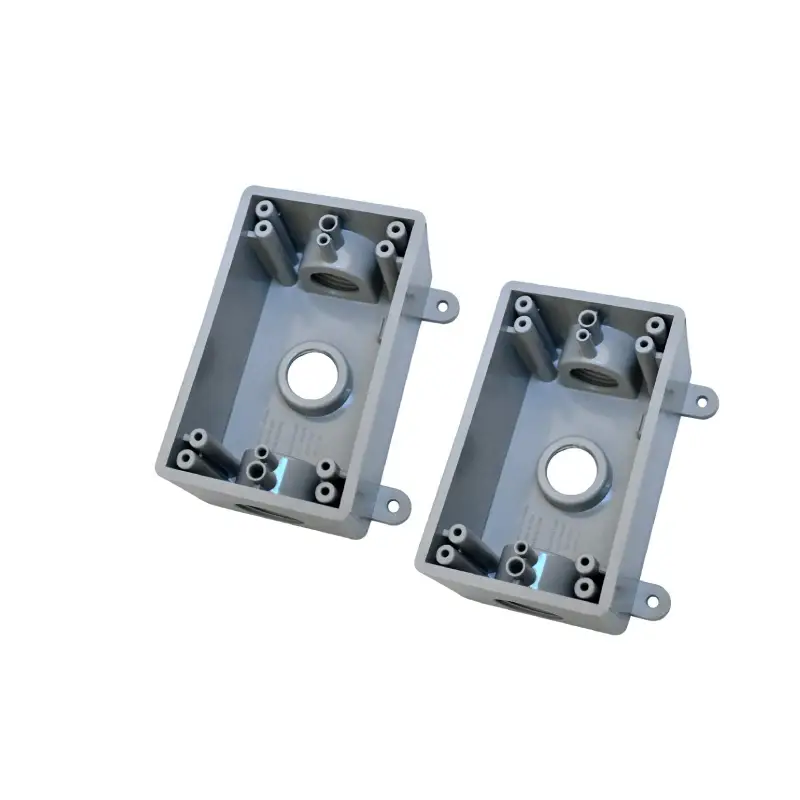

outdoor conduit junction box
We offer durable and weatherproof outdoor conduit junction boxes, essential for protecting electrical connections in exposed environments. Our selection ensures secure wiring for various outdoor applications, providing reliable performance against the elements. Choose from a range of sizes and configurations to meet your specific project needs.

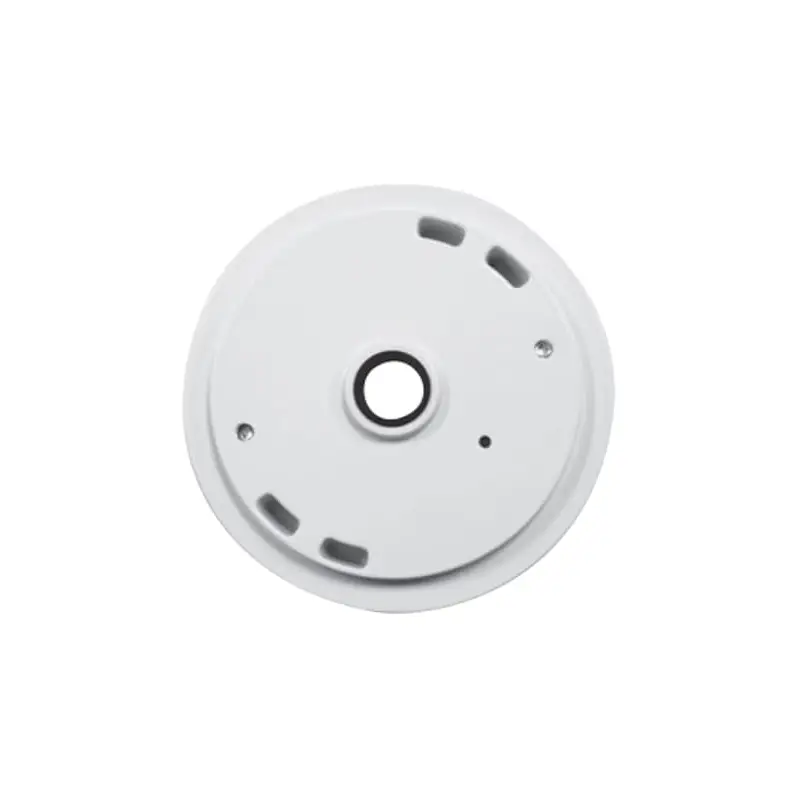

outdoor floodlight junction box
We offer a variety of outdoor flood light junction boxes designed for durability and weather resistance. Our selection includes various sizes and materials to suit your specific needs, ensuring secure and safe electrical connections for your outdoor lighting projects. Explore our range to find the perfect fit!

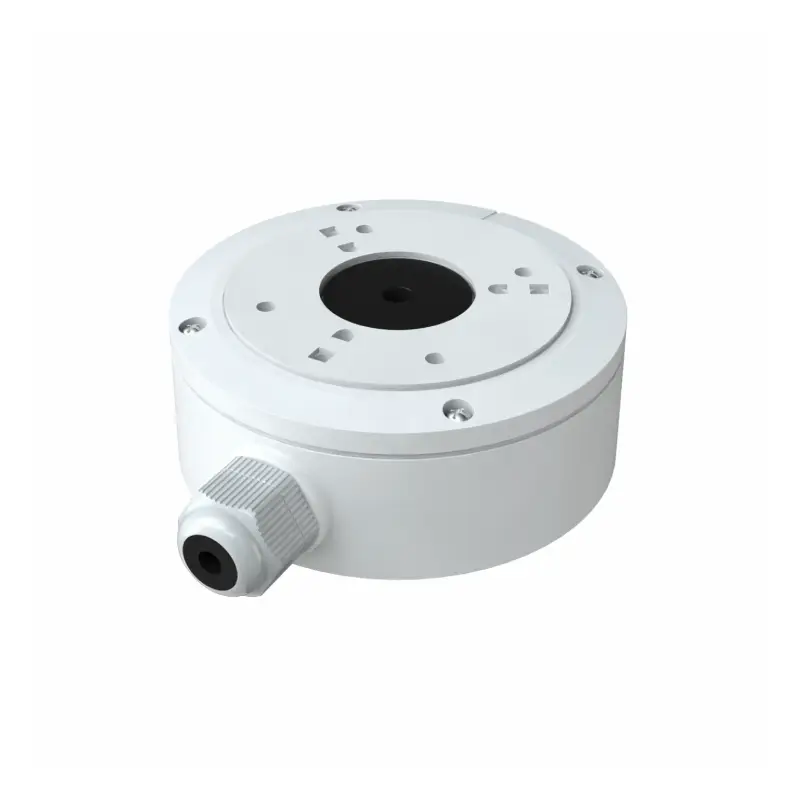

outdoor security camera junction box
Our durable outdoor security camera junction boxes provide a secure and weatherproof housing for your security camera connections. They protect cables from the elements, tampering, and streamline installation for a clean, professional look. Choose from various sizes and materials to suit your specific camera and mounting needs.

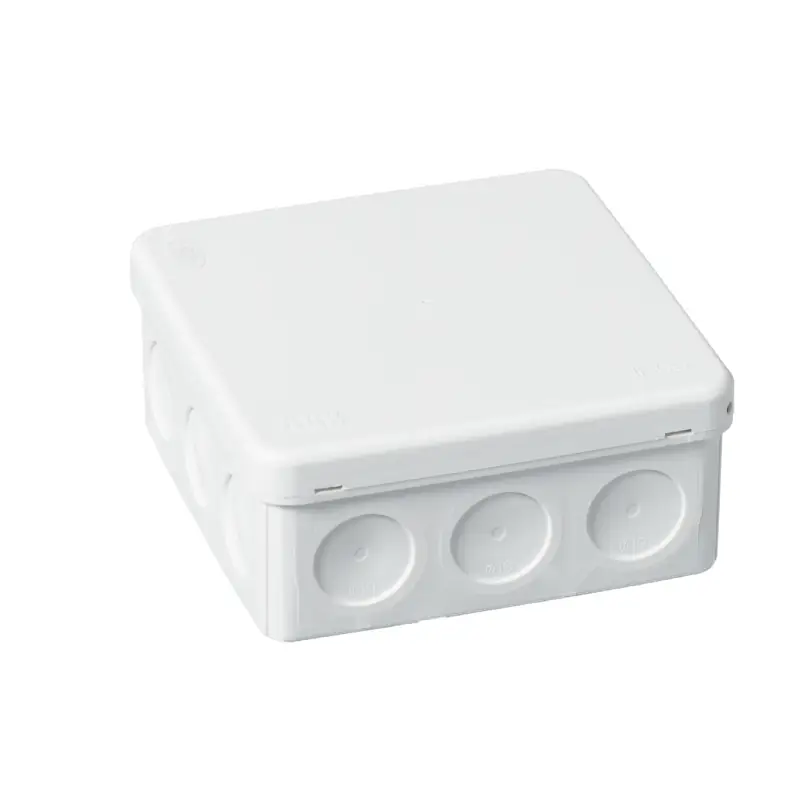

outdoor surface mount junction box
Our selection of outdoor surface mount junction boxes offers reliable protection for your electrical connections in any weather. Choose from various sizes and durable materials like UV-resistant plastic or sturdy metal, ensuring longevity and safety. These boxes are designed for easy installation on exterior walls and surfaces, providing a secure and weatherproof enclosure for wiring splices, outlets, or switches. Select the ideal box to meet your specific outdoor electrical needs.

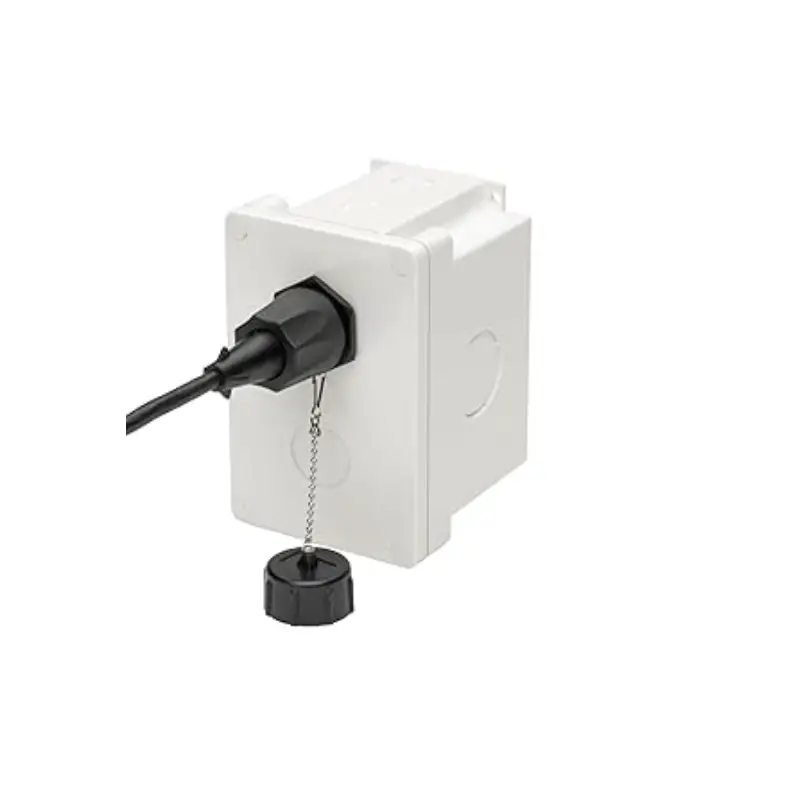

CAT5 junction box outdoor
Our company offers durable, weatherproof CAT5 junction boxes specifically designed for outdoor use. These enclosures provide reliable protection for your network connections against moisture, dust, and other environmental factors. Ensure stable and long-lasting outdoor Ethernet installations with our quality junction boxes.
Outdoor Electrical Junction Box Sizes
We offer extensive customization for outdoor electrical junction box sizes to perfectly match your project requirements. We understand that one size doesn’t fit all, so we provide a range of dimensions, from compact enclosures to larger housings. Our team can work with you to determine the ideal size to accommodate your wiring, devices, and spatial constraints, ensuring a seamless and efficient installation. Contact us to discuss your specific size needs.
12x12 outdoor junction box
A 12×12 outdoor junction box is a rugged enclosure, typically 12 inches in length, width, and depth, designed to protect electrical connections in outdoor environments. Constructed from durable materials like metal or PVC, it safeguards wiring from weather, dust, and physical damage. These boxes often meet NEMA or IP ratings, ensuring water and dust resistance for reliable outdoor use in various applications.

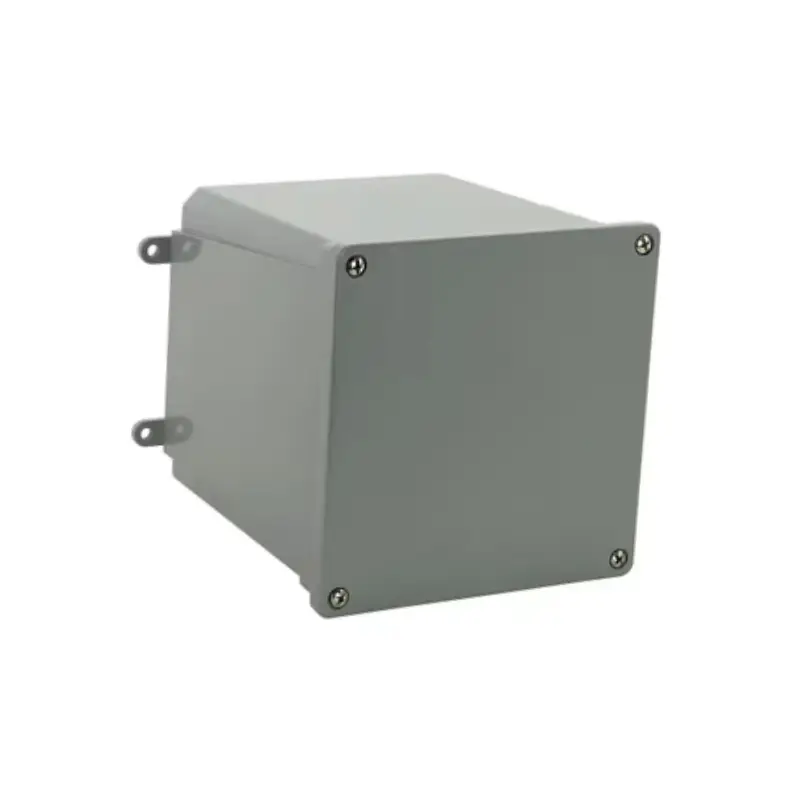

6x6x4 junction box outdoor
A 6x6x4 outdoor junction box is a rugged enclosure, typically made of PVC or metal, measuring approximately 6 inches in length, 6 inches in width, and 4 inches in depth. Designed to protect electrical connections in outdoor environments, it safeguards wiring from weather elements like rain, snow, and UV rays. These boxes often feature a gasketed lid and are rated for weather resistance (e.g., NEMA or IP ratings) to ensure durability and safety for various outdoor electrical applications.
outdoor 220v junction box
An 220V outdoor junction box is a robust enclosure designed to safely house and protect electrical connections operating at 220 volts in outdoor environments. Typically weatherproof and often made of durable materials like plastic or metal, it shields wiring from rain, dust, and physical damage, ensuring safe and reliable power distribution for outdoor appliances or equipment.
Why Choose Our Outdoor Junction Box
Material Selection:
We recognize that every project has unique wiring demands. Therefore, we provide a diverse selection of junction box sizes and internal layouts. Whether you need ample space for numerous connections or a compact enclosure for a simpler setup, we have options to suit. We can also incorporate internal components like DIN rails and terminal blocks to optimize organization and streamline your wiring process, creating a tidy and efficient solution tailored precisely to your needs.
Size and Configuration
Beyond functionality, aesthetics and environmental resistance can be important. We provide various surface finish options for our aluminum junction boxes, including powder coating in a range of RAL colors. This not only enhances the visual appeal of the enclosure but also provides an additional layer of protection against corrosion, abrasion, and UV exposure. Whether you require a specific color to match existing equipment or a durable finish to withstand harsh conditions, our customization options ensure both form and function are aligned with your project requirements, contributing to a professional and long-lasting junction box installation.
Mounting Options and Accessories
We believe that installation should be straightforward and secure. To that end, we offer a variety of mounting solutions, including surface mounting flanges, pole mounting kits, and specialized brackets for diverse applications. Furthermore, we provide a range of accessories such as weatherproof cable glands for secure cable entry, breather vents to mitigate condensation, and lockable covers for enhanced security. We can customize these features to ensure a seamless and functional integration into your specific setup.
Ingress Protection (IP) Rating
Ensuring the safety and reliability of your electrical connections in any weather is a top priority for us. That’s why we offer a variety of Ingress Protection (IP) ratings. From basic protection against splashing water to submersion-proof enclosures, we have the right rating for your specific environment. We’ll guide you in selecting the appropriate IP rating, guaranteeing your components are shielded from dust and moisture, ensuring consistent and dependable performance.
what is outdoor junction box?
An outdoor junction box serves as a protective enclosure for electrical connections, typically where multiple wires meet and need to be joined or where a device like an outlet or switch is installed outdoors.
Its primary function is to safeguard these electrical connections from environmental elements such as rain, snow, dust, and insects, thereby preventing corrosion, short circuits, and potential safety hazards. These boxes are constructed from durable, weather-resistant materials like UV-stabilized plastics or powder-coated metals to withstand the rigors of outdoor exposure, ensuring the longevity and reliability of the electrical system.
Beyond environmental protection, outdoor junction boxes also provide a degree of physical security for the wiring and connections. They offer a contained space that helps organize wires and protect them from accidental damage or tampering. Different sizes and configurations are available to accommodate various wiring needs and mounting requirements on exterior walls, posts, or other outdoor surfaces. Compliance with electrical codes and safety standards is crucial for these boxes, ensuring safe and reliable outdoor electrical installations for residential, commercial, and industrial applications.
how to install outdoor junction box?
So you’re ready to install an outdoor junction box? Excellent! Ensuring your outdoor electrical connections are safe and weatherproof is crucial. Let’s walk through the process step-by-step to get it done right.
Remember to always prioritize safety and consult local electrical codes before starting any electrical work. If you’re unsure at any point, it’s best to call a qualified electrician.
Step 1. Planning and Preparation
Before you even pick up a tool, careful planning is essential. First, determine the exact location where you need the junction box, considering the reach of your wiring and the device or connections it will house.
Gather all necessary materials, including the junction box itself (appropriate for outdoor use), weatherproof connectors, screws or mounting hardware suitable for your mounting surface, wire strippers, screwdrivers, and a drill with appropriate bits if needed. Always turn off the power to the circuit you’ll be working on at the main breaker to prevent any electrical hazards.
Step 2. Mounting the Junction Box
With your location determined and power safely off, it’s time to mount the junction box securely. Position the box against the chosen surface and mark the locations for the mounting holes using a pencil.
If you’re mounting to wood, you may be able to screw directly into the surface. For brick, concrete, or other hard surfaces, you’ll likely need to drill pilot holes and use appropriate anchors or screws. Ensure the box is level and firmly attached to provide a stable and weatherproof enclosure for your electrical connections.
Step 3. Wiring Connections Inside the Box
Now comes the crucial step of making the electrical connections within the junction box. Carefully strip the ends of the wires you’ll be joining or connecting to your device, exposing the bare conductors. Use appropriate weatherproof connectors designed for outdoor use to join the wires securely.
Ensure all connections are tight and properly insulated to prevent shorts or corrosion. If you’re connecting to a device like an outdoor outlet or switch, follow the manufacturer’s instructions for proper wiring. Double-check all connections against your wiring plan before proceeding.
Step 4. Sealing and Weatherproofing
The final step is critical for ensuring the longevity and safety of your outdoor electrical connections. Once all wiring is complete and secure inside the box, ensure all unused openings or knockouts are properly sealed with weatherproof plugs or sealants.
Tighten all screws on the junction box cover to create a secure and watertight seal. If using cable glands for wire entry, ensure they are tightened appropriately around the cables to prevent water ingress. This thorough sealing will protect your connections from the elements and ensure reliable operation for years to come.
what Is Aluminum junction box used for?
Aluminum junction boxes serve as protective enclosures for electrical connections in a wide array of applications, both indoors and outdoors. Their primary function is to provide a safe and organized space to join and terminate electrical wires, safeguarding them from environmental factors like moisture, dust, and physical damage.
The robust yet lightweight nature of aluminum makes these boxes suitable for installations ranging from residential wiring to industrial settings, ensuring the longevity and reliability of electrical circuits. They are particularly favored in situations where corrosion resistance and thermal management are critical.
Beyond basic protection, aluminum junction boxes are also utilized in specialized applications due to their unique properties. Their non-magnetic nature makes them ideal for housing sensitive electronic components where electromagnetic interference could cause disruptions.
Furthermore, their good electrical conductivity facilitates effective grounding and bonding, essential for safety in electrical systems. The durability of aluminum ensures these boxes can withstand harsh conditions, making them a reliable choice for demanding environments such as manufacturing plants, construction sites, and outdoor installations exposed to the elements.
Here are some typical uses of aluminum junction boxes:
Outdoor Electrical Wiring: Aluminum’s excellent corrosion resistance makes these boxes ideal for outdoor installations such as landscape lighting, security systems, and exterior outlets. They effectively protect connections from rain, snow, UV radiation, and other environmental elements, ensuring the long-term reliability and safety of outdoor electrical circuits and preventing premature degradation of wiring and connectors.
Industrial Applications: In manufacturing plants and other industrial settings, aluminum junction boxes provide durable protection for wiring exposed to dust, chemicals, and physical impact. Their robust construction safeguards critical electrical connections for machinery, control systems, and power distribution, minimizing downtime and ensuring operational safety in demanding industrial environments.
Housing Sensitive Electronics: Due to their non-magnetic properties, aluminum junction boxes are used to enclose sensitive electronic components and wiring where electromagnetic interference (EMI) could disrupt performance. This is crucial in applications like data centers, communication equipment, and medical devices, ensuring the integrity and accuracy of electronic signals and preventing malfunctions.
Grounding and Bonding: Aluminum’s good electrical conductivity makes these boxes suitable for use as grounding and bonding points within electrical systems. They provide a reliable and low-resistance path for fault currents, enhancing the safety of the installation by facilitating the proper operation of protective devices and minimizing the risk of electrical shock in case of a fault.
Heat Dissipation: The effective thermal conductivity of aluminum allows these junction boxes to help dissipate heat generated by electrical connections, particularly in high-current applications. This prevents overheating of wires and components, contributing to the overall safety and efficiency of the electrical system and extending the lifespan of the enclosed electrical devices.
how to wire an outdoor junction box?
Let’s get those outdoor junction boxes wired safely and correctly! Remember, always cut the power at the breaker before starting any electrical work, and if you’re unsure, call a qualified electrician.
Step 1: Planning and Preparation
Before you begin any physical work, meticulous planning is key. Determine the precise location for your outdoor junction box, considering the path of your wires and the device it will serve.
Gather all necessary materials: the appropriate outdoor-rated junction box, weatherproof wire connectors, wire strippers, screwdrivers, and any needed mounting hardware and drill bits for your specific surface. Most importantly, confirm that the power to the circuit you’ll be working on is completely turned off at the main electrical panel to prevent any risk of electrical shock.
Step 2: Mounting the Junction Box
With your location decided and the power safely off, securely mount the junction box. Hold the box against the chosen outdoor surface and use a pencil to mark where the mounting screws will go.
For wooden surfaces, you might be able to screw directly in. For tougher materials like brick or concrete, pre-drill pilot holes and use appropriate wall anchors and screws to ensure a firm attachment. Double-check that the box is level and securely fastened; this provides a stable and weatherproof base for your wiring.
Step 3: Making Wire Connections Inside the Box
Now, carefully proceed with making the electrical connections within the junction box. Use your wire strippers to remove a section of the outer insulation from the ends of the wires you’ll be joining or connecting to a device, exposing the bare copper conductors.
Utilize weatherproof wire connectors that are specifically designed for outdoor applications to join the corresponding wires securely. Ensure each connection is tight and properly insulated to prevent any short circuits or corrosion due to moisture.
If you’re connecting to an outdoor outlet or switch, strictly follow the manufacturer’s wiring instructions. Before closing the box, meticulously check all your connections against your wiring plan.
Step 4: Sealing and Ensuring Weatherproofing
This final step is crucial for the safety and longevity of your outdoor electrical work. Once all the internal wiring is complete and secure, carefully inspect the junction box for any unused openings or knockouts.
These must be completely sealed with weatherproof plugs or a silicone sealant designed for outdoor electrical applications to prevent water and debris from entering. Firmly tighten all the screws on the junction box cover to create a tight, watertight seal. If you’ve used cable glands for the wires entering the box, ensure they are also tightened appropriately around the cables to prevent any water ingress.
This thorough sealing will protect your electrical connections from the harsh outdoor elements, ensuring reliable and safe operation over time.
what are benefits of outdoor junction box?
Outdoor junction boxes offer several key advantages for exterior electrical installations. They are essential for safety, durability, and the overall functionality of outdoor electrical systems.
Let’s explore some of these important benefits in more detail.
Enhanced Safety
Outdoor junction boxes provide a crucial layer of protection for electrical connections against environmental hazards like rain, snow, dust, and pests. This enclosure prevents moisture from causing short circuits, corrosion, and potential electrical fires, significantly enhancing the safety of outdoor electrical systems for both people and property.
Weatherproof Durability
Constructed from robust, weather-resistant materials such as UV-stabilized plastics or powder-coated metals, outdoor junction boxes are built to withstand harsh outdoor conditions. This durability ensures the longevity and reliability of electrical connections, minimizing the need for frequent repairs or replacements due to environmental damage.
Protection of Connections
These boxes offer physical protection to wiring connections, shielding them from accidental damage, tampering, and stress. By providing a secure and organized space for wires and connectors, junction boxes help maintain the integrity of the electrical circuit and prevent disruptions in power supply to outdoor devices or lighting.
Code Compliance
Using outdoor junction boxes is often a requirement of local electrical codes and safety standards. They ensure that outdoor electrical installations meet specific regulations for weatherproofing and safety, helping homeowners and contractors comply with legal requirements and avoid potential violations or safety hazards.
what are outdoor junction boxes used for?
Outdoor junction boxes serve a variety of essential purposes in exterior electrical systems, ensuring safety, functionality, and code compliance.
Their primary role is to provide a secure and weatherproof enclosure for electrical connections. Let’s delve into their key applications.
Protecting Wiring Connections
Outdoor junction boxes are primarily used to house and protect the points where two or more electrical wires are joined or terminated. This safeguarding is crucial in outdoor environments where connections are vulnerable to moisture, debris, and physical damage, preventing corrosion, short circuits, and potential safety hazards.
Housing Electrical Devices
These boxes also serve as mounting enclosures for various outdoor electrical devices, such as outlets, switches, and light fixtures. They provide a secure and weatherproof base for these devices, ensuring their safe and reliable operation in all weather conditions while also protecting the internal wiring.
Facilitating Wiring Extensions
When extending electrical circuits to outdoor areas, junction boxes act as transition points where new wiring is connected to existing circuits. They offer a safe and organized method for making these extensions while maintaining weatherproof integrity and adhering to electrical codes.
Providing Access for Maintenance
Outdoor junction boxes allow for easy access to wiring connections for inspection, maintenance, or repairs. Instead of having exposed wires, the connections are contained within a protected enclosure that can be opened, allowing electricians to safely work on the system when needed.
Send Your Inquiry Now
All-in-one Outdoor Junction Box Solutions for Your Project
Our all-in-one outdoor junction box solutions streamline your project with pre-configured options for various needs. We offer durable, weatherproof enclosures with integrated terminals, mounting hardware, and cable entry points. Choose from a range of sizes and materials to ensure a secure and efficient installation, saving you time and effort while guaranteeing long-lasting protection for your outdoor electrical connections.
