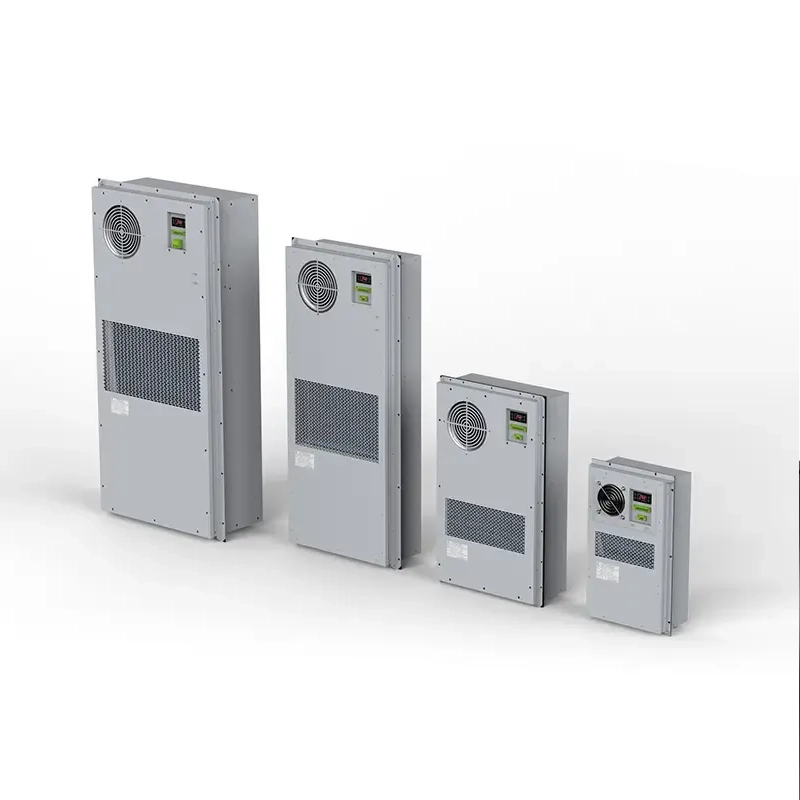

Panel Mount Air Conditioner Side & Embedded for UL/NEMA Enclosures
500W–5000W actual cooling capacity @45°C ambient | No condensation risks | Cutout compatibility guaranteed
- 400W – 5000W cooling
- NEMA 12 / 4 / 4X
- -20°C to +55°C operation
Cutout compatible
Direct fit for Rittal, Hoffman, Schroff standard cutouts or optional adapter plate. CAD drawings included.
Anti-condensation design
Dual drain channels + low-temp compressor lockout (configurable). No dripping on terminals.
Real performance curves
Derating data @35°C~55°C provided – no inflated nominal values.
Panel Mount Air Conditioner More Models
LK- AS Series
Core features: Built for reliable cabinet cooling with integrated intelligence.
Protection suite: Comprehensive electrical safeguards (overload, phase fail, over/under voltage)
Communication: RS485 Modbus ready
Refrigerant: R134a / T3 climate class
User interface: LED display for real-time status
Added function: Integrated heating option for low ambient startup
Environmental rating: IP55 – dust and water jet protected
Alarm: Dry contact alarm output
LK- AD Series
Core features: Combines thermal management with moisture control.
Protection suite: Full electrical protections
Communication: RS485 Modbus
Refrigerant: R134a / T3
Display: LED interface
Key differentiator: Integrated heating + dehumidification function (actively reduces humidity, not just temperature)
Environmental rating: IP55
Alarm: Dry contact output
LK- DS1 Series
Core features: Optimized for DC power environments (solar, telecom, mobile sites).
Power input: 48V DC (ideal for off-grid or battery-backed systems)
Communication: RS485
Display: LED
Flexibility: Heating option available
Environmental rating: IP55
Compressor technology: High-efficiency rotor compressor (reduced vibration, higher reliability)
LK H Series
Core features: Pure humidity control without cooling – for moisture-sensitive enclosures.
Technology: Rotary dehumidifier with silica gel wheel
Power supply: 220V AC
Communication: RS485 optional
Operating range: -15°C to +55°C ambient
Application focus: Low-humidity requirements, cold storage, or environments where cooling is not the primary need
Critical parameters — where Linkwell outperforms
| Parameter | Linkwell Design | Common Industry Pitfall |
|---|---|---|
| Evaporator corrosion protection | Hydrophilic coated Al fins + copper tube | Standard Al fins degrade → capacity loss |
| Condensate management | Dual drain pan + bottom/side outlets + insect mesh | Single drain → clogging & dripping on terminals |
| Low-temp protection | Compressor lockout below 5°C (configurable) | Icing damage at cold start |
| Electrical protections | Phase fail, over/under voltage, overcurrent, overheat, short cycle (6 types) | Only overcurrent + thermal |
| Serviceability (embedded) | Front-access filter, tool-less removal | Need to pull whole unit or open cabinet door |
Cutout tolerance + interference check service
Cutout dimensions & tolerance
Embedded: from 480x280mm up to 730x430mm. Tolerance +1.5 / -0 mm. Gasket seal for larger gaps.
Brand compatibility
✅ Direct fit: Rittal TS8, Hoffman ProLine, Schroff.
🔄 Adapter plate: Rittal VX25, custom panels.
Adapter kit ACC-01 available (4-6 weeks).
⚠️ Interference prevention
Upload your cabinet 3D (STEP/IGES) or layout drawing — our engineers mark minimum clearance, hot air short-circuit zones, and busbar conflicts within 24h.
Certificate
FAQ
Can I mount this air conditioner on an existing cabinet panel without major modifications?
Yes. Our panel mount units support both embedded (cutout required) and side-mount installation. We provide detailed cutout drawings (DWG/PDF) and tolerance guidelines (+1.5mm / -0mm). For standard cabinets like Rittal TS8 or Hoffman ProLine, direct fit is available. For custom panels, adapter plates can be supplied.
How do I select the right cooling capacity for my enclosure?
Use our 3-step sizing tool. You need three inputs:
Mounting type (embedded or side)
Required net cooling at your worst-case ambient temperature (e.g., 45°C)
Cabinet brand or cutout dimensions
The tool returns a recommended model with derated actual cooling capacity (not nominal value), avoiding oversizing or undersizing.
What happens if the ambient temperature is very high (above 45°C)?
All our units provide performance derating curves from 35°C up to 55°C. For example, a 2000W nominal model delivers approximately 1680W at 40°C and 1480W at 50°C. We recommend checking the curve for your specific ambient condition before final selection.
Will condensation drip inside my cabinet?
No. Our design includes:
Dual drain pan (bottom + side outlets)
Insect mesh to prevent clogging
Optional condensate evaporation kit
Low-temperature compressor lockout (below 5°C) to prevent icing
This eliminates the common industry issue of water dripping onto terminals or PCB
Can I control the air conditioner remotely?
Yes. All standard models come with RS485 Modbus RTU interface. You can monitor temperature, alarm status, and adjust setpoints remotely. Modbus register map is available upon request. Optional protocols (Profibus, CANopen) can be customized.
