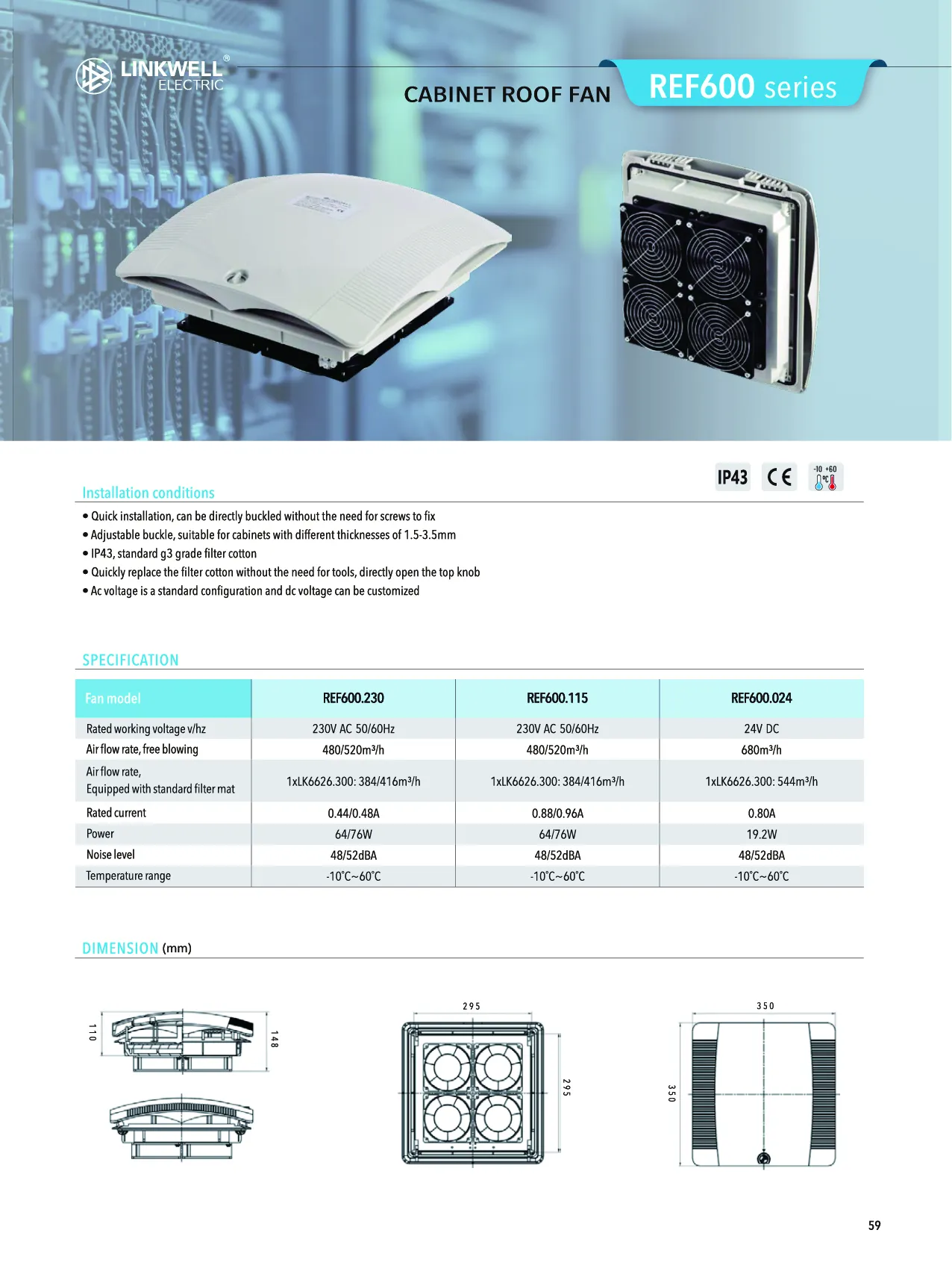

●Installation and maintenance are very simple
●Innovative snap fasteners support flexible locking of fans from the outside or inside
●Easy electrical connection through plugs
●Easy to maintain, allowing users to quickly replace the filter pad of the fan
Installation conditions
●Quick installation, can be directly buckled without the need for screws to fix
●Adjustable buckle, suitable for cabinets with different thicknesses of 1.5-3.5mm
●IP43, standard g3 grade filter cotton
●Quickly replace the filter cotton without the need for tools, directly open the top knob
●Ac voltage is a standard configuration and dc voltage can be customized
| Fan model | REF6OO.230 | REF600.115 | REF600.024 |
| Rated working voltage v/hz | 230V AC 50/60Hz | 230V AC 50/60Hz | 24V DC |
| Air flow rate, free blowing | 480/520m3/h | 480/520m3/h | 680m3/h |
| Airflow rate, Equipped with standard filter mat |
1xLK6626.300:384/416m3/h | 1xLK6626.300:384/416m3/h | 1xLK6626.300:544m3/h |
| Rated current | 0.44/0.48A | 0.88/0.96A | 0.80A |
| Power | 64/76W | 64/76W | 19.2W |
| Noise level | 48/52dBA | 48/52dBA | 48/52dBA |
| Temperature range | -10″C~60″C | -10″C~60°C | -10″C~60″C |
