●Quick installation, can be directly buckled without the need for screws to fix
●Adjustable buckle, suitable for cabinets with different thicknesses of 1.5-3.5mm
●IP32, standard g3 grade filter cotton
●Quickly replace the filter cotton without the need for tools, directly open the top knob
●AC voltage is standard as a standard configuration
Characteristic
●Quick installation, can be directly buckled without the need for screws to fix
●Adjustable buckle, suitable for cabinets with different thicknesses of 1.5-3.5mm
●IP32, standard g3 grade filter cotton
●Quickly replace the filter cotton without the need for tools, directly open the top knob
●AC voltage is standard as a standard configuration

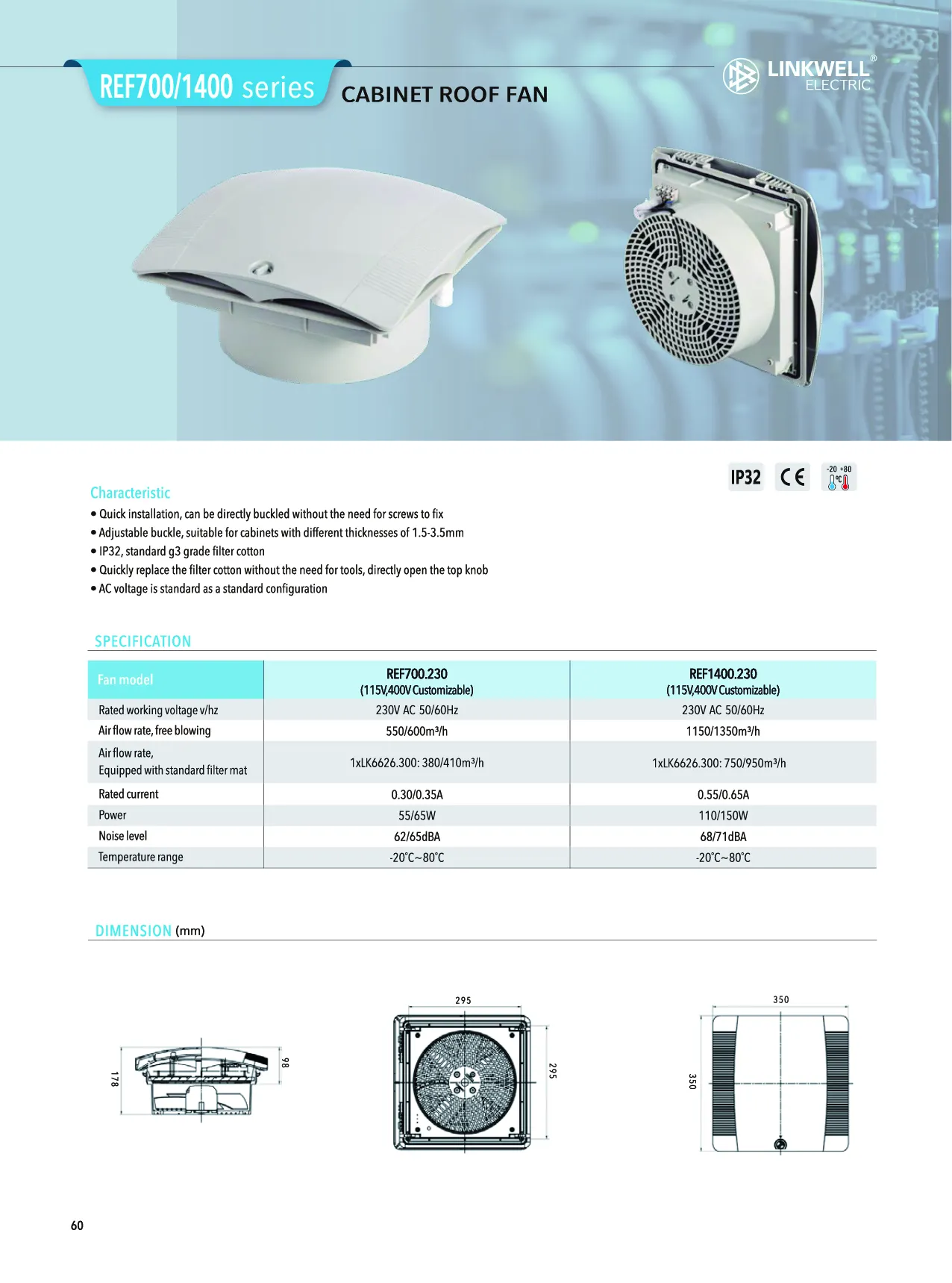

| Fan model | REF700.230 (115V,400VCustomizable) |
REF14OO.230 (115V,400VCustomizable) |
| Rated working voltage v/hz | 230V AC 50/60Hz | 230V AC 50/60Hz |
| Air flow rate, free blowing | 550/600m3/h | 1150/1350m3/h |
| Air flow rate, Equipped with standard filter mat |
1xLK6626.300:380/410m3/h | 1xLK6626.300:750/950m3/h |
| Rated current | 0.30/0.35A | 0.55/0.65A |
| Power | 55/65W | 110/150W |
| Noise level | 62/65dBA | 68/71dBA |
| Temperature range | -20″C~80″C | -20″C~80″C |
