server rack mount air conditioner Manufacturer
500–5000W side‑mounted and top‑mounted air conditioners for edge data centers, telecom shelters, and outdoor cabinets. No rack units sacrificed. 48V DC models available.
- 500–5000W cooling capacity
- IP44 / IP54 / IP55
- RS485 remote monitoring

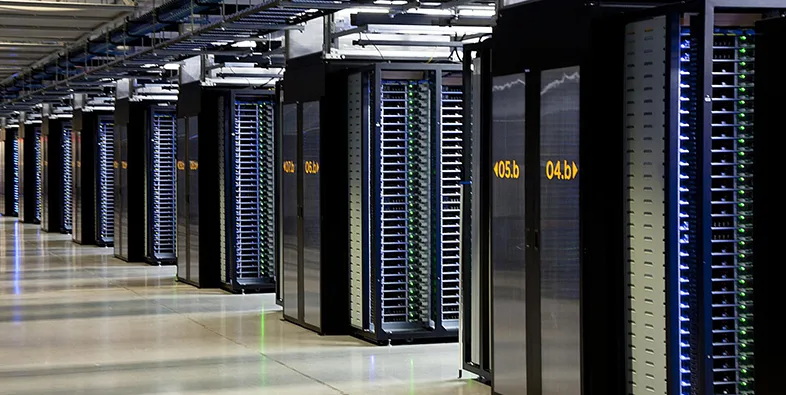

The Rising Heat Density in Server Racks
Modern IT equipment — including edge servers, network switches, and energy storage controllers — generates significantly more heat per rack than traditional deployments. Without active cooling, component temperatures quickly exceed safe limits.
According to industry data, a fully loaded 42U server rack can produce 5–15 kW of heat. Even in micro data centers and telecom shelters, 1–5 kW per enclosure is now common.
Conventional fan‑only ventilation is no longer sufficient once ambient temperatures exceed 35°C or when cabinets contain high‑density power electronics.
5–15 kW
typical heat load per full server rack
1–5 kW
common range for edge & telecom enclosures
Server Rack Mount Air Conditioner Product Series
Choose by cooling capacity and mounting style. All series include RS485, LED display, and R134a refrigerant.

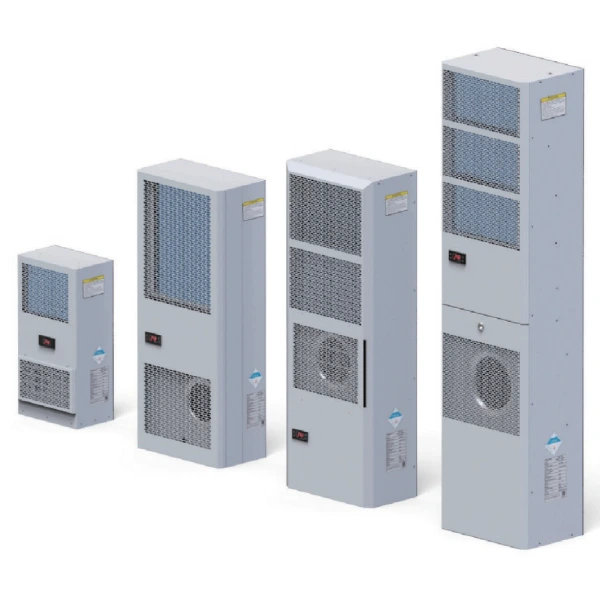

LK003AF, LK005AF, LK008AF
300 – 800W
Side mount, IP54 – for small network racks and edge nodes.

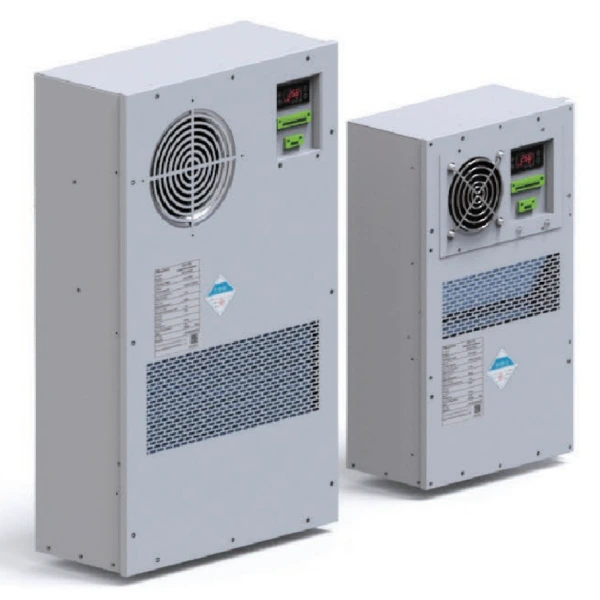

LK040AF, LK050AS, LK050AD
4000 – 5000W
Large enclosures, multiple server racks, or power distribution centers.

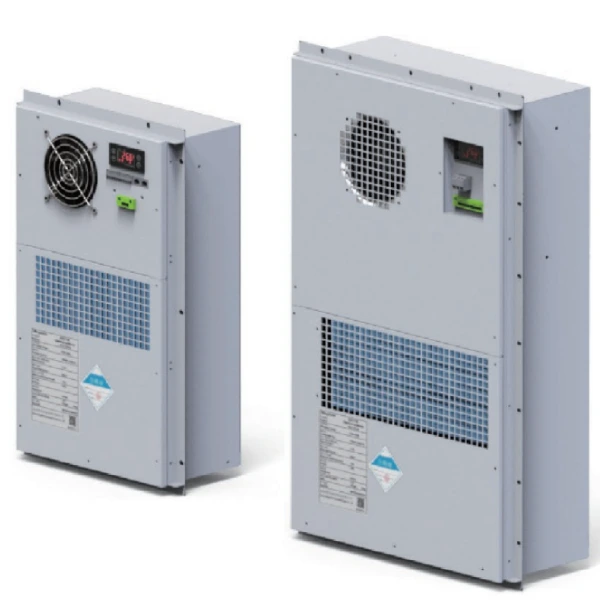

LK006DS1 / LK010DS1 / LK015DS1 / LK015DS2 / LK020DS2
48V DC Series
Direct DC input for solar‑powered sites and edge infrastructure.

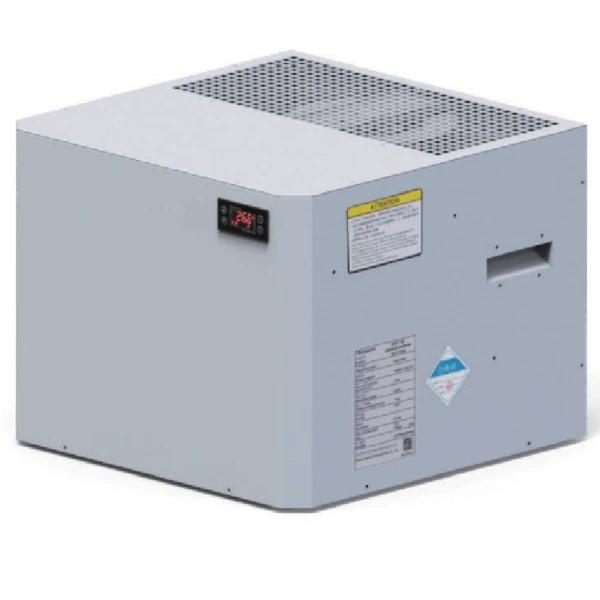

LK010ANT / LK015ANT
Top‑Mount Series
Compact top‑mount for indoor machine tools and control cabinets.
Rack‑Mount AC: Not Always the Right Answer
Traditional 19-inch rack‑mount air conditioners consume valuable U space and may not fit every cabinet.
U‑Space Loss
A typical rack‑mount AC occupies 6–10U, reducing available space for servers by 15–25%.
Installation Constraints
Requires unmodified 19-inch rails and front/clearance access — not always possible in outdoor or custom enclosures.
Lower Efficiency at High Ambient
Many compact rack‑mount units struggle at 45°C+ ambient, while LINKWELL units maintain rated cooling up to 55°C.
Our honest take: Rack‑mount air conditioners work well in controlled indoor environments with plenty of U space. But for edge, outdoor, and retrofit scenarios — a side‑mounted or top‑mounted unit is often more practical. It keeps every U free for your servers while delivering equal or better cooling capacity.

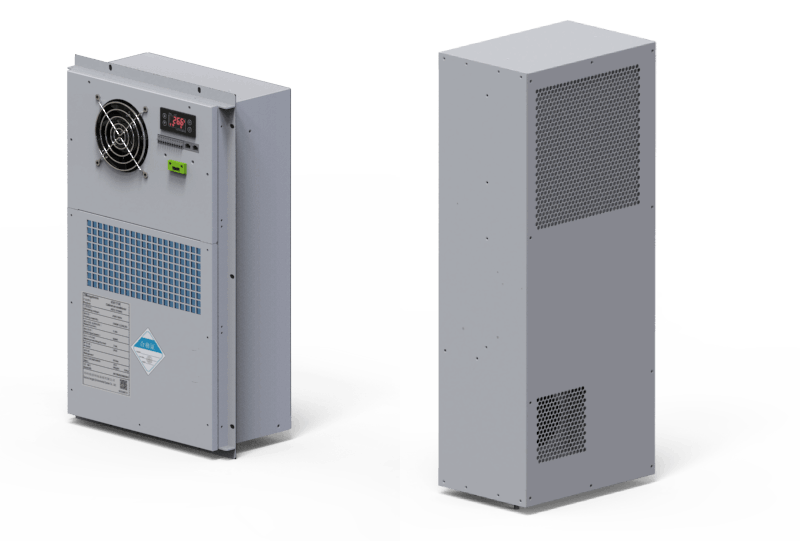

Side‑Mounted & Top‑Mounted Server Rack Mount Air Conditioner
Why LINKWELL’s approach preserves rack density without compromising thermal performance.
Why LINKWELL for Server Rack Mount Air Conditioner
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
48V DC
Native DC input for edge computing, solar, and remote telecom sites — no inverter loss.
IP55
Outdoor‑rated. Dust, rain, and high humidity — your equipment stays protected.
RS485 + MODBUS
Remote telemetry, alarm, and adjustment. Integrates with NMS and BMS systems.
T3 Ambient
Rated for 55°C ambient — reliable cooling even in non‑air‑conditioned shelters.
Built‑in Condensate Evaporator
No external drain hose required for many AF / DS / ANT series — reduces installation complexity.
- UL, CE, RoHS, ISO9001
- 60,000h continuous operation design
- OEM: custom voltage, mounting, and connectors
Server Rack Mount Air Conditioner – Key Applications
Edge Data Centers
Telecom Shelters
Energy Storage & Inverter Stations
Server Rack Mount Air Conditioner Selection Guide
Match your enclosure heat load to the right model. Below are recommended configurations.
FAQ
Does Server Rack Mount Air Conditioner require a 19‑inch rack‑mount AC?
No. Side‑mounted and top‑mounted air conditioners provide equivalent or better cooling while preserving all U space for servers. They are especially suitable for outdoor, edge, and retrofit scenarios.
What is the maximum ambient temperature for reliable operation?
All LINKWELL cabinet air conditioners are rated for T3 ambient conditions — up to 55°C. Internal components are selected for continuous operation at high ambient.
Can I use a 48V DC air conditioner for solar‑powered telecom sites?
Yes. Our DS series (LK006DS1 through LK020DS2) accept 48V DC (44–59V) and are specifically designed for remote telecom, solar, and battery‑backed edge sites.
How do I monitor the air conditioner remotely?
Every unit includes a standard RS485 interface with MODBUS protocol. Temperature, alarm status, and compressor/fan control can be accessed via any BMS or NMS.
Do I lose UL / CE compliance with custom OEM orders?
No. LINKWELL maintains UL, CE, and RoHS compliance across standard and custom configurations. Custom approvals can be supported for your target market.
