Custom Start and Stop Push Button Manufacturer in China
Our start and stop push buttons are engineered to address these very challenges. Designed for ultimate responsiveness and durability, they seamlessly integrate into your existing systems, providing instantaneous command over your equipment. Experience the peace of mind that comes with knowing your operations are not just efficient, but also safe and consistently under your thumb. We offer robust, intuitive solutions that transform complex control into effortless action, empowering your team with precision at their fingertips.
Linkwell Electrics - Your Trusted Start and Stop Push Button Manufacturer from China
Linkwell Electrics, a trusted manufacturer from China, offers start and stop push buttons engineered for ultimate responsiveness and durability. Our solutions seamlessly integrate into your systems, providing instantaneous command over your equipment. Experience the peace of mind that comes with knowing your operations are efficient, safe, and consistently under your thumb. We empower your team with precision at their fingertips.
Various Start and Stop Push Button
wholesale feed through terminal blocks
We supply start and stop push buttons engineered for immediate, reliable command over your equipment. Our durable solutions integrate seamlessly, ensuring efficient and safe operations. Experience the confidence of knowing your machinery responds precisely, empowering your team with effortless control.

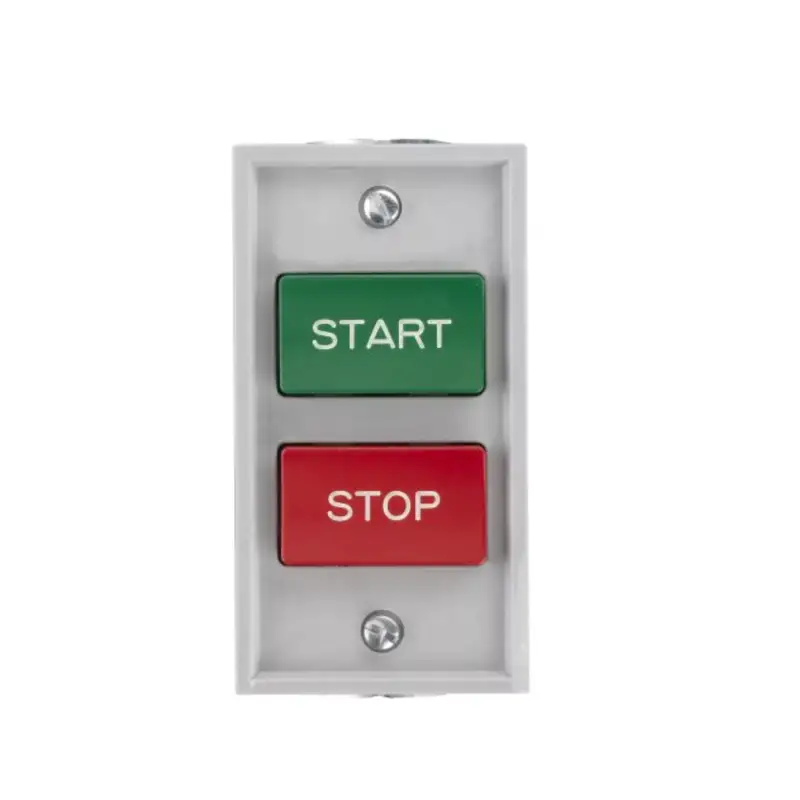

cutler hammer push button start stop
We supply genuine Cutler-Hammer start and stop push buttons, renowned for their unwavering performance and durability. Experience seamless, instantaneous command over your equipment, ensuring consistent efficiency and enhanced safety. Our Cutler-Hammer offerings provide the trusted solution for effortless, reliable machinery control.
engine start stop push button
We supply engine start-stop push buttons designed for ultimate responsiveness and durability. Our solutions provide instantaneous command, ensuring smooth, efficient operation every time. Experience the peace of mind that comes with knowing your engine is consistently under your thumb, empowering you with precision at your fingertips.

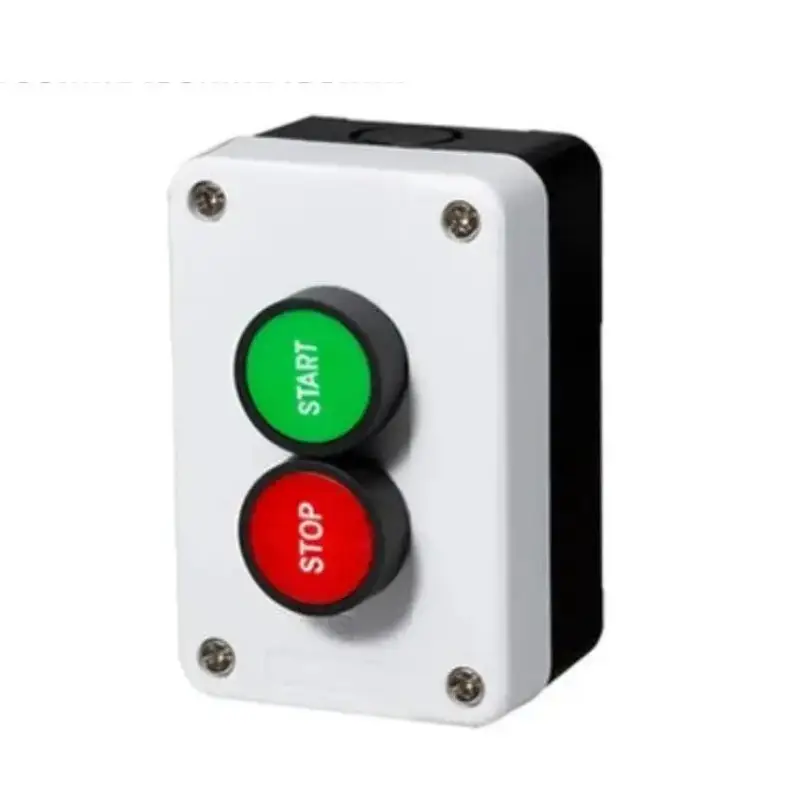

maintained start stop push button
Our maintained start-stop push buttons prevent these frustrations. We supply robust, self-latching solutions that ensure consistent, reliable operation. With our durable components, your machinery remains precisely controlled, minimizing downtime and maximizing productivity. Experience uninterrupted performance and complete peace of mind.

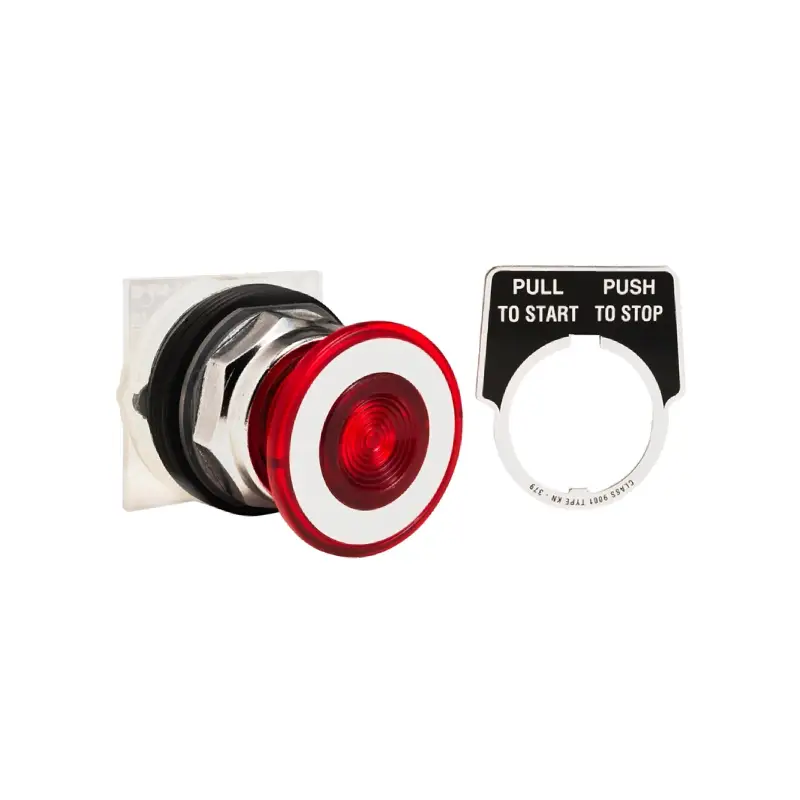

pull to start push to stop button
We provide pull-to-start, push-to-stop buttons, engineered for fail-safe operation and ultimate reliability. These specialized controls offer an extra layer of security, preventing accidental activation and ensuring deliberate command over your equipment. Experience the confidence that comes with enhanced safety and dependable performance in every critical application.
Customize Your Start and Stop Push Button
Color and Illumination
The right color and illumination are crucial for immediate visual cues and enhanced safety. We offer a wide spectrum of vibrant colors, allowing for clear differentiation between functions (e.g., green for start, red for stop). Additionally, integrated LED illumination options ensure visibility in any lighting condition, making operations intuitive and reducing errors, even in low-light environments.
Engraving and Labeling
Clear and durable engraving and labeling personalize your buttons for specific machinery and processes. We provide custom text, symbols, or even your company logo directly on the button’s surface. This permanent marking ensures that operators instantly understand each button’s function, improving efficiency and preventing misoperation in complex control panels.
Material and Durability
The material and durability of your push button are vital for longevity and performance in demanding industrial settings. We offer a selection of robust materials, including high-grade plastics and metals, designed to withstand harsh environments, extreme temperatures, and frequent use. This ensures your buttons maintain their functionality and appearance over their lifespan, minimizing replacements.
Mounting and Size Options
Mounting and size options are essential for seamless integration into your existing panels and equipment. We provide various mounting styles, including flush, raised, and panel-mount designs, to suit your specific enclosure requirements. A range of sizes from compact to oversized ensures optimal ergonomics and accessibility for operators, regardless of the application space.
what is start and stop push button?
A start and stop push button is a fundamental component in industrial control systems, designed to initiate and cease the operation of machinery or processes.
Typically, a “start” button is momentary (meaning it returns to its original position after being pressed) and configured as “normally open” (NO), completing a circuit to energize a motor or equipment when pressed.
Conversely, a “stop” button is also momentary but usually configured as “normally closed” (NC), breaking the circuit and de-energizing the equipment when pressed, often providing a safety measure. These buttons are crucial for precise, manual control, ensuring safe and efficient operation across various industrial applications.
how to connect start and stop push button?
Connecting a start and stop push button circuit involves understanding basic electrical principles and component interactions. This setup is fundamental for controlling motors or other equipment safely and effectively.
Step 1: Power Source and Overload Relay Connection
First, connect the main power supply (typically L1 and L2 for single-phase, or L1, L2, L3 for three-phase) to the line side of your motor starter’s contactor. This provides the primary power to your system. Concurrently, wire the motor’s power leads through the thermal overload relay’s power terminals, ensuring crucial protection against overcurrent conditions that could damage the motor.
Next, connect the normally closed (NC) auxiliary contacts of the thermal overload relay in series with your stop push button. This critical safety interlock ensures that if an overload condition occurs, the control circuit will open, immediately de-energizing the motor and preventing damage, even if the start button is pressed.
Step 2: Stop Button to Start Button Wiring
Begin by wiring one side of your control power (e.g., from L1, or a control transformer) to one terminal of your stop push button. This initiates the control circuit’s power path. The stop button, being normally closed, allows current to flow through it until it is pressed, at which point it opens the circuit.
Then, connect the output terminal of the stop push button to one terminal of your start push button. This establishes a series connection where the stop button’s state directly controls whether power can reach the start button, forming a critical part of the interlocking logic for safe operation.
Step 3: Start Button to Contactor Coil and Holding Contact
Connect the output terminal of your start push button to one side of your motor starter’s contactor coil (e.g., A1). When the start button is pressed, it completes the circuit to energize this coil, pulling in the contactor and allowing main power to flow to the motor, initiating operation.
Finally, wire a “holding contact” (also known as a “seal-in” or “latching” contact) in parallel across the start push button. This contact is typically a normally open (NO) auxiliary contact on the motor starter itself. Once the contactor pulls in, this holding contact closes, maintaining the coil’s energization even after the start button is released, thus keeping the motor running.
Step 4: Neutral Connection
To complete the control circuit, connect the other side of your motor starter’s contactor coil (e.g., A2) back to the neutral or common side of your control power supply (e.g., L2 or the control transformer’s common). This establishes the return path for the control current, allowing the coil to be fully energized and the contactor to operate as intended.
Ensure all connections are secure and properly insulated to prevent shorts and ensure safe operation. Verifying continuity and functionality with a multimeter before applying full power is always recommended for safety and troubleshooting.
how to wire a start stop push button?
Wiring a start-stop push button circuit is fundamental for controlling motors safely and effectively. This process involves connecting several components to create a latching control circuit that maintains motor operation after the start button is released and stops it when the stop button is pressed.
Step 1: Power Source and Overload Relay
First, connect your control power source (e.g., from a control transformer or one phase of your main power) to the normally closed (NC) auxiliary contact of your motor’s thermal overload relay. This is a critical safety measure, ensuring the control circuit opens if an overload condition occurs.
Next, wire the output of this overload relay contact in series to the input terminal of your stop push button. This ensures that any overload immediately de-energizes the control circuit, preventing damage to the motor by cutting off power to the subsequent control components.
Step 2: Stop Button to Start Button
Connect the output terminal of the stop push button to one side of the start push button. Since the stop button is normally closed, current flows through it to the start button, allowing the circuit to be completed when needed.
Then, wire the other side of the start push button to one terminal of the motor starter’s contactor coil (often labeled A1). Pressing the start button momentarily completes this path, sending power to the coil and initiating the motor’s operation.
Step 3: Contactor Coil and Holding Contact
Connect the other terminal of the contactor coil (often A2) back to the neutral or common side of your control power supply, completing the coil’s circuit. This allows the coil to be energized and pull in the main contactor.
Finally, wire a “holding contact” (a normally open auxiliary contact from the motor starter itself) in parallel across the start push button. When the contactor energizes, this holding contact closes, bypassing the start button and keeping the coil energized, even after the start button is released.
Step 4: System Verification
Before applying full power, carefully double-check all your connections for accuracy and secure terminals. Ensure that all wires are properly insulated to prevent short circuits and accidental contact, which are vital for safety.
Once connections are verified, perform a dry run or continuity test with a multimeter to confirm the circuit behaves as expected when buttons are pressed and released. This final check helps identify any wiring errors before potential damage or hazards occur during live operation.
Send Your Inquiry Now
All-in-one Start and Stop Push Button Solutions for Your Project
We provide all-in-one start and stop push button solutions that eliminate guesswork and simplify your project. Our pre-engineered, integrated units ensure seamless compatibility and rapid installation. Experience unparalleled efficiency and reliability, getting your systems up and running faster with complete confidence.
