Precision Terminal Transformers for Industrial Applications
Linkwell Electrics designs and manufactures high-quality terminal transformers ranging from 60VA to 100kVA. Our compact, reliable power solutions are engineered for electrical cabinets, machinery, and control systems.
Why Choose Linkwell Terminal Transformers?
Our terminal transformers are engineered for reliability, efficiency, and seamless integration into your electrical systems.
Compact Design
Space-saving construction with typical dimensions of 80×80×80mm, perfect for crowded electrical cabinets and control panels.
Wide Power Range
Comprehensive selection from 60VA to 100kVA to match your specific voltage transformation and power requirements.
Robust & Safe
Built with high-grade materials and insulation for reliable operation, thermal protection, and electrical safety.
Easy Installation
Designed with clear terminal markings and mounting options for straightforward integration into your systems.
Why Choose Linkwell Terminal Transformers?
Our terminal transformers are engineered for reliability, efficiency, and seamless integration into your electrical systems.

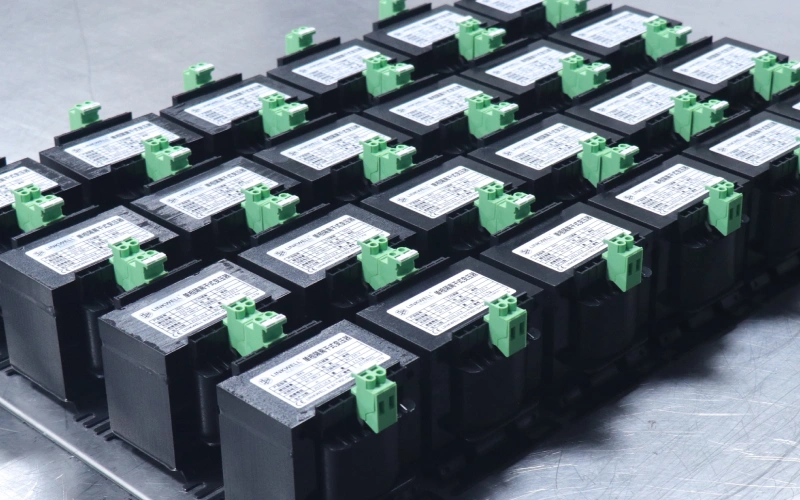

Our Manufacturing Capabilities

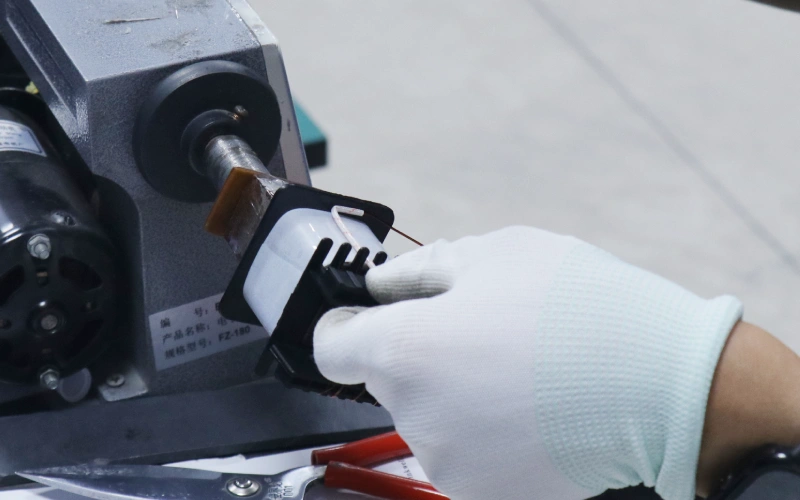

At Linkwell Electrics, we control the entire production process from raw materials to finished products. Our 25,000㎡ facility houses state-of-the-art winding machines, vacuum impregnation systems, and precision testing equipment.
We specialize in OEM/ODM services, offering customized terminal transformer solutions tailored to your specific requirements. Our engineering team works closely with clients to develop transformers that meet exact technical specifications and application needs.
Quality Control Process
Every Linkwell terminal transformer undergoes rigorous testing to ensure performance and reliability:
- Dielectric strength testing at twice the rated voltage
- Insulation resistance verification
- Temperature rise testing under full load
- Short-circuit impedance measurements
- No-load and load loss verification
- Vibration and mechanical stress tests
Our commitment to quality ensures that every transformer meets or exceeds international standards and customer expectations.
Industrial Applications
Linkwell terminal transformers provide reliable power solutions across diverse industries and applications.
Electrical Cabinets & Control Panels
Step-down voltage for control circuits, PLC systems, and indicator lights in industrial cabinets.
Industrial Machinery
Power supply for CNC machines, packaging equipment, textile machinery, and automation systems.
Renewable Energy Systems
Voltage transformation in solar inverters, wind turbine controls, and energy storage systems.
Transportation & Rail
Power conditioning for signaling systems, rolling stock controls, and EV charging infrastructure.
Telecom & Data Centers
Reliable power for network equipment, server racks, and UPS systems.
Building Automation
Control power for HVAC systems, lighting controls, access systems, and elevators.
Certifications & Clients
Our commitment to quality and safety is validated by international certifications and compliance with industry standards.
All Linkwell terminal transformers are designed and manufactured in compliance with IEC 61558, UL 5085, and other relevant international standards. We maintain ISO 9001:2015 certification for our quality management system, ensuring consistent excellence in every product.
FAQs
What are Terminal Transformers and where are they used?
Terminal Transformers are compact control transformers installed inside electrical cabinets or control panels. You use them to step down voltage safely, supplying stable power to control circuits, relays, indicators, and automation components.
Why are Terminal Transformers preferred for control panels?
You prefer Terminal Transformers because of their small size, easy DIN-rail or panel mounting, and reliable isolation. They fit limited cabinet space while delivering stable secondary voltage for sensitive control and signaling devices.
How do Terminal Transformers improve system safety?
Terminal Transformers provide electrical isolation between primary power and control circuits. This reduces shock risk, protects downstream components from voltage spikes, and helps ensure safe operation and compliance with industrial electrical standards.
What voltage ratings are common for Terminal Transformers in cabinets?
Common primary voltages include 110V, 220V, and 380V, while secondary outputs are typically 24V, 12V, or 48V. You select ratings based on control system requirements and local electrical standards.
How do you select the correct Terminal Transformer capacity?
You select capacity by calculating the total load of connected control devices, adding a safety margin. Proper sizing prevents overheating, ensures voltage stability, and extends transformer service life in continuous operation.
