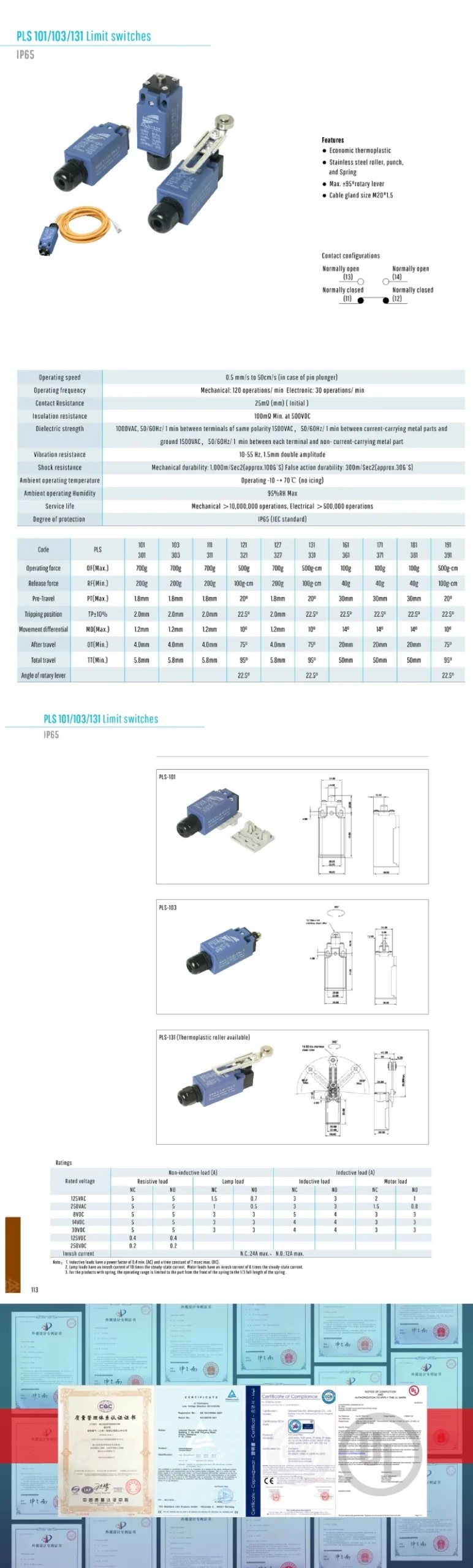

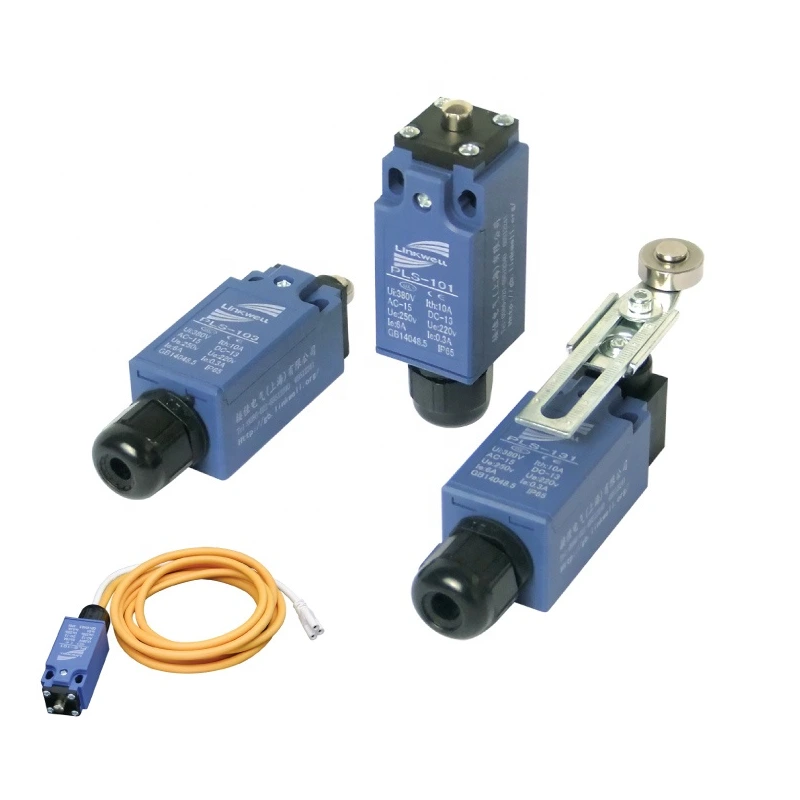

PLS 103 roller limit switches feature a durable thermoplastic body and stainless steel roller, designed for high-precision positioning in automated machinery and conveyor systems.
With IP65 protection, these switches reliably detect position limits in industrial environments, offering robust performance from -10 to +70°C for consistent operation.
Utilizing a DPDT contact arrangement, they support up to 500V and 500VDC, ensuring versatile electrical compatibility for controlling motors, actuators, and safety circuits.
| Parameter Category | Parameter Name | Specification Value | Notes/Remarks |
|---|---|---|---|
| Basic Information | Model Number | PLS 103 | – |
| Brand Name | LINKWELL | – | |
| Place of Origin | Shanghai, China | – | |
| Electrical Characteristics | Contact Arrangement | DPDT | Double Pole Double Throw |
| Max. Current | 500VDC | – | |
| Max. Voltage | 500V | – | |
| Contact Resistance | 25 mΩ (Initial) | – | |
| Insulation Resistance | 100mΩ Min. at 500VD | – | |
| Mechanical Characteristics | Operating Speed | 0.5 mm/s to 50cm/s (in case of pin plunger) | – |
| Operating Frequency | Mechanical: 120 operations/min Electronic: 30 operations/min |
– | |
| Environmental Characteristics | Operating Temperature | -10~+70℃ | – |
| IP Level | IP65 | Dust and water protection | |
| Physical Characteristics | Material | Stainless Steel | – |
| Whether The Smart | No | – | |
| Application Information | Application | Industrial Switch, Industry Equipment | – |
| Certification Information | Certification | Others | – |
