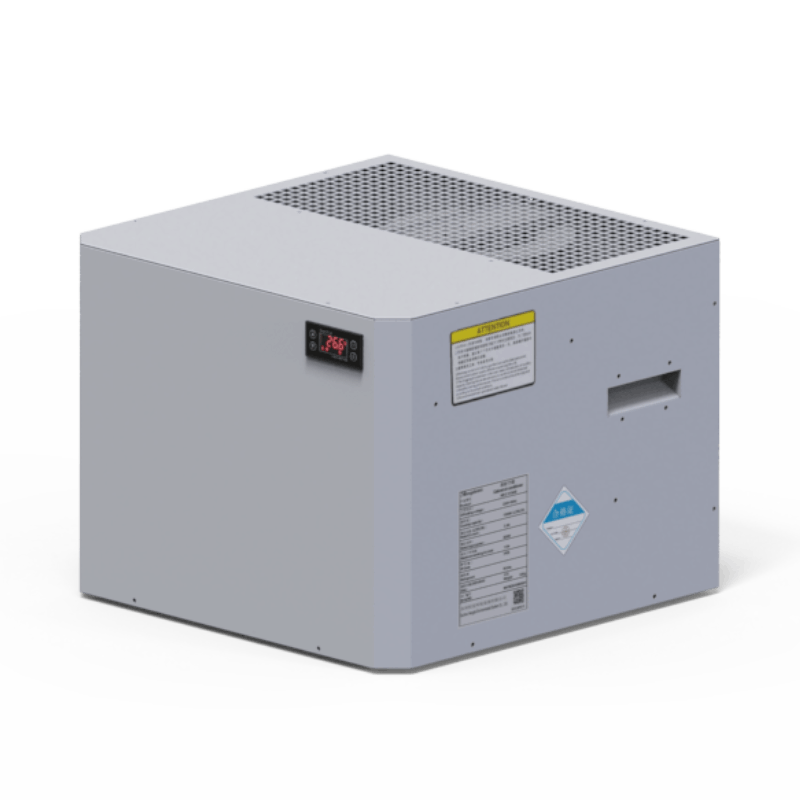

Top Mounted Cabinet Air Conditioner Factory
- Factory direct price
- OEM/ODM
- 500–5000W
- IP54 – IP68
What Is a Top Mounted Cabinet Air Conditioner?
A top mounted cabinet air conditioner installs on the roof or top surface of electrical enclosures. This design takes advantage of natural heat rise—hot air accumulates at the top, enabling more efficient heat extraction. Ideal for telecom cabinets, industrial automation, CNC machines, and outdoor enclosures where side walls are occupied.
Why Choose Top Mounted?
Space Saving
Leaves side walls free for components, perfect for compact cabinets.
Thermal Efficiency
Direct extraction of rising hot air without internal ducting.
Easy Maintenance
Accessible from outside – no need to open the cabinet door.
Weather Protection
IP56/IP66 versions with rain hood for outdoor use.
Product Range & Specifications
Top Mounted Cabinet Air Conditioners – Specifications
| Parameter | LK010ANT | LK015ANT |
|---|---|---|
| Power Supply | 220VAC ±15% 50Hz | 220VAC ±15% 50Hz |
| Cooling Capacity | 1000 W | 1500 W |
| Power Consumption | 440 W | 700 W |
| Dimensions (H×W×D) | 450 × 450 × 350 mm | 450 × 450 × 350 mm |
| IP Grade | IP44 | IP44 |
| Refrigerant | R134A | R134A |
| Net Weight | 30 kg | 32 kg |
| Color | RAL7035 | RAL7035 |
Why Choose Top Mounted?
Certificate
Our Top Mounted Cabinet Air Conditioner meet CE, UL, and ISO standards for global compliance.
Application of Telecom Cabinet Air Conditioner in Different Industries
Power Distribution and Electrical Control Systems
Telecommunications and Outdoor Communication Cabinets
Industrial Automation and Manufacturing Equipment
FAQ of Top Mounted Cabinet Air Conditioner
What is a Top Mounted Cabinet Air Conditioner?
A Top Mounted Cabinet Air Conditioner is a cooling unit installed on the top of an electrical cabinet. It removes heat generated by internal components and keeps the enclosure temperature stable, helping protect sensitive electronics from overheating and performance failure.
When should a Top Mounted Cabinet Air Conditioner be used?
It is commonly used when side mounting space is limited or when cabinets are placed against walls. Top installation allows efficient airflow and heat removal, making it ideal for control cabinets in industrial automation, telecom systems, and electrical distribution equipment.
What are the advantages of top-mounted installation?
Top-mounted units save side panel space and provide better heat convection because hot air naturally rises. This installation method also simplifies airflow management inside the cabinet and can improve cooling efficiency in compact electrical enclosures.
What protection features do these air conditioners offer?
Most Top Mounted Cabinet Air Conditioners include sealed cooling circuits, dust protection, and high IP-rated housings. These features prevent contaminants from entering the cabinet while maintaining stable internal temperatures for sensitive electrical and electronic components.
How do you choose the correct cooling capacity?
You should calculate the total heat load generated by equipment inside the cabinet and consider ambient temperature conditions. Selecting the proper cooling capacity ensures stable operation, prevents overheating, and improves the overall reliability of electrical control systems.
