Ventilation Fan and Filter-Thermal management & cabinet protection
From standard IP54 to robust IP69K, our certified ventilation systems ensure reliable performance for control panels, servo drives, renewable energy, and automotive lines. More than a fan: a complete environmental control solution.
Global Partnership
Why Linkwell Thermal Management Solutions
Full certification stack
UL/cUL, CE, IP69K, NEMA 4X, ATEX, IECEx, CCC, SAA — your project gains global. Third-party verified quality.
Custom-engineered designs
Special cut-outs, oil-mist filters, UV-resistant materials, terminal extensions — we tailor to your cabinet.
One-stop cabinet environment
Perfectly mate our fans with thermostats, hygrostats, heaters, and air conditioners from the same trusted supplier.
20 years export & OEM expertise
We engineer for harsh realities: wind farms, solar, food industry. Over 100 countries rely on our durability.
Rigorous quality control
Multi-stage inspection from raw material to final assembly, ensuring zero defect delivery.
Airflow & thermal simulation
Our engineers support with CFD simulation and in-house testing for optimal cabinet cooling.

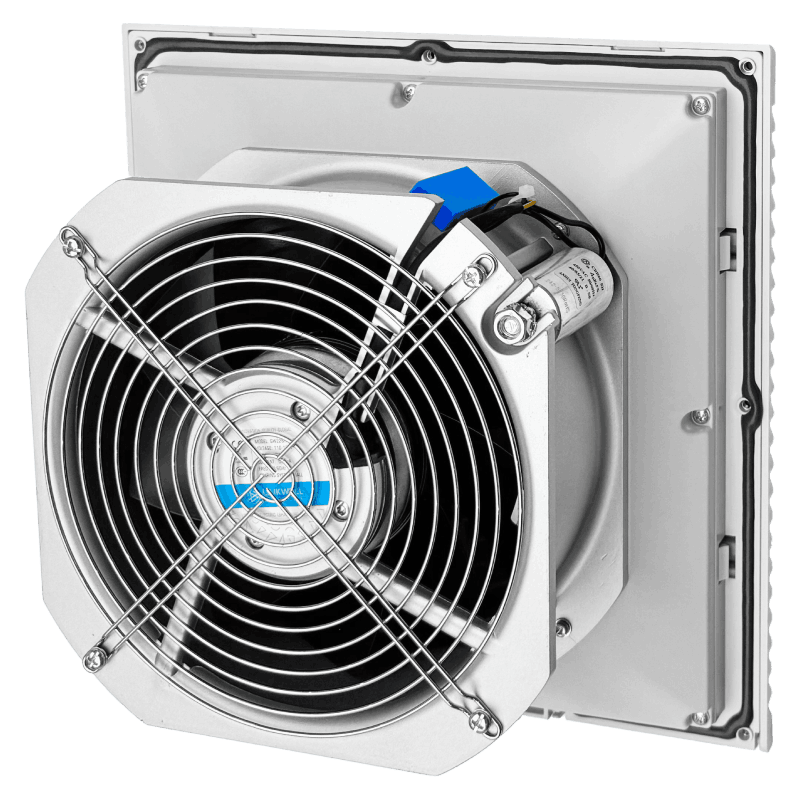

Our Ventilation Fan and Filter Series
We provide customized Ventilation Fan and Filter solutions with flexible sizes, fast delivery, and OEM/ODM support. Contact us today for a free quote.
FU Series
Available in multiple sizes with pre-installed embedded nuts for fast installation. An optional air duct improves airflow efficiency and enhances cabinet cooling performance.
LK32 Series
The buckle-style cover allows fast opening for maintenance and filter replacement. An optional power indicator light provides clear visual confirmation of operating status.
LK66 Series
The linear grill structure improves airflow distribution, reducing resistance and delivering stronger and more efficient ventilation inside electrical cabinets.
FF Series
Made from UV-resistant PC alloy for long-term durability. An optional corrugated filter mat enhances dust filtration and protects sensitive electronic components.
FK55 Series
Slim-profile housing fits tight installation spaces easily, while the curved-line grill design adds a modern and professional appearance to control cabinets.
Ventilation Fan and Filter : Holistic Cabinet Climate Control
Thermostats & hygrostats
Automatic fan ON/OFF or heater activation. Electronic or mechanical, single/dual contact.
Filter fans + exhaust grilles
Complete intake/exhaust sets with matching cut-outs, airflow optimized.
Cabinet air conditioners
For high heat loads: 500W–5000W cooling, R134a, RS485, side/embedded mount.
Anti-condensation heaters
PTC or fin-type, 10W–150W, keep humidity away during standstill.
Control transformers
Stable voltage for sensitive electronics, UL/cUL recognized.
Wiring ducts & terminal blocks
Complete low-voltage components, all from one factory.
Beyond the Fan: Holistic Cabinet Climate Control
Solve your cabinet overheating: use our simplified airflow estimation or download detailed curves.
- Quick sizing
- Cabinet volume (L x W x H) → required airflow
- ΔT allowed (10K / 15K) → m³/h recommendation
- Protection level: IP54 (indoor) / IP56 (humid) / IP69K (washdown)
- Performance data
- Airflow vs. static pressure curves
- Filter pressure drop (clean / dust loaded)
- Acoustic noise (dBA) @1m
Detailed IP protection explanation: IP54 = dust-protected, splash; IP69K = high-pressure, high-temp washdown.
Key Applications & Industries
Where Ventilation Fan and Filter Units Make a Critical Difference

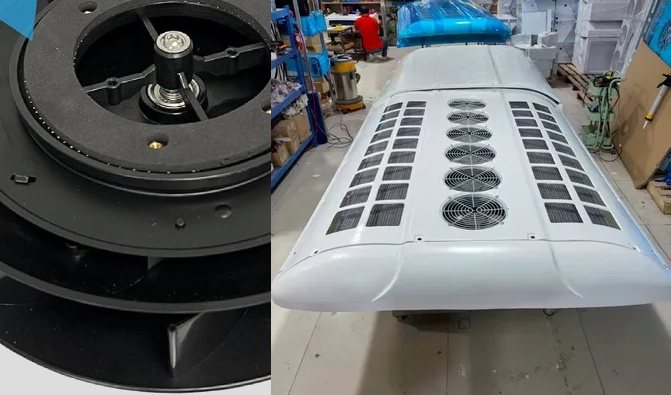

Wind power converters
IP66 filtered fans with salt-mist protection, -40°C operation. Used in offshore wind farms.

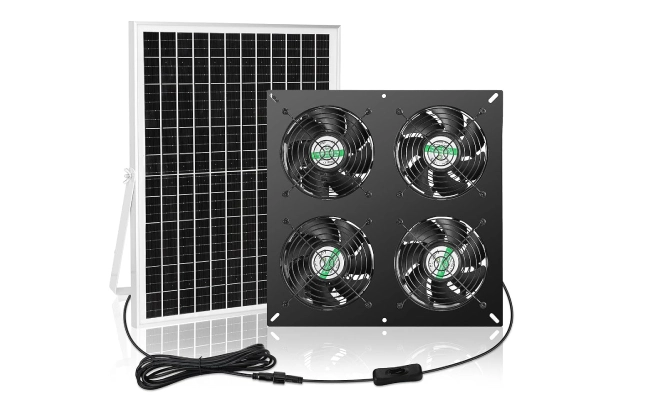

Solar inverters
UV-stabilized plastic, low-voltage DC fans for tracker cabinets, 20+ years lifetime.

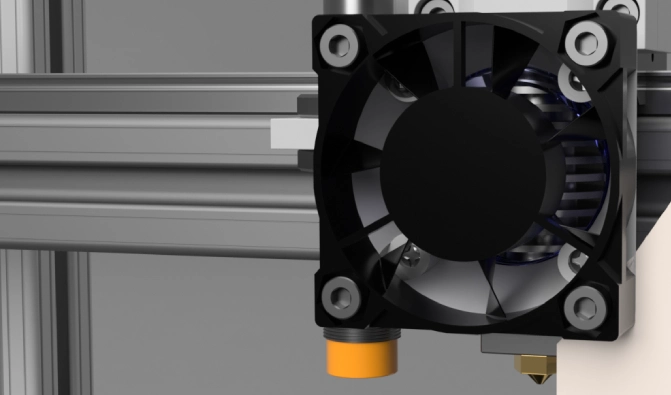

CNC & robotics
Oil-mist resistant filters, compact fans for servo drive cabinets, reduced downtime.

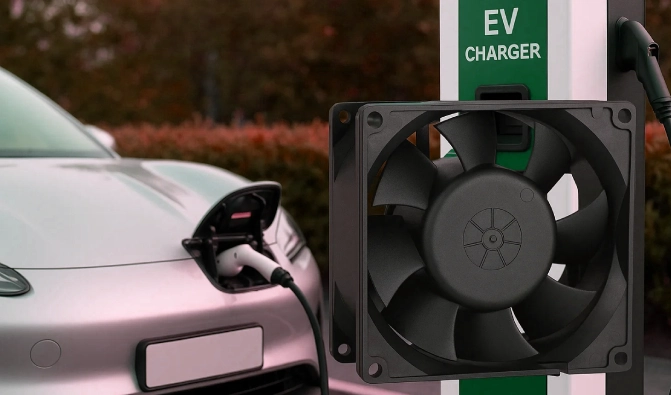

EV charging piles
IP56 fans with anti-corrosion coating, smart tacho output for remote monitoring.
Why partner with Linkwell
Certified
UL, CE, ATEX, IECEx, NEMA
One‑stop sourcing
Fan + filter + thermostat + heater + more
Custom solutions
From dimension to performance
Direct manufacturer
Better pricing, no middlemen
FAQs
What is a Ventilation Fan and Filter used for in electrical cabinets?
A Ventilation Fan and Filter system removes heat from electrical cabinets while preventing dust and particles from entering. It improves airflow, protects sensitive components, and helps maintain stable operating temperatures in industrial control panels.
Where should a Ventilation Fan and Filter be installed in a cabinet?
Typically, the ventilation fan with filter is installed at the bottom of the cabinet to draw cool air inside. A filter outlet or exhaust grille is placed at the top to allow hot air to escape.
How often should the fan filter be replaced?
Filter replacement depends on environmental conditions. In dusty industrial environments, filters should be checked monthly and replaced every three to six months to maintain proper airflow and cabinet cooling efficiency.
What filter classes are commonly used in cabinet ventilation systems?
Common filter classes include G2, G3, and G4. G2 provides basic dust protection, while G3 and G4 offer higher filtration efficiency for industrial environments with higher levels of airborne particles.
How do I choose the right Ventilation Fan and Filter size?
Select the fan size based on cabinet volume, internal heat load, and required airflow. Larger cabinets or high-power equipment require higher airflow fans to maintain proper cooling performance.
