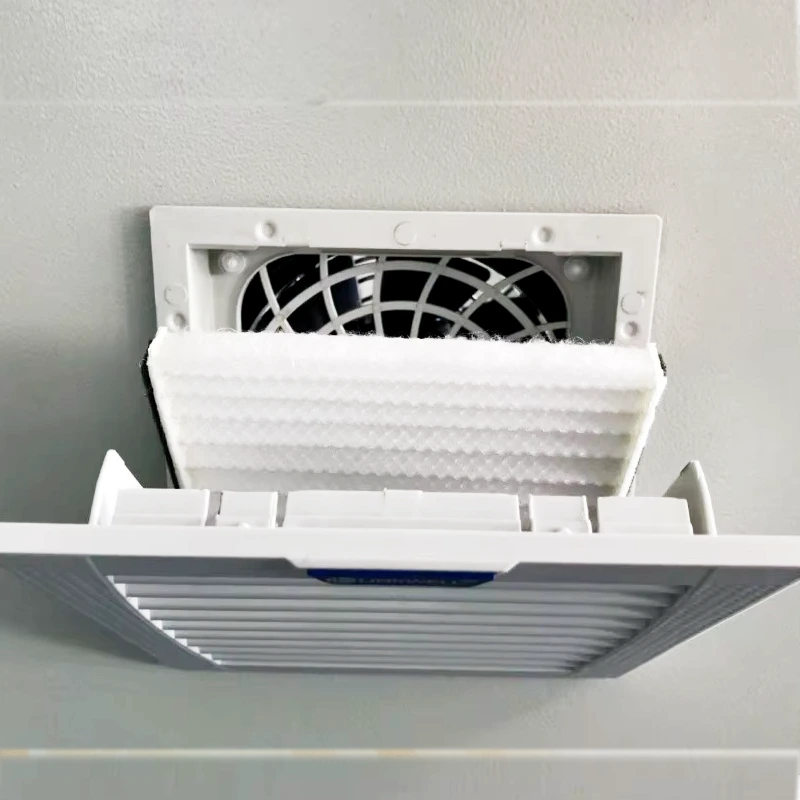

Ventilation Filter
Ventilation filters play a crucial role in keeping electrical cabinets, control panels, telecom systems, and industrial equipment stable and safe. When paired with cabinet fans, they protect sensitive components against dust, moisture, oil mist, and airborne particles. Below is a comprehensive and highly professional overview covering materials, dimensions, and applications, fully suitable for engineering customers, wholesalers, and industrial buyers.
Key Features of Our Ventilation Filter
Prevent internal component overheating
Improve long-term operational safety
Durable & Reliable
Provide stable, clean airflow
Lower equipment failure rate
Global Partnership
Ventilation Filter Type
Ventilation filters improve airflow, block dust, and protect electrical cabinets, HVAC units, and industrial enclosures. They ensure cleaner operation, prevent overheating, and extend equipment life with reliable, long-lasting filtration performance.

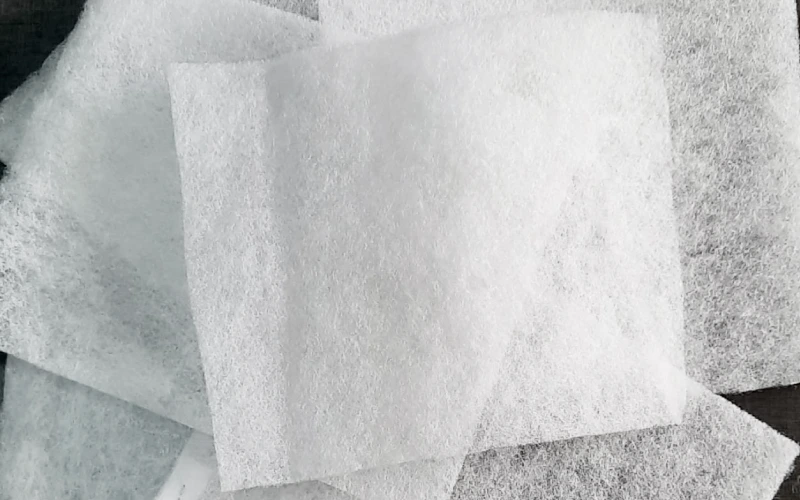

Non-Woven Polyester Ventilation Filter
Most widely used material in electrical cabinet ventilation filters
High dust-holding capacity
Self-extinguishing properties, safer for electrical environments
Maintains stable filtration performance even under constant airflow and vibration
Resistant to moisture and humidity—ideal for telecom and automation equipment
Advantages:
✔ Cost-effective
✔ Good mechanical strength
✔ Suitable for Class IP54/IP55 ventilation systems

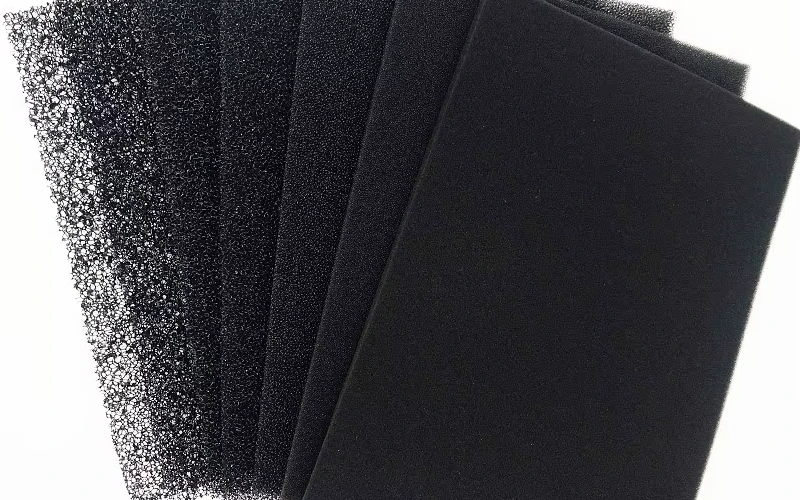

Polyurethane Foam Filter
Open-cell foam with strong air permeability
Excellent at trapping fine particles
Can be washed and reused in low-dust environments
Advantages:
✔ Flexible
✔ Lightweight
✔ Good for enclosures requiring silent airflow

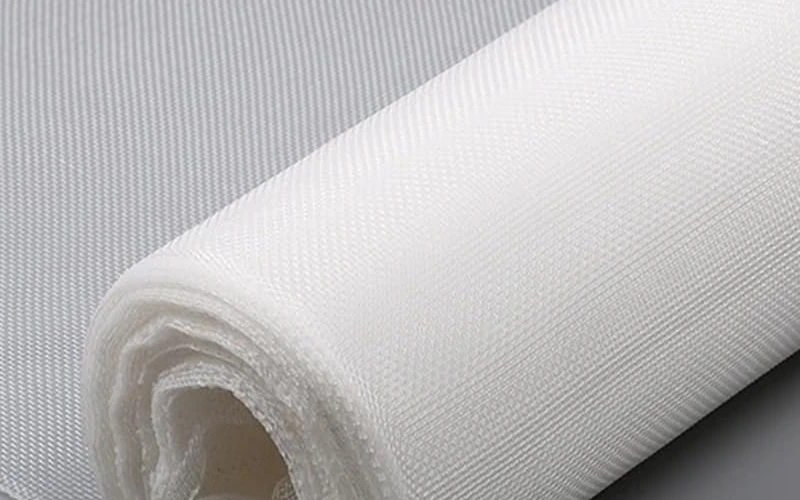

Nylon Mesh
Made from woven nylon fibers
Often used in high-airflow industrial fans
Durable and easy to clean
Advantages:
✔ High tensile strength
✔ Long service life
✔ Maintains airflow while blocking large particles
Ventilation Filter Sizes (Standard & Custom for Cabinet Fans)
Ventilation filter dimensions depend on the airflow capacity, mounting method, and cabinet design. Below are the common industrial sizes used for cabinet cooling fans:
Standard Filter Sizes for Cabinet Fans
| Fan Size | Typical Filter Size | Thickness | Airflow Compatibility |
|---|---|---|---|
| 80mm Fan | 80×80 mm | 5–10 mm | Small control cabinets |
| 92mm Fan | 92×92 mm | 10 mm | Automation cabinets |
| 120mm Fan | 120×120 mm | 10–15 mm | Electrical/telecom cabinets |
| 150mm Fan | 150×150 mm | 15 mm | Factory cabinets |
| 172mm Fan | 172×172 mm | 15–20 mm | High-airflow cooling |
| 200mm Fan | 200×200 mm | 20 mm | Heavy machinery cabinets |
Common Filter Thickness Options
5 mm – light filtration, high airflow
10 mm – balanced filtration, widely used
15 mm – high-efficiency filtration
20–25 mm – heavy-duty dust environments
Custom Sizes (OEM/ODM)
For control cabinet manufacturers, we can customize:
✔ Any width × height (50–600 mm)
✔ Any thickness (5–30 mm)
✔ Pre-cut or frame-mounted
✔ Flame-retardant materials
✔ Washable, reusable, long-life materials
Applications

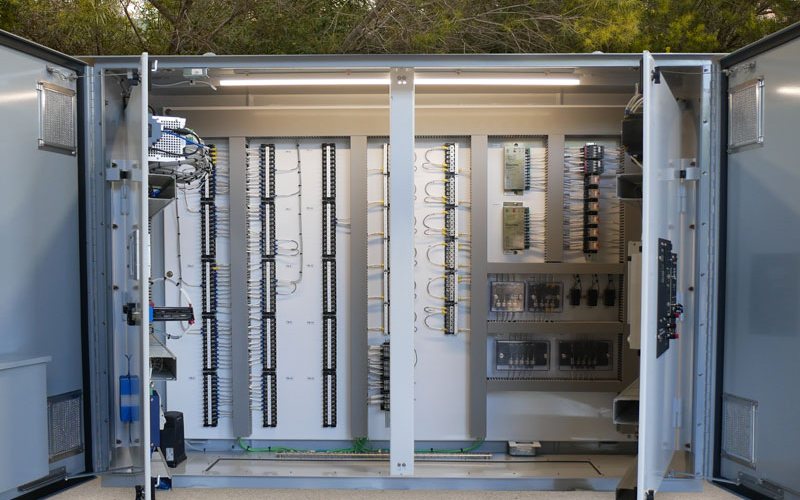

Electrical Control Cabinets
- Blocks dust from entering the cabinet
- Prevents short circuits caused by moisture/oil mist
- Maintains stable internal temperature
- Extends the life of controllers and circuit boards

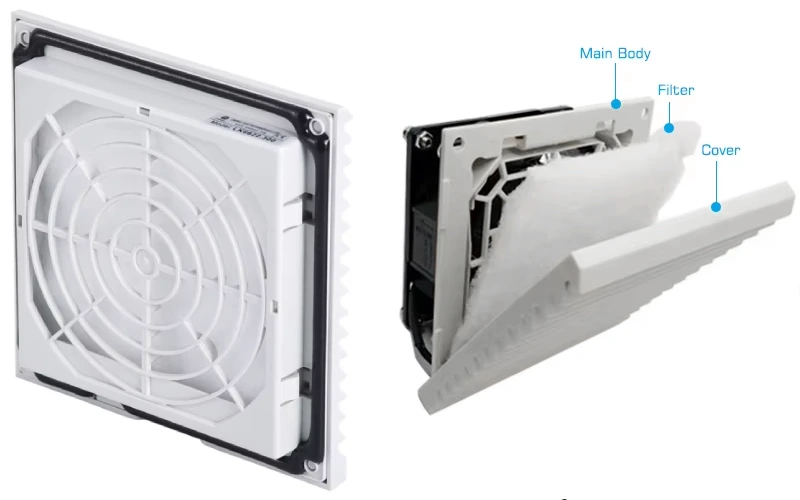

Industrial Cabinet Fans
Prevents fan impeller contamination
Reduces noise caused by dirt buildup
Keeps consistent cooling efficiency
Minimizes maintenance cycles

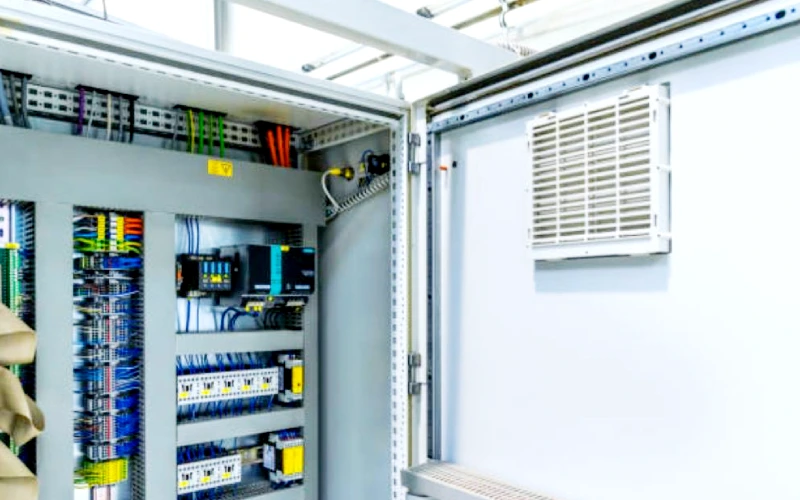

Telecom & Communication Cabinets
Protects telecom boards from fine dust
Prevents overheating
Improves outdoor cabinet reliability
Supports stable 24/7 operation

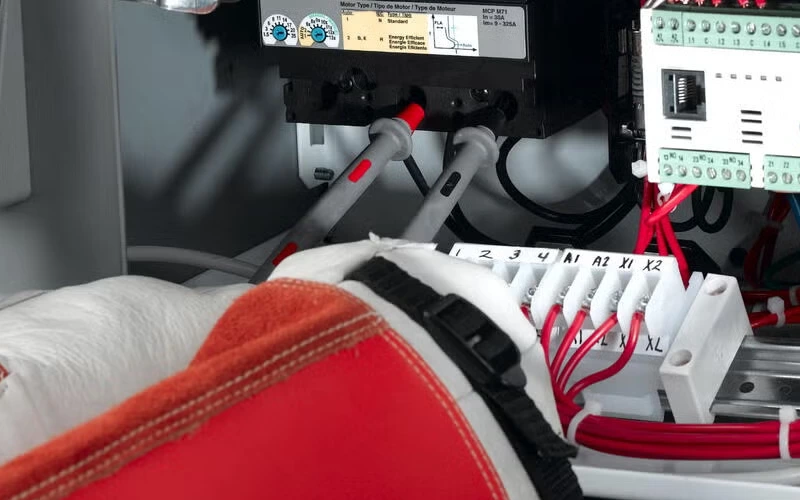

Machine Tool Electrical Boxes
Strong resistance to oil mist
High airflow to remove heat
Stable filtration in harsh production environments
Optional Specifications for Custom Ventilation Filters
| Item | Optional Specification |
|---|---|
| Material | Polyester fiber / PU foam / Nylon mesh / Aluminum mesh |
| Filtration Class | G2 / G3 / G4 (EN 779) |
| Thickness | 5–30 mm |
| Airflow Rate | 50–900 m³/h depending on fan |
| Operating Temperature | -10°C to +80°C |
| Fire Rating | UL94 V-0 / V-2 optional |
| Frame | ABS / PVC / Aluminum |
| Mounting Type | Snap-on / Screw frame / Magnetic |
| Custom Shape | Square, round, rectangular, arc |
Certifications & Clients
LINKWELL specializes in high-performance ventilation filters designed for industrial cabinets, HVAC systems, and electrical enclosures. Our reliable engineering, strict quality control, and global certifications make us a trusted partner for professional buyers.
Why Choose Linkwell?
1. Stable Quality and Certified Production
Every filter is produced under ISO9001 standards and carries CE / RoHS compliance. This ensures consistent performance, long filter life, and zero surprises for distributors and OEM brands.
2. Reliable Lead Times and Large Inventory
We maintain strong safety-stock levels and predictable 15–25-day production cycles. Buyers trust us because orders ship on schedule, even during peak demand or urgent project timelines.
3. Strong Engineering Support
Our team helps buyers validate airflow, match filter sizes, and choose the right materials for dust-heavy or moisture-prone environments. This reduces project risk and improves end-product performance.
FAQs
What applications are LINKWELL ventilation filters suitable for?
LINKWELL filters are widely used in electrical cabinets, automation equipment, HVAC systems, telecommunications enclosures, and control panels. They help improve airflow, reduce dust, prevent overheating, and extend equipment life. Distributors and OEM manufacturers choose them because the filters perform consistently across both indoor and outdoor environments.
Can you provide customized filter sizes or materials?
Yes. We offer OEM and ODM services, including custom dimensions, frame materials, filter media grades, and logo packaging. Our engineering team can work with drawings or samples to ensure the final filter fits your equipment perfectly and meets your performance requirements.
How long is the typical lead time for orders?
Our standard production cycle is around 15–25 days, depending on order volume and complexity. We also keep stock for popular models, allowing faster delivery for urgent orders. Stable lead time and strong inventory help distributors avoid stock-outs and production delays.
How do LINKWELL filters compare to other suppliers?
Our filters stand out because of precise construction, durable materials, and certified production. Buyers often mention fewer installation issues and longer service life compared to cheaper alternatives. We focus on stable quality, strong packaging, and long-term business cooperation rather than short-term sales.
What certifications do your ventilation filters meet?
All LINKWELL ventilation filters comply with CE, RoHS, and ISO9001 manufacturing standards. These certifications show that our materials, processes, and performance follow international requirements, ensuring safety, consistency, and reliability for global markets.
Contact & Inquiry
Contact us today for detailed product information, quotes, or expert technical support. Simply complete the form with your name, email, company, country, and inquiry, and our team will get back to you quickly. You can also connect with us directly via WhatsApp, email, or phone for fast and reliable assistance.
