What is a Feed Through Terminal Block

If you’ve ever wondered what is a feed through terminal block, you’re not alone. This terminal block lets you connect two wires, making your electrical projects neater and more reliable. You’ll often see it in control panels, where it keeps wires firmly in place and helps prevent loose connections or short circuits.

Here’s why you might use a feed through terminal block:

1. Connect two wires for a solid circuit link.
2. Fix wire positions so they don’t loosen.
3. Make wiring faster and easier.
4. Boost safety by preventing poor contacts.

If you want a dependable electrical setup, reach out to us for custom solutions!

Feed Through Terminal Block Key Takeaways

• Feed through terminal blocks join two wires tightly. This makes electrical setups safer and more organized. They are easy to install with strong clamps. Their modular designs save space. These designs also make maintenance easier. Pick the right terminal block by matching wire size. You should also check current and safety ratings. This helps make sure connections work well and last long.

What is a Feed Through Terminal Block

Function

A feed through terminal block is a simple way to connect wires. It lets you join two wires together in your electrical project. This keeps your circuits safe and neat. You put one wire on each side. The terminal block holds them tight. The wire goes straight through the block. You do not need to bend or twist the wire. This makes it easy to install, even in small spaces.

You can find feed-thru terminal blocks in control panels and automation systems. They help you manage many wires. Each connection stays strong and safe. You can use them with copper or aluminum wires. They fit many wire sizes. If you need to connect several wires at one spot, use a single-level pass through terminal block. These blocks keep wires tidy. They help stop loose connections. They also make it easier to fix problems later.

Tip: Terminal blocks give you a strong electrical connection. They last a long time, even in tough places.

Key Features

Feed-through terminal blocks are different from other types. They have a smart design and work well. Here are some features you will notice:

• Compact and Simple Structure: The shell is made from strong plastic or metal. The contacts inside use copper or brass for good flow of electricity.
• Bi-directional Wire Insertion: You can put wires in from either side. This makes wiring faster and easier.
• Secure Clamping: Pressure plates or knobs hold wires tight. Wires stay in place, even if things shake.
• Wide Ratings: These blocks work with many voltages and currents. You can use them in lots of setups.
• Easy Installation and Maintenance: You can mount them on DIN rails. This lets you add or change wires without moving others.
• Durable Materials: The shell uses PA66 or polycarbonate for strength. Screws and springs use copper alloys to keep wires tight.
• Safety First: The design helps stop short circuits and bad contacts. Some models have finger-safe covers for more safety.
• Modern Technology: Many terminal blocks use push-in technology. You can connect wires without tools. Some have color codes to stop mistakes.

Here is a quick look at the main parts:

Applications

You can find terminal blocks anywhere you need to connect wires safely. In factories, feed-through terminal blocks keep control panels neat. They help machines work well. They are used in:

• Industrial Automation: Connect sensors, relays, and controllers in control systems.
• Control Cabinets: Manage power, signals, and data in one place.
• Heavy Machinery: Give strong, safe connections in big equipment.
• Switchgear and Distribution Boxes: Handle high currents and voltages for power.
• Telecom and Power Supplies: Support good connections in communication and energy systems.

Feed-thru terminal blocks save space and lower wiring mistakes. They make fixing things easier. Their modular design lets you add more connections as you need. If you have lots of wires in a small space, use multi-level or compact terminal blocks. These blocks work well in hard places because they are tough and hold wires tight.

Need a custom solution for your next project? Contact us! We are a manufacturer and can help you pick the right terminal block.

Feed-Through Terminal Block Structure

Input and Output Contacts

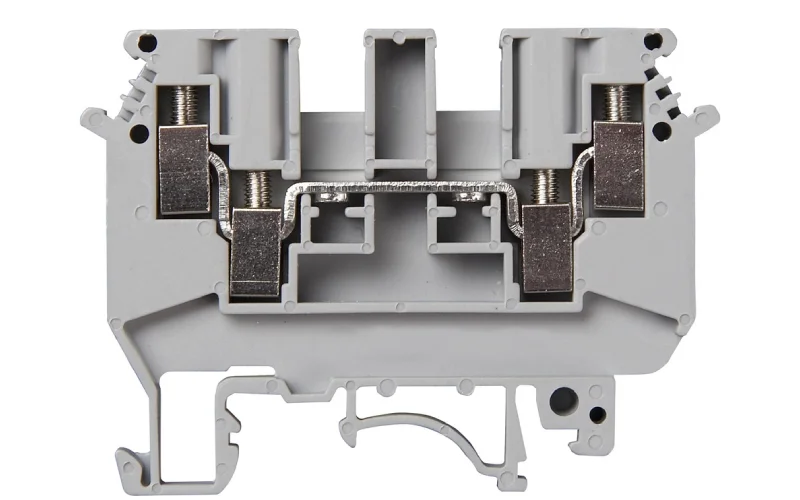

When you look at terminal blocks, you’ll see that each one has a simple but smart design. A single terminal block has one input and one output contact. You insert a wire into each side. Inside, a metal strip or terminal bar connects the wires. The insulated body keeps everything safe and prevents shocks. This setup gives you a reliable electrical connection every time. The copper alloy inside matches the wire’s expansion, so you don’t have to worry about loosening or corrosion. You can use these terminal blocks in many electrical projects, and they help keep your wiring neat and organized.

Clamp System

The clamp system is what holds your wires tight. Most terminal blocks use either screws or spring-loaded clamps. You just open the clamp with a screwdriver, put the wire in, and let go. The clamp grabs the wire and keeps it secure. This means you don’t need to treat the wire before connecting it, even if it’s stranded. The clamp system makes it easy to insert or remove wires for maintenance. You get a strong hold, so your electrical connections stay safe, even if things move or shake.

• The clamp system uses screws or spring clamps for a tight grip.
• You can insert wires quickly and remove them just as fast.
• The design works well for both solid and stranded wires.

DIN Rail Mounting

DIN rail mounting makes terminal blocks easy to install and expand. You snap each terminal block onto a metal rail inside your control panel. This saves space and keeps everything lined up. The modular design lets you add more terminal blocks as your project grows. You can choose from different sizes and colors to organize your wiring. DIN rail mounting also helps with safety, since the blocks stay in place and reduce the risk of loose connections. If you need to change something, you can swap out a terminal block without disturbing the others.

• DIN rails help you use space wisely in electrical panels.
• Modular terminal blocks make wiring and maintenance simple.
• You can customize your setup with color coding and clear labels.

Need help choosing the right terminal blocks for your project? We’re a manufacturer and can help you find the best solution. Contact us for custom options and expert advice!

Terminal Blocks Connection and Safety

Connection Process

Getting a reliable electrical connection with terminal blocks is easy if you follow the right steps. Here’s how you can do it:

1. Pick the right terminal block and wire for your voltage, current, and environment.
2. Cut your wire to the needed length and strip the insulation. For stranded wires, use ferrules for better grip.
3. Mount the terminal block on a DIN rail or another stable surface.
4. Insert the stripped wire into the terminal block’s clamp system.
5. Tighten the screw or release the spring clamp to secure the wire. Don’t overtighten.
6. Gently tug the wire to check if it’s held tight.
7. Make sure no bare wire sticks out to avoid shorts.

Tip: Always double-check your connections before powering up your electrical system.

Specifications

When you choose terminal blocks, you need to look at a few key specs. These help you match the right product to your project:

1. Voltage ratings range from 250V to 1200V. Pick one above your system’s voltage.
2. Current ratings go from 10A up to 200A. Choose a rating at least 150% of your max current.
3. Size matters. Make sure the terminal block fits your space.
4. Wire size compatibility covers 22AWG to 100AWG.
5. Protection levels like IP20 or IP67 keep out dust and water.
6. Materials like plastic or metal suit different environments.

Note: Always check terminal block specifications to avoid overheating or failure.

Installation Tips

You want your terminal blocks to last and work well. Here are some tips:

1. Work in a clean, well-lit area.
2. Mount terminal blocks firmly on the DIN rail. Use end clamps to stop movement.
3. Strip wires to the right length. Use ferrules for stranded wires.
4. Tighten screws just enough—don’t overtighten.
5. Use covers or cable glands to protect against dust and moisture.
6. Test connections with a multimeter before turning on power.
7. Label everything for easy maintenance.

Safety Guidelines

Safety comes first with terminal blocks. Follow these rules:

1. Pick terminal blocks rated for your voltage, current, and signal type.
2. Install them where you can reach them for checks and repairs.
3. Tighten all connections as the manufacturer says.
4. Strip and insert wires carefully to avoid damage.
5. Label each terminal block with voltage, current, and circuit info.
6. Follow the National Electrical Code (NEC) and IEC standards.
7. Look for CE marks and UL certifications for extra peace of mind.

If you need help picking or installing terminal blocks, contact us! We’re a manufacturer and can help you get a reliable electrical connection for your project.

You now know what a feed through terminal block does and why it is important. Picking the right one helps keep your wiring safe and tidy. Here are some things to remember: Pick the right block for your wire and how much current you need. Always check the safety ratings and look at color codes. Use good quality blocks so your connections last a long time and work well.

Need help or want something special? We make these blocks—ask us for advice!

FAQ

What is the main benefit of using a feed through terminal block?

You get a safe, strong connection for your wires. It keeps your wiring neat and helps you fix problems quickly. Need a custom solution? Contact us!

Can I use feed through terminal blocks for both solid and stranded wires?

Yes, you can use them for both types. The clamp system holds each wire tight. If you need special blocks, just ask us for help!

How do I know which terminal block size to choose?

Check your wire size and current needs. Pick a block that matches. If you feel unsure, reach out to us for expert advice and custom options.

Conclusion

Now you know how feed through terminal blocks work and why they matter. You can make your wiring safer and easier to manage. If you want the best fit for your project, let us help. We are a manufacturer and can provide custom solutions, expert advice, and reliable products.
