What is nema 4? It’s a type of nema enclosure built to keep out dust, rain, and even hose-directed water, making it a reliable choice for both indoor and outdoor settings. These enclosures offer protection against windblown dust, water splashes, and the formation of ice, which helps keep equipment safe and running smoothly.
Knowing what is nema 4 and how it works matters because choosing the right protection can save costly repairs and downtime. Linkwell stands out as a trusted source for certified outdoor enclosure solutions, helping industries stay protected in tough environments.
Nema 4 Key Takeaways
- NEMA 4 enclosures protect electrical equipment from dust, rain, and high-pressure water, making them ideal for indoor and outdoor use.
- These enclosures pass strict tests for water spray, dust ingress, and corrosion resistance to ensure reliable protection in tough environments.
- NEMA 4 differs from NEMA 12 and NEMA 4X by offering outdoor water protection and optional corrosion resistance, helping you choose the right enclosure for your needs.
- Using the wrong enclosure rating can cause equipment damage, safety risks, and costly repairs, so matching the rating to the environment is essential.
- Linkwell offers certified, durable NEMA 4 and NEMA 4X enclosures with customizable features, helping keep your equipment safe and your projects running smoothly.

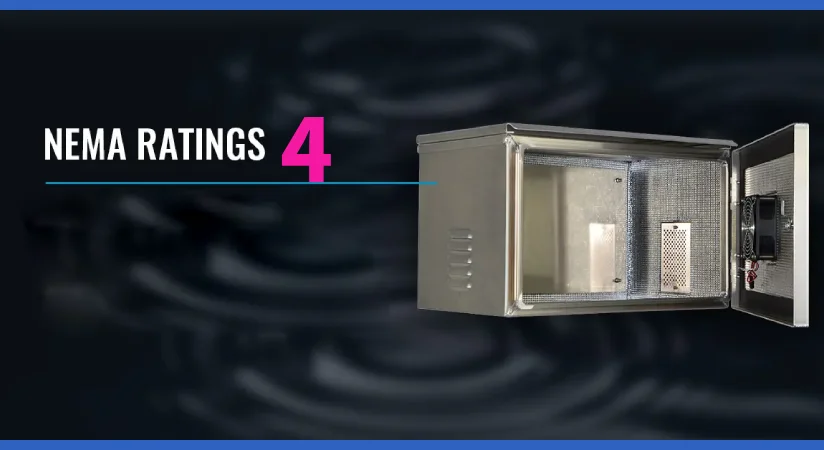

What Is NEMA 4
NEMA 4 Definition
When people ask, “what is nema 4,” they want to know how this enclosure keeps electrical equipment safe. According to the National Electrical Manufacturers Association (NEMA), a NEMA 4 enclosure must meet all the requirements of a NEMA 3 enclosure. This means it protects against dust, rain, sleet, and even the formation of ice on the outside. But NEMA 4 goes further. It must also withstand a high-pressure water spray test without letting any water get inside. This level of protection makes it a top choice for harsh outdoor environments or places where equipment faces frequent washdowns.
NEMA sets the official standard for these enclosures. The rating ensures that the enclosure can handle tough conditions, keeping out both solid objects and water. Unlike some other ratings, NEMA 4 focuses on keeping electrical equipment dry and dust-free, even when someone sprays it with a hose. This is why many industries trust NEMA 4 enclosures for both indoor and outdoor use.
Tip: Not all NEMA ratings mean more protection as the number goes up. Each rating is designed for specific situations. For example, NEMA 3 covers ice, but NEMA 4 does not always include that feature.
Key Protections
A big reason people choose NEMA 4 is the strong protection it offers. The enclosure must pass several tough tests before it earns this rating:
- Water Spray Test: The enclosure faces high-pressure water jets—65 gallons per minute from 10-12 feet away. No water can get inside.
- Dust Ingress Test: The enclosure sits in a dust-filled chamber. Sometimes, a vacuum is used to see if any dust sneaks in.
- Corrosion Resistance Test: The enclosure is exposed to salt spray or chemicals to check if it can resist rust and damage.
These tests make sure the enclosure stands up to real-world challenges. The NEMA 4 standard means the enclosure is both watertight and dust-tight. It also offers some resistance to corrosion, especially in the NEMA-4X version.

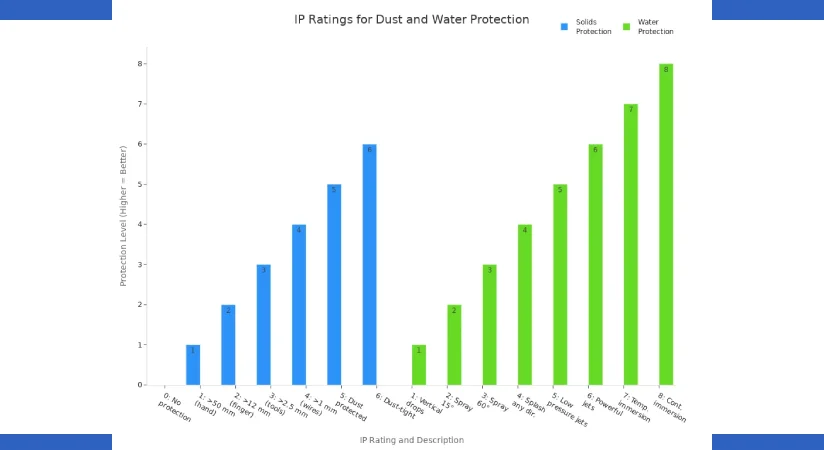

Here’s how NEMA 4 protection compares to other ratings using the IP (Ingress Protection) system:
| IP First Digit | Protection from Solids | IP Second Digit | Protection from Water |
|---|---|---|---|
| 0 | No protection | 0 | No protection |
| 1 | Objects >50 mm (e.g., hand) | 1 | Vertically falling drops |
| 2 | Objects >12 mm (e.g., finger) | 2 | Water spray up to 15° from vertical |
| 3 | Objects >2.5 mm (e.g., tools) | 3 | Water spray up to 60° from vertical |
| 4 | Objects >1 mm (e.g., wires) | 4 | Water splashing from any direction |
| 5 | Dust protected (limited ingress) | 5 | Low pressure water jets from any direction |
| 6 | Dust-tight (no ingress) | 6 | Powerful water jets from any direction |
| N/A | 7 | Temporary immersion (up to 1 m) | |
| N/A | 8 | Continuous immersion (specified depth) |

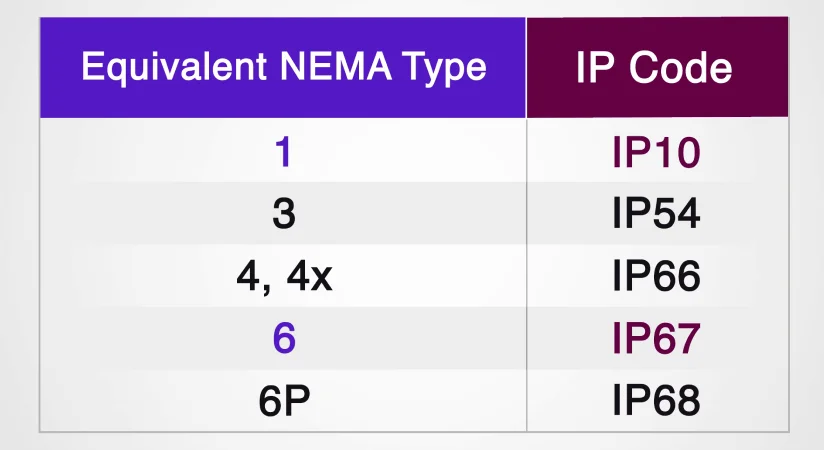

NEMA 4 is roughly equal to IP66, which means it is dust-tight and can handle powerful water jets. But NEMA 4 also includes extra requirements, like corrosion resistance, that IP ratings do not cover.
NEMA 4 enclosures are a smart choice for anyone who needs reliable protection for electrical equipment in tough environments. The standard ensures that the enclosure keeps out dust and water, making it a trusted solution for many industries.
NEMA Enclosure Ratings
NEMA 4 vs NEMA 12
Choosing between NEMA 4 and NEMA 12 can feel confusing. Both offer solid protection, but they serve different needs. NEMA 12 enclosures work best indoors. They keep out dust, dirt, and oil, but they cannot handle outdoor weather or strong water jets. NEMA 4 enclosures, on the other hand, protect equipment both indoors and outdoors. They stand up to rain, snow, and even hose-directed water.
Here’s a quick comparison:
| Feature | NEMA 12 | NEMA 4 |
|---|---|---|
| Use Environment | Indoor only | Indoor & outdoor |
| Dust Protection | Yes | Yes |
| Water Protection | Drips & splashes | Rain, snow, hose-directed water |
| Corrosion Resistance | No | Optional with NEMA-4X |
| Material | Steel, polycarbonate | Metal, fiberglass |
| Common Use Cases | Factories, control rooms | Outdoor panels, washdown areas |
NEMA 12 enclosures work well in factories or control rooms where oil and dust are common. NEMA 4 enclosures shine in outdoor panels or places that need regular cleaning with water.
NEMA 4 vs NEMA 4X
NEMA 4 and NEMA-4X share many features. Both keep out dust and water, making them great for harsh environments. The big difference is corrosion resistance. NEMA-4X enclosures use materials like stainless steel or polycarbonate. These materials resist rust and chemical damage. This makes NEMA-4X perfect for places near the ocean, in chemical plants, or anywhere with salty air or harsh cleaners.
| Feature | NEMA 4 Enclosure | NEMA-4X Enclosure |
|---|---|---|
| Protection | Water and dust | Water, dust, and corrosion |
| Materials | Fiberglass, aluminum | Stainless steel, polycarbonate |
| Typical Use | Outdoor, general industrial | Marine, food processing, chemical plants |
Linkwell Outdoor Enclosure comes in both NEMA 4 and NEMA-4X versions. This gives users options for regular outdoor use or for more demanding, corrosive environments.
Choosing the Right Rating
Picking the right nema enclosure ratings matters. The wrong rating can lead to equipment failure, costly repairs, or even safety hazards. For indoor spaces with dust and oil, NEMA 12 works well. For outdoor or wet locations, NEMA 4 is a better choice. If the environment has salt, chemicals, or high humidity, NEMA-4X offers the best protection.
Tip: Always match the enclosure rating to the environment. Linkwell Outdoor Enclosure offers customizable solutions with NEMA 4 and NEMA-4X ratings, making it easy to protect equipment in any setting.
Understanding nema enclosure ratings helps users avoid mistakes and keeps equipment safe and reliable.
Why It Matters
Applications
NEMA 4 enclosures show up in many places where tough environments threaten sensitive electrical equipment. These enclosures work well in manufacturing plants, where dust and dirt fill the air. Warehouses use them to shield lighting controls and automation systems. Food and beverage processing plants rely on them during routine washdowns. Dairies and vehicle wash stations need sealed enclosures to handle moisture and cleaning fluids. Paper mills, especially in pulp processing, use them for moisture protection. Coastal or humid outdoor locations benefit from their ability to resist corrosion from salt and moisture.
Other common applications include:
- Telecommunications and energy systems that need to stay online in all weather
- Traffic control boxes that protect signal equipment from rain and debris
- Municipal infrastructure, like water treatment plants, that face unpredictable weather
- IT and network hardware that must stay dry and dust-free
- Telemetry and sensor systems in industrial automation and remote monitoring
- Pharmaceutical manufacturing, where frequent washdowns are required
- Painting and finishing operations for OEM parts
- Petrochemical manufacturing in noncorrosive areas
- Sawmills and woodworking shops that need dust resistance
These examples show how NEMA 4 enclosures keep equipment safe in a wide range of challenging conditions.
Risks of Wrong Choice
Choosing the wrong enclosure rating can lead to serious problems. Water can get inside during rain, snow, or high-pressure cleaning, causing short circuits and equipment failure. Dust and debris may build up, leading to overheating or even fires. Extreme temperatures can make parts brittle or cause them to overheat. Chemicals in the air can eat away at the enclosure, making it weak and unsafe. Pests might find their way in, damaging wires and causing contamination.
Here are some common risks:
- Short circuits and equipment failure from water or dust
- Overheating due to blocked airflow or dust buildup
- Corrosion and material breakdown from chemicals or salt
- Physical damage from pests or unauthorized access
- Long-term problems like cracking, UV damage, and contamination
Financial and safety consequences can be severe. Damaged equipment means costly repairs and downtime. In some cases, workers may face electrical hazards. Companies might also spend more on maintenance, risk mitigation, and even liability if the wrong enclosure fails to protect as needed. Picking the right protection for the environment is not just smart—it is essential.
Note: Proper NEMA compliance helps prevent these failures. It ensures the enclosure matches the specific conditions of the application, keeping equipment safe and reliable.
Linkwell Outdoor Enclosure Benefits
Linkwell Outdoor Enclosures stand out for their quality and reliability. These enclosures carry UL, CE, and NEMA certifications, including NEMA 4 and NEMA 4X ratings. That means they meet strict standards for protection against water, dust, and impacts. Linkwell uses durable materials like stainless steel and aluminum, which resist corrosion and handle tough weather. Their enclosures come with features like pre-mounted fans, vents, DIN rails, and cable glands, making installation easier and more efficient.
Key benefits include:
- High-level protection for electrical equipment in harsh outdoor or industrial settings
- Customizable options for size, material, and accessories to fit any application
- Long-lasting durability, reducing maintenance needs and costs
- Fast global shipping and full technical support for smooth project delivery
Linkwell’s focus on quality and certification gives users peace of mind. Their enclosures help keep critical systems running, even in the most demanding conditions. By choosing a trusted brand like Linkwell, companies can avoid costly downtime and ensure their equipment stays protected year after year.
NEMA 4 enclosures offer strong protection for electrical equipment. They keep out water, dust, and even ice with gaskets and seals. These enclosures use corrosion-resistant materials and work well indoors or outdoors. Understanding the standard helps engineers and facility managers pick the right enclosure for each job. Choosing a trusted brand like Linkwell ensures certified protection. For unique needs, consulting experts or checking industry standards can help avoid costly mistakes.
FAQ
What does “NEMA 4” actually mean?
NEMA 4 means the enclosure keeps out dust and water, even from hose sprays. It protects equipment in tough indoor or outdoor spots. This rating shows the box can handle harsh weather and cleaning.
Can I use a NEMA 4 enclosure outside?
Yes! NEMA 4 enclosures work great outdoors. They block rain, snow, and windblown dust. Many industries use them for outdoor panels, telecom gear, and control boxes.
How is NEMA 4 different from NEMA 4X?
NEMA 4X gives extra protection against corrosion. It uses materials like stainless steel or polycarbonate. NEMA 4X works best in places with salt, chemicals, or lots of moisture.
Does Linkwell offer custom sizes or features?
Linkwell can customize enclosure size, material, and accessories. They add fans, vents, rails, and more. Customers get the right fit for their project.
