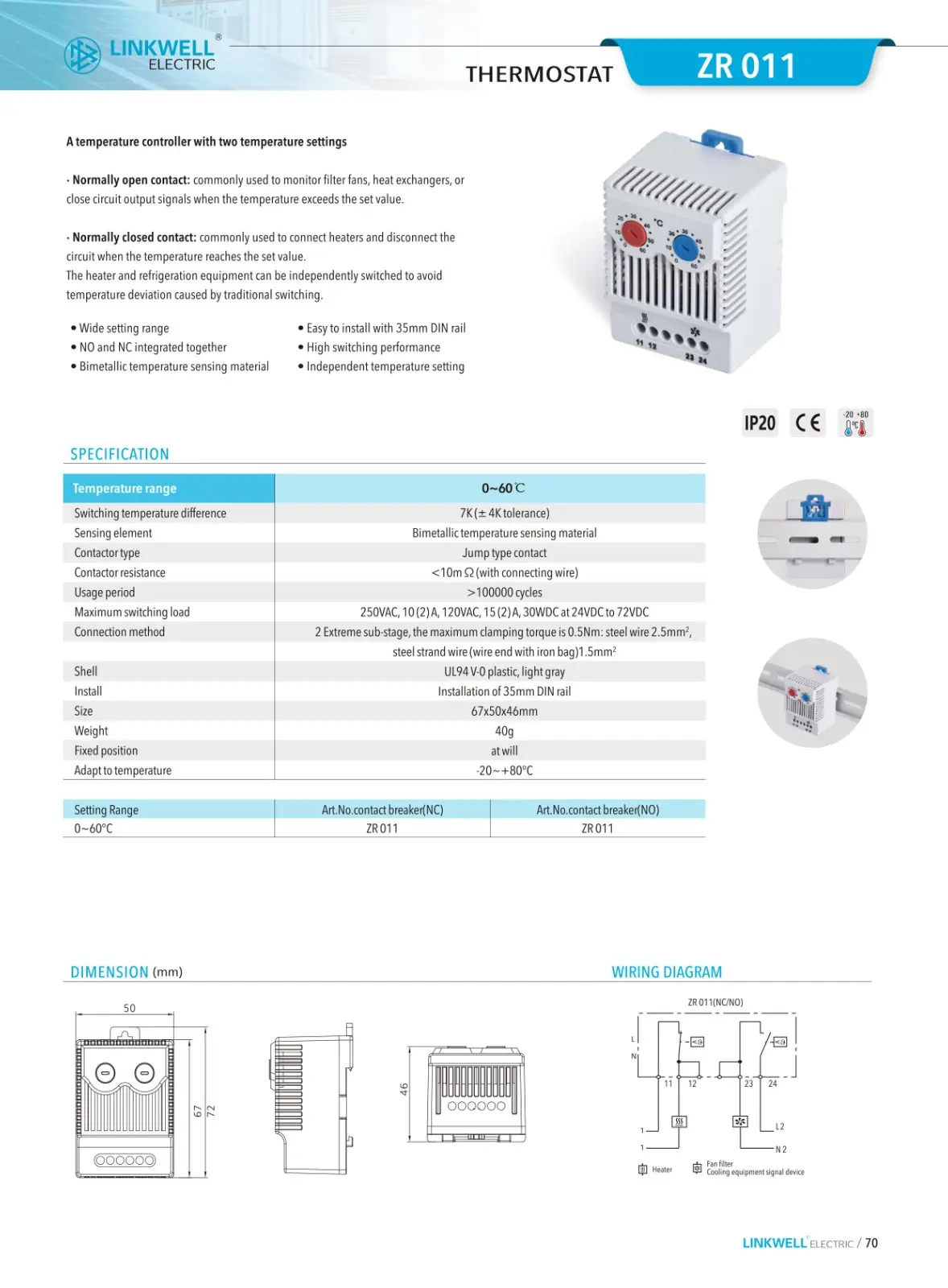

A temperature controller with two temperature settings
.Normally open contact: commonly used to monitor filter fans, heat exchangers, or
close circuit output signals when the temperature exceeds the set value.
.Normally closed contact: commonly used to connect heaters and disconnect the
circuit when the temperature reaches the set value.
The heater and refrigeration equipment can be independently switched to avoid
A temperature controller with two temperature settings
.Normally open contact: commonly used to monitor filter fans, heat exchangers, or
close circuit output signals when the temperature exceeds the set value.
.Normally closed contact: commonly used to connect heaters and disconnect the
circuit when the temperature reaches the set value.
The heater and refrigeration equipment can be independently switched to avoid
temperature deviation caused by traditional switching.
●Wide setting range
●Easy to install with 35mm DIN rail
●NO and NC integrated together
●High switching performance
●Bimetallic temperature sensing material
●Independent temperature setting
| Temperature range | 0~60℃ 7K(±4Ktolerance) |
|
| Switching temperature difference | ||
| Sensing element | Bimetallic temperature sensing material | |
| Contactor type | Jump type contact | |
| Contactor resistance | <10mΩ(with connecting wire) | |
| Usage period | >100000 cycles | |
| Maximum switching load | 250VAC,10(2)A,120VAC,15(2)A,30WDCat24VDCto 72VDC | |
| Connection method | 2 Extreme sub-stage,the maximum clamping torque is 0.5Nm:steel wire2.5mm2, | |
| steel strand wire (wire end with iron bag)1.5mm2 | ||
| Shell | UL94V-0 plastic, light gray | |
| Install | Installation of 35mm DIN rail | |
| Size | 67x50x46mm | |
| Weight | 40g | |
| Fixed position | at will | |
| Adapt to temperature | -20~+80℃ |
