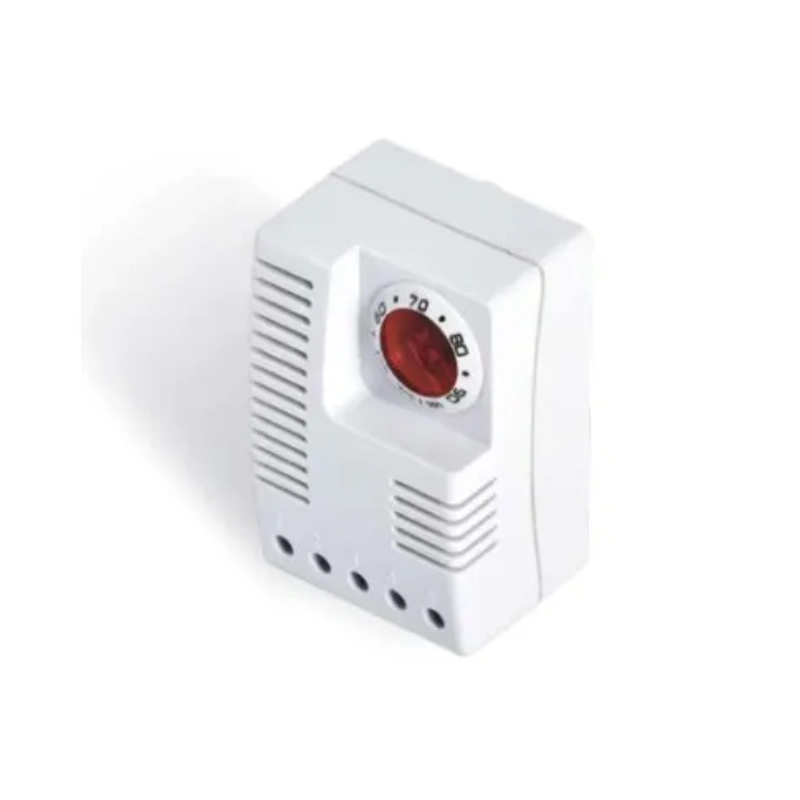

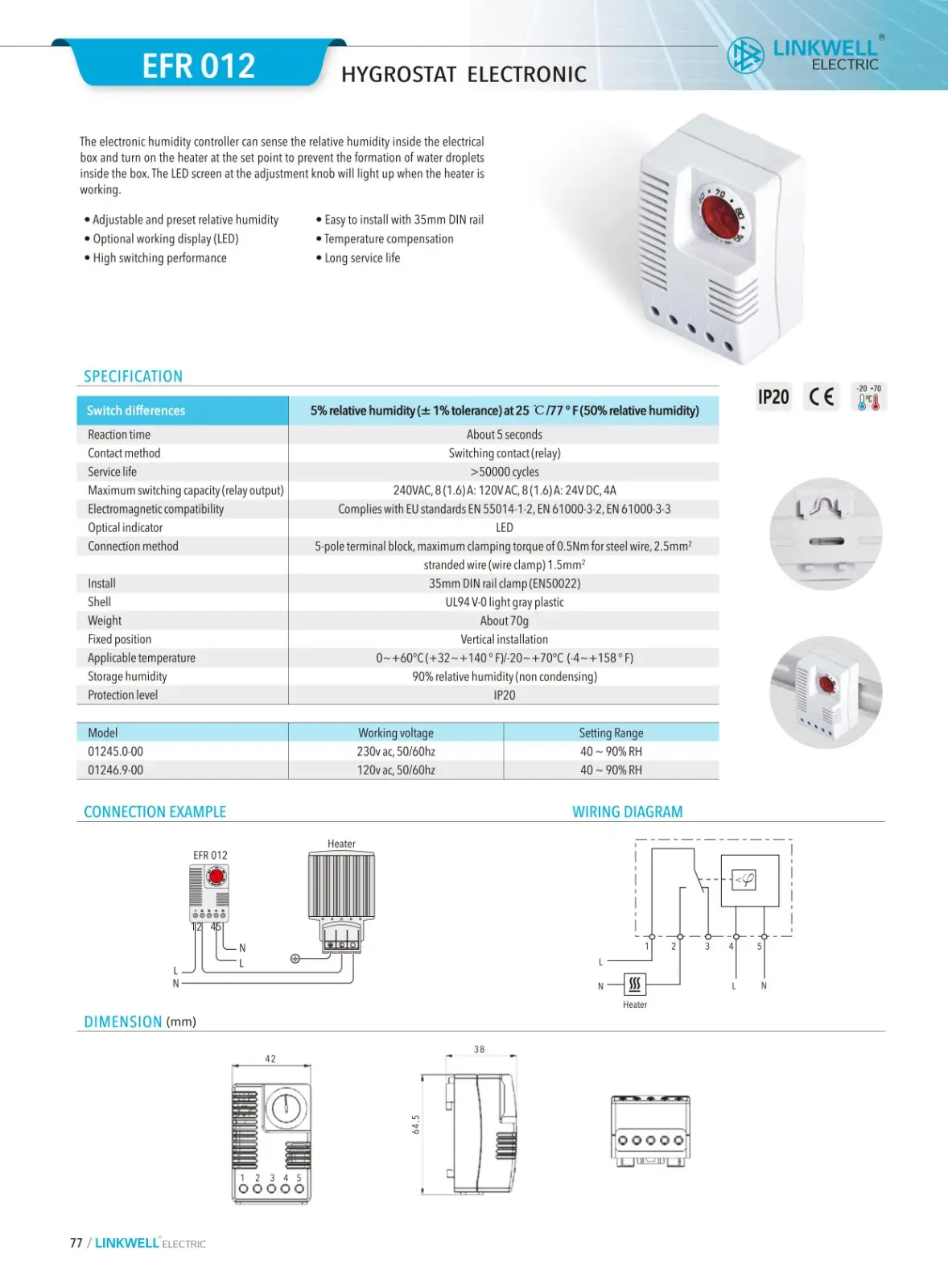

The electronic humidity controller can sense the relative humidity inside the electrical
box and turn on the heater at the set point to prevent the formation of water droplets
inside the box. The LED screen at the adjustment knob will light up when the heater is
working.
The electronic humidity controller can sense the relative humidity inside the electrical
box and turn on the heater at the set point to prevent the formation of water droplets
inside the box. The LED screen at the adjustment knob will light up when the heater is
working.
●Adjustable and preset relative humidity
●Easy to install with 35mm DIN rail
●Optional working display (LED)
●Temperature compensation
●High switching performance
● Long service life
| Switch differences | 5% relative humidity(±1%tolerance) at25C/77°F(50% relative humidity) | |
| Reaction time | About 5 seconds | |
| Contact method | Switching contact(relay) | |
| Service life | >50000 cycles | |
| Maximum switching capacity (relay output) | 240VAC,8(1.6)A:120VAC,8(1.6)A:24VDC,4A | |
| Electromagnetic compatibility | Complies with EU standards EN 55014-1-2,EN 61000-3-2,EN 61000-3-3 | |
| Optical indicator | LED | |
| Connection method | 5.pole terminal block,maximum clamping torque of 0.5Nm for steel wire,2.5mm2 | |
| stranded wire (wire clamp)1.5mm2 | ||
| Install | 35mm DIN rail clamp (EN50022) | |
| Shell | UL94V-Olight gray plastic | |
| Weight | About 70g | |
| Fixed position | Vertical installation | |
| Applicable temperature | 0~+60°℃(+32~+140°F)/-20~+70℃(-4~+158°F) | |
| Storage humidity | 90% relative humidity (non condensing) | |
| Protection level | IP2O | |
| Model | Working voltage | Setting Range |
| 01245.0-00 | 230vac,50/60hz | 40~90% RH |
