Electrical Panel Enclosure Design

Ready to nail your next Electrical Panel Enclosure Design? When you plan every step, you set yourself up for success. You boost safety, hit compliance targets, and keep your project running smoothly. Here’s how structured planning helps you:

• You get clear labels, proper grounding, and separation for emergency and normal power, all following OSHA and NEC rules.
• You avoid costly change orders and delays by right-sizing equipment and coordinating installation.
• You make maintenance easy by thinking about site access, safety zones, and solid security.

Stick with each step, and you’ll create an electrical enclosure design that’s reliable, safe, and efficient.

Electrical Panel Enclosure Design Key Takeaways

• Start your enclosure design by clearly defining its purpose and the environment it will face to choose the right materials and features.
• Match your enclosure to user needs and follow industry standards like NEMA, UL, CE, and IP to ensure safety and compliance.
• Plan the size and layout carefully, leaving extra space for wiring, airflow, and future upgrades to make maintenance easier.
• Use proper cooling and ventilation methods to control heat and protect your equipment from damage and failure.
• Work with trusted suppliers like Linkwell who offer certified, customizable enclosures and support to save time and ensure quality.

Electrical Panel Enclosure Design Basics

Define Purpose and Environment

You start every electrical panel enclosure design by asking, “What does this enclosure need to do?” The answer shapes every decision you make. Some enclosures protect sensitive electronics from dust and water. Others keep control panels safe from chemicals or extreme heat. You might need an enclosure for outdoor telecom gear, or maybe for a factory automation system.

Different industries face unique challenges. In oil and gas, you deal with chemical exposure and explosion risks. Food processing plants need enclosures that handle frequent washdowns and strict sanitation. Power generation sites often battle moisture, dust, and temperature swings. Linkwell has seen it all, serving clients in wind power, energy storage, and high-tech robotics. Their Outdoor Enclosure stands up to rain, salt air, and even UV radiation, making it a solid choice for harsh environments.

When you plan your electrical panel enclosure design, consider these environmental and electrical characteristics:

• Chemical exposure (think petrochemical or wastewater plants)
• Saltwater and moisture (marine or coastal sites)
• Extreme temperatures (hot or cold)
• Mechanical stress (vibration, impacts)
• Dust, oil, and grease (automotive, food, petroleum)
• UV radiation (outdoor installations)
• Physical impacts (heavy machinery areas)

You want materials that match the job. Stainless steel resists corrosion and physical damage. Fiberglass-reinforced polyester handles chemicals and UV rays. Sealing gaskets, strong hinges, and climate control systems help your enclosure survive tough conditions. Linkwell’s engineering team often recommends silicone gaskets for moisture and chemical resistance, and their cooling fans keep electronics from overheating.

Tip: Always list the environmental and electrical characteristics before you choose materials or design features. This step helps you avoid costly mistakes and ensures your enclosure lasts.

Identify User and Regulatory Needs

Once you know the environment, you need to think about who will use the electrical panel enclosure and what rules you must follow. Every sector has its own requirements. Telecom stations need secure, weatherproof cabinets. Chemical plants demand explosion-proof and corrosion-resistant designs. Food factories want easy-to-clean surfaces and tight seals.

You also need to plan for installation and maintenance. Will technicians need easy access for repairs? Is there space for future upgrades? Linkwell’s Outdoor Enclosure offers customizable sizes, mounting options, and pre-installed accessories like DIN rails and cable glands. This flexibility makes installation smoother and keeps downtime low.

Regulations matter just as much as user needs. You must meet standards like NEMA and IP ratings. These ratings tell you how well your enclosure protects against dust, water, and corrosion. Here’s a quick look at common NEMA ratings:

NEMA Rating	Description	Ideal Use
NEMA 1	Basic indoor protection against dust and light splashes	Indoor, low-risk areas
NEMA 3R	Rain, sleet, and snow resistance for outdoor use	Outdoor, exposed to weather
NEMA 4/4X	Waterproof; 4X adds corrosion resistance	Outdoor, wet, or washdown areas
NEMA 6/6P	Temporary or prolonged water submersion	Marine, heavy-duty sites

You also need certifications like UL, CE, or ATEX, depending on your location and industry. Linkwell’s electrical panel enclosure meet UL, CE, and NEMA standards, so you know you’re getting safe, reliable protection.

When you design a hybrid electrical panel enclosure design, you combine features for multiple environments or applications. For example, you might need both dust-tight and explosion-proof qualities. Linkwell’s engineering team can help you customize enclosures for these complex needs.

Here’s what users in the energy sector often ask for:

• Durable materials (stainless steel, aluminum, polycarbonate)
• Proper sizing and space for heat dissipation and upgrades
• Moisture-blocking gaskets and dust-tight construction
• UV and chemical-resistant coatings
• Ventilation, fans, or climate control units
• Compliance with NEMA/IP ratings and certifications
• Easy installation and maintenance access
• Custom ports, locks, cooling units, or sensors

Note: Always check the latest standards and certifications before you finalize your electronic enclosure design. This step keeps your project safe and compliant.

You set yourself up for success when you match enclosure features to your application’s needs. Linkwell’s experience across industries shows that careful planning leads to safer, more efficient systems. Whether you need a hybrid electrical enclosure design for a complex site or a simple box for indoor use, start with purpose, environment, and user requirements.

Material and Protection Selection

Linkwell Outdoor Enclosure Materials

Choosing the right material for your enclosure makes a huge difference in performance and durability. You want to balance strength, weight, cost, and protection. Let’s break down the most common options for outdoor electrical and control enclosures:

Feature	Aluminum Advantages	Stainless Steel Advantages	Aluminum Disadvantages	Stainless Steel Disadvantages
Weight	Lightweight, easy to install	Strong, durable	Softer, less impact resistant	Heavy, harder to handle
Corrosion Resistance	Great in moist or salty air	Excellent in harsh environments	Can corrode with other metals	May rust if scratched
Cost	More affordable	Long lifespan, lower long-term cost	N/A	Higher upfront cost
Thermal Conductivity	Excellent for heat dissipation	Lower, may need extra cooling	N/A	Poorer heat dissipation
Strength	Moderate, can dent	High, resists dents and wear	Prone to dents and scratches	Heavy, tough to move
Best Use Cases	Coastal, telecom, solar, moderate	Harsh, high-security, hygienic	N/A	N/A

You might also consider non-metallic enclosures like fiberglass or polycarbonate. These are lightweight and resist corrosion, making them perfect for wet or chemical-heavy sites. However, they don’t offer the same impact resistance or EMI shielding as metals. Metal enclosures, like those from Linkwell, provide better physical protection and shield sensitive electronics from electromagnetic interference. Non-metals work well when you need easy installation and don’t face heavy impacts.

Tip: For harsh industrial sites, stainless steel stands up to abuse and corrosion. For lighter, cost-sensitive jobs, aluminum or non-metals can save you time and money.

Protection Ratings (NEMA, IP)

Now, let’s talk about protection ratings. NEMA and IP ratings tell you how well an enclosure keeps out dust, water, and other hazards. NEMA ratings cover a wide range of threats, including corrosion, ice, and oils. IP ratings focus on dust and water ingress.

NEMA Rating	Protection Level	Typical Use Case
NEMA 1	Basic indoor protection	Control panels in dry areas
NEMA 3R	Rain, sleet, ice	Outdoor telecom and utility enclosures
NEMA 4	Hose-directed water, windblown dust	Washdown, outdoor environments
NEMA 4X	Same as 4, plus corrosion resistance	Coastal, chemical, food processing
NEMA 12	Oil, dust, dripping liquids	Industrial manufacturing

When you pick a rating, think about where you’ll use the electrical panel enclosure . Outdoor sites with rain or salt air need NEMA 4X or IP66. Dusty factories do well with NEMA 12 or IP54. Linkwell Outdoor electrical panel enclosure meet UL, CE, NEMA, and IP standards, so you know you’re covered for harsh conditions. Their electrical panel enclosure come with features like UV-resistant coatings, tight gaskets, and certified accessories to keep your equipment safe.

Note: Always match your electrical panel enclosure NEMA or IP ratings to your site’s real-world hazards. Linkwell’s certifications mean you get reliable protection, whether you’re in telecom, solar, or heavy industry.

Size and Layout Planning

Component Arrangement

You want your enclosure to work smoothly and stay safe. Start by listing every component you need inside. Measure each part and add extra space for clearances. This helps you avoid crowding and keeps everything easy to reach. Group similar devices together, like circuit breakers or relays, so you can find them fast during maintenance. Secure each device with proper mounting. This keeps them stable and makes repairs easier.

Organize wiring to prevent tangles and hazards. Use wire ducts to guide cables along neat paths. Separate power and data lines to cut down on interference. Label everything clearly. This makes troubleshooting simple and reduces mistakes. Good arrangement also helps with heat management. Place heat-generating parts, like power supplies, away from sensitive electronics. Add fans or vents if needed. Linkwell’s Outdoor Enclosure comes with pre-mounted accessories, so you can set up your layout quickly and safely.

Tip: Modular designs and ergonomic layouts make maintenance faster and safer. You spend less time searching for parts and more time getting the job done.

Space for Wiring and Expansion

Think ahead when planning space for wiring and future upgrades. Reserve at least 20-30% extra room inside your enclosure. This lets you add new devices or cables later without a full redesign. Group terminal blocks and label them for easy changes. Use vertical and horizontal wire ducts to keep wiring organized and easy to trace.

Plan for heat management by spacing out components. Leave room for airflow or add cooling accessories. Swing-out racks and hinged doors give you quick access to key parts. Linkwell’s customizable Outdoor Enclosure lets you pick the size, mounting options, and accessories that fit your needs. You can even use CAD tools like AutoCAD Electrical to design your layout. These tools help you visualize the setup, check clearances, and make changes before you build. They also speed up the process and help you avoid costly mistakes.

If you’re working on a hybrid electrical enclosure design, you need to balance space for different types of equipment and future upgrades. CAD software makes it easy to test layouts and ensure everything fits. You get a reliable, flexible enclosure that grows with your project.

Note: Always leave spare power capacity and space for new components. This keeps your system ready for whatever comes next.

Standards and Compliance

Safety and Certification

When you design an electrical panel enclosure, you need to follow strict standards. These rules keep your equipment safe and help you meet legal requirements. The most important standards are NEMA, UL, CE, and IP. Each one covers different parts of enclosure design.

• NEMA (National Electrical Manufacturers Association) sets the standard for enclosures in North America. NEMA 250 covers protection against dust, water, and corrosion. It also looks at things like gasket aging and environmental stress.
• UL (Underwriters Laboratories) gives you third-party certification. UL 50 and UL 50E check your enclosure for bonding, grounding, and overall safety. UL certification means your enclosure passed design review, testing, and factory inspection.
• IP (Ingress Protection) ratings come from IEC 60529. These ratings use two numbers to show how well your enclosure keeps out solids and liquids. For example, IP66 means your enclosure is dust-tight and can handle strong water jets.
• CE marking shows your enclosure meets European Union rules. It is not a test but proves you follow EU safety laws.

You can see how these standards shape the way you build and test enclosures:

Standard/Certification	What It Covers
NEMA	Dust, water, corrosion, gasket aging, environment
UL	Design review, safety, factory inspection
IP Ratings	Protection against solids and liquids
CE	Compliance with EU safety directives

NEMA and IP ratings help you pick the right enclosure for your site. UL and CE make sure your enclosure is safe and legal. When you combine NEMA and IP, you get global coverage and lower risk.

Note: Always check which standards apply to your project. Following them keeps your equipment safe and helps you avoid costly mistakes.

Linkwell Quality Assurance

You want an enclosure that meets every standard. Linkwell makes this easy. The company’s enclosures carry UL, CE, and NEMA certifications. They also meet IEC 60529 for IP ratings. Linkwell tests its products in independent labs to make sure they pass every requirement.

Linkwell uses a strict quality process. The team checks raw materials, controls production, and tests every product before shipping. This process ensures your enclosure meets all safety and performance standards. Linkwell also holds ISO 9001 certification, showing a strong focus on quality management.

Many top brands trust Linkwell because of this commitment. The company’s enclosures match the certifications of leading manufacturers. You get reliable protection, fast delivery, and full support for your project.

Tip: Choose a supplier like Linkwell that puts safety and compliance first. You save time, avoid delays, and get peace of mind knowing your enclosure meets every standard.

High-Power Electrical Panel Enclosure: Thermal Management

When you work with high-power electrical enclosures, heat becomes a big challenge. If you ignore temperature and humidity control, your equipment can overheat, break down, or even fail early. Every 10°C rise inside the cabinet can double the failure rate of your electronics. That means you need a solid plan for cooling and ventilation.

Cooling and Ventilation Options

You have several ways to keep your enclosure cool and safe:

Active Cooling Systems
Use air conditioners, thermoelectric coolers, or heat exchangers for powerful cooling. Air conditioners work best for high heat loads and hot climates. Thermoelectric coolers are compact and energy-efficient, great for medium heat. Heat exchangers transfer heat without letting outside air in, which keeps dust and moisture out.

Fan and Filter Units
Fans move air through the enclosure, while filters block dust and debris. This setup works well for moderate heat and clean environments. Make sure you clean or replace filters every few months to keep airflow strong.

Hybrid Climate Systems
Some enclosures use a mix of sealed and ventilated cooling. These systems adjust airflow and recirculation to balance temperature and humidity control, saving energy and extending equipment life.

Heaters
In cold areas, heaters stop condensation and freezing. They keep the inside temperature stable, which protects sensitive electronics.

Push Button

Push button layout is based on functionality, with wiring and ergonomics determined from the outset. Safety and ease of use are considered from the outset.

Tip: Always match your cooling method to your site’s climate-control factors, heat load, and enclosure size. Good planning prevents costly failures and keeps your system running longer.

Linkwell Thermal Solutions

Linkwell offers a full range of thermal management solutions for outdoor and industrial enclosures. Here’s a quick look at what you can use:

Solution	Key Features & Benefits	Best Use Cases
Cabinet Air Conditioner	Closed-loop cooling, digital controls, UL/CE/NEMA certified, IP54/IP65 rated	High-power, outdoor, harsh environments
Enclosure Heater	Self-regulating, corrosion-resistant, smart temperature control	Cold climates, condensation prevention
Heat Exchanger	Energy efficient, keeps enclosure sealed, low maintenance	Moderate climates, manufacturing, energy
Filter Fan	Cost-effective, easy to install, high airflow, weatherproof options	Low-dust outdoor, telecom, control cabinets
Thermoelectric Cooler	Compact, solid-state, no moving parts, quiet	Sensitive electronics, telecom, medical devices

Linkwell’s fans, filters, and air conditioners help you manage temperature and humidity control inside your enclosure. Fans boost airflow and remove heat. Air conditioners lower the temperature and control moisture, which is key for high-power electrical enclosures. Heaters and heat exchangers add extra protection in tough climates. All these products come with high IP ratings and certifications, so you know they’re built for real-world industrial use.

Regular maintenance, like cleaning filters and checking fans, keeps your cooling system working at its best. With Linkwell’s solutions, you get reliable temperature and humidity control, longer equipment life, and fewer headaches.

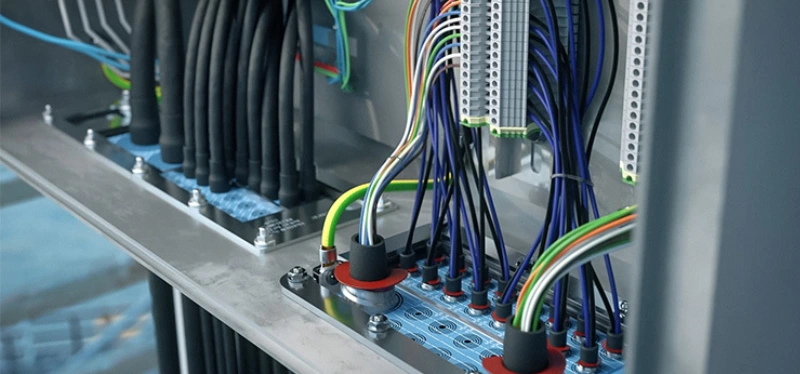

Electrical Panel Enclosure Manufacturing and Assembly Tips

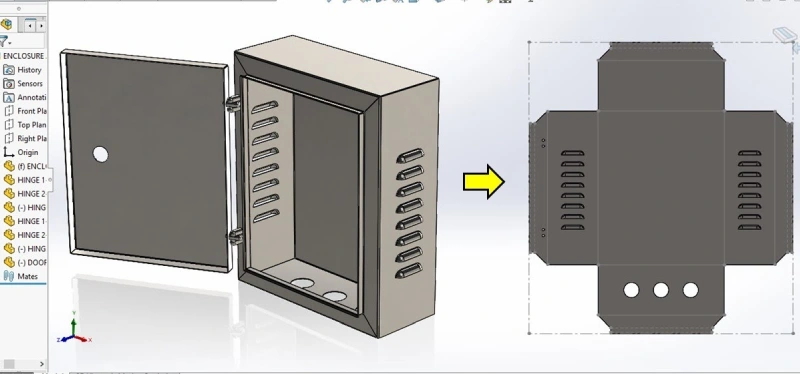

Design for Manufacturing

You want your enclosure project to move from design to installation without headaches. Start by thinking about manufacturing from the very beginning. Choose the right material—aluminum, steel, or plastic—based on your environment and budget. Metal enclosures give you strength and shielding, while plastics offer lightweight and nonconductive options. Always check if your material can handle the site’s stress and temperature.

Here are some smart ways to design for efficient manufacturing:

• Pick the right metal thickness for durability and easy fabrication.
• Plan custom cutouts for connectors, displays, and switches so everything fits perfectly.
• Specify bending radii that work with manufacturing tools and keep surfaces flat for mounting.
• Choose fastening methods like self-clinching fasteners or spot welding for quick, strong assembly.
• Use finishing techniques such as powder coating or anodizing to boost durability and appearance.

You can also save time and money by simplifying your design. Use standard parts where possible and minimize the number of unique components. Early prototyping with 3D printing helps you catch issues before full production. Automated CNC machining and modular designs make assembly faster and reduce errors.

Tip: Collaborate with your supplier early. Linkwell’s ready-to-install Outdoor Enclosure solutions come with custom cutouts, pre-mounted accessories, and modular options. This means less rework and faster delivery for your outdoor electrical and control enclosures.

Maintenance and Upgrades

Easy maintenance starts with smart design. Leave about 20% extra space inside your enclosure for cooling and future upgrades. Modular layouts and flexible wiring make it simple to swap out parts or add new devices. Neatly organized cables and clear labels help you troubleshoot quickly.

Maintenance Tip	Benefit
Extra internal space	Room for upgrades and airflow
Modular components	Fast repairs and easy expansion
Clear labeling and cable trays	Quicker troubleshooting
Corrosion-resistant hardware	Longer life in harsh environments
Removable panels and doors	Easy access for servicing

Plan for airflow with fans or vents to keep equipment cool. Use corrosion-resistant hinges and gaskets to protect against weather and chemicals. Always design for accessibility—make sure you can reach every component without hassle. Linkwell’s enclosures offer these features, plus technical support and CAD drawings to help you plan for the future.

Note: Avoid undersized enclosures and messy wiring. Good planning now saves you time and money on every upgrade down the road.

You can design a safe, reliable electrical enclosure by following these key steps:

1. Define your enclosure’s purpose and user needs.
2. Select materials for durability and safety.
3. Meet industry standards like IP, UL, and CE.
4. Plan for ventilation and heat control.
5. Ensure proper insulation and grounding.
6. Test for environmental protection.

Why Choose Linkwell?	What You Get
Quality	Top certifications, low defect rate, global trust
Customization	Tailored solutions for your exact needs
Support	20+ years’ experience and full project support

When you work with experts and trusted brands, you get the right enclosure, better safety, and long-term reliability.

FAQ

What is the best way to choose the right enclosure size?

Start by listing all your components. Measure each one. Add space for wiring and airflow. Leave extra room for future upgrades. Using CAD tools helps you see if everything fits before you order.

How do I know which protection rating I need?

Think about your environment. If you face rain or dust, go for NEMA 4X or IP66. For indoor use, NEMA 1 or 12 works. Always match the rating to your site’s real risks.

Can I customize my Linkwell Outdoor Electrical Panel Enclosure?

Yes! You can pick the size, material, and accessories. Linkwell offers custom cutouts, finishes, and pre-installed parts. Just tell the team what you need, and they’ll help you design the perfect fit.

How do I keep my enclosure cool in hot weather?

Use fans, vents, or air conditioners. Linkwell has filter fans and cabinet air conditioners for different heat loads. Clean filters often. Good airflow keeps your equipment safe and running longer.

What certifications do Linkwell enclosures have?

Linkwell enclosures carry UL, CE, and NEMA certifications. They also meet IP ratings for dust and water protection. You get reliable, tested products that meet global safety standards.
