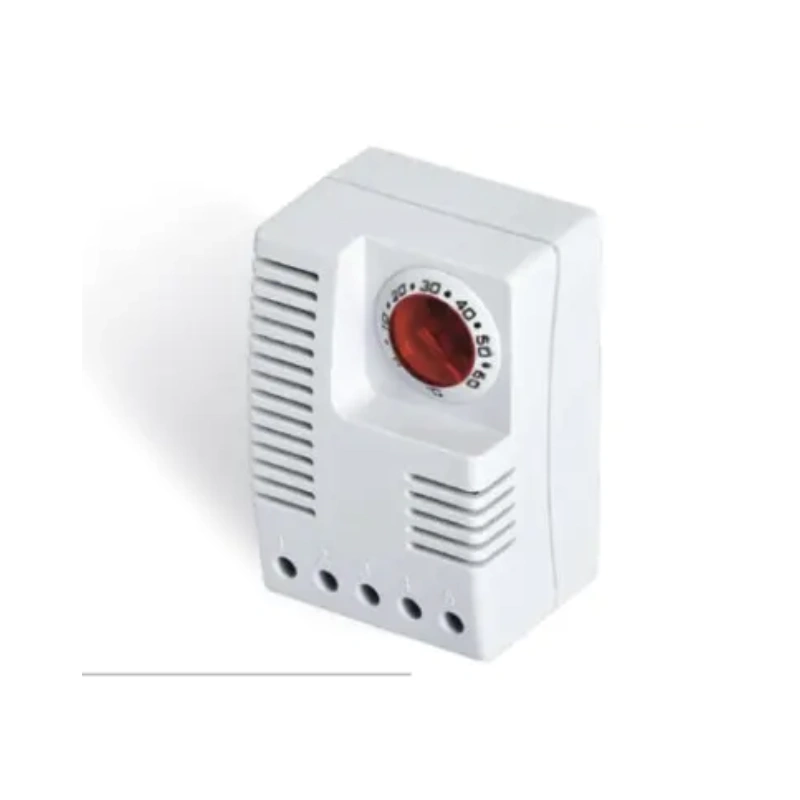

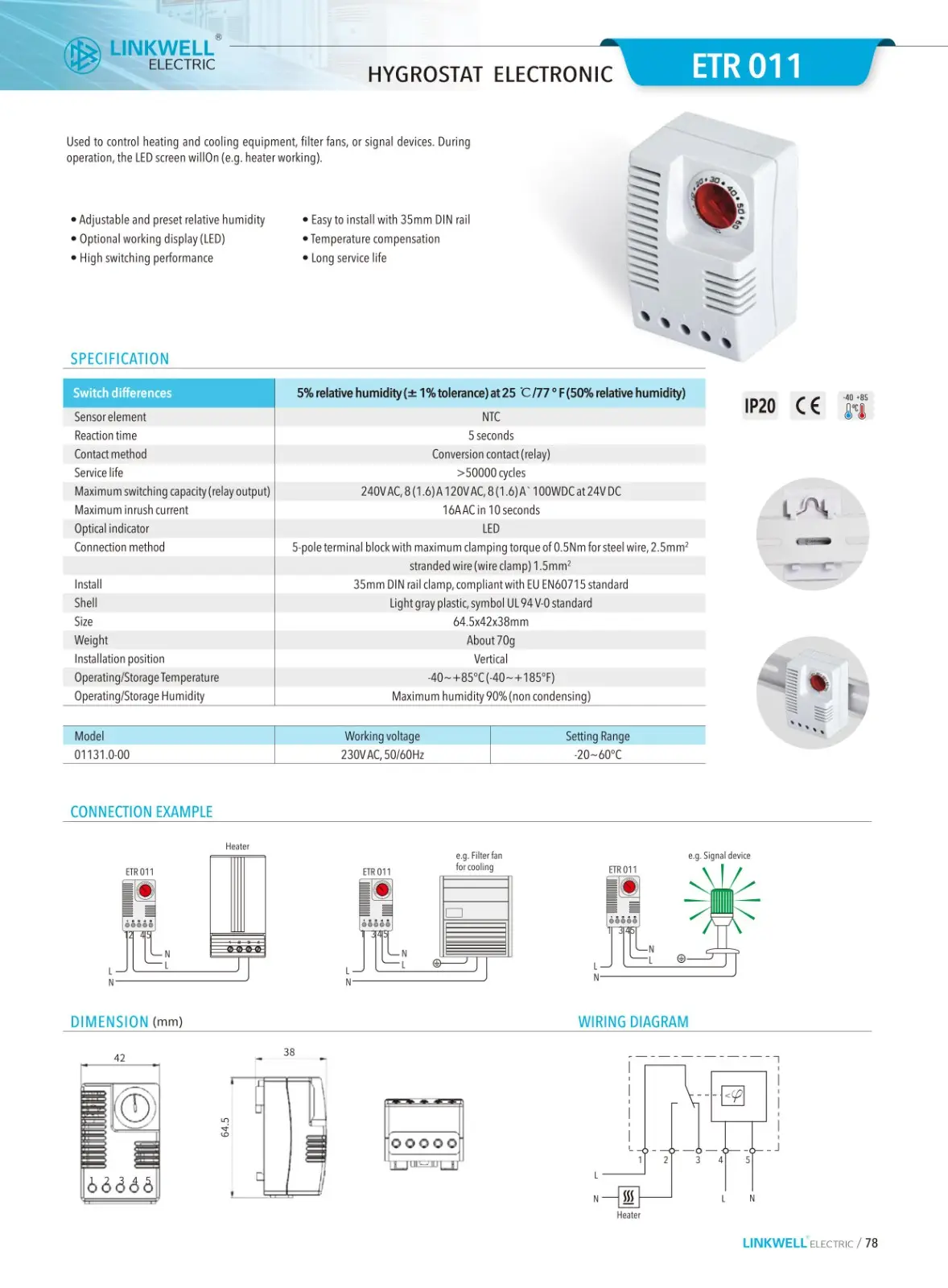

Used to control heating and cooling equipment, filter fans, or signal devices. During
operation,the LED screen willOn (e.g. heater working).
Used to control heating and cooling equipment, filter fans, or signal devices. During
operation,the LED screen willOn (e.g. heater working).
●Adjustable and preset relative humidity
●Easy to install with 35mm DIN rail
●Optional working display (LED)
●Temperature compensation
●High switching performance
●Long service life
| Switch differences | 5% relative humidity(± 1% tolerance) at 25 ‘C/77°F (50% relative humidity) | |
| Sensor element | NTC | |
| Reaction time | 5 seconds | |
| Contact method | Conversion contact (relay) | |
| Service life | >50000 cycles | |
| Maximum switching capacity (relay output) | 240VAC,8(1.6)A120VAC,8(1.6)A^100WDCat24VDC | |
| Maximum inrush current | 16AACin 10 seconds | |
| Optical indicator | LED | |
| Connection method | 5-pole terminal block with maximum clamping torque of 0.5Nm for steel wire,2.5mm2 | |
| stranded wire (wire clamp)1.5mm2 | ||
| Install | 35mm DIN rail clamp,compliant with EU EN60715 standard | |
| Shell | Light gray plastic, symbol UL 94V-O standard | |
| Size | 64.5x42x38mm | |
| Weight | About 70g | |
| Installation position | Vertical | |
| Operating/Storage Temperature | -40~+85C(-40~+185°F) | |
| Operating/Storage Humidity | Maximum humidity 90%(non condensing) | |
| IP2O CE | ||
| Model | Working voltage | Setting Range |
| 01131.0-00 | 230VAC,50/60Hz | -20~60°C |
