You know how important it is to keep your control cabinets running at the right temperature and free from dust. When heat rises above 95°F or humidity climbs past 60%, sensitive electronics can fail or wear out fast. Check out these typical standards:
| Standard Type | Value |
|---|---|
| Maximum Temperature | 95 °F |
| Relative Humidity | Below 60% |
A filtered exhaust fan helps you keep things cool and clean. It pulls out hot air, traps dust with its filter, and gives your equipment the protection it needs. Linkwell offers fans designed for reliable cooling and long-term performance in every industrial setting.
Key Takeaways
- Filtered exhaust fans keep control cabinets cool by removing hot air and allowing cooler air in. This helps prevent overheating and extends the lifespan of sensitive electronics.
- Dust and moisture can damage electrical components. Filtered exhaust fans trap up to 95% of particles, protecting your equipment from short circuits and corrosion.
- Choosing the right fan involves assessing cabinet size and heat load. Larger cabinets need fans that can move more air to maintain safe temperatures.
- Regular maintenance is crucial. Clean or replace filters every few months to ensure optimal airflow and cooling efficiency.
- Linkwell offers reliable, customizable solutions for filtered exhaust fans, ensuring your electrical enclosures stay safe and efficient in any environment.
Why Filtered Exhaust Fans Matter
Preventing Overheating with Cooling Solutions
You know how quickly things can heat up inside an enclosure. When you pack electrical components into a small space, the temperature rises fast. This heat can damage sensitive parts and shorten their lifespan.
Heat is the primary destructive factor for electronic components, leading to premature failures and reduced lifespan. The Arrhenius equation indicates that for every 10 °C increase in temperature above nominal levels, the lifespan of components is halved. Poor thermal management can create a ‘heat ceiling’ that adversely affects sensitive components.
A filtered exhaust fan gives you a simple way to keep things cool. The fan pulls hot air out, while the filter blocks particles from getting inside. This cooling method helps you avoid costly breakdowns and keeps your electrical systems running smoothly. Linkwell’s fans use advanced technology to deliver steady cooling for all kinds of applications, from industrial control panels to telecom boxes.
Protecting Components from Dust and Moisture
Dust and moisture are silent threats inside electrical enclosures. If you let dust build up, it can cause short circuits or block airflow. Moisture can lead to corrosion and electrical faults.
Inadequate cooling leads to slow degradation of components, causing insulation damage, capacitor drying, and altered semiconductor parameters, ultimately resulting in system faults and failures.
A filter fan gives you double protection. The filter traps dust and moisture before they reach your equipment. Linkwell’s filter fans use high-efficiency filters that remove up to 95% of particles as small as 0.3μm. This level of protection keeps your electrical components safe, even in tough industrial environments.
Ensuring Reliable Airflow in Electrical Enclosures
Reliable airflow is key for any electrical application. Without it, heat and contaminants can build up fast.
- Filtered exhaust fans effectively remove particulates and contaminants, reducing risks of heat and contamination in control cabinets.
- Unfiltered fans allow contaminants to accumulate, increasing the risk of overheating and damage.
- A minimum particulate removal efficiency of 95% at 0.3μm is recommended for adequate protection.
Linkwell designs fans for maximum airflow and easy installation. You get a solution that fits your enclosure and keeps your equipment cool and clean. With Linkwell, you can trust that your electrical enclosures will stay protected and efficient, no matter the application.
Filtered Exhaust Fan Benefits for Control Cabinets
Enhanced Cooling Performance
You want your control cabinet to stay cool, no matter how tough the environment gets. That’s where a filtered exhaust fan makes a difference. When you install a fan, you boost cooling by pulling hot air out and bringing cooler air in. This keeps your electrical components safe from heat damage.
Here’s what you get with Linkwell’s cooling solutions:
- Airflow measurements like CFM help you match the fan to your enclosure’s heat load.
- Fans regulate temperature by expelling heated air and replacing it with cooler air.
- The fan performance curve shows how airflow changes with static pressure, so you can pick the right fan for your application.
- Forced-air convection cooling absorbs excess heat and keeps your electrical enclosures at safe temperatures.
Filtered exhaust fans can lower internal cabinet temperatures close to the ambient air. If your workspace stays cooler than your cabinet, you’ll see a big drop in temperature inside. This simple setup helps you avoid overheating and keeps your equipment running longer.
Improved Airflow and Filtration
Clean airflow is just as important as cooling. You don’t want dust or debris sneaking into your enclosure. A filter fan gives you both: strong airflow and high filtration efficiency. The filter blocks dust and moisture, protecting your electrical systems from short circuits and corrosion.
Check out the filtration ratings for fan filter units:
| Filter Type | Efficiency Rating | Particle Size |
|---|---|---|
| HEPA | 99.99% | 0.3 microns |
| ULPA | 99.9995% | 0.12 microns |
| EEF HEPA | 99.999999+% DoP | Not specified |
With Linkwell, you get filter fans that use high-performance filters. These filters trap up to 99.97% of particles as small as 0.3 microns. That means your electrical enclosures stay clean, even in dusty industrial applications. You spend less time worrying about maintenance and more time focusing on your work.
Tip: A four-layer filtration system blocks dust and debris, keeping cooling efficiency high and preventing a 30% drop due to dust buildup.
Linkwell Product Advantages
When you choose Linkwell, you’re working with a global leader in filtered exhaust fan manufacturing. We offer both stock and custom solutions, so you get exactly what you need for your application. Our products stand out for reliability, flexibility, and support.
Here’s what sets Linkwell apart:
| Feature | Description |
|---|---|
| High-performance filtration | Uses HEPA or ULPA filters for up to 99.97% removal of 0.3-micron particles. |
| Energy efficiency | Smart design saves energy—one biotech lab saved 28,000 kWh in a year. |
| Easy installation | Clear instructions and all hardware included for quick setup. |
| Robust reliability | International certifications like CE and ROHS for safety and quality. |
- The LK66 series uses eco-friendly ABS plastic for durability and minimal environmental impact.
- Waterproof sealing rings keep water out, extending service life and protection.
- Our fans block dust and moisture, preventing rust and short circuits.
- Closed-loop cooling systems in outdoor cabinets have cut equipment failure rates by up to 30%.
You get more than just a fan. You get a partner who supports you with fast delivery, technical help, and custom options for any application. Linkwell’s filtered exhaust fans help you extend equipment life and reduce maintenance costs. Every 18°F increase in temperature can halve equipment lifespan, so keeping things cool protects your investment.
If you want reliable cooling, clean airflow, and strong protection for your electrical enclosures, Linkwell has you covered. Our fans work in all kinds of applications, from industrial control panels to telecom boxes. You get peace of mind knowing your equipment is safe, efficient, and built to last.

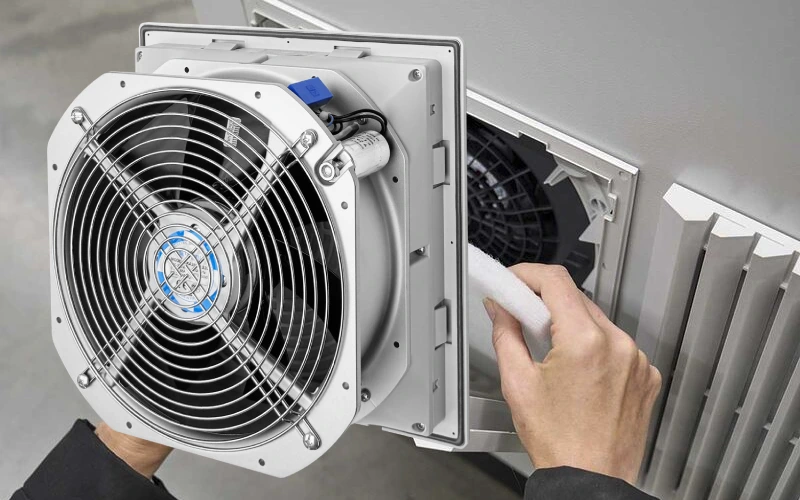

Selecting the Right Filter Fan
Choosing the right filtered exhaust fan for your control cabinet can feel overwhelming. You want to make sure your electrical enclosures stay cool, clean, and protected. Let’s break down the process so you can pick the best fan for your application.
Assessing Cabinet Size and Heat Load
Start by looking at your cabinet’s size and the amount of heat your equipment produces. Bigger cabinets need fans that move more air. If you have a lot of electrical components, you’ll need extra cooling to keep everything safe.
Here’s a quick table to help you figure out what matters most:
| Factor | Description |
|---|---|
| Heat Generated by Internal Equipment | Every electrical part gives off heat. Check the specs for wattage or BTU/hr. |
| Solar Heat Gain | Cabinets outside in the sun get hotter, especially if they’re dark-colored. |
| Ambient Temperature | Hot climates mean you need more cooling. |
| Cabinet Size and Insulation | Large or poorly insulated cabinets need higher cooling capacity. |
| Airflow and Ventilation | Passive vents help, but sealed cabinets need active cooling like fans or air conditioners. |
You should also think about airflow requirements. If your cabinet is large, you need a fan that can handle the extra space. Calculate the heat load so you know how much cooling you need. The difference between inside and outside temperatures helps you decide on fan size and capacity.
- Larger cabinets need fans that move more air.
- Calculate heat load to find the right airflow for safe temperatures.
- Check the temperature difference between inside and outside the enclosure.
Choosing Airflow and Filter Options
Now, let’s talk about airflow and filter choices. You want a fan that keeps air moving and a filter that blocks dust and other particles. The right filter fan keeps your electrical systems clean and running smoothly.
Here are some filter types you can choose from:
- HEPA filters remove up to 99.97% of tiny particles, perfect for high-purity environments.
- Electrostatic filters are reusable and catch fine particles, which helps reduce waste.
- Fiberglass filters are basic and cheap, good for bigger particles but not for small contaminants.
- Pleated filters have more surface area, trapping more dust and coming in different MERV ratings.
- UV filters use ultraviolet light to kill germs, often paired with other filters for better air quality.
- Panel filters are flat and simple, catching larger particles and helping advanced filters last longer.
Think about your application. If you work in a dusty factory, you need a filter with strong protection capabilities. For clean rooms or sensitive electronics, go with HEPA or pleated filters. Always match your airflow needs to your cabinet size and heat load.
Tip: Check your filter every few months. A clogged filter can lower cooling efficiency and let dust build up inside your enclosure.

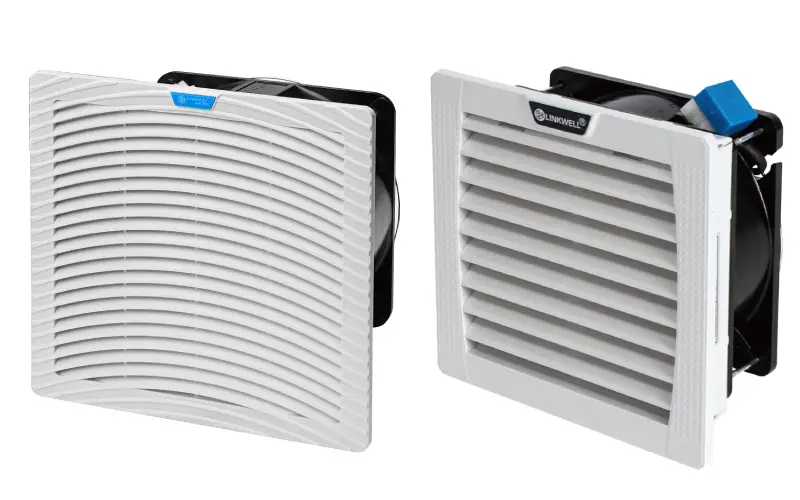

Linkwell Fan Filter Unit Features
Linkwell makes it easy to find the perfect fan for your electrical enclosures. Our fan filter units come with lots of customization options, so you get exactly what you need for your applications.
Here’s a table showing some of the choices you have:
| Series | Customization Options |
|---|---|
| LK32 Series | Pick from red, blue, orange, black, or white colors. |
| LK66 Series | EMC-compliant models for areas sensitive to electromagnetic interference. |
| IV | Tailored sizes, colors, and functions available. |
You also get features that make installation simple and flexible:
| Feature | Description |
|---|---|
| Modular Design | Fits many cabinet designs and adapts easily. |
| Adjustable Mounting Options | Works with different cabinet sizes and layouts. |
| Universal Mounting Holes | Fits various fan sizes for easy compatibility. |
Many Linkwell fans, like the FU and FK series, include brackets with universal mounting holes. You can pick the fan model or mounting dimensions that match your enclosure. Our fans work with thermostats and hygrostats, so you can set up smart cooling that adapts to your needs.
Linkwell’s fan filter units come with CE and RoHS certifications. You get peace of mind knowing your cooling solution meets international safety standards. If you need a special color, size, or function, we can customize it for you. Our products fit tight spaces, handle high heat, and keep your electrical equipment safe.
Note: Proper enclosure cooling fan selection means looking at cabinet size, heat load, airflow requirements, and filter type. Linkwell gives you all the options you need for reliable protection and long-lasting performance.
If you want a filtered exhaust fan that delivers strong cooling, clean airflow, and top-notch protection, Linkwell is your go-to partner. Our fans keep your electrical enclosures safe and efficient, no matter the application.
Installation and Maintenance Tips
Installing Filtered Exhaust Fans
You want your electrical control panel fans to work at their best. Start by choosing the right spot for your fan. Place the intake fan near the bottom of the enclosure and the exhaust fan near the top. This setup uses natural heat removal, letting hot air rise and exit easily. Always check the airflow direction on the fan before mounting. If you install the fan backwards, you risk pulling dust inside instead of pushing hot air out. Here’s a quick checklist for installing enclosure cooling fans:
- Decide the direction for the filtered exhaust fan to keep positive pressure and block airborne particles.
- Cut the opening for the fan at the correct height—lower for intake, upper for exhaust.
- Make sure intake and exhaust are far apart to avoid airflow short-circuiting.
- Account for the filter’s resistance when calculating airflow.
Common mistakes can cause problems. Take a look at this table:
| Mistake | Consequence | How to Avoid It |
|---|---|---|
| No Ventilation at All | Overheating, early failure | Add passive vents or fans |
| Intake & Exhaust Too Close | Poor cooling, heat buildup | Place on opposite sides, different heights |
| Fan Installed Backwards | Draws dust inside | Check airflow arrow before mounting |
| Ignoring Filter Resistance | Weak airflow, overheating | Add buffer to CFM, maintain filter |
| Ignoring Solar Load | Extra heat, poor cooling | Use solar shield, higher CFM fan |
Routine Filter Cleaning and Replacement
Keeping your filter fan clean means better dust protection and longer equipment life. Replace FFU filters every 6 to 12 months. Pre-filters need changing every 2-4 weeks. HEPA filters last 12-24 months. If you work in a dusty place, check filters more often. Signs you need filter replacement include overheating, weak airflow, and dust buildup inside the enclosure. Watch for insulation collecting on surfaces or secondary fans acting up. These problems mean your filter is clogged and needs attention.
Optimizing Cooling Efficiency
You can boost electrical cabinet cooling with simple steps. Clean air filters regularly. Check for strong airflow and listen for odd noises or leaks. Measure airflow at the fan outlet and compare it to the specs. Monitor the temperature of the fan’s motor and bearings. If you spot a drop in ventilation performance or rising temperatures, act fast. Good maintenance means effective heat removal and longer life for your electrical control panel applications.
Tip: Routine monitoring of temperature and airflow helps you catch problems early and keep your enclosure fan filter working at peak performance.
Linkwell Support and Service
Linkwell makes maintenance easy. You get expert technical support, installation guidance, and troubleshooting help for all applications. If you have questions about enclosure cooling fans or need advice on dust protection, Linkwell’s team is ready to help. You can reach out 24/7 by hotline or email. Linkwell offers video tutorials, downloadable guides, and a 1-year warranty for peace of mind. You get reliable service and fast solutions, so your electrical equipment stays safe and efficient.
Conclusion
You want your control cabinets to stay cool, clean, and reliable. Filtered exhaust fans give you a simple way to protect your electrical equipment from heat and dust. When you use the right fan and keep up with maintenance, you can avoid costly breakdowns and extend the life of your systems.
Linkwell stands out as a trusted partner in control cabinet ventilation. You get more than just a fan. You get access to a global network that covers 100 countries. Linkwell’s reputation comes from years of delivering quality products and fast customer service. Big names like ABB, SIEMENS, and SCHNEIDER electrics trust Linkwell for their projects. You can count on the same level of support and reliability.
You get sustainable quality, competitive pricing, and prompt service every time you choose Linkwell.
Linkwell offers a wide range of panel accessories, including:
- Panel ventilation fan filters
- Heaters
- Thermostats
- Control transformers
- Terminal blocks
- Wiring ducts
You can find solutions for any application, whether you need basic cooling or advanced protection. Linkwell’s products help you keep your cabinets running smoothly in tough environments.
Ready to upgrade your control cabinet ventilation? Reach out to Linkwell for expert advice, product recommendations, or a custom solution. You can request a quote or consultation and get started on making your electrical systems safer and more efficient.
Your equipment deserves the best protection. With Linkwell, you get peace of mind and a partner who supports your success.
Filtered exhaust fans keep your control cabinets cool, clean, and protected. You prevent dust and debris from entering, ensure steady airflow, and guard electronics from overheating. Linkwell stands out as a global leader, trusted by top industrial clients and known for reliable, custom-built solutions.
| Certification | Description |
|---|---|
| CE | Meets strict European safety and environmental standards. |
| RoHS | Limits hazardous materials in electronics. |
| ISO | Follows international quality management systems. |
Need expert advice or a custom solution? Reach out by WhatsApp (+86 137 7636 9101), email (linkwell@linkwellcn.com), or visit the contact page. Your equipment deserves the best.
FAQ
How often should you replace the filter in a filtered exhaust fan?
You should check your filter every few months. Replace it every 6–12 months for best results. If your cabinet sits in a dusty area, swap filters more often.
Can you install Linkwell filtered exhaust fans in outdoor cabinets?
Yes, you can! Linkwell offers IP-rated fans that handle rain, dust, and tough weather. These fans keep your equipment safe outside.
What size fan do you need for your control cabinet?
Pick a fan based on your cabinet’s size and heat load. Use this table for a quick guide:
| Cabinet Size | Recommended Fan Size |
|---|---|
| Small | 80–120mm |
| Medium | 120–180mm |
| Large | 180–250mm |
Do Linkwell fans work with thermostats or smart controls?
Absolutely! You can pair Linkwell fans with thermostats or hygrostats. This setup gives you automatic cooling and better energy savings.
Why choose Linkwell for your filtered exhaust fan needs?
Linkwell leads the industry with certified products, fast delivery, and custom solutions. You get reliable support and top-quality fans trusted by global brands.
