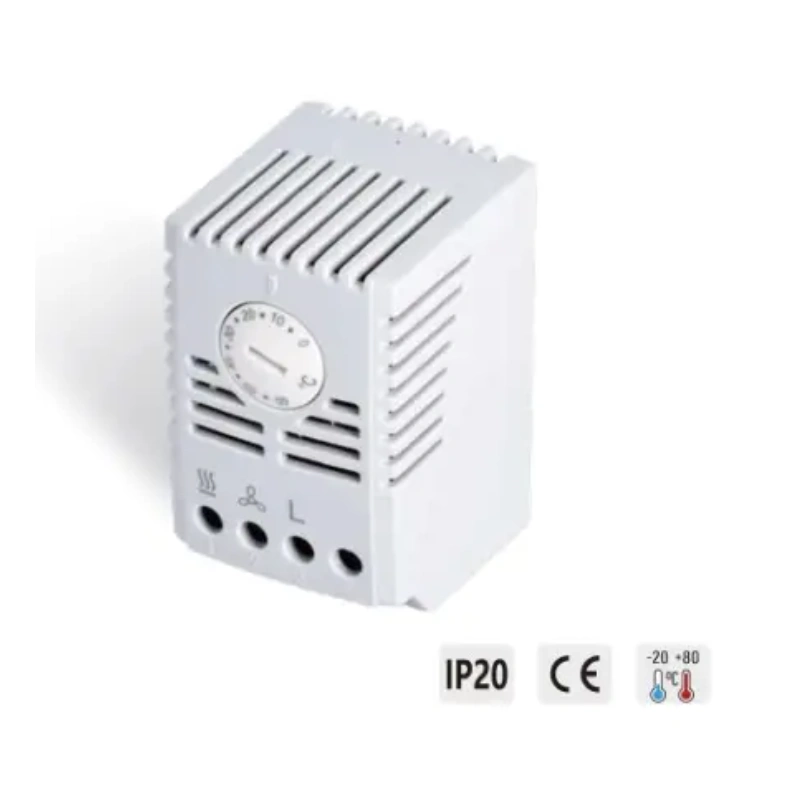

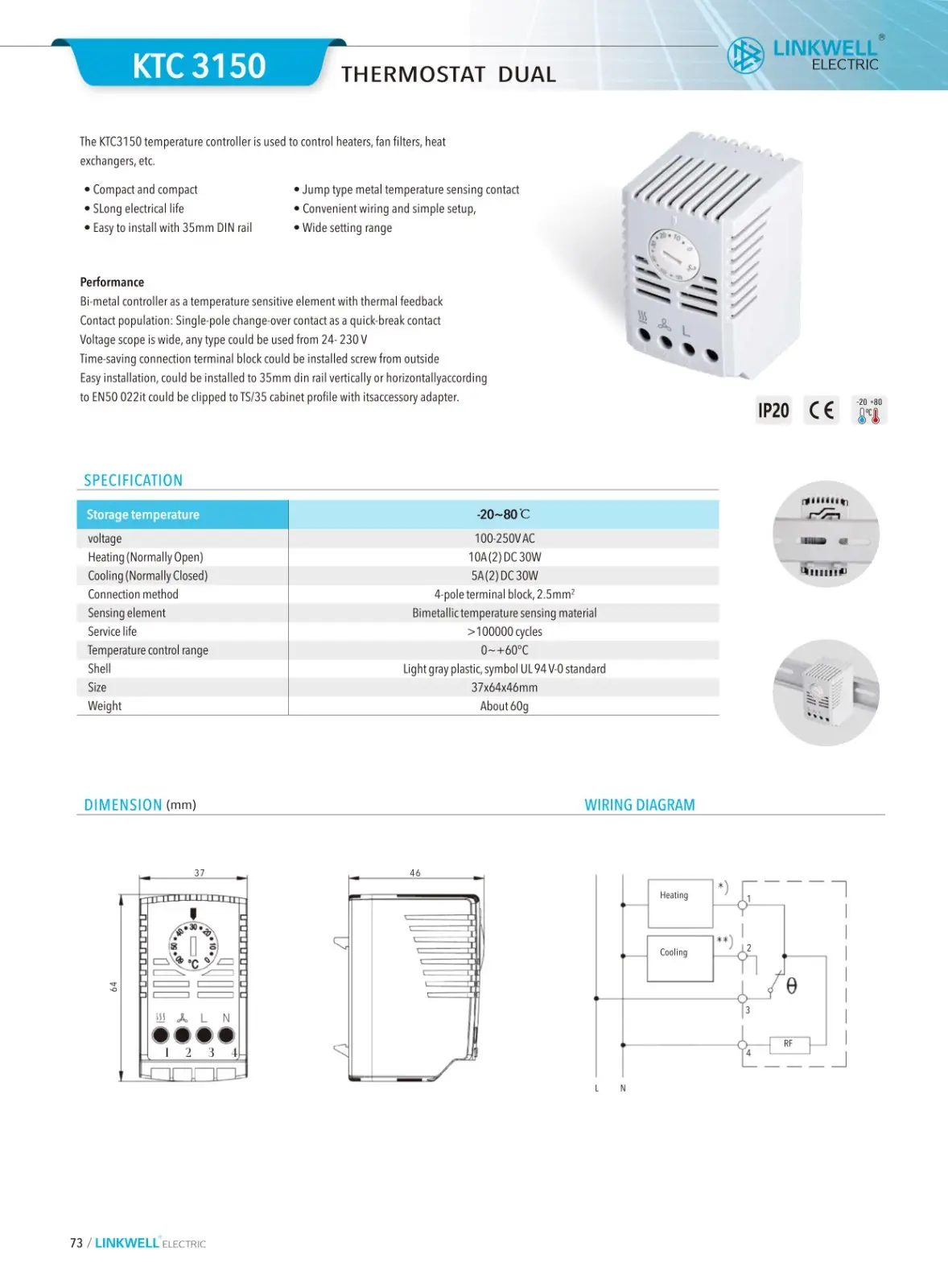

The KTC3150 temperature controller is used to control heaters, fan filters, heat exchangers, etc.
The KTC3150 temperature controller is used to control heaters, fan filters, heat exchangers, etc.
●Compact and compact
●Jump type metal temperature sensing contact
●SLong electrical life
●Convenient wiring and simple setup,
●Easy to install with 35mm DIN rail
●Wide setting range
Performance
Bi-metal controller as a temperature sensitive element with thermal feedback
Contact population: Single-pole change-over contact as a quick-break contact
Voltage scope is wide, any type could be used from 24-230V
Time-saving connection terminal block could be installed screw from outside
Easy installation, could be installed to 35mm din rail vertically or horizontallyaccording
to EN50 022it could be clipped to TS/35 cabinet profile with itsaccessory adapter.
| Storage temperature | -20~80℃ |
| voltage | 100-250VAC |
| Heating (Normally Open) | 10A(2)DC30W |
| Cooling (Normally Closed) | 5A(2)DC30W |
| Connection method | 4-pole terminal block,2.5mm2 |
| Sensing element | Bimetallic temperature sensing material |
| Service life | >100000 cycles |
| Temperature control range | 0~+60°C |
| Shell | Light gray plastic,symbolUL94V-O standard |
| Size | 37x64x46mm |
| Weight | About 60g |
