●Multiple automatic protection and comprehensive fault self-diagnosis
●Exquisite craftsmanship and high-quality international brand accessories ensure more stable and reliable products
●Suitable forT3 high-temperature working conditions and R134a environmentally friendly refrigerant
●Equipped with RS485 interface as standard, achieving telemetry, remote signaling, and remote adjustment
●LED Nixie tube display, field parameters can be set
●Standard heating function, optional hydrogen discharge function
●Standard dehumidification function
●Dry contact alarm output, normally open/normally closed optional
●4-20mAtemperature and humidity signal output function
Characteristic
●Multiple automatic protection and comprehensive fault self-diagnosis
●Exquisite craftsmanship and high-quality international brand accessories ensure more stable and reliable products
●Suitable forT3 high-temperature working conditions and R134a environmentally friendly refrigerant
●Equipped with RS485 interface as standard, achieving telemetry, remote signaling, and remote adjustment
●LED Nixie tube display, field parameters can be set
●Standard heating function, optional hydrogen discharge function
●Standard dehumidification function
●Dry contact alarm output, normally open/normally closed optional
●4-20mAtemperature and humidity signal output function

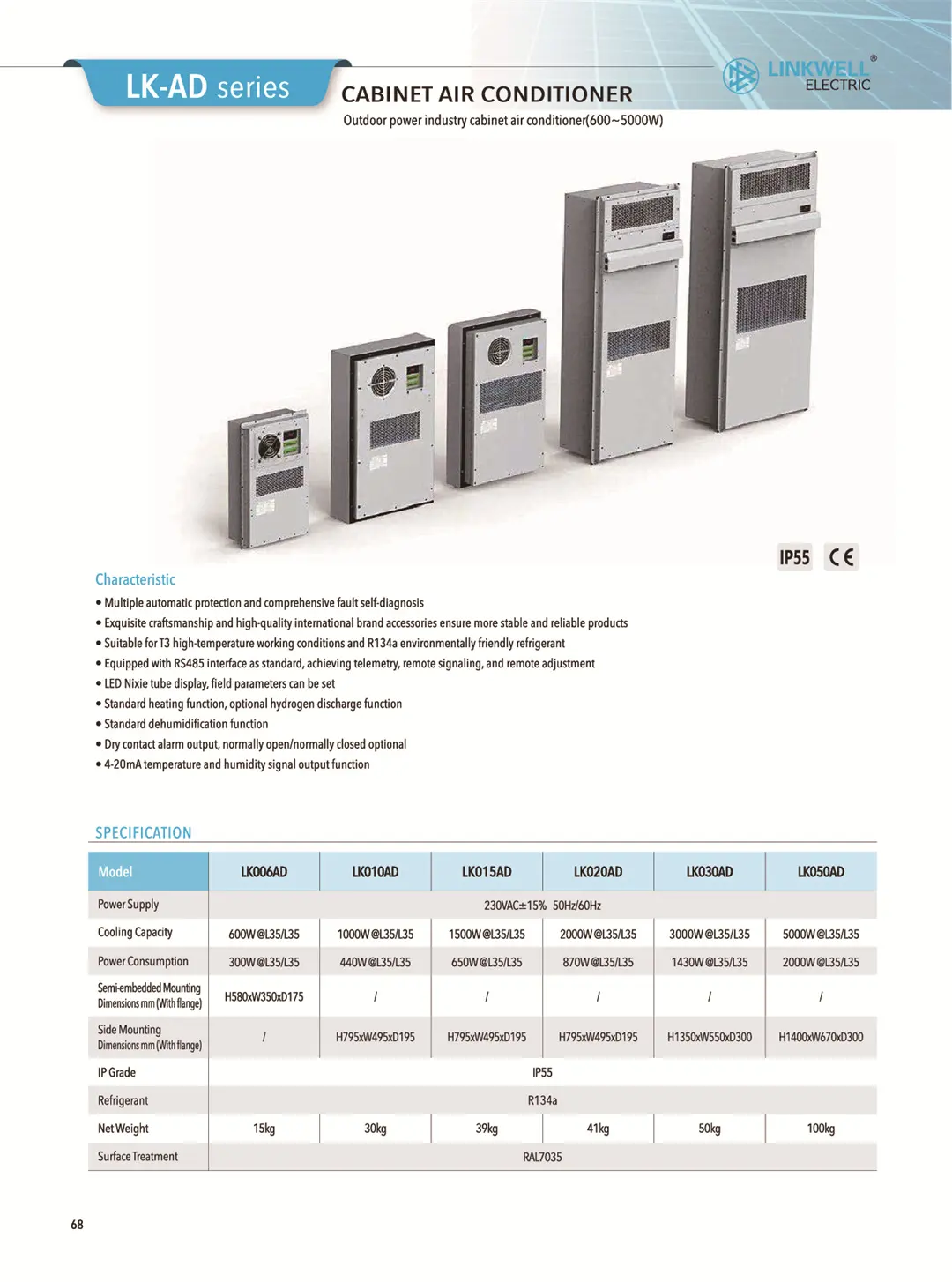

| Model | LK006AD | LK010AD | LKO15AD LK02OAD LK030AD LK050AD | |||
| Power Supply | 230VAC±15% 50Hz/60Hz | |||||
| Cooling Capacity | 600W@L35/L35 | 1000W@L35/L35 | 1500W@L35/L35 | 2000W@L35/L35 | 3000W@L35/L35 | 5000W@L35/L35 |
| Power Consumption | 300W@L35/L35 | 440W@L35/L35 | 650W@L35/L35 | 870W@L35/L35 | 1430W@L35/L35 | 2000W@L35/L35 |
| Semi-embedded Mounting Dimensions mm (With flange) |
H580xW350xD175 | 1 | 1 | / | 1 | 1 |
| Side Mounting Dimensions mm (With flange) |
1 | H795xW495xD195 | H795xW495xD195 | H795xW495xD195 | H1350xW550xD300 | H1400xW670xD300 |
| IP Grade | IP55 | |||||
| Refrigerant | R134a | |||||
| NetWeight | 15kg | 30kg | 39kg | 41kg | 50kg | 100kg |
| Surface Treatment | RAL7035 | |||||
