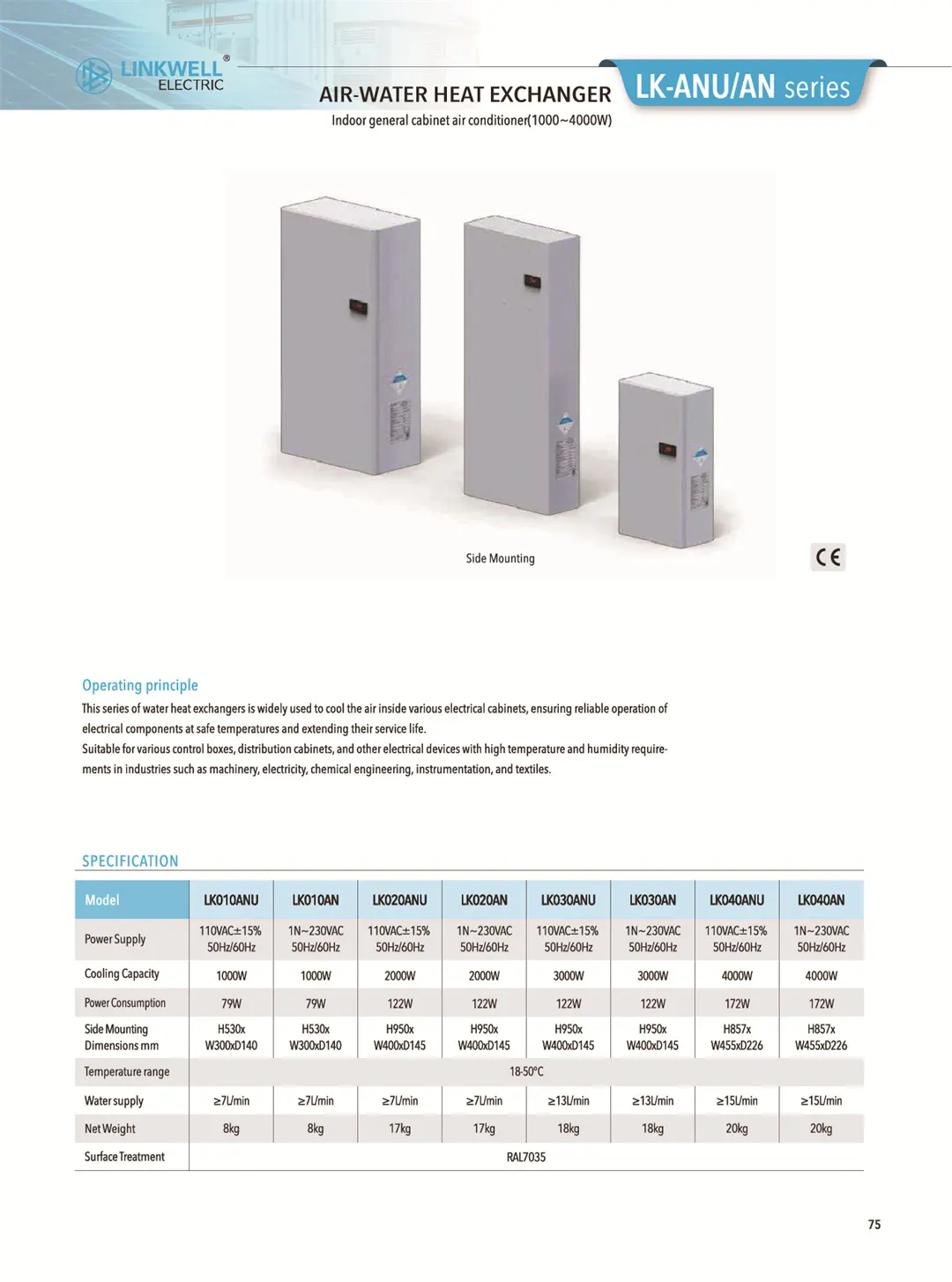

This series of water heat exchangers is widely used to cool the air inside various electrical cabinets, ensuring reliable operation of
electrical components at safe temperatures and extending their service life.
Suitable for various control boxes, distribution cabinets, and other electrical devices with high temperature and humidity require-
ments in industries such as machinery,electricity, chemical engineering, instrumentation, and textiles.
Operating principle
This series of water heat exchangers is widely used to cool the air inside various electrical cabinets, ensuring reliable operation of
electrical components at safe temperatures and extending their service life.
Suitable for various control boxes, distribution cabinets, and other electrical devices with high temperature and humidity require-
ments in industries such as machinery,electricity, chemical engineering, instrumentation, and textiles.
| Model | LKO10ANU | LKO10AN | LK020ANU | LKO20AN | LK030ANU | LKO30AN | LK040ANU | LKO40AN |
| Power Consumption | 79W | 79W | 122W | 122W | 122W | 122W | 172W | 172W |
| Side Mounting | H530x | H530x | H950x | H950x | H950x | H950x | H857x | H857x |
| Dimensions mm | W300xD140 | W300xD140 | W400xD145 | W400xD145 | W400xD145 | W400xD145 | W455xD226 | W455xD226 |
| Temperature range | 18-50C | |||||||
| Water supply | ≥7U/min | ≥7U/min | ≥7Umin | ≥7Umin | ≥13L/min | ≥13L/min | ≥15L/min | ≥15L/min |
| Net Weight | 8kg | 8kg | 17kg | 17kg | 18kg | 18kg | 20kg | 20kg |
| Surface Treatment | RAL7035 | |||||||
