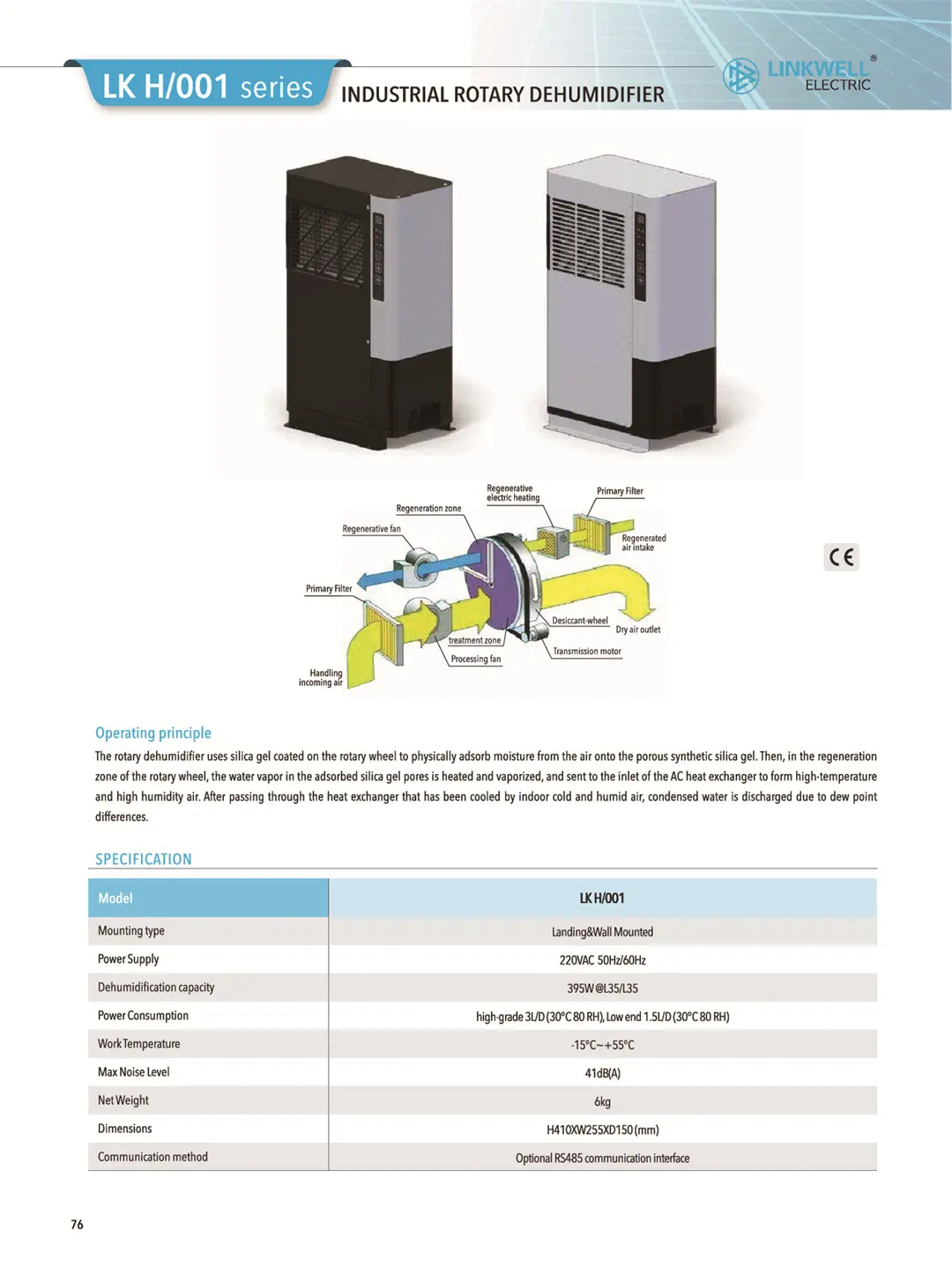

The rotary dehumidifier uses silica gel coated on the rotary wheel to physically adsorb moisture from the air onto the porous synthetic silica gel. then, in the regeneration
zone of the rotary wheel, the water vapor in the adsorbed silica gel pores is heated and vaporized, and sent to the inlet of the AC heat exchanger to form high-temperature
and high humidity air. After passing through the heat exchanger that has been cooled by indoor cold and humid air, condensed water is discharged due to dew point differences.
Operating principle
The rotary dehumidifier uses silica gel coated on the rotary wheel to physically adsorb moisture from the air onto the porous synthetic silica gel. then, in the regeneration
zone of the rotary wheel, the water vapor in the adsorbed silica gel pores is heated and vaporized, and sent to the inlet of the AC heat exchanger to form high-temperature
and high humidity air. After passing through the heat exchanger that has been cooled by indoor cold and humid air, condensed water is discharged due to dew point
differences.
| Model | LKH/001 |
| Mounting type | Landing&Wall Mounted |
| Power Supply | 220VAC 50Hz/60Hz |
| Dehumidification capacity | 395W@L35/L35 |
| Power Consumption | high-grade 3L/D(30°C80RH), Lowend 1.5L/D(30°C80RH) |
| Work Temperature | -15°℃~+55°℃ |
| Max Noise Level | 41dB(A) |
| NetWeight | 6kg |
| Dimensions | H410XW255XD150(mm) |
| Communication method | Optional RS485 communication interface |
