Model: LK3245
Brand: LINKWELL
Model number: LK3245
Rated voltage: 220/240V 110/120V
Rated current: 0.52/0.65A, 0.9/0.95A

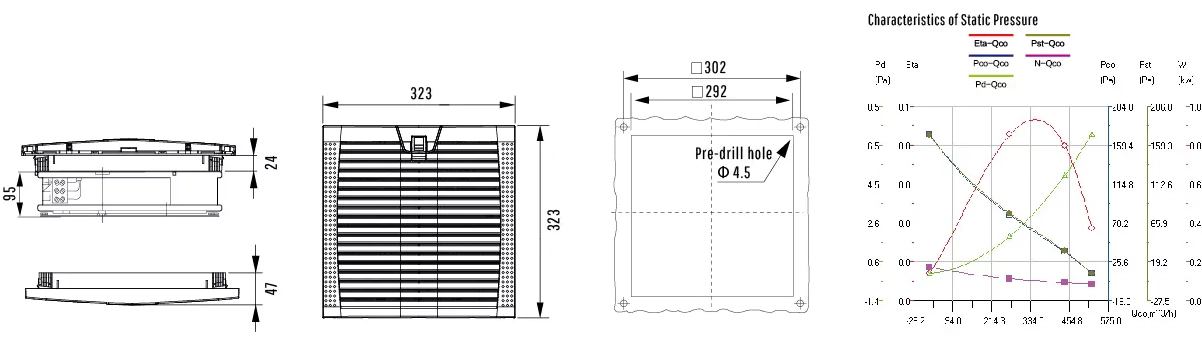

Size: 323x323x47mm
Color: RAL 7035, color can be customized
Protection code: IP54
Certification: CE, ROHS, UL
| Model No.fan-and-filter unit LK | 3245.230-LK | 3245.230-EMC |
| Model No.fan-and-filter unit EMC | 3245.230-EMC | 3245.115-EMC |
| Rated operating voltage,frequency V,Hz | 230V, 50/60Hz | 115V, 50/60Hz |
| Air throughput,unimpeded air flow | 1150-1350 m³/h | |
| Air throughput with Exit filter including standard filter mat | 1 x LK 3243.300:750-950 m³/h | |
| Axial fan | Capacitor operated | |
| Rated current max. | 0.62-0.48 A | 1.2-1.1 A |
| Rated Power | 140.0-105.0 W | 136.0-110.0 W |
| Noise level | 63-65 dB(A) | |
| Operating temperature range | -30-+70°C | |
| Model No. Exit filter LK/EMC | 3243.300/3243.300-EMC | |
| Design | Made of injection-moulded thermoplastic, customizable flame retardant materials, consistent with UL94-VO self-extinguishing. | |
