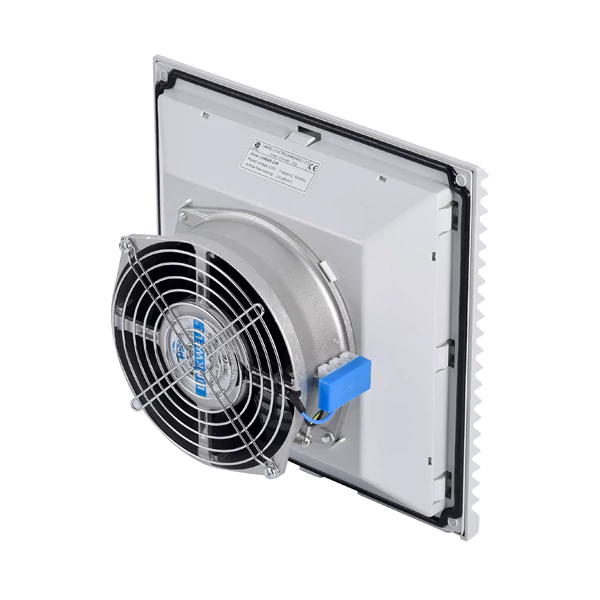

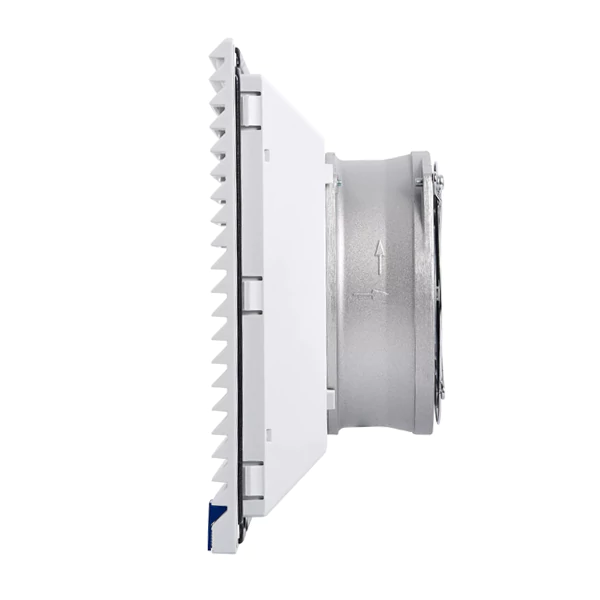

LK6625
LINKWELL
LK6625
LINKWELL
220/240V,110/120V
0.30A/0.28A, 0.52A/0.5A

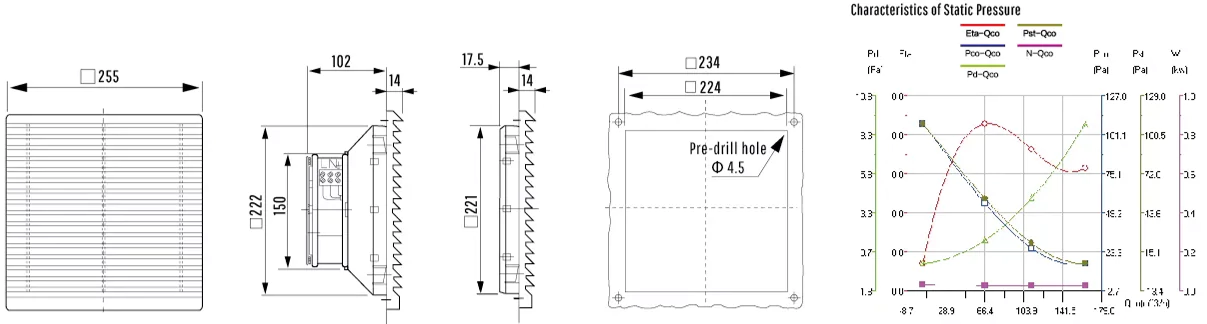

255x255x116mm, 255x255x31.5mm
White
IP54
CE
| Model No. fan-and-filter unit LK | LK6625.230 | LK6625.115 |
|---|---|---|
| Rated operating voltage V | 220V-240V | 110V-120V |
| Frequency Hz | 50/60 | 50/60 |
| Air throughput, unimpeded air flow | 230/265m³/h | 230/265m³/h |
| Air throughput with the Exit filter, including the standard filter mat | 1×LK6625.300:190/215m³/h | |
| Axial fan | Self-starting shaded pole motor | |
| Rated current max. | 0.30A/0.28A | 0.52A/0.5A |
| Rated Power | 41/38W | 41/38W |
| Noise level | 50/52dB(A) | 50/52dB(A) |
| Operating temperature range | -30 °C – +70 °C | -30 °C – +70 °C |
| Model No. Exit filter | LK6625.300 | LK6625.300 |
| Material | Made of injection-moulded thermoplastic, customizable flame retardant material (UL94-V0) | |
| Air flow direction | air-in as default; air-out optional | |
| Protection Level | IP54 | |
