The KTC3150 temperature controller is used to control heaters, fan filters, heat exchangers, etc.

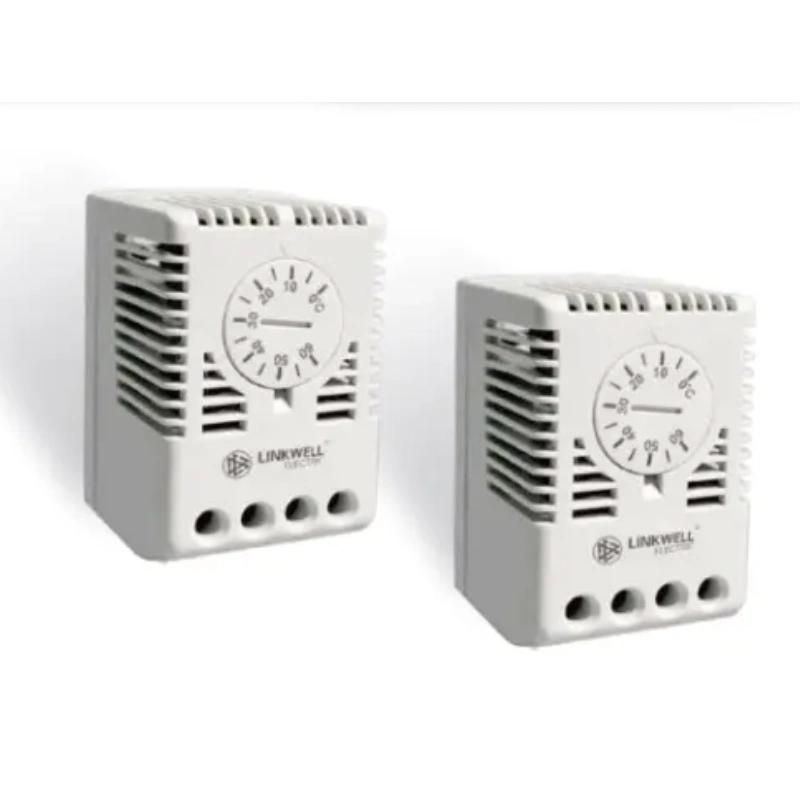

Slim and compact mechanical temperature regulator
Two-way control transfer contact
Built-in conversion temperature difference compensation element, can be selected
according to the control needs;
●High capacity
●Long-life
●Wide range
●35mm din rail mounting

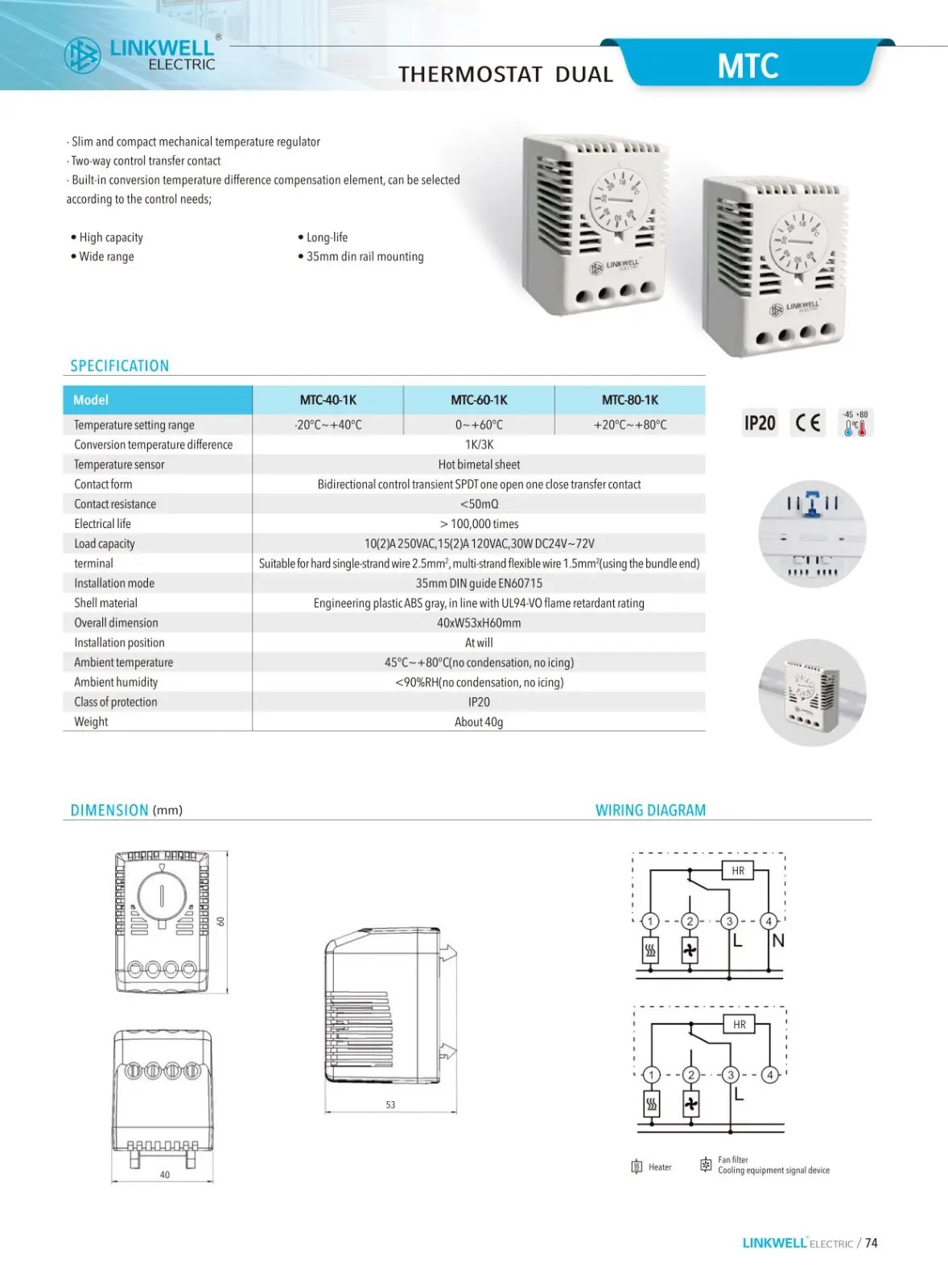

| Model | MTC-40-1K | MTC-60-1K | MTC-80-1K |
| Temperature setting range | -20℃~+40℃ | 0~+60C | +20°C~+80°C |
| Conversion temperature difference | 1K/3K | ||
| Temperature sensor | Hot bimetal sheet | ||
| Contact form | Bidirectional control transient SPDT one open one close transfer contact | ||
| Contact resistance | <50mQ | ||
| Electrical life | >100,000times | ||
| Load capacity | 10(2)A250VAC,15(2)A120VAC,30WDC24V~72V | ||
| terminal | Suitable for hard single-strand wire 2.5mm2,multi-strand flexible wire 1.5mm2(using the bundle end) | ||
| Installation mode | 35mm DIN guide EN60715 | ||
| Shell material | Engineering plasticABS gray, in line with UL94-VO flame retardant rating | ||
| Overall dimension | 40xW53xH60mm | ||
| Installation position | At will | ||
| Ambient temperature | 45°C~+80°C(no condensation, no icing) | ||
| Ambient humidity | <90%RH(no condensation, no icing) | ||
| Class of protection | IP20 | ||
| Weight | About 40g | ||
