When you plan your next project, the right electrical box dimensions make all the difference. Large electrical power distribution boxes come in several sizes—single-gang for one device, double-gang for two, and so on. Check out this quick guide:
| Gang Size | Description |
|---|---|
| Single-Gang | Fits one main power circuit |
| Double-Gang | Handles two circuits or devices side-by-side |
| Triple-Gang | Ideal for three large devices or circuit groups |
| Four-Gang | Supports four circuits—perfect for complex control panels |
Think about how many devices you need, where you will install the box, and the environment. Picking the right size helps you stay safe, follow codes, and finish your work smoothly. For industrial or commercial projects, you can trust Linkwell to deliver high-quality electrical power distribution boxes that meet every need.
Key Takeaways
- Choosing the right electrical box size is crucial for safety and efficiency. Consider the number of devices and future upgrades to avoid overcrowding.
- Single-gang boxes are ideal for one device, while multi-gang boxes accommodate multiple devices. Select based on your project’s specific needs.
- Always check local codes for minimum box volume requirements. This ensures compliance and prevents safety hazards during installation.
- Linkwell offers customizable electrical boxes to fit unique project needs. Their products meet industry standards for safety and performance.
- Plan your installation carefully. Measure your space, gather the right tools, and follow best practices to ensure a smooth setup.

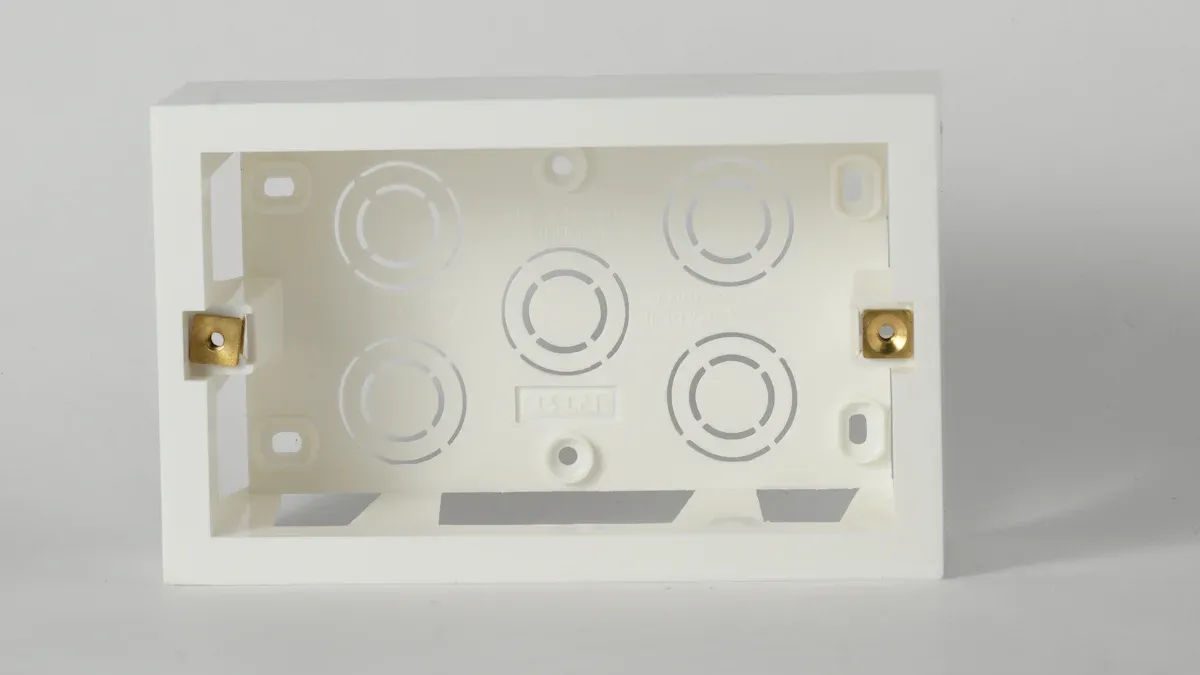

Single Gang Box Dimensions
Standard Sizes and Cutouts
When you look at electrical box dimensions for large projects, you want to make sure every device fits perfectly. A single gang box is designed for one main circuit or device. In industrial settings, these boxes often need to be bigger than what you see in homes. Still, understanding the standard measurements helps you plan your layout and avoid surprises.
Here’s a quick table showing typical single gang box sizes:
| Dimension Type | Measurement |
|---|---|
| Height | 4 inches |
| Width | 2 inches |
| Depth | 1-1/2 to 3-1/2 inches |
For large electrical power distribution boxes, you might see custom cutouts and extra depth to handle bigger cables and connectors. Linkwell offers boxes with flexible cutout options, so you can match your exact needs.
Wiring Capacity and Limitations
You need to know how many wires or conductors your box can handle. Overcrowding leads to heat and safety issues. Here’s a table that shows the maximum number of conductors for different box sizes:

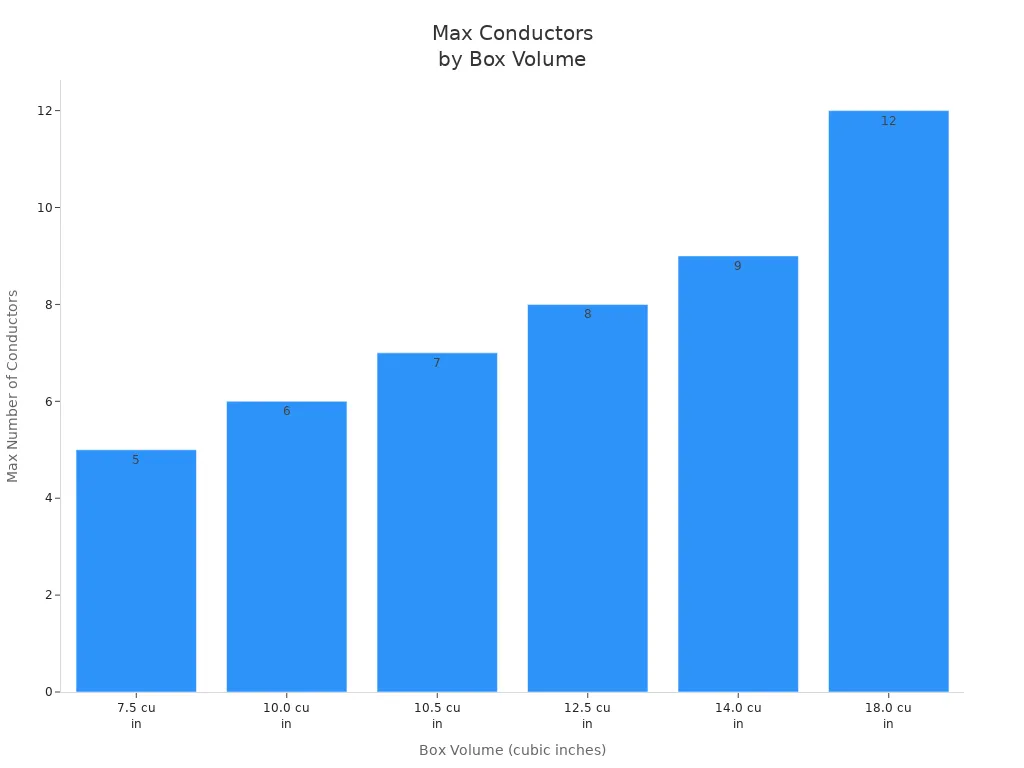

| Box Dimensions (inches) | Maximum Capacity (cubic inches) | Maximum Number of Conductors |
|---|---|---|
| 3 × 2 × 1 1/2 | 7.5 | 5 |
| 3 × 2 × 2 | 10.0 | 6 |
| 3 × 2 × 2 1/4 | 10.5 | 7 |
| 3 × 2 × 2 1/2 | 12.5 | 8 |
| 3 × 2 × 2 3/4 | 14.0 | 9 |
| 3 × 2 × 3 1/2 | 18.0 | 12 |
For large-scale projects, you may need even more space. Linkwell’s electrical power distribution boxes can be customized for higher capacity, so you never have to worry about running out of room.
Tip: Always check your local code for the minimum box volume required for your wiring setup. This keeps your installation safe and up to standard.
Best Use Cases
You’ll find single gang boxes in control cabinets, telecom enclosures, and power panels where you need to isolate a single device or circuit. They work best when you want a dedicated space for one large breaker, switch, or industrial connector. If your project calls for a simple, organized solution, a single gang electrical power distribution box from Linkwell is a smart choice.
When you compare electrical junction box sizes, remember that single gang boxes offer a compact footprint but can be scaled up for industrial needs. Linkwell’s expertise ensures you get a box that fits your project, whether you need standard or custom dimensions.

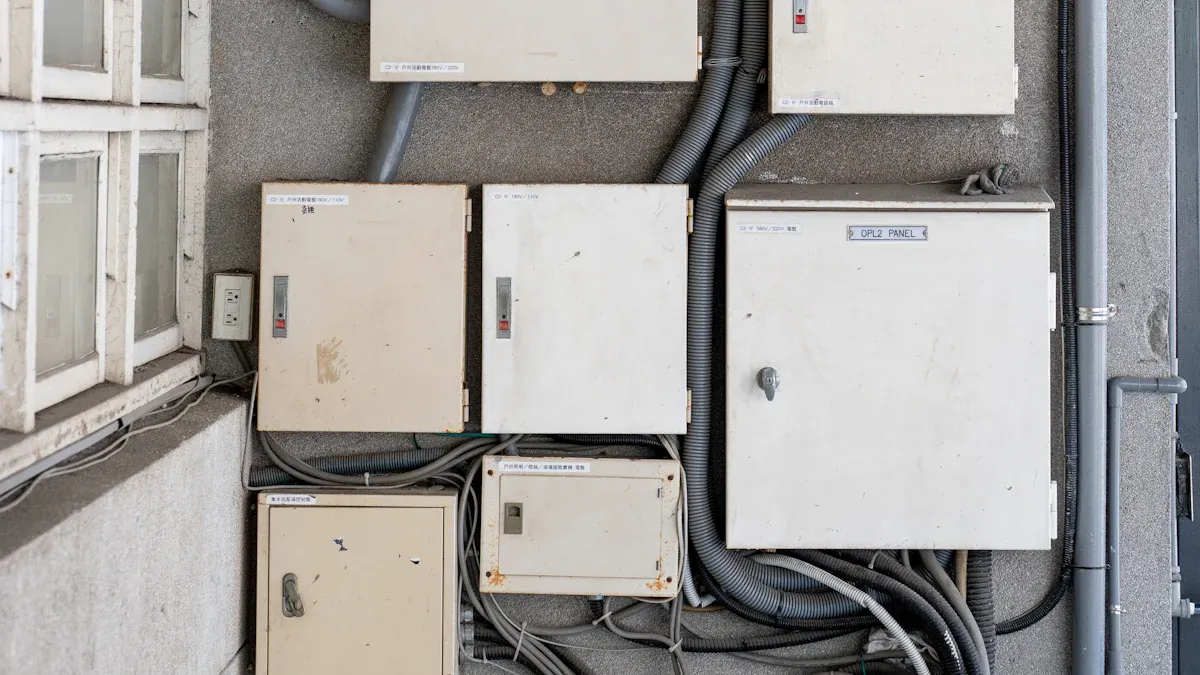

Multi-Gang Box Dimensions
2-Gang and 3-Gang Sizes
When your project calls for more than one device in a single enclosure, you need to look at multi-gang electrical box dimensions. These large boxes give you the flexibility to mount multiple breakers, switches, or connectors side by side. Here’s a quick table showing the standard sizes for 2-gang and 3-gang boxes used in industrial settings:
| Type | Height (in) | Width (in) | Depth (in) | Volume (cu in) |
|---|---|---|---|---|
| 2-Gang Box | 3.75 | 3.781 | 3.5 | 45 |
| 3-Gang Box | 3 | 4 | 2.5 | 25 |
You can also find custom sizes from Linkwell if your project needs a larger enclosure or special cutouts for heavy-duty cables.
Wiring and Device Capacity
Multi-gang boxes let you organize wiring for several devices in one place. You can install two or more large breakers, switches, or industrial connectors without crowding the space. Here’s a comparison to help you see the difference:
| Feature | Single-Gang Box | Multi-Gang Box |
|---|---|---|
| Number of Devices | Designed for one device | Can accommodate two or more devices |
| Wiring Capacity | Limited to the wiring for one device | Allows for more organized wiring for multiple devices |
| Ideal Use Case | Individual light switches or outlets | Situations requiring multiple devices in one location |
Multi-gang boxes are perfect for setups like control panels, telecom cabinets, or data center cooling systems where you need to group several circuits together.
Installation Scenarios
You’ll see multi-gang electrical power distribution boxes in places that demand clean wiring and easy access. Common scenarios include:
- Mounting multiple switches or outlets in control cabinets
- Organizing wiring in commercial kitchens or bathrooms
- Grouping devices in telecom enclosures or industrial panels
Linkwell offers customizable solutions for these multi-device installations. You can choose metal or polycarbonate enclosures, add smart features, or request special layouts for your project. Recent trends include smart technology integration, energy-efficient designs, and sustainable materials. If you want a box that fits your exact needs, Linkwell can help you design and build it.
Tip: Always plan your electrical junction box sizes based on the number of devices and future expansion. This keeps your installation flexible and safe.
Electrical Box Dimensions Comparison
Space and Fit
When you plan your project, you want to make sure your electrical box fits perfectly and gives you enough room for all your wiring. Here’s a quick look at how single and multi-gang electrical power distribution boxes compare:
| Box Type | Volume (cubic inches) | #14 Gauge Wires | #12 Gauge Wires | #10 Gauge Wires |
|---|---|---|---|---|
| Single-gang | 18 | 9 | 8 | 7 |
| Double-gang | 34.3 | 16 | 15 | 13 |
You can see that multi-gang boxes give you much more space. This extra room helps you avoid crowding wires, which keeps your installation safe and makes future upgrades easier. Linkwell offers a wide range of electrical box dimensions, so you can always find the right fit for your industrial or commercial project.
Tip: Always measure your space before you install your box. Take accurate measurements, use a stud finder, and make sure your box sits level and secure.
Wiring and Compatibility
Choosing the right box isn’t just about size. You also need to think about what kind of wiring and devices you want to use. Here’s what you should keep in mind:
- Single-gang boxes work best for one device and a limited number of wires.
- Multi-gang boxes let you install several devices, like breakers or connectors, and handle more complex wiring setups.
- The material of your box (metal or polycarbonate) can affect how you install it and what types of wiring you can use.
- Linkwell’s electrical power distribution boxes come in different materials and layouts, so you can match your box to your wiring needs.
Project Scenarios
Picking the right electrical junction box sizes is critical for safety and performance. Here are some common situations where your choice matters:
- Using a box that’s too small can cause overheating or even electrical shorts.
- You need enough space to keep wires from getting too close, which helps prevent temperature overloads.
- Proper installation protects your wire connections from stress, especially when you have lots of wires in a tight spot.
- Linkwell’s customizable solutions help you avoid these problems by giving you the right size and features for your project.
No matter what your project looks like, Linkwell has electrical power distribution boxes that keep your installation safe, organized, and ready for the future.
Choosing the Right Box for Your Project
Assess Device and Space Needs
You want your electrical box to fit every device and wire without crowding. Start by listing all the equipment you plan to install. Think about future upgrades, too. Large electrical boxes give you room for breakers, connectors, and control modules. If you choose the right size, you avoid messy wiring and overheating.
Take a look at this table to help you figure out what matters most when picking your box:
| Dimension | Description | Impact on Functionality | Considerations for Selection |
|---|---|---|---|
| Depth | Vertical internal space of the box. | Determines wire capacity, space for connectors/devices, and heat dissipation. | Number and size of wires, device depth, required bending radius, potential for overcrowding. |
| Width/Length | Horizontal internal space for rectangular boxes. | Ensures proper fit for mounted devices (switches, outlets). | Device dimensions, number of devices to be mounted in a single box (gang). |
| Internal Volume | Total usable space inside the box, typically measured in cubic inches. | Dictates the maximum number and size of wires permitted by the NEC. | Wire gauge, number of conductors, presence of devices within the box. |
If you work with large electrical power distribution boxes, you need to check the depth and internal volume. These factors decide how many wires and devices you can fit. You also want to leave space for heat to escape. When you plan your layout, always measure your available wall or cabinet space. This helps you avoid installation headaches later.
Tip: Always choose a box with extra space for future expansion. You never know when you’ll need to add another circuit or device.
Code and Safety Considerations
Safety comes first. You need to follow electrical codes and standards for every installation. Large electrical boxes must meet strict requirements for industrial and commercial use. If you skip these steps, you risk property damage or even legal trouble.
Here’s a quick table showing the main code requirements for large electrical boxes:
| Requirement Type | Description |
|---|---|
| Electrical Pull Boxes | Standards for covers that ensure safety and compliance in electrical installations. |
| Junction Boxes | Requirements for dimensions and materials to prevent hazards. |
| Fittings | Specifications that dictate the size and type of fittings used with electrical boxes. |
You should also keep these best practices in mind:
- Use UL Solutions Listed materials and devices. This keeps your installation safe and up to code.
- Balance loads and label panel boards. This helps prevent overheating and makes maintenance easier.
- Install surge protection. Sensitive equipment needs protection from voltage spikes.
- Maintain detailed documentation. Good records make troubleshooting and compliance simple.
- Invest in routine testing and maintenance. Regular checks keep your system safe.
- Partner with a commercial power system expert. Specialized knowledge ensures compliance and efficiency.
Electrical codes ensure buildings are safe, efficient, and up to standard. Faulty wiring or overloaded panels can result in property damage, safety hazards, or even legal liabilities.
When you select electrical junction box sizes, always check the latest NEC guidelines and local codes. This keeps your project safe and avoids costly mistakes.
Linkwell Product Recommendations
If you want a box that meets every need, Linkwell has you covered. Their electrical power distribution boxes are built for tough environments and complex projects. You get features that make installation easy and keep your system running smoothly.
Check out what makes Linkwell boxes stand out:
| Feature | Description |
|---|---|
| Visual Connection Verification | Clear inspection window confirms proper wire insertion, reducing installation errors. |
| Premium Conductivity | Tinned copper construction ensures optimal current flow and is corrosion-resistant. |
| Enhanced Safety | IP20 protection against accidental contact and UL-certified finger-safe design. |
| Flexible Mounting | Clip-on DIN rail attachment for tool-free installation and an alternative screw-mount option. |
You can also customize your box to fit any project. Linkwell offers:
| Customization Aspect | Description |
|---|---|
| Professional OEM/ODM Services | Tailored services to meet specific project needs. |
| Flexibility in Design | Custom designs for different applications. |
| Special Dimensions | Unique sizing for specific installation spaces. |
| Internal Layout | Custom arrangement of components for best performance. |
| Branding | Add your own branding elements. |
| UV/Chemical Resistance | Enhanced durability for harsh environments. |
| High IP Ratings | Enclosures with IP65/IP66/IP67 for dust and water protection. |
Linkwell boxes meet top industry standards. You get peace of mind knowing your installation is safe and reliable.
| Certification/Standard | Description |
|---|---|
| IP68 Certification | Dustproof and waterproof, perfect for harsh environments. |
| High-Voltage Withstand Testing | Handles extreme voltage surges, ideal for lightning-prone areas. |
| Short Circuit Testing | Endures high fault currents without damage. |
| Contact Resistance Measurement | Ensures efficient power flow at bonding points. |
| Lightning Impulse Testing | Evaluates surge protection capabilities. |
- IEC 60947-7-1: Standard for terminal blocks.
- CE/UL/RoHS/CQC/ISO 9001: Safety and quality certifications.
If you need a large electrical box for your factory, telecom cabinet, or data center, Linkwell gives you the flexibility and safety you want. Their boxes handle tough jobs, keep your wiring organized, and help you meet every code requirement. You can order custom sizes, layouts, and materials to match your exact needs.
Note: Linkwell’s expert team can help you choose the right electrical box dimensions for any industrial or commercial project. Reach out for technical support or a custom solution.
Common Mistakes and Tips
Sizing Errors
When you pick a large electrical power distribution box, getting the size right matters. Many people make mistakes that can cause trouble later. Here are some common sizing errors you should watch out for:
- Choosing a box that’s too small can restrict airflow and cause overheating.
- Crowded wires may damage insulation and lead to short circuits.
- Using a box that doesn’t meet NEC or IS code standards can result in violations.
- Ignoring the number of conductors or the environment can lead to safety risks.
- Non-approved boxes may pose hazards during wiring work.
- Overcrowding wires can break box fill requirements and create fire risks.
Tip: Always use a box fill calculator or check official code charts. If you’re unsure, pick a slightly larger box to allow for future upgrades.
Installation Advice
You want your installation to go smoothly and stay safe. Follow these practical steps to make sure your large electrical box fits and works as it should:
- Gather the right tools, like a hammer drill and masonry bits.
- Mark the location carefully, making sure it meets your needs and building codes.
- Drill pilot holes that are a bit smaller than your screws to avoid cracking the box.
- Mount the box with masonry screws, keeping it level and secure.
- Use outdoor-rated boxes for outdoor setups and secure the conduit properly.
- Pull wires through the conduit, checking for proper insulation and grounding.
- Finish by installing the outlet or switch, attaching the faceplate, and testing the connection.
Note: Picking the right box and installing it correctly helps you avoid code violations, fires, and system failures. If you have questions or need technical guidance, reach out to Linkwell’s expert team for support. Their specialists can help you choose the best electrical power distribution box for your project and ensure everything meets safety standards.
Choosing the right large electrical box for your project comes down to device count, space, and safety. Check out this quick table:
| Gang Size | Number of Devices | Applications |
|---|---|---|
| Single-Gang | 1 | Fits one switch or outlet |
| Double-Gang | 2 | Fits two side-by-side devices |
| Triple-Gang | 3 | Ideal for three devices |
| Four-Gang | 4 | Used in control panels or kitchens |
When you match box size to your needs, you prevent overcrowding and keep wiring organized. This boosts safety and makes installation easier.
- Linkwell’s boxes meet IEC 61439 and UL 508A standards.
- You get full customization, fast delivery, and expert support.
Want help picking the best box? Reach out to Linkwell’s team for advice and solutions.
FAQ
What is the best way to choose the right junction box size for my project?
You should start by listing all devices and wires you plan to install. Measure your available space. Think about future upgrades. The right junction box size gives you enough room for safe wiring and easy maintenance.
How does junction box size affect safety in large electrical installations?
Junction box size matters for safety. If you pick a box that is too small, wires can overheat or get damaged. A large junction box size helps prevent crowding, lowers fire risk, and keeps your installation up to code.
Can I customize the junction box size for unique industrial needs?
Yes, you can customize the junction box size with Linkwell. You get options for material, internal layout, and cable entries. Custom sizing means your box fits your project perfectly, even in challenging environments.
Why should I consider future expansion when picking a junction box size?
You never know when you’ll add more circuits or devices. Choosing a larger junction box size gives you flexibility. You avoid costly upgrades later and keep your wiring organized as your needs grow.
Does the junction box size impact code compliance?
Yes, code compliance depends on the right junction box size. Codes require enough space for wires and devices. If you use the correct junction box size, you meet safety standards and avoid violations.
