Custom Electrical Enclosure Din Rail Manufacturer in China
An Electrical Enclosure Din Rail is a standard metal rail used inside control cabinets, electrical panels, and telecom boxes to mount circuit breakers and other equipment securely. It’s a key component in organizing and managing electrical systems safely and efficiently.
At Linkwellelectrics, we manufacture a wide range of DIN rails compatible with international standards and enclosure designs. Whether you’re sourcing for industrial automation, energy distribution, or telecom setups, we offer reliable and consistent solutions. As a manufacturer, we provide OEM/ODM services, consistent supply, and tailored support to help your business grow. Looking for a dependable partner? Contact us today to discuss your needs!
Linkwell Electrics - Your Trusted Electrical Enclosure Din Rail Manufacturer from China
1. IEC 60715 certified for global compatibility and safety assurance
2. Corrosion-resistant materials for harsh industrial environments
3. Multiple profiles and sizes to fit all enclosure types
4. Bulk packaging and private labeling available for distributors
Working with Linkwellelectrics means better results across three key areas:
Quality – All our rails meet international certifications and go through strict QC.
Delivery – We offer fast lead times, even on large-volume or custom orders.
Market Fit – We understand what panel builders, OEMs, and wholesalers need to stay ahead. Choose us, and you get a supplier who thinks like a partner.
Global Partnership
Various Electrical Enclosure Din Rail Series
As your Electrical Enclosure Din Rail supplier, we go beyond just selling components. We support our clients from pre-sales consultation to after-sales logistics, ensuring you get the right rail type for every enclosure application.
Our services include technical drawings, bulk order support, fast quoting, and flexible payment terms.
We also help large distributors and panel builders simplify procurement by offering packaging customization, inventory planning, and quick reorder systems. If you need expert advice on selecting the right DIN rail for your cabinet—we’re here to help, just reach out anytime!

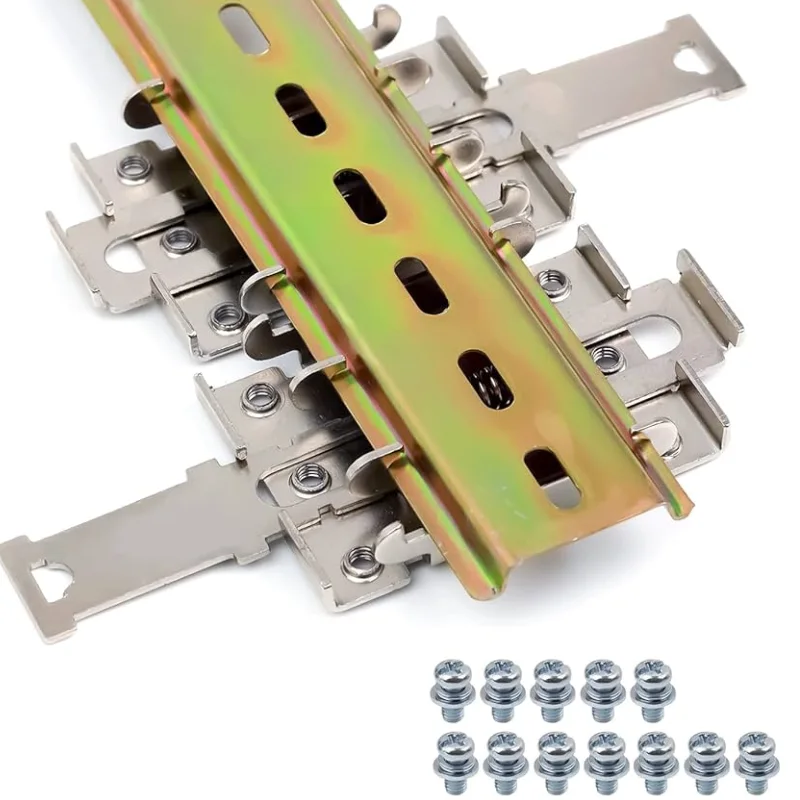

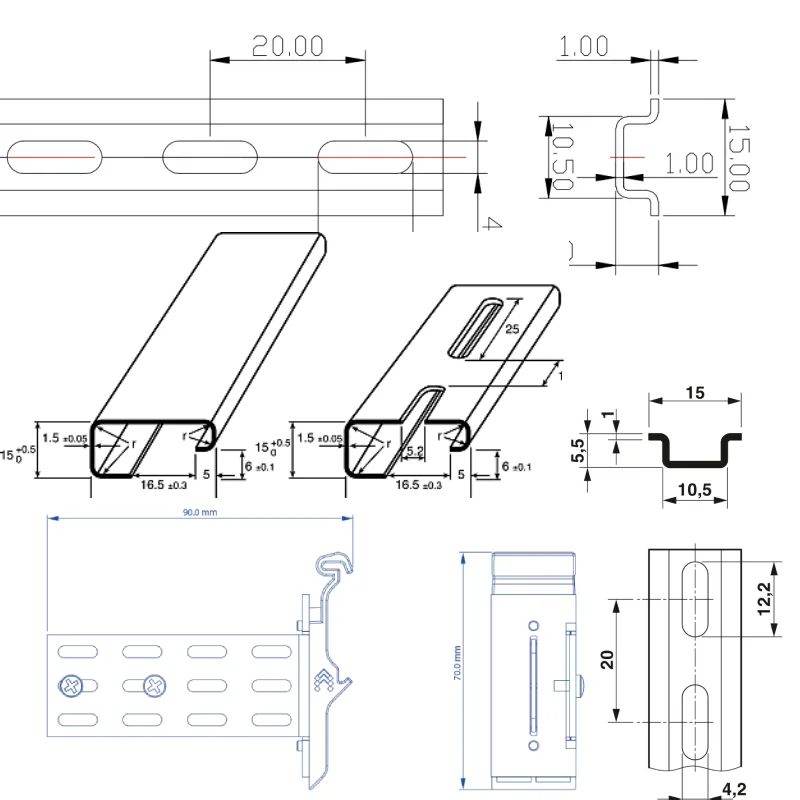

Top Hat Rails
Most common type used in industrial control panels
Dimensions: 35mm wide; available in heights of 7.5mm (TS35x7.5) or 15mm (TS35x15)
Applications: Circuit breakers, relays, terminal blocks, PLCs, etc.
C Rails
C-shaped profile designed for heavier-duty mounting
Widths: typically 20mm, 30mm, 40mm, or 50mm
Applications: Equipment requiring a robust mechanical hold
G Rails
Dimensions: 32mm wide
Has a G-shaped cross-section rather than flat
Provides more strength for heavier devices
Applications: Industrial relays and older systems

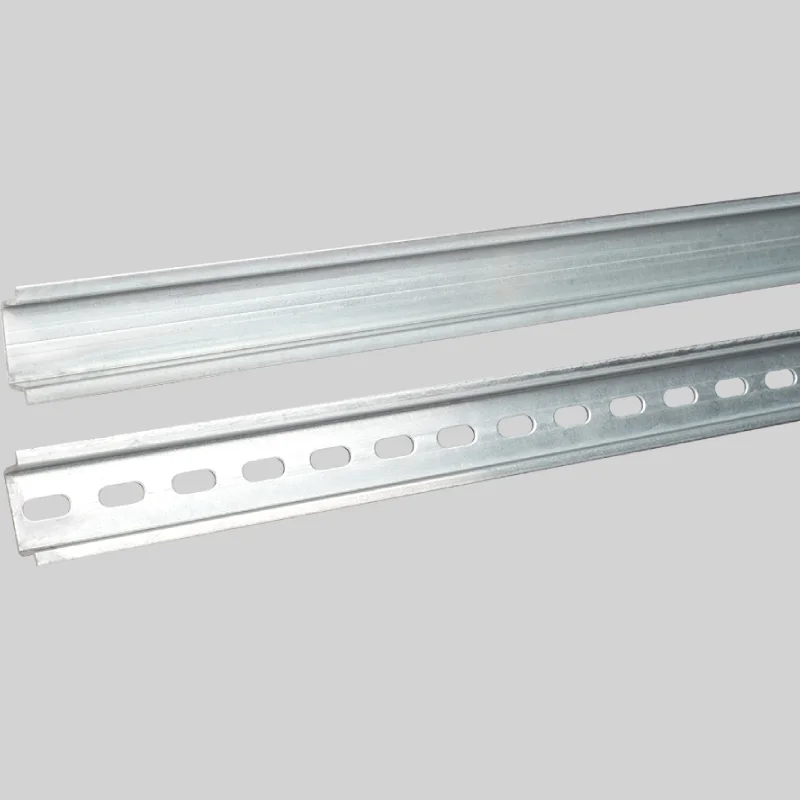

Mini Top Hat Rails
Slim, compact profile designed for small-scale or space-constrained enclosures
Dimensions: 15mm wide × 5.5mm high
Applications: Ideal for miniature components such as small relays, signal terminals, timers, or compact automation devices

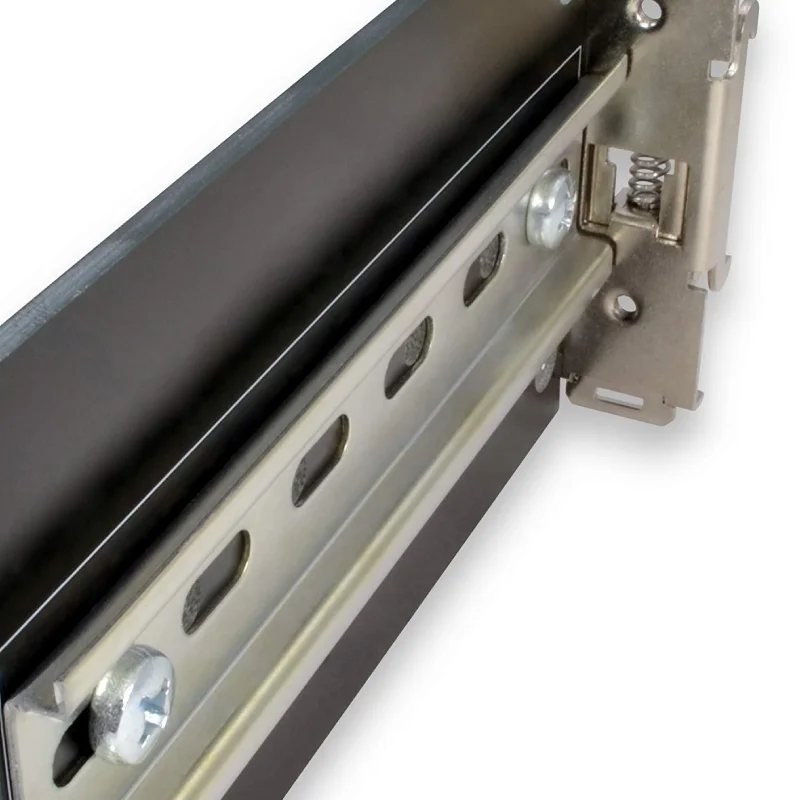

Electrical Enclosure Din Rail Display
Application of Electrical Enclosure Din Rail in Different Industries
Industrial Automation
Telecommunications
Energy Management
Customize Your Electrical Enclosure Din Rail
Quality & Compliance
We use IEC 60715 standard-compliant materials, ensuring compatibility with global systems and top safety.
All our DIN rails pass strict corrosion-resistance tests, ideal for tough industrial environments.
We conduct 100% quality inspections before shipping, reducing defects and improving your end-user satisfaction.
Customization & Flexibility
We support cut-to-length services, hole punching, and custom profiles to match your cabinet design needs.
Private labeling and bulk branding are available for your reseller or OEM business model.
We offer flexible MOQ, helping both small-batch project users and high-volume buyers save on costs.
Logistics & Delivery
Our production lead time averages 7–12 days, even for customized orders.
We provide global shipping support, including DDP, DAP, and express freight for urgent orders.
All rails are safely packaged, with optional palletizing and barcode support for easy warehouse handling.
Technical & Market Support
Our team provides drawing reviews and installation advice, reducing your engineering time.
We keep stock of popular DIN rail types, ensuring fast reordering and lower supply risk.
We track industry trends so you can stay ahead in offering your customers the most requested sizes and finishes.
What is Electrical Enclosure Din Rail? How Does It Work?

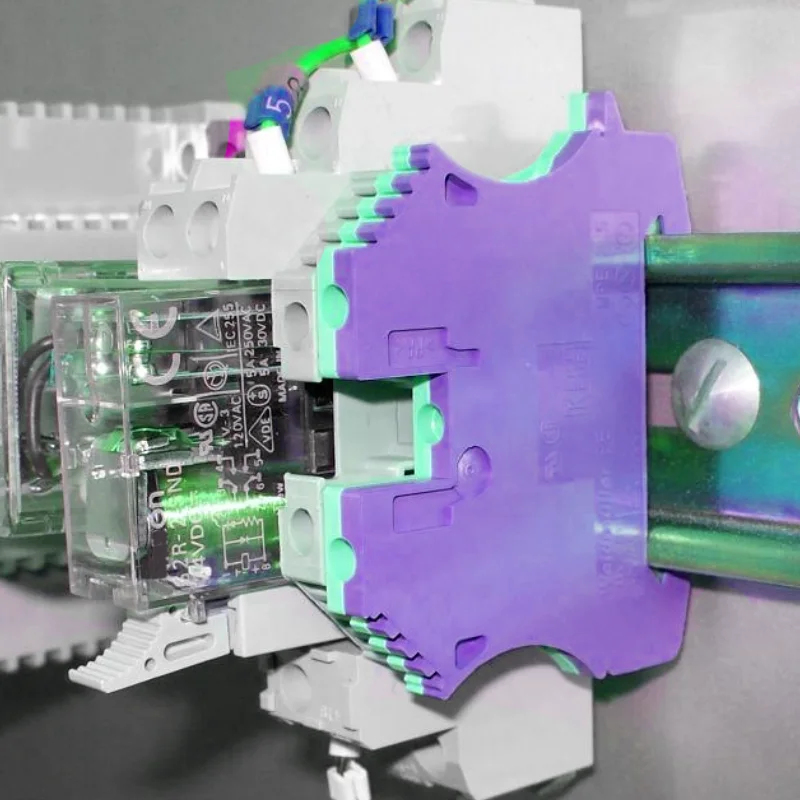

An Electrical Enclosure Din Rail is a standardized metal rail—typically made of zinc-plated steel, stainless steel, or aluminum—installed inside electrical enclosures, control cabinets, and telecom boxes. Its primary role is to provide a convenient, safe, and modular platform for mounting electrical and electronic components such as terminal blocks, circuit breakers, PLCs, relays, and other control devices.
How Does It Work?

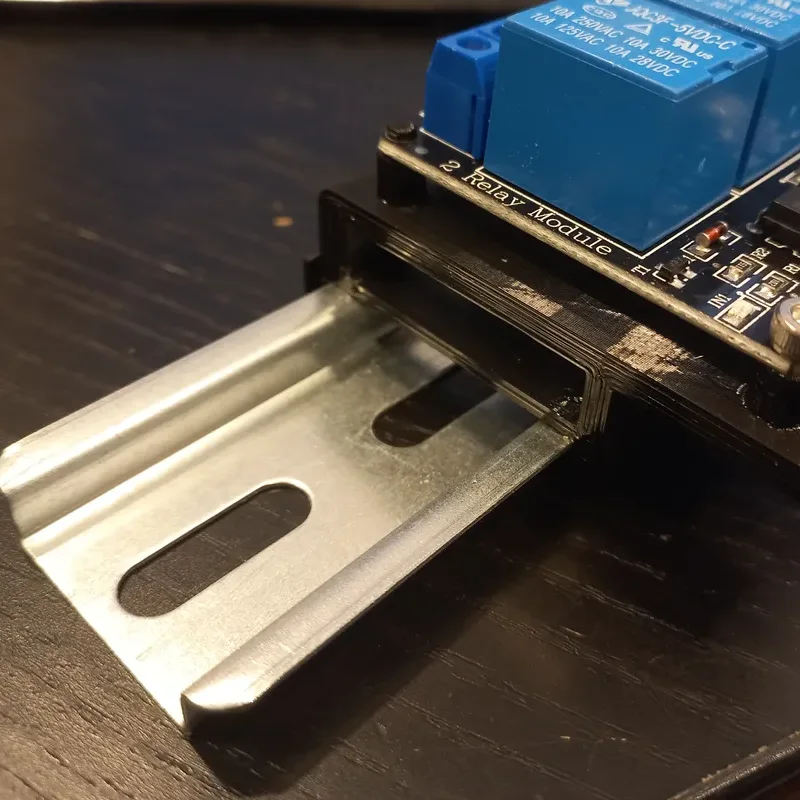

The DIN rail works as a mechanical support system. It is fixed horizontally or vertically inside an electrical enclosure. Once mounted, it serves as a snap-in mounting base for various components that come with specially designed clip-on or spring-loaded locking mechanisms.
These components are pre-engineered with DIN rail-compatible mounting feet—usually made of metal or plastic—that allow quick installation by snapping directly onto the rail. No screws or drilling are required, making installation and maintenance much faster and more standardized.
The rail ensures firm mechanical hold and vibration resistance, especially important in industrial and transport applications. It also allows for modular arrangement, meaning components can be added, removed, or repositioned without reworking the entire setup.
DIN rails are often used in combination with cable ducts and wire management systems, helping organize wiring neatly and reduce clutter inside the cabinet. This improves both safety and airflow, while also complying with international electrical panel standards such as IEC 60715.
For OEMs, panel builders, or distributors, this means a highly efficient, scalable system. Whether you’re handling small projects or industrial-scale installations, the DIN rail’s universal design makes it an essential backbone of modern electrical infrastructure.
| Feature | Function / Purpose |
|---|---|
| Material | Steel, stainless steel, or aluminum for strength and durability |
| Mounting | Fixed inside enclosure; horizontal or vertical orientation |
| Component Compatibility | Snap-on devices (breakers, terminals, relays, etc.) |
| Installation Method | Clip-in / spring-loaded feet – tool-free mounting |
| Flexibility | Easy to rearrange or add/remove components |
| Standard Compliance | Follows IEC 60715 or EN 50022 specifications |
| Use Case | Control cabinets, telecom boxes, energy systems |
| Benefits | Organized layout, time-saving, scalable system |
What are the Benefits of Electrical Enclosure Din Rail?
1. Fast and Flexible Installation
Electrical Enclosure Din Rails allow quick snap-in mounting of components like relays and breakers. No screws or drilling means less labor and faster cabinet assembly. Devices can be easily repositioned or replaced, making upgrades and maintenance much easier, especially in fast-paced industrial settings.
2. Organized and Safe Wiring
By keeping components neatly aligned and secured, DIN rails reduce wire clutter and improve airflow inside enclosures. This not only enhances heat dissipation but also minimizes the risk of short circuits or electrical failure. It’s a smarter, safer way to build and maintain control panels.
Customer Testimonials
FAQ of Electrical Enclosure Din Rail
What is an Electrical Enclosure Din Rail used for?
An Electrical Enclosure Din Rail is a standard metal strip inside electrical enclosures that allows quick mounting of devices like breakers, terminals, and relays. It helps organize equipment securely and enables easy maintenance or upgrades. This system reduces wiring mess and supports better cooling. Used in control cabinets, automation panels, and telecom setups, DIN rails help ensure safety and improve electrical efficiency.
What are the common types of DIN Rails?
There are mainly three types: Top Hat, C-type, and G-type rails. Top Hat is the most widely used for modular devices like circuit breakers. C-type is preferred in heavy-duty applications for stronger support. G-type offers unique mounting for certain systems. We offer all types, cut to length or standard lengths, with various finishes like zinc-plated or stainless steel.
Can I install a DIN rail inside any enclosure?
Yes, but you need to ensure your enclosure has enough depth and mounting slots. DIN rails are standardized but enclosures vary in structure. Most metal or ABS plastic boxes support DIN rail mounting. We offer rails with custom hole punching or brackets to fit different enclosure models, saving you installation time.
What is the material used in Electrical Enclosure Din Rails?
DIN rails are usually made of cold-rolled steel, stainless steel, or aluminum. Cold-rolled steel is commonly used with zinc-plating for corrosion resistance. Stainless steel offers high durability in harsh environments, including marine or outdoor systems. Aluminum is lighter and ideal for weight-sensitive panels. We manufacture all three with quality finishing.
How do I choose the right DIN rail size?
Consider your equipment type and enclosure dimensions. For example, TH35-7.5 is suitable for most circuit breakers, while C30 offers a stronger hold for heavy devices. We can guide you in selecting the correct width, height, and thickness based on your technical drawings or use case.
What makes Linkwellelectrics a reliable DIN rail manufacturer?
We specialize in DIN rail production with over 10 years of experience, supplying to OEMs and distributors globally. Our rails meet IEC standards and undergo quality control checks. We provide custom production, low MOQs, and full after-sales support, making us a trusted partner for long-term growth.
Can I get samples or custom drawings before placing a bulk order?
Yes. We offer free samples and technical drawing confirmation before production. This helps reduce risk and ensures your custom specs are 100% accurate. Our engineering team supports fast iteration if you need design changes.
Do you offer support for international wholesale distributors?
We help distributors with bulk branding, private label packaging, multi-language manuals, and barcoding. Our team is familiar with EU, US, and Asian markets. We make it easy to build and grow your own DIN rail line.
All-in-one Electrical Enclosure Din Rail Solutions for Your Project
We provide custom Electrical Enclosure Din Rail solutions to meet your exact specifications. You can choose from C-type, top-hat, or G-type rails, with specific lengths, hole patterns, surface finishes (zinc-plated, stainless steel), and branding options. Customization helps reduce installation time and enhance panel performance. We focus on cost-efficiency and durability, using certified materials that meet IEC/EN standards.
With our streamlined production and rapid delivery, we help you stay competitive in your local market. Partnering with us means high flexibility, better margins, and zero compromise on quality.
