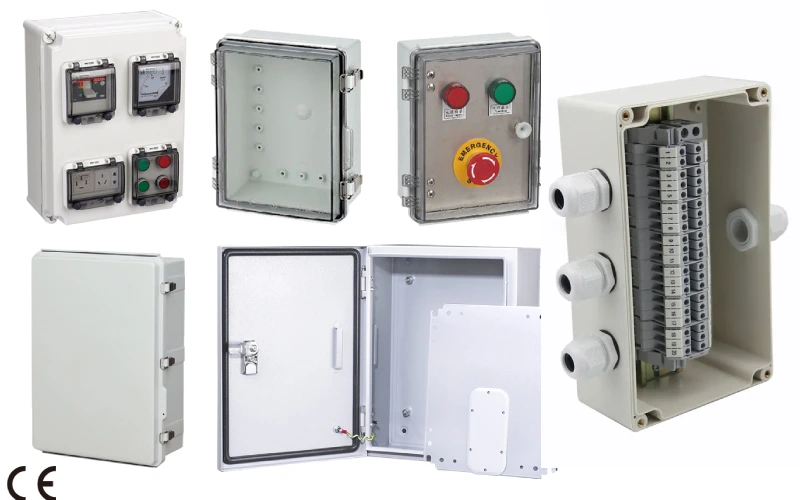

A terminal box waterproof keeps electrical connections safe from water and dirt. This box protects circuit breakers, fuses, and wiring terminals. It helps outdoor electrical connections work well in bad weather. More than 30% of equipment problems happen when water gets into wiring. Waterproof terminal boxes help stop these problems. They keep water away from important parts. You need terminal boxes waterproof for places where safety matters. They are good for both indoor and outdoor spaces.
Key Takeaways
- Waterproof terminal boxes keep wires safe from water and dirt. They help protect electrical connections outside and in tough places.
- Pick terminal boxes with high IP ratings for better safety. These boxes stop moisture and dust from getting in. This helps your equipment work well and not break.
- Linkwell screw terminals and cable glands make waterproof junction boxes work better. They help keep wiring safe and secure.
- Gel-filled waterproof junction boxes give extra safety in wet places. They keep wires dry and help your electrical systems last longer.
- Choose the right size and material for your terminal box. This depends on what you need. It helps your box work well and keeps things safe.
Terminal Box Waterproof Features and Components
Enclosure Design and Sealing
When picking a terminal box waterproof, check the enclosure design first. The box material is important for keeping water out. Here is a table that lists common materials and how they help stop water:
| Material | Contribution to Water Resistance |
|---|---|
| Plastic | Provides a lightweight and corrosion-resistant option. |
| Die-Cast Aluminum | Offers durability and good sealing properties. |
| Extruded Aluminum | Lightweight and resistant to corrosion, enhancing longevity. |
| Fiberglass | Strong and resistant to various environmental factors. |
| Steel | Provides strength but may require additional coatings for resistance. |
| Stainless Steel | Excellent corrosion resistance, ideal for harsh environments. |
You also need to look at the sealing system. Sealing rings like o-rings and gaskets make tight seals. These seals keep water from getting inside. Good design, the right material, and careful setup keep the box strong. IP ratings show how well the box blocks water and dust. A higher IP rating means better protection.
Tip: Always pick waterproof junction boxes with clear IP ratings. These ratings tell you if the box can handle rain, splashes, or being underwater.
Testing for waterproof junction boxes includes:
- IP Testing: Checks if dust or water can get in.
- NEMA Testing: Makes sure the box meets North American rules.
- In-House Testing: Uses water spray and dunking to copy real-life use.
Certifications like UL, CE, TÜV, RoHS, and ISO 9001 show the box is safe and high quality.
Linkwell Screw Terminal Integration
Inside a waterproof junction box, the connection points are important. Linkwell screw terminals give safe and steady wiring. These terminals use fire-resistant and waterproof designs. This keeps your wires safe, even in tough places. Here is a table with their main features:
| Feature | Benefit |
|---|---|
| Fire resistance | Safer wiring in hard places |
| Waterproof design | Good wiring for outside use |
You can use Linkwell screw terminals in control cabinets, outdoor panels, and telecom boxes. The terminals grip wires tightly, so they do not come loose. You can also use them again for changes later. This makes them a good pick for new jobs or upgrades. With Linkwell screw terminals, you know your waterproof junction box will work, even in bad weather.
Cable Entry with Plastic Cable Glands
The cable entry is often a weak spot in waterproof junction boxes. You need a strong seal where the cable goes in. Linkwell plastic cable glands fix this problem. They use a sealing insert or ring that squeezes the cable. This blocks water and dust. The glands have high IP ratings, like IP67 or IP68. This means they can handle rain, splashes, and short dips in water.
| Component | Function |
|---|---|
| Sealing Insert / Ring | Compresses around the cable to create a tight seal, preventing moisture ingress. |
| IP Ratings | Defines the sealing effectiveness against moisture; e.g., IP67 is water-resistant. |
You can put these glands in fast. They fit many cable sizes and types. This makes them great for factories, outside, and gel-filled waterproof junction box setups. When you use Linkwell cable glands, your waterproof junction boxes stay sealed and safe.
Note: Always match the cable gland size to your cable for the best seal. This step keeps your terminal box waterproof and your connections dry.

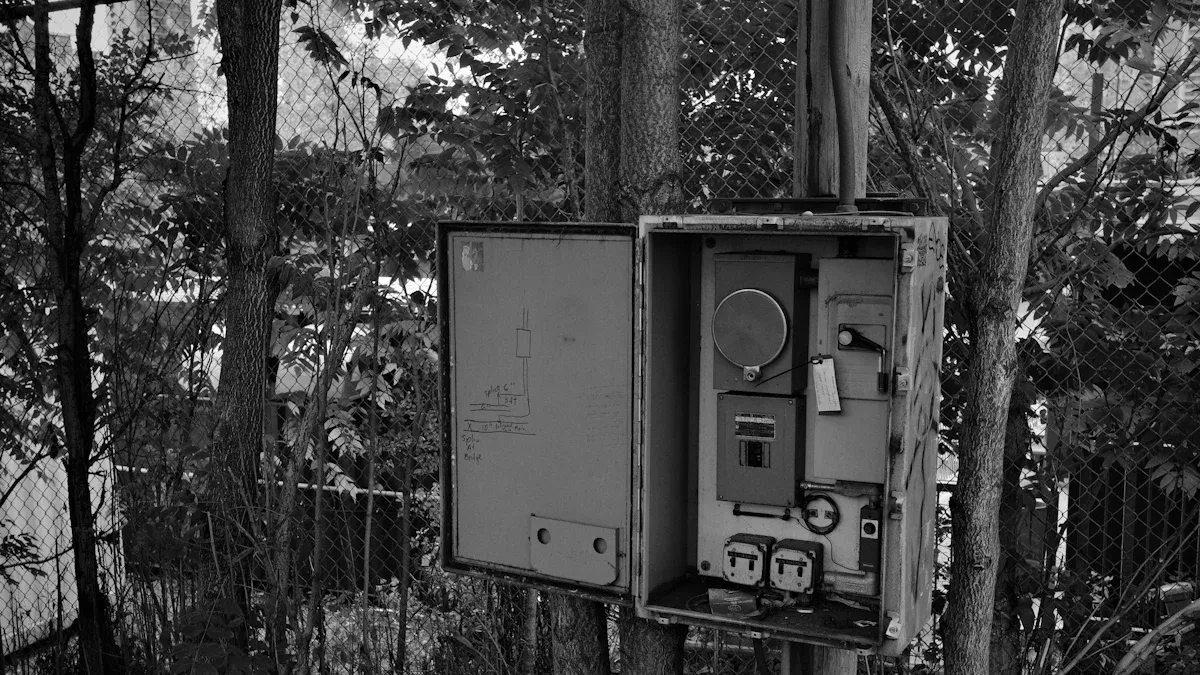

How Waterproof Junction Box Protects Connections
Moisture and Dust Resistance
Electrical connections need strong protection in tough places. Waterproof junction boxes make a safe space for wires. They keep out water and dust. The IP68 rating means the box blocks water and dirt very well. This rating shows it works even outside in bad weather. Special seals and gaskets close up the box tightly. These parts stop water and dust from getting inside. You do not need extra gel or resin most of the time. The box alone keeps wires dry and safe. Using a terminal box waterproof lowers the chance of rust and power problems. Your system keeps working, even when the weather is bad.
Tip: Use waterproof junction boxes outside, in wet spots, or dusty places. This keeps your equipment safe and saves money on repairs.
Gel-Filled Waterproof Junction Box Mechanisms
Some places need more protection for wires. Gel-filled waterproof junction boxes use special ways to block water. The table below explains how these work:
| Mechanism | Function |
|---|---|
| Silicone-based gel | Covers the wires and makes a tight seal to stop water. |
| Flexibility of the gel | Lets you reach wires but still keeps water out. |
| Comprehensive seal | Stops air and water, so parts last longer. |
The gel covers the wires and terminals. It keeps out water and air. You can still get to the wires if you need to fix them. This helps the electrical junction box last longer. You stop rust and keep your system safe.
Linkwell Terminal Block Connector Reliability
You need strong connections in wet or dusty places. Linkwell terminal block connectors work well in these spots. Here are the main reasons they are good:
- Made for strong and safe connections in wet places.
- Use seals like gaskets, O-rings, or potting to block water.
- Built from tough, UV-resistant materials.
- Have high IP ratings.
- Seal well and resist rust.
- Strong cases and tight locks.
Linkwell connectors stop water, dust, and other dangers. The materials do not break down in sunlight or chemicals. The design keeps wires tight and safe. You get fewer problems and longer life for your waterproof junction boxes. You can trust Linkwell to make good products that protect your wires.
If you do not use waterproof protection, things can go wrong. Rust, wear from use, and bent contacts are common problems. Dust and water can make connectors break early. You avoid these issues by picking waterproof junction boxes with Linkwell parts.
Benefits of Waterproof Electrical Junction Boxes
Enhanced Safety and Longevity
Using a terminal box waterproof helps keep your electrical system safe. These boxes block water, dust, and dirt. This stops short circuits, shocks, and fires. They also protect against rain, snow, and heat. The table below shows how these boxes help keep things safe:
| Safety Benefit | Description |
|---|---|
| Protection Against Harsh Weather | Keeps electrical parts safe from rain, snow, heat, and humidity. This stops rust and damage. |
| Reduced Risk of Electric Shock and Fire | Stops people from touching wires. This lowers the chance of shocks and fires outside. |
| Waterproof and Dustproof Protection | Blocks water and dirt. This helps stop short circuits and other problems. |
| Tamper-Proof Features | Has locks to keep people out. This makes public and work areas safer. |
| Long-Term Durability | Protects wires from weather and damage. This helps electrical systems last longer. |
| Physical Protection | Keeps parts safe from bumps and hits in rough places. |
Waterproof electrical junction boxes last longer than regular boxes. They do not break down in sunlight. You do not need to fix them often. This saves you money because you do not buy new ones a lot. The table below shows how waterproof boxes compare to regular ones:
| Feature | Waterproof Junction Boxes | Standard Boxes |
|---|---|---|
| Protection Against Moisture | Yes | No |
| Protection Against Dust | Yes | Limited |
| UV Radiation Resistance | Yes | Limited |
| Durability | High | Moderate |
| Maintenance Frequency | Low | High |
| Cost Efficiency | Saves money over time | Needs more replacements |
Versatility for Industrial Applications
You can use a waterproof junction box in many places. It works for outdoor lights, HVAC systems, and tough spots. These boxes do well in hot, cold, dusty, or rainy areas. You also see them where safety rules are strict, like in public or factory spaces. If you are not sure when to use one, pick it for places with water, dirt, or changing weather. Gel-filled waterproof junction box types give extra help in wet or dirty spots.
- Outdoor lighting: Keeps wires safe from rain and sun.
- HVAC systems: Stops dust and water from hurting wires.
- Harsh environments: Protects against dirt, water, and bumps.
Linkwell Quality and Certifications
If you choose Linkwell, you get boxes that meet top safety rules. Linkwell waterproof junction boxes have certifications like UL, CE, CCC, and ROHS. These show the boxes are safe and work well. You also see ratings like IEC60529, IP54, and IP67. These ratings mean the boxes block dust and water, even outside or in hard places. Linkwell is a trusted maker. You get the good things about waterproof junction boxes for every job.
Note: Always look for these certifications when you pick an electrical junction box. Certified boxes help you build safer and longer-lasting systems.
Types and Materials of Waterproof Junction Boxes
Plastic vs. Metal Enclosures
When picking a waterproof junction box, think about the material. Plastic and metal enclosures are different. Plastic enclosures are light and easy to move. Metal enclosures, like aluminum, are strong and last longer. The table below shows how they compare:
| Feature | Plastic Enclosures | Metal Enclosures (Aluminum) |
|---|---|---|
| Durability | Less durable, can crack under impact | Highly durable, resistant to physical damage |
| Weight | Lightweight, beneficial for portable applications | Heavier, which may be a disadvantage in some cases |
| Cost | Generally cheaper, especially in bulk | More expensive due to material and manufacturing |
| Heat Dissipation | Poor heat dissipation | Excellent heat dissipation, prolongs component lifespan |
| EMI Shielding | Limited EMI shielding capabilities | Effective EMI shielding, essential for sensitive electronics |
| Corrosion Resistance | May degrade under UV exposure | Naturally resistant to corrosion, ideal for outdoor use |
| Design Flexibility | High design flexibility, can be molded easily | Limited design flexibility compared to plastic |
Plastic enclosures are good for inside use or when weight matters. Metal enclosures protect your electrical junction box outside in rough places. Pick the right enclosure for your job.
Gel-Filled Waterproof Junction Box Options
Sometimes you need more protection for your wires. Gel-filled waterproof junction box types keep water away from wires. The gel stops water from getting in. This keeps your system safe, even if the box gets wet. Check the table to see the differences:
| Type of Junction Box | Protection Level | Application |
|---|---|---|
| Gel-filled Junction Box | Exceptional water resistance | Versatile for various electrical installations |
| Standard Weatherproof Box | Limited water resistance | Basic outdoor applications |
When you pick a gel-filled waterproof junction box, look at these things:
- Size and how much it holds
- IP rating
- Material quality
- Gel features
- How easy it is to install
- Manufacturer’s reputation
- If it fits your needs
Gel-filled boxes are best for wet places. You can feel sure your wires will stay dry.
Linkwell Product Range
You want waterproof electrical junction boxes you can trust. Linkwell has many kinds of waterproof junction boxes. You can get plastic, metal, or gel-filled types. Each one meets high quality standards. Linkwell makes electrical enclosure solutions for outside, factories, and telecom jobs. These products last long and keep your connections safe. Linkwell’s choices help you build strong and safe systems.
Tip: Always pick a trusted brand like Linkwell for your waterproof junction boxes. You get better safety and help for every job.
Choosing the Right Waterproof Terminal Box
Application and Environment Considerations
Think about where you will use your waterproof terminal box. Different places need different features. Outdoor areas can have rain, dust, or strong sunlight. Indoor spaces may need protection from moisture or chemicals. Here are some things to think about:
- Material: Pick a box made from strong plastic or metal. These materials do not rust and last longer.
- Protection Rating: Choose a high IP rating like IP65 or more. This keeps water and dust out.
- Size and Capacity: Make sure the box is big enough for your wires.
- Installation Methods: Decide if you want a box on the wall or inside it.
How you use the box also matters. The table below shows which features fit different needs:
| Feature | Description |
|---|---|
| IP Rating | IP65 or higher keeps water and dust out. |
| Material | ABS or polycarbonate work well in tough places. |
| Cover Style | Clear, hinged, or screw covers help you see inside. |
| Internal Configurations | Pick what works for your cables and mounting. |
Sometimes you need to see inside the box. If you use a button box, a clear cover is best.
Sizing and Capacity
Getting the right size is important. If the box is too small, wires can get crowded. Crowded wires can get hot. Follow these steps to pick the right size:
- Count how many wires go in the box.
- Check the size of each wire.
- Add up the space for all wires.
- Include space for devices or fittings.
- Add space for grounding wires.
- Make sure the box has enough room.
Pick a box that fits your wires and leaves extra space. This helps keep cables neat and dry. It also stops problems like water getting in or wires getting too close.
Linkwell Support and Custom Solutions
Sometimes you need special features for your project. Linkwell helps you find the best waterproof junction box. The company offers:
| Support Aspect | Description |
|---|---|
| Expert Technical Team | Helps you pick, install, and take care of your box. |
| Understanding Customer Needs | Listens to what you need and suggests good options. |
| Customized Solutions | Makes boxes with custom sizes, openings, colors, and logos. |
| Sample Provision | Gives you samples and plans to help you choose. |
Linkwell gives you good service and helps you pick the right box. You can get boxes with special openings, materials, or your own logo. This makes Linkwell a good choice for waterproof junction boxes. You get strong boxes and help for every project.
Tip: Always ask experts for help with custom boxes. This keeps your setup safe and makes sure it works well.
Waterproof terminal boxes keep your electrical systems safe. They stop water, dust, and damage from getting in. These boxes have strong seals and tough materials. They also have high IP ratings. Here is a table that shows why these features matter:
| Feature | Importance |
|---|---|
| Sealing Mechanism | Blocks water and dust |
| Material Construction | Lasts in harsh weather |
| IP Rating | Shows level of protection |
Pick Linkwell for boxes that are tested and certified. These boxes help keep your equipment safe. If you need products, call Linkwell at +86-15599094304 or email linkwell@linkwellcn.com. You can get expert help from a trusted company.
FAQ
What does a waterproof terminal box do?
A waterproof terminal box keeps wires dry and safe. It stops water, dust, and dirt from getting in. People use it to protect wires outside or in tough places.
How do I know if a terminal box is truly waterproof?
Look for the IP rating on the box. IP65, IP67, or IP68 means it protects well. You can also check for UL or CE certifications for more trust.
Can I use a waterproof terminal box indoors?
Yes, you can use it inside. It works great in wet places like basements or factories. This gives your wires extra safety.
What size terminal box should I choose?
First, count your wires and devices. Pick a box with enough space for everything. Leave some extra room for easy wiring and future changes.
Why should I choose Linkwell for waterproof terminal boxes?
Linkwell is a trusted company with good products. Their boxes are certified and work for many jobs. You also get expert help and custom options for your needs.
