You need reliable electrical control panel components to keep systems safe and running smoothly. These components include PLCs, HMIs, circuit breakers, contactors, relays, terminal blocks, push buttons, indicators, wiring, and surge protectors. Each electrical control panel component plays a crucial role in automation, power distribution, and safety. Understanding how these components work together allows you to troubleshoot effectively and create better designs. Proper panel design and organized setup are essential for maintaining safety. Linkwell’s electrical control panels and power distribution boxes offer excellent options tailored for any application.
Key Takeaways
- Electrical control panels have parts like circuit breakers, relays, PLCs, and HMIs. These parts help control machines and keep them safe.
- Picking the right panel and parts is important. Following safety rules and using good wiring helps systems work well. It also makes fixing things easier.
- A good panel design puts parts together by what they do. It keeps wires tidy and leaves room for upgrades and cooling.
- Checking panels often and using clear labels helps find problems early. This makes fixing things faster and safer.
- Linkwell makes custom panels and gives expert help for any industry. This helps machines work safely and well.
Electrical Control Panel Overview
What Is a Control Panel
A control panel is a box that holds electrical parts and wires. You use it to control how electricity goes to machines or lights. Inside, there are switches, relays, circuit breakers, and sometimes computers called PLCs. The control panel is where you turn things on or off. It helps keep everything safe and working. When you open the panel, you see neat rows of parts and wires. This makes it easier to control and protect your equipment.
Core Functions
The main job of a control panel is to control and protect electrical systems. You use it to start or stop machines and check their status. It keeps machines safe from problems like too much power or short circuits. Control panels must follow rules from groups like UL and the NEC. These rules help make sure your panel is safe and works well. The panel connects to other devices with terminal blocks and connectors. This gives strong connections that last a long time, even in hard places. Inside, you find safety features like emergency stops, interlocks, and grounding. These help prevent accidents and keep your system working.
Tip: Always make sure your control panel follows industry rules. This keeps things safe and makes fixing problems easier.
Applications
Control panels are used in many places. Factories use them to run machines and conveyor belts. Water plants use them to control pumps and valves. Power stations use control panels to manage electricity. Food and drink companies use them for packaging and processing. Here is a table that shows where different control panels are used:
| Type of Control Panel | Industries Used In | Typical Applications |
|---|---|---|
| Motor Control Center (MCC) | Manufacturing, Power Stations, Water Plants | Central motor control, pumps, fans |
| PLC Control Panel | Manufacturing, Food & Beverage, Water | Assembly lines, conveyor systems |
| Relay-based Control Panel | Mining, Oil & Gas, Construction | Simple on/off control, lighting, HVAC |
| SCADA Panel | Utilities, Transportation, Manufacturing | Remote monitoring, large-scale plants |
| Custom Control Panel | Outdoor, High-Temp, Hazardous Areas | Special protection, cooling, harsh settings |
You can find a control panel in almost every industry. Each one is made to fit the place and equipment it controls.
Electrical Control Panel Components
Main Circuit Breaker
The main circuit breaker is the first thing that keeps your panel safe. You use it to turn off all power when you need to fix something or if there is an emergency. This breaker keeps your system safe from dangerous problems. Here are the main safety features of a main circuit breaker:
- Overload protection stops the wires from getting too hot.
- Short circuit protection turns off power right away if there is a problem.
- Ground fault protection helps stop shocks and keeps equipment safe.
- Arc fault protection finds dangerous sparks.
- Under voltage and overvoltage protection keep your equipment working right.
- Remote monitoring lets you check and control the breaker from far away.
- Mechanical interlocks stop you from doing unsafe things.
- Dual rating means you can use it safely in different places.
- Diagnostic features help you test and take care of the breaker.
You should always turn off branch breakers before you turn off the main breaker. Wear gloves and glasses to stay safe when you work inside the panel. Main circuit breakers can break because of lightning, power surges, too much power, or old wires. Linkwell’s panels use main breakers that are certified and meet UL and IEC rules. This gives you good protection and peace of mind.
Branch Breakers and Fuses
Branch breakers and fuses protect each circuit in your panel. If a circuit uses too much power or has a short, these devices stop the flow. This keeps wires and equipment from getting hurt. You can turn breakers back on after they trip, but you must put in a new fuse if it blows. Both types follow NEC and UL safety rules. Linkwell’s panels use strong breakers and fuses to keep each circuit safe.
Tip: Always pick the right size for your breakers and fuses. This helps stop false trips and keeps your system safe.
Surge Arresters
Surge arresters keep your panel safe from voltage spikes. Spikes can come from lightning or power surges. Surge arresters take in extra energy and keep it away from important parts. You should pick surge arresters that meet UL1449 and IEC rules. Put Type 1 surge arresters at the main entrance and Type 2 near important equipment. Using both types gives your panel the best safety. Linkwell’s power boxes make it easy to add surge arresters and follow safety codes.
| UL Mark Type | SPD Type | Suitable Ratings | Notes |
|---|---|---|---|
| Listed | Type 1, Type 2 | Yes | Matches panel ratings; standard UL inspection applies |
| Recognized | 1CA, 2CA, 4CA, 5 | Yes | Needs extra testing and evaluation |
Transformers and Power Supplies
Transformers change voltage to match what your equipment needs. You use them to lower high voltage to safer levels for control circuits. Power supplies change AC power to DC for things like relays, PLCs, and indicators. Good transformers and power supplies keep your panel working well. Linkwell has small, strong transformers that are safe for factories. These parts help you avoid voltage problems and keep your systems safe.
Power Distribution Blocks
Power distribution blocks split one power source into many circuits. You use them to keep wires neat and share power safely. These blocks work with different wire sizes and types. They often have covers to stop you from touching live parts. You can put them on DIN rails or right in the panel. Power distribution blocks help you balance loads and make upgrades easier. Linkwell’s panels use blocks that meet UL and IEC rules, so installation is safe and simple.
- Keep wiring neat for easy fixing
- Support many output circuits
- Make things safer with covers
- Let you add new equipment quickly
Terminal Blocks
Terminal blocks connect wires inside your panel. You use them to join, split, or organize circuits. There are many kinds of terminal blocks, and each has its own good points:
| Terminal Block Type | Description | Advantages |
|---|---|---|
| Barrier Strips | Separated by barriers, use screws or clamps | Good for high voltage and vibration |
| Feed-Through | Two input sides, screw connection | Saves space, organizes large wiring bundles |
| Spring-Cage | Uses spring force to clamp wires | Fast assembly, handles vibration well |
| Push-In Terminals | Tool-free wire insertion and release | Quick install, ideal for frequent changes |
| Screw Terminals | Screws clamp wires securely | Reliable, fits many wire sizes |
Pick terminal blocks that fit your job. Linkwell’s panels use strong terminal blocks for safe, neat wiring.
Relays and Contactors
Relays and contactors help automate your control panel. Relays control small circuits and send signals to other devices. Contactors handle bigger currents and turn motors or heavy loads on and off. Both help make things automatic and safer. Safety contactors have linked contacts that open together, so nothing turns on by mistake. Auxiliary contacts let you check circuit status and send alerts if something is wrong. Linkwell’s panels use certified relays and contactors for safe automation.
- Relays control signals and small loads
- Contactors switch big loads like motors
- Safety contactors make shutdowns safe
- Auxiliary contacts give feedback on status
Motor Drives
Motor drives control how fast and which way motors turn. Modern drives, like VFDs, save energy and help machines work better. You can use one drive for many motors. New drives have features like Safe Torque Off, energy saving, and real-time checks. Some use smart chips for better control and connect to IoT for remote checks. Linkwell’s panels work with the newest motor drives to help you save energy and reduce downtime.
Programmable Logic Controller (PLC)
A PLC is like the brain of your automation system. You use it to read sensors and send commands to things like relays, motors, and lights. PLCs do jobs like timing, sequencing, and process control. They can talk to many devices and be programmed for different tasks. PLCs work well even in tough places and keep your system running. Linkwell’s panels have space and wiring for easy PLC setup, for both simple and hard jobs.
| Primary Function | Description |
|---|---|
| Central Control | Manages all automation tasks |
| Input/Output Management | Handles signals from sensors and to actuators |
| Communication | Connects to networks and other devices |
| Rugged Design | Works in dusty, hot, or wet places |
Network Switches
Network switches connect all smart devices in your panel. You use them to link PLCs, HMIs, sensors, and drives. Good switches are reliable, support wide voltage, and have strong cases. Look for features like Quality of Service, surge protection, and easy mounting. Managed switches let you control network traffic. Unmanaged switches are easy to use. Linkwell’s panels let you mount switches on DIN rails for quick and neat setup.
- Pick switches that are reliable and have good support.
- Choose strong switches for tough places.
- Make sure there are enough ports for future needs.
- Use PoE if you want to power devices through network cables.
Human-Machine Interface (HMI)
The HMI is how you see and control your panel. You use it to check data, alarms, and system status. HMIs help you find problems fast and fix them. They show how things are working and let you change settings with a touch or click. HMIs also let you check your system from far away. Linkwell’s panels make it easy to add HMIs, making things safer and more efficient.
- HMIs show machine states and production data
- They bring together data from PLCs, sensors, and other systems
- Operators can control processes right from the HMI
- Real-time alerts help stop accidents
Push Buttons and Pilot Lights
Push buttons and pilot lights are simple but important parts of your panel. You use push buttons to start or stop machines. Pilot lights show if equipment or circuits are on or off. Color codes help you know what each button or light means. Red means stop or emergency, green means start or safe, and yellow means warning. Putting buttons and lights together makes things easier and safer. Linkwell’s panels use clear labels and smart layouts for all buttons and lights.
| Component | Function | Color Code (IEC 60073) |
|---|---|---|
| Push Button | Start/Stop machine functions | Green (start), Red (stop) |
| Pilot Light | Shows equipment or process status | Red (emergency), Green (normal), Yellow (warning) |
| Ergonomics | Easy to see and reach | Central location for emergency stop |
Note: Always use the right color codes and group controls in a smart way. This helps stop mistakes and keeps things safe.
How Control Panel Components Work Together
Power Distribution Flow
First, the main power comes into the control panel. The main circuit breaker keeps everything safe. Power goes to branch breakers and fuses next. These protect each circuit from problems. Transformers lower the voltage for sensitive devices. Power distribution blocks split power into different circuits. Terminal blocks help keep wires neat and safe. Enclosures and back panels protect parts from dust and water. Wire ducts keep cables tidy and stop short circuits. Linkwell’s panels use strong boxes and smart designs for safe power flow.
- Enclosures protect parts from harm.
- Transformers change voltage for each circuit.
- Wire ducts and terminal blocks keep wires neat and safe.
- Power distribution blocks let you add or change circuits easily.
Automation and Control
Automation makes control panels work better. Relays and contactors turn circuits on and off. PLCs are like brains and run programs for machines. Push buttons and switches send signals to relays. Relays then control motors or pumps. Motor drives change speed and direction to save energy. Network switches link PLCs, HMIs, and other devices. This helps everything talk to each other. In factories, you can set schedules and use sensors for automatic control. You can also manage lights or HVAC systems. Linkwell’s panels have good relays, PLC wiring, and room to grow.
- Relays and contactors turn circuits on and off safely.
- PLCs run tasks and watch equipment.
- Motor drives help machines use less energy.
- Network switches help devices talk for automation.
Monitoring and Feedback
It is important to know what happens inside your control panel. HMIs show data, alarms, and system status right away. Sensors collect things like temperature, speed, and energy use. The panel watches each circuit and gives feedback with lights and alarms. New panels use IoT sensors and cloud links for remote checks. In factories, real-time feedback helps you fix problems fast. This keeps everything working well. Linkwell’s panels make it easy to add HMIs and sensors for better checks.
Tip: Watching your panel in real time and getting clear feedback helps stop problems and keeps things safe.

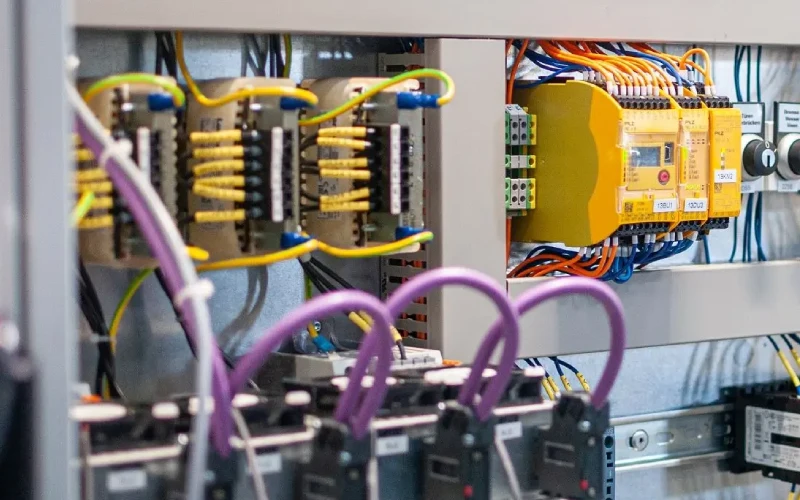

Wiring and Maintenance
Good wiring keeps your panel safe and easy to fix. Use the right wire size and type for each circuit. Keep wires neat with wire ducts and label everything. Separate high-voltage and low-voltage wires to stop interference. Ground wires the right way to prevent shocks. Check wires often to find loose or old ones before trouble starts. Linkwell’s panels use labeled terminals, cable trays, and clear layouts for easy fixing. In factories, neat wiring means faster repairs and less downtime.
- Use the right wire size and cover for each circuit.
- Keep wires neat with ducts and trays.
- Label wires and terminals to help find problems.
- Separate and ground wires to stop hazards.
Types of Electrical Control Panels
You can find different control panels in electrical systems. Each panel has its own design and job. Knowing these differences helps you pick the right panel. Here is a table that shows how general, industrial, and motor control panels are different:
| Control Panel Type | Design Focus | Typical Application Areas |
|---|---|---|
| General Control Panels | These panels use PLCs as the main controller. They have logic controllers, I/O modules, communication parts, and safety devices. They are made for easy growth and central control. | Used in automated factories, robotics, biotech labs, energy plants, and places needing process control. |
| Industrial Control Panels | This group includes PLC panels, VFD panels, MCCs, and custom panels. They are built for tough automation, safety, and mixing many control types. They must follow strict rules and have clear plans. | Used in aerospace, food and drink, energy, biotech, data centers, and factories needing strong automation and safety. |
| Motor Control Panels (MCCs) | These panels control and protect many motors together. They have starters, contactors, overload relays, circuit breakers, and sometimes VFDs and PLCs. They focus on easy motor control and safety. | Used in big factories, warehouses, water plants, oil and gas, and places with lots of motors needing central control. |
General Panels
General control panels use PLCs to run machines and processes. You see these panels where automation must be strong and easy to grow. They have logic controllers, input and output modules, and safety parts. You can use general panels in factories, robotics, and labs. These panels let you control many jobs from one spot. Linkwell makes general panels that you can change to fit your needs.
Industrial Panels
Industrial control panels work for many jobs. You find them in aerospace, food making, energy, and data centers. These panels mix different control types like PLCs, VFDs, and MCCs. They follow tough safety and design rules. Industrial panels help with hard automation and keep things safe. Linkwell gives you panels that fit your industry’s needs. Their panels are easy to change for any job.
Motor Control Panels
Motor control panels, called MCCs, help you run and protect many motors at once. These panels have starters, contactors, overload relays, and circuit breakers. You use them in big factories, water plants, and oil and gas places. Motor control panels make it simple to control motors from one place. Linkwell builds motor control panels that you can upgrade and trust for automation.
Tip: Pick control panels that fit your system’s needs. Linkwell can make any panel to match your project or industry.
Enclosure and Safety
Enclosure Types
Picking the right enclosure keeps your control panel safe. The enclosure stops dust, water, and accidents from hurting equipment. Different jobs need different enclosures. Free-standing enclosures are good for big factories. Wall-mounted enclosures save space in small rooms. Floor-mounted enclosures hold heavy things in power plants. Modular enclosures let you add or change parts as you need. The material is important too. Polycarbonate and ABS plastic are light and tough. Aluminum and stainless steel last longer in wet or rough places. Carbon steel is strong and costs less.
| Enclosure Type | Protection Features | Typical Applications |
|---|---|---|
| NEMA 1 | Basic indoor protection against dust and contact | Indoor electrical equipment |
| NEMA 3 | Outdoor protection from rain, snow, and ice | Outdoor junction boxes |
| NEMA 4 | Watertight, dust-tight | Industrial outdoor systems |
| NEMA 6/6P | Temporary or prolonged water immersion | Power plants, mines |
| NEMA 7 | Explosion-proof for hazardous areas | Chemical plants, oil & gas |
| NEMA 12 | Indoor dust and splash protection | Manufacturing, machining |
| Material | Key Properties | Typical Applications |
|---|---|---|
| Polycarbonate | Impact resistant, UV stable | IT, electronics, outdoor use |
| ABS Plastic | Durable, heat resistant | Indoor boxes |
| Aluminum | Corrosion resistant, shields EMI | Harsh environments |
| Stainless Steel | Fire and wet resistant | Wet, corrosive areas |
| Carbon Steel | Strong, cost-effective | General industry |
Environmental Ratings
You must pick an enclosure that fits the place it goes. NEMA and IP ratings show how much protection your panel gets. NEMA 1 is for dry indoor spots. NEMA 3 and 3R keep out rain and snow outside. NEMA 4 and 4X block water and dust, and 4X also stops rust. NEMA 6 and 6P can handle being under water. NEMA 12 and 13 keep out dust, oil, and drips in factories. IP ratings have two numbers. The first number shows dust safety. The second number shows water safety. Bigger numbers mean better protection. Linkwell’s enclosures meet IP65/IP66 and NEMA rules, so your equipment stays safe.
- NEMA 1: Indoor, dust protection
- NEMA 3: Outdoor, rain and snow
- NEMA 4/4X: Watertight, dust-tight, corrosion resistant
- NEMA 6/6P: Water immersion
- NEMA 12/13: Dust, oil, splash protection
Grounding
Good grounding keeps your control panel safe. Grounding stops shocks and keeps signals clear. Always connect the ground bus to a real ground. Do not use old metal pipes or armored cable for grounding. Use shielded cables to block signal problems. Keep sensitive wires away from high-power wires. Label all ground wires and put on warnings. Good grounding helps safety devices work and keeps your system running well. Linkwell’s panels follow strict grounding rules for safety.
- Use shielded cables for less interference
- Separate sensitive and high-power wiring
- Label ground wires and add warnings
Safety Standards
You must follow safety rules when you build control panels. UL 508A is the main rule in North America. NEMA 250 is for enclosures. NFPA 70 and NFPA 79 set wiring and machine rules. OSHA rules keep workers safe. UL 60947-4-1 is for global safety. These rules say you need enough space, good lights, and safe-to-touch parts. You must label wires and devices for easy fixing. Linkwell’s panels meet UL, IEC, and NFPA rules. This keeps your equipment safe and ready for checks.
- UL 508A: Industrial control panels
- NEMA 250: Enclosure ratings
- NFPA 70/79: Wiring and machinery safety
- OSHA: Worker protection
- UL 60947-4-1: International compliance
Tip: Always check if your panel meets the newest safety rules. This keeps your team and equipment safe.
Best Practices for Control Panel Design
Layout and Organization
Group parts by what they do and how hot they get. Also, group them by the kind of current they use. This helps stop short circuits and makes fixing things easier. Always leave extra space inside the panel. This space is for safety, cooling, and adding new parts later. Plan for about 20% more space than you need now. Put hot devices close to fans or heat sinks. This helps keep the panel cool. Keep high-voltage and low-voltage areas apart. This stops them from bothering each other. Use modular parts and DIN rails to keep things tidy. These make it easy to reach and change parts. Always follow grounding rules to stay safe and protect your equipment.
Tip: A good layout helps you find problems fast and keeps your panel safe.
Labeling and Cable Management
Clear labels save time and help stop mistakes. Use strong, easy-to-read labels for all wires and breakers. Also, label conduits so you know what they are for. Color-coded labels help you tell wires apart. For example, you can use different colors for power, control, or ground wires. Put labels at every place where wires join or end. This makes them easy to see. Pick labels that can handle heat, water, and chemicals. Protect wire labels with wraps or heat-shrink tubing. This keeps them easy to read. Keep your panel’s paperwork up to date. This helps when you need to fix or upgrade things. Always follow safety rules for labeling, like NEC and OSHA.
- Use cable trays and wire ducts to keep wires neat.
- Do not pack too many wires together. This stops overheating.
- Change labels if you change anything in the panel.
Inspection and Troubleshooting
Check your control panel often to keep it working well. Always turn off the main power before you start. Wear safety gear to protect yourself. Look for damage, rust, or burn marks on the panel. Make sure all wire connections are tight, especially at the ground and neutral bars. Use a multimeter to check voltage at the main and branch breakers. Look at wires for cuts, fraying, or signs of getting too hot. Test all lights and indicators to see if they work. If you hear buzzing or see flickering lights, check for loose parts or too much power use. Reset any tripped breakers and listen for strange sounds. If you find big problems or feel unsure, call a professional for help.
| Inspection Step | What to Check For |
|---|---|
| Visual Inspection | Damage, rust, burn marks |
| Connection Check | Loose wires, tightness |
| Voltage Testing | Correct voltage at breakers |
| Indicator Test | Working lamps and indicators |
| Grounding | Secure and labeled ground wires |
Expert Support
You do not have to do everything by yourself. Linkwell can help with design, custom panels, and fixing problems. Their team helps you pick the right layout and safe parts. They also help set up indicators so you can watch your panel easily. You can get panels made just for your needs. These panels have clear labels and neat wiring. Linkwell gives fast help if you need repairs or upgrades. With their help, your control panels stay safe, work well, and are ready for the future.
Note: Good help and regular checks help you avoid costly downtime and keep your system running well.
Every control panel part helps your system stay safe and work well. If you design and organize your panel clearly, it is easier to use and fix. Always follow safety rules and pick good parts. When you choose and set up parts, remember these things:
- Check how much power and load you need
- Think about upgrades you might want later
- Choose panels with ratings that fit your job
- Use layouts that make fixing things simple
- Pick vendors you trust and who help you
If your project is hard or special, Linkwell can help you at every step.
FAQ
What is the main job of an electrical control panel?
You use an electrical control panel to manage and protect machines or systems. The panel lets you turn equipment on or off, control power flow, and keep everything safe from electrical problems.
How do you choose the right control panel for your project?
You start by listing your power needs and the number of circuits. Think about where you will install the panel. Pick a panel with the right safety ratings. Linkwell can help you design a custom solution.
Why is grounding important in a control panel?
Grounding keeps you safe from electric shocks. It also helps your equipment work better by stopping unwanted signals. Always check that your panel has a strong and clear ground connection.
How often should you inspect your control panel?
You should inspect your control panel every six months. Look for loose wires, signs of damage, or overheating. Regular checks help you find problems early and keep your system running well.
Can you use Linkwell panels outdoors?
Yes, you can use Linkwell panels outdoors. They offer enclosures with IP65 or IP66 ratings. These ratings protect your equipment from dust and water. Always choose the right enclosure for your environment.
Conclusion

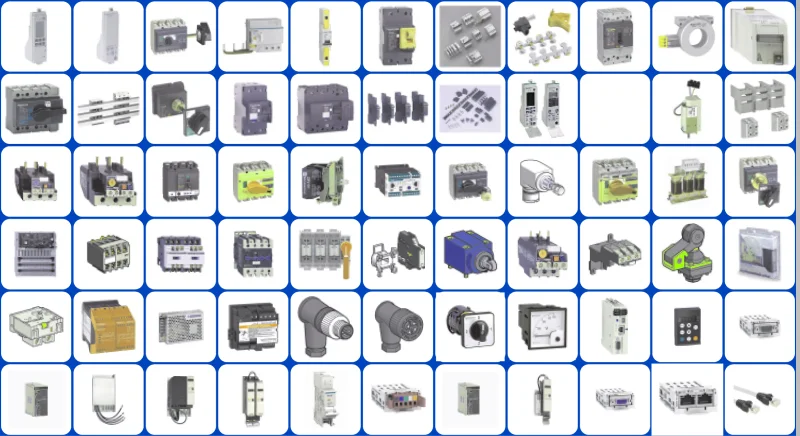

A complete and accurate Electrical Panel Parts List is essential for safe, efficient, and reliable system operation. From breakers and busbars to enclosures and wiring accessories, knowing each component ensures proper selection, easy maintenance, and compliance with safety standards.
Linkwell provides high-quality, customizable parts lists and solutions, helping you reduce downtime, streamline procurement, and keep your electrical panels performing at their best.
